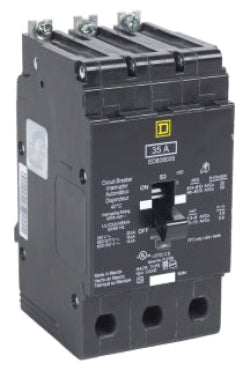

EDB36035 - Square D 35 Amp 600 Volt 3-Pole Thermal Magnetic Miniature Circuit Breaker

EDB36035

EDB36035 - Schneider Electric E-Frame miniature circuit breaker, 35A, 3-pole, 600Y/347VAC, bolt-on mounting.This thermal-magnetic circuit breaker provides superior overload and short-circuit protection for lighting panelboards. Rated at 35A with 14kA interrupting capacity at 600Y/347VAC, it features bolt-on mounting, aluminum/copper lugs, and trip indicator. E-Frame design supports 15-125A ratings in Square D NF panelboards.

• Part Number: EDB36035
• Manufacturer: Schneider Electric
• Amperage: 35A
• Voltage: 600Y/347VAC
• Poles: 3
• Frame: E-Frame
• Mounting: Bolt-On
• Interrupt Rating: 14kA @ 600Y/347VAC
• Trip Unit: Thermal-Magnetic
• Protection: Long-Time and Instantaneous
• Wire Range: AWG 14-2/0 CU, AWG 12-2/0 AL
• Application: HACR/HID Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB36035
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 600
• Amperage : 35
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : D; E-Frame
• Temp Rating : 104 ¡F (40 ¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 2/0 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901234401
• GTIN : 00785901234401
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 2.94 in (74.68 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 3.64
• Panel Type : NF panelboard
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12...AWG 2/0 aluminum
  AWG 14...AWG 2/0 copper
