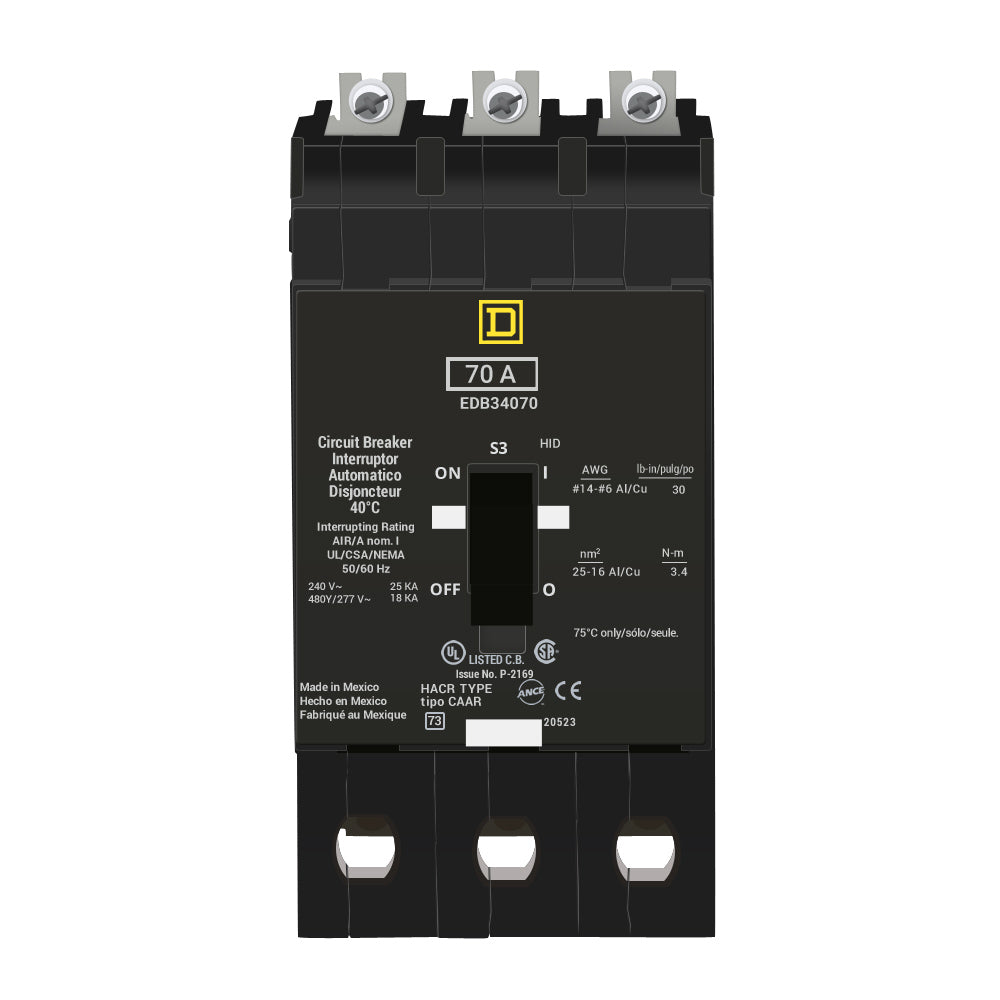

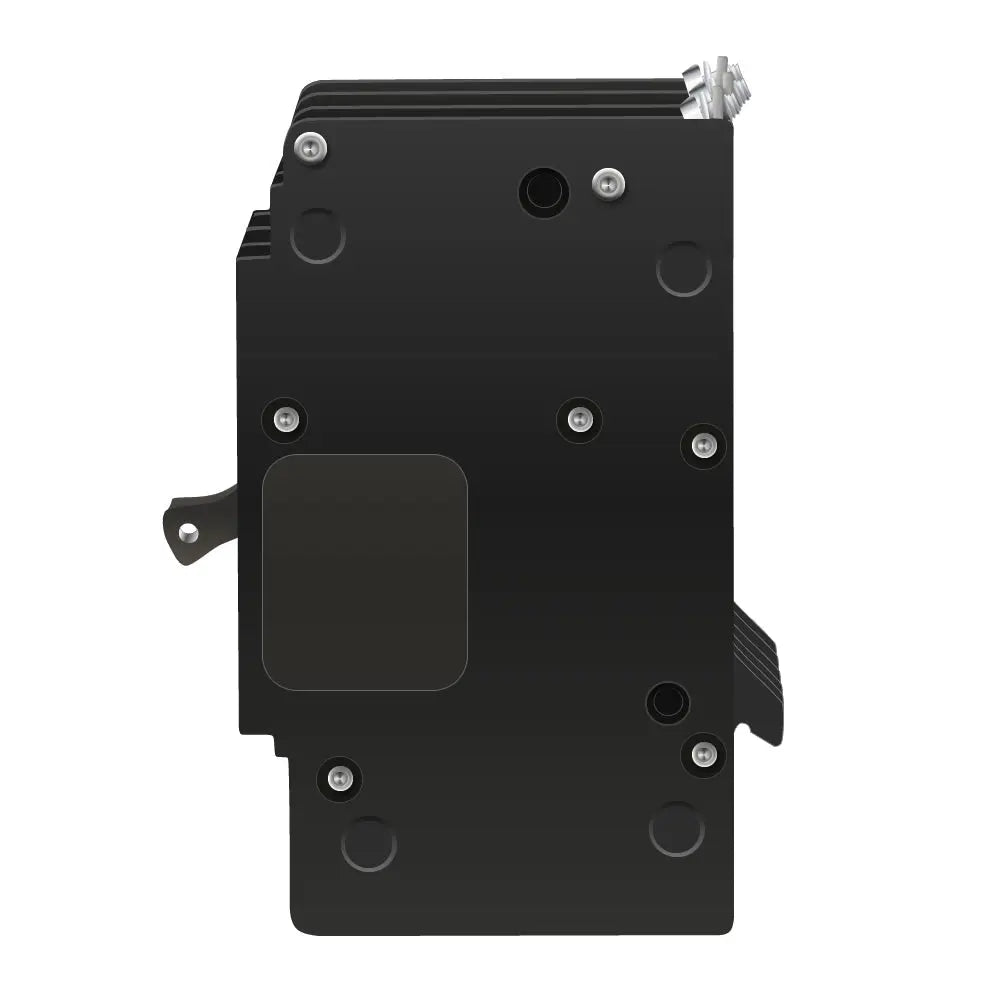

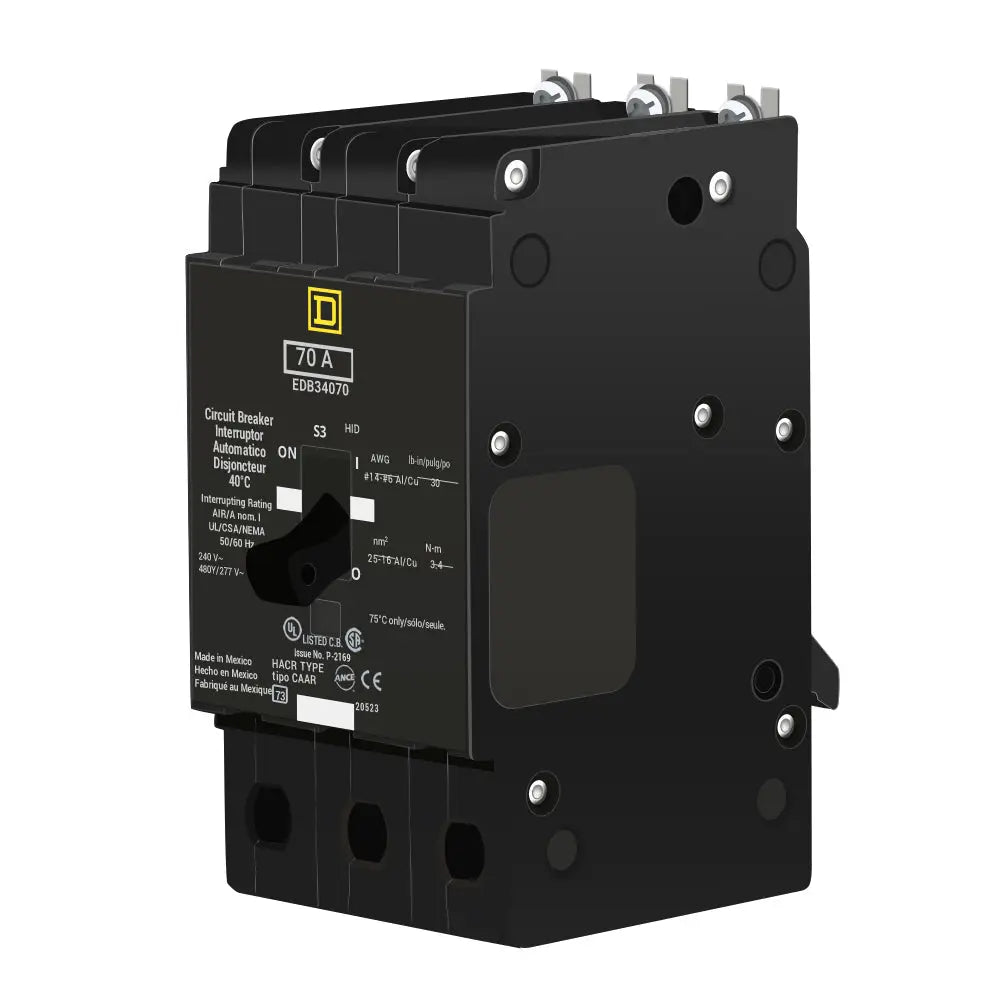

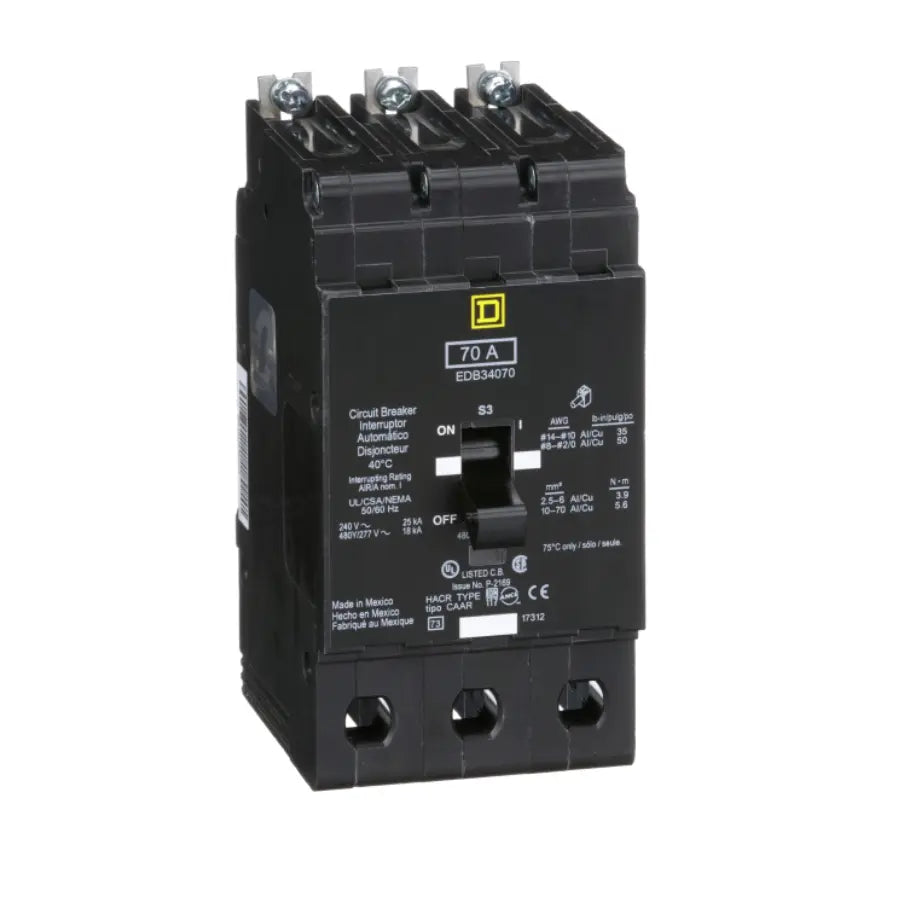

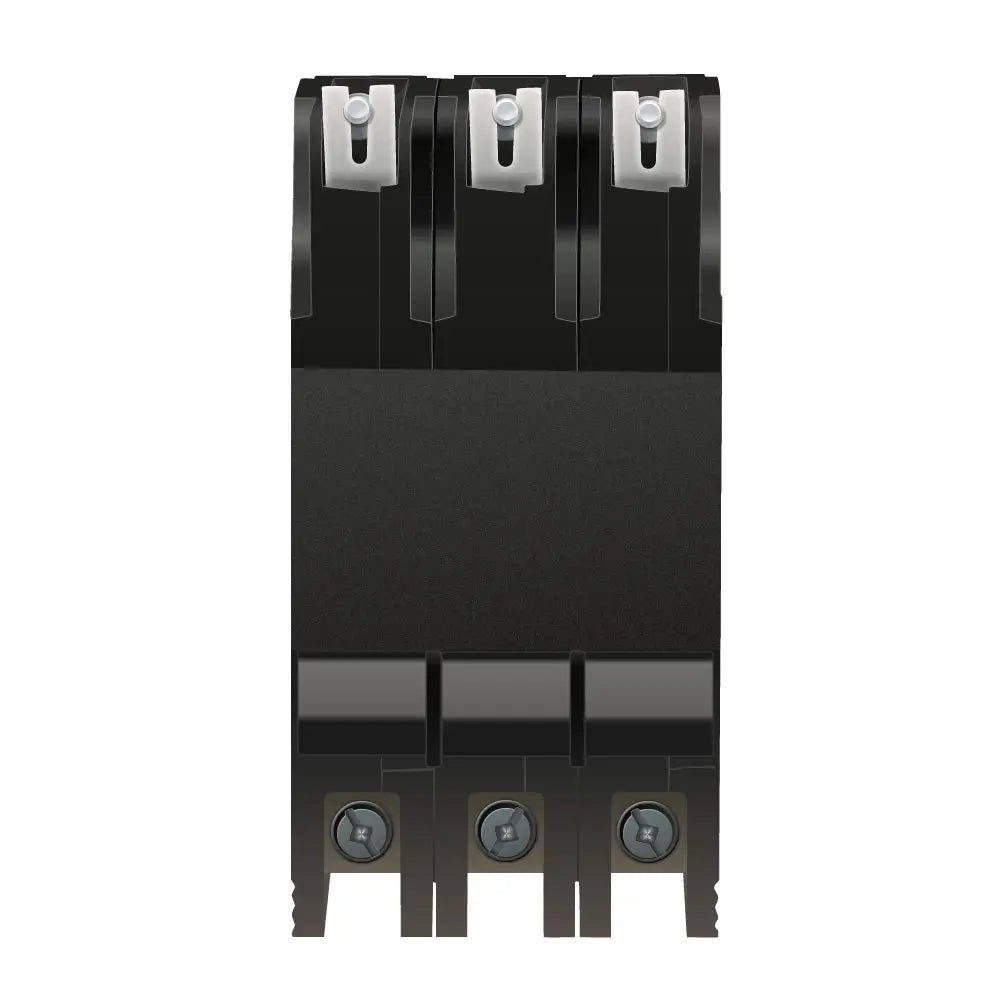

EDB34070 - Schneider Electric (Square D) 3-Pole 70 A 480Y/277 V AC Bolt-On Circuit Breaker, Type EDB

EDB34070

EDB34070 - Schneider Electric E-Frame molded case circuit breaker, 70A, 3-pole, 480Y/277V AC, bolt-on mounting for lighting panelboards.This thermal-magnetic miniature circuit breaker from the EDB series provides superior overload and short circuit protection with Visi-Trip indicator for faster troubleshooting. Rated for bolt-on installation in Square D NF panelboards, it features aluminum/copper lugs and supports a range of wire sizes.

• Part Number: EDB34070
• Manufacturer: Schneider Electric
• Amperage: 70 A
• Poles: 3
• Voltage: 480Y/277 V AC
• Frame/Series: E-Frame
• Mounting Type: Bolt-On
• Trip Unit: Thermal-Magnetic
• Interrupt Rating: 18 kA @ 480Y/277 V, 25 kA @ 240 V
• Certifications: UL Listed, CSA
• Application: Lighting Panelboards
• Wire Range: AWG 14-2/0 Copper, AWG 12-2/0 Aluminum

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB34070
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 480Y/277
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/EDB
• Temp Rating : 104 ¡F (40 ¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901875352
• GTIN : 00785901875352
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 2.94 in (74.68 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 3.45 lb
• Panel Type : NF panelboard
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12 to AWG 2/0, Aluminum, AWG 14 to AWG 2/0, Copper
