Product Info
- Manufacturer: Square D
- Sub-Category: Molded Case
Description
EDB34015

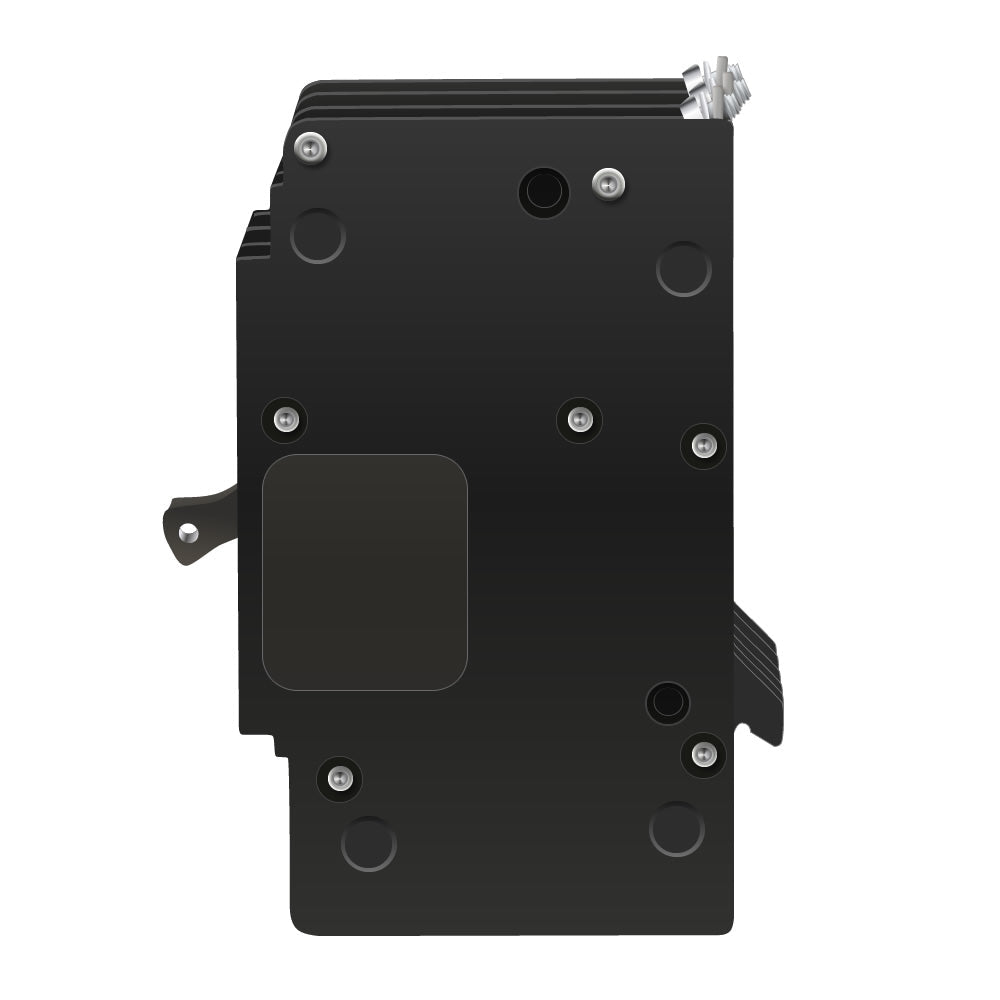

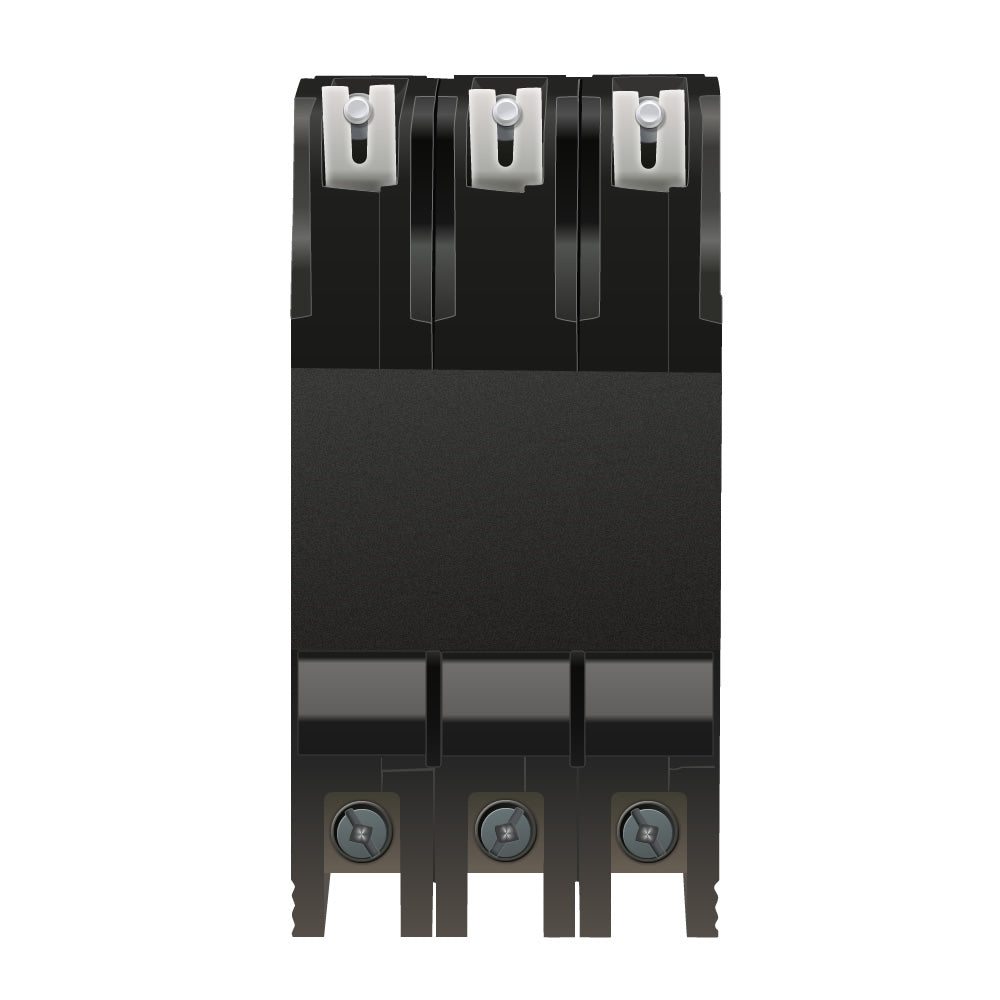

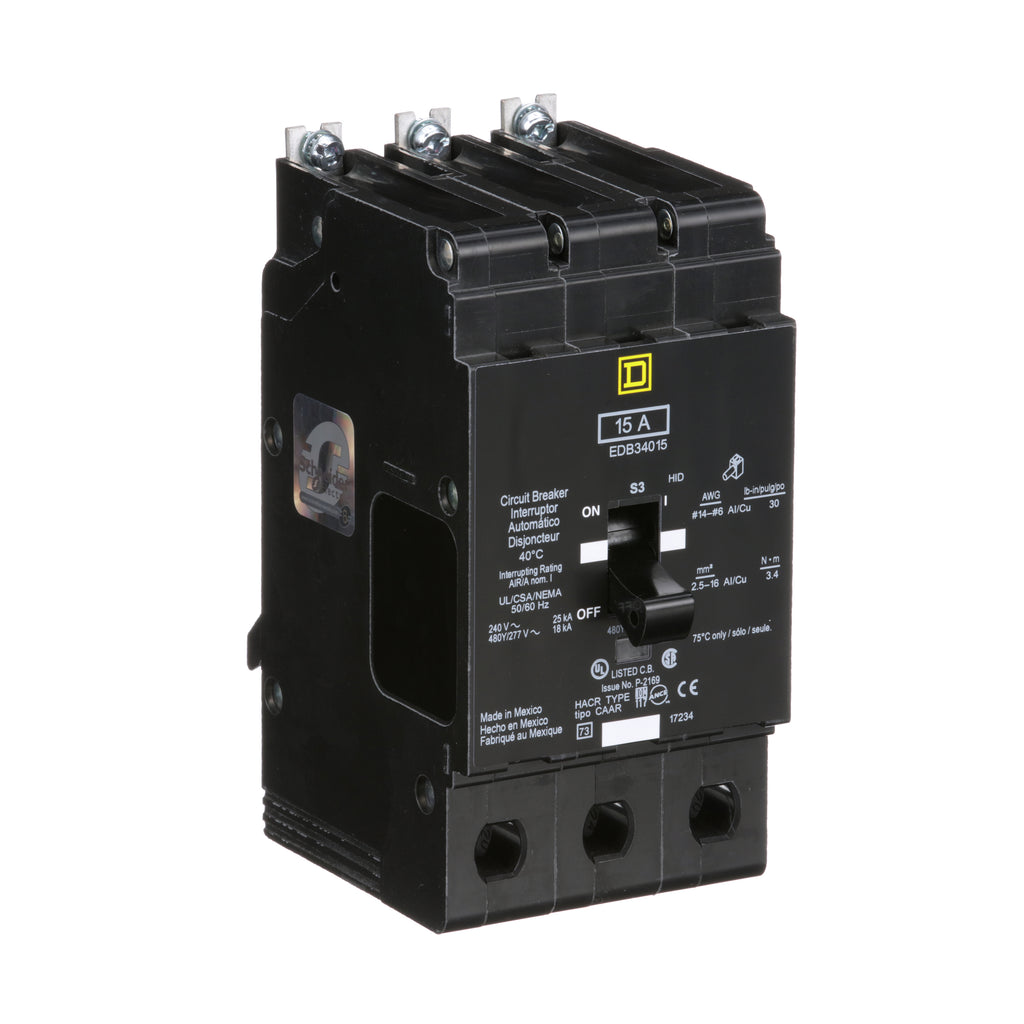

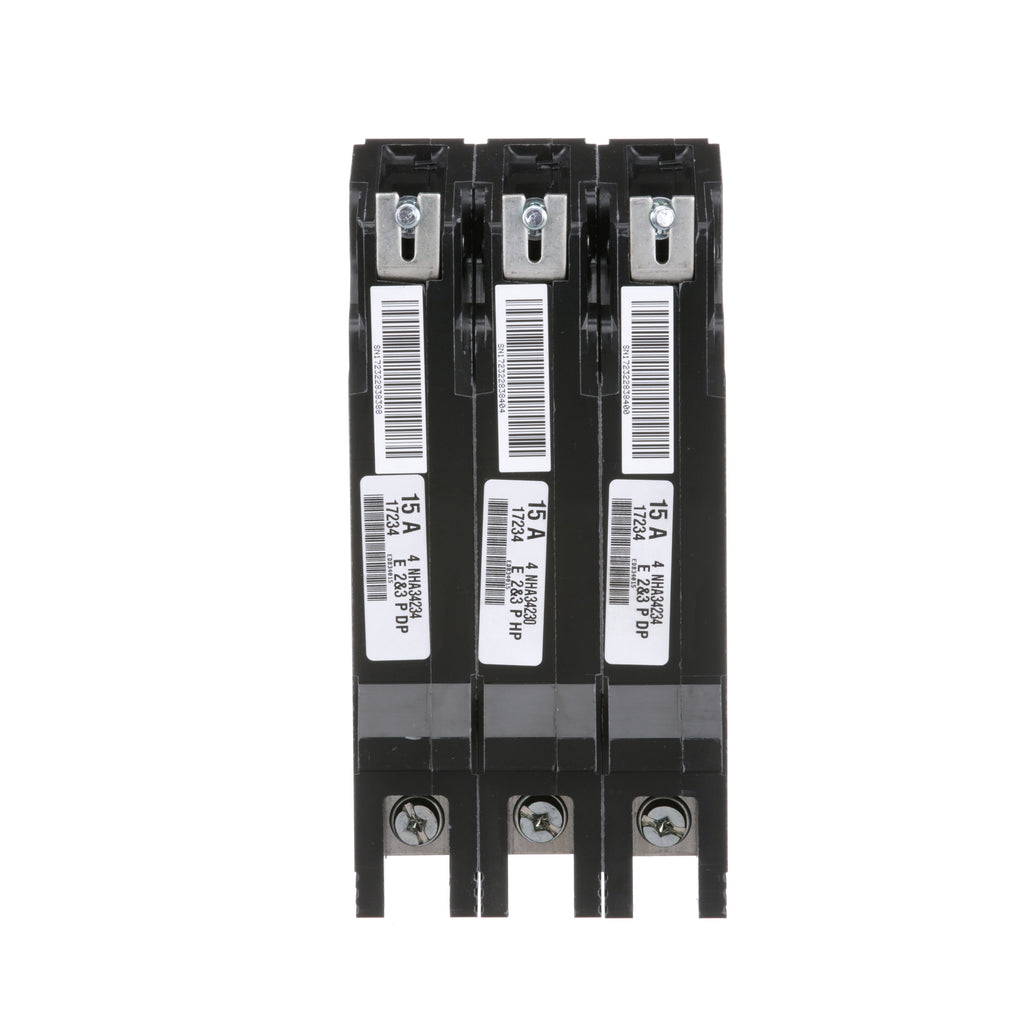

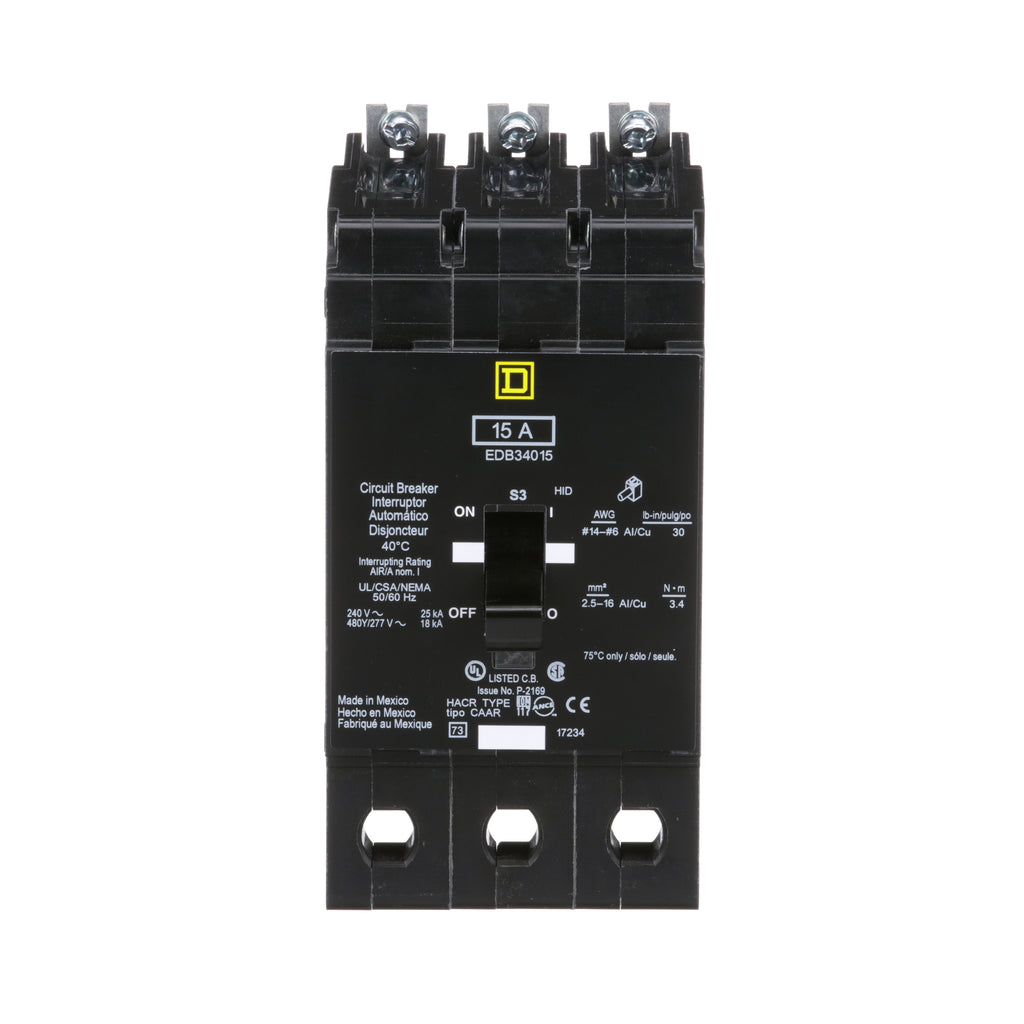

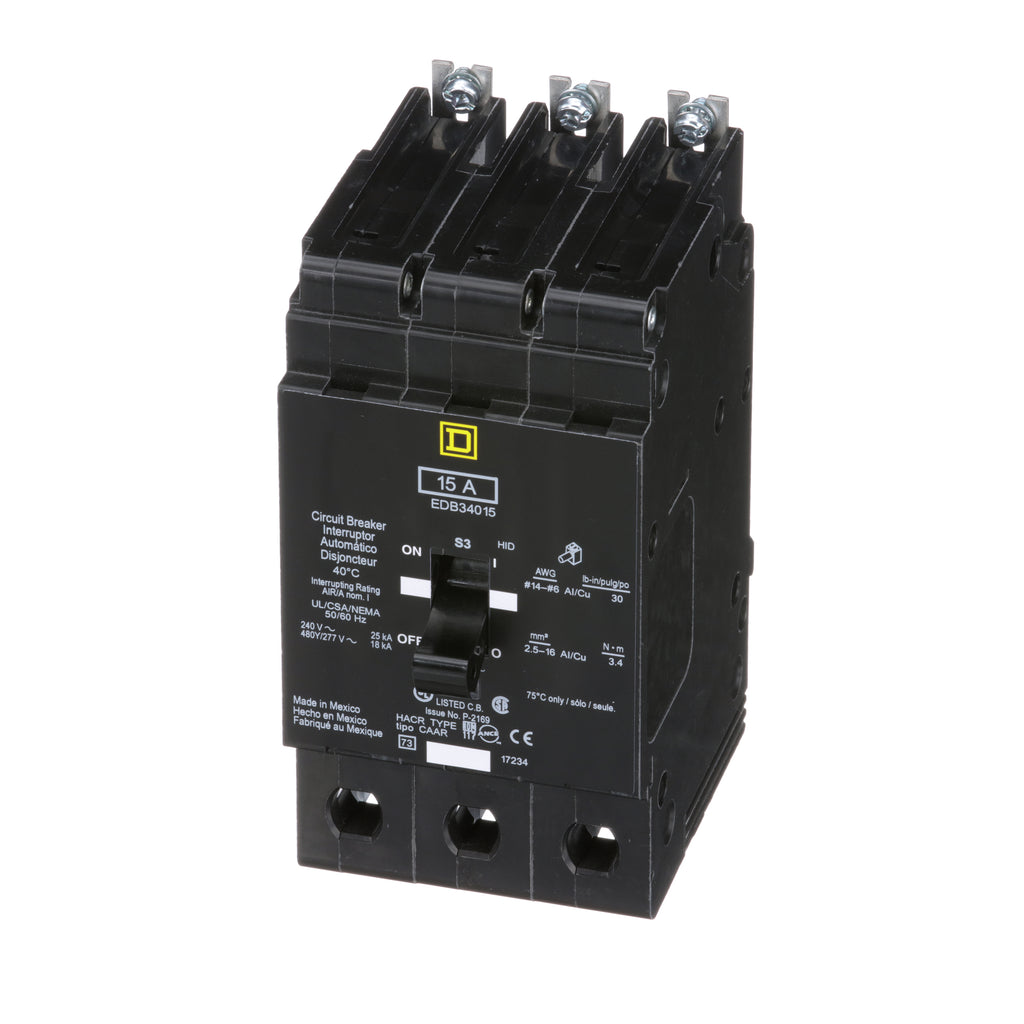

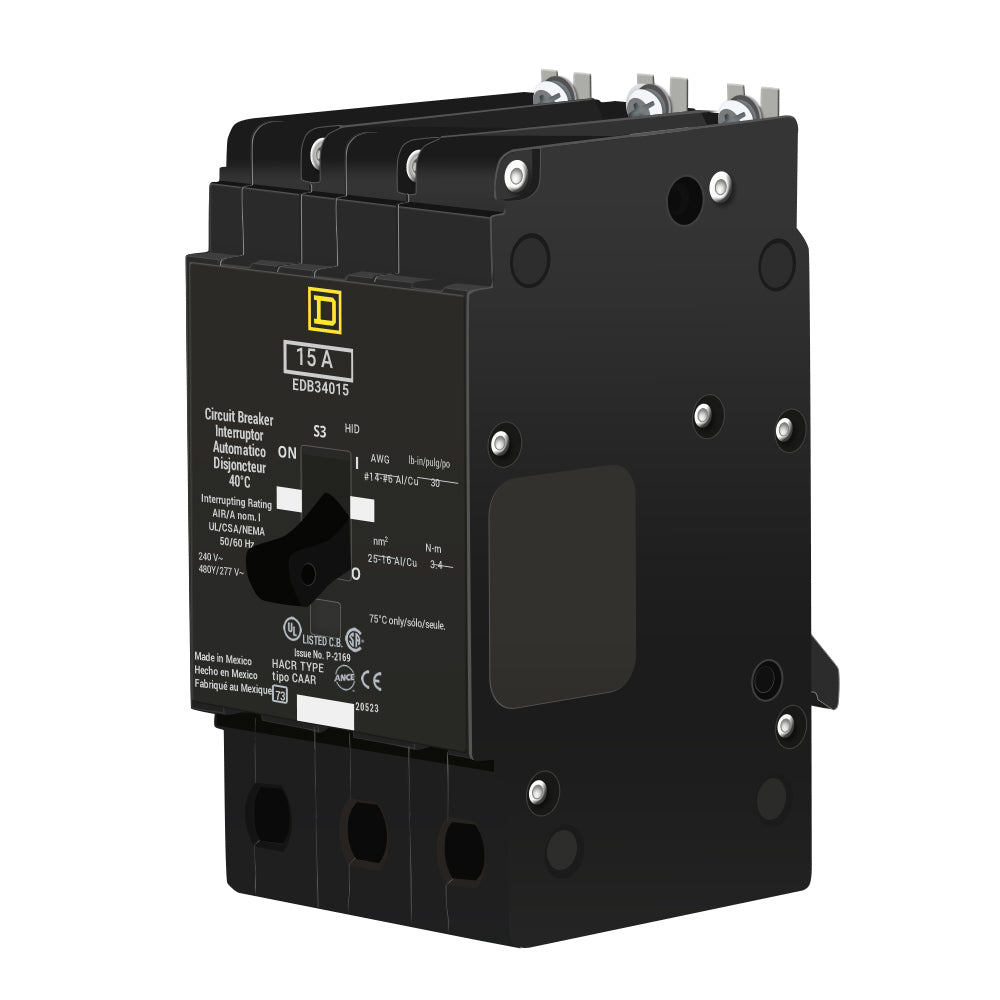

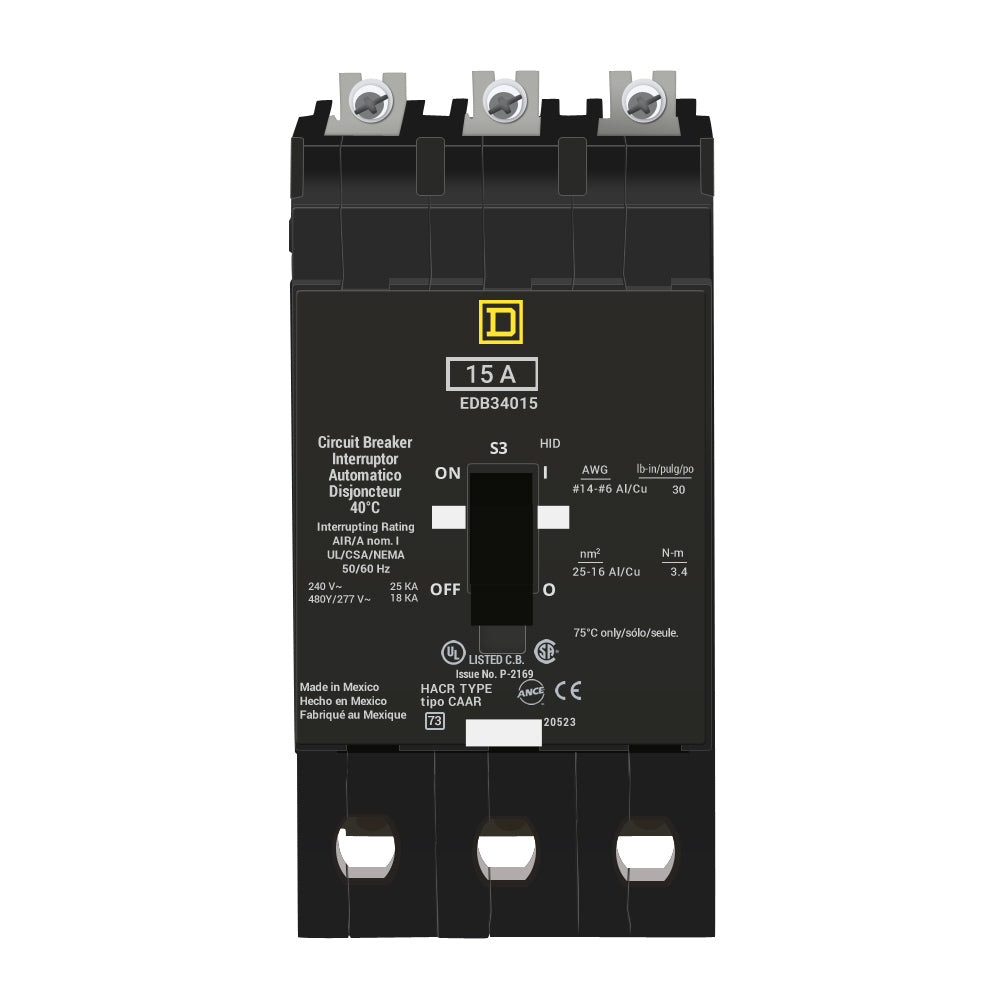

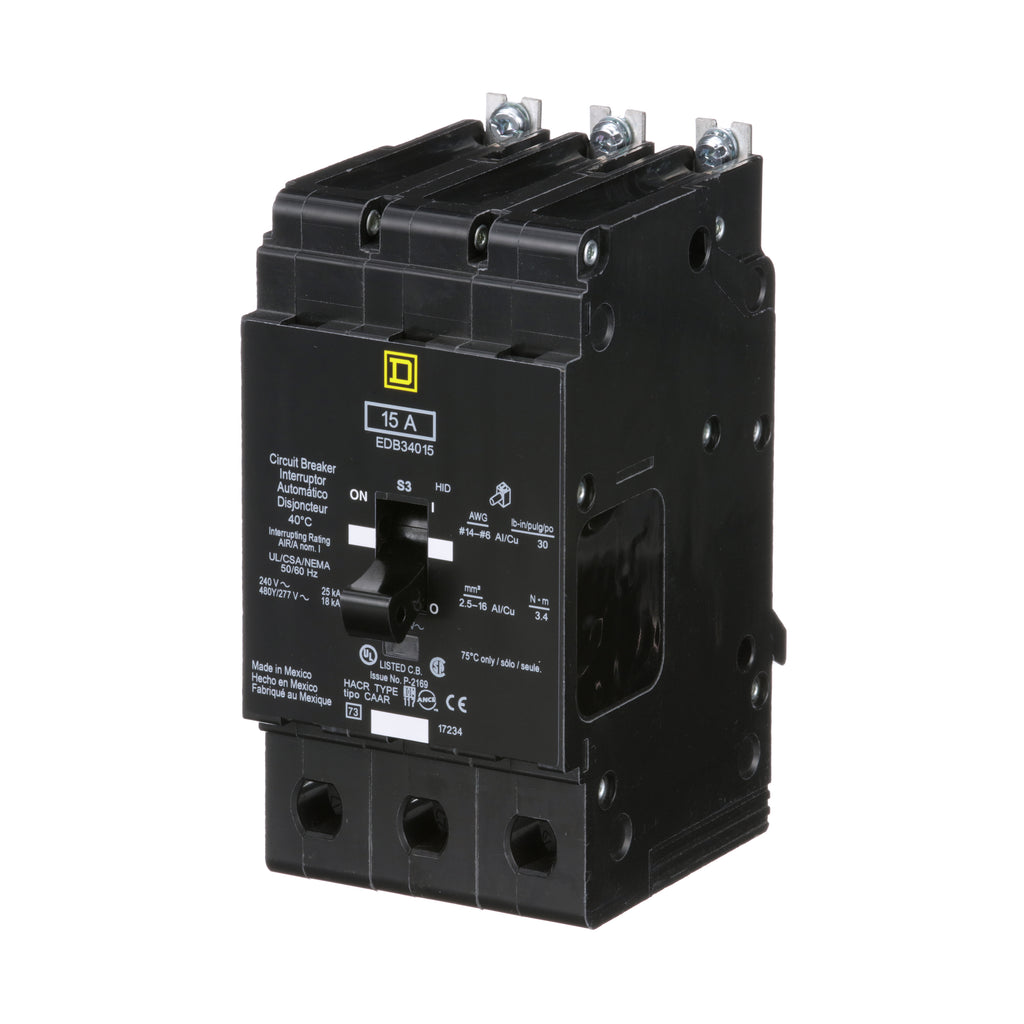

The Square D EDB34015 is a Molded Case Circuit Breaker. This type EDB circuit breaker is a member of The EDB Series family. The EDB34015 is a 3 pole, 480 Volt, 15 amp rated circuit breaker, with an AIC rating of 18kA@480V. The EDB34015 is manufactured by Square D. The EDB34015 uses a Bolt-On connection. Includes Thermal Magnetic protection. Every part Essential Electric sells is also backed by our industry-leading gold standard 2-year warranty.
Specifications
- Part Number: EDB34015
- Manufacturer : Square D
- Item Subcategory : Molded Case
- Family : EDB Series
- Type : EDB
- Voltage : 480
- Amperage : 15
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : 125A/EDB
- MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
- Breaker Type : Standard
- Temp Rating : 104 °F (40 °C)
Product Data
- UPC : 785901875239
- GTIN : 785901875239
- Country of Origin : Mexico
- Dimensions : Height 5.66 in (143.76 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 3.65 lb
- Panel Type : NF panelboard
- Standards : cULus
- Certification : cULus
- Wire Size : AWG 12...AWG 6 aluminum<br />AWG 14...AWG 6 copper
