EDB34060 - Square D Bolt-on 480V 60A 3 pole circuit breaker 18kA@480V

SKU: EDB34060-New

Title: New
Price:
Sale price $225.99
Stock:
In stock, ready to be shipped

We also have No Box, Recertified, and Surplus options available.
Call (866) 377-3532 for a price!

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

Description

EDB34060

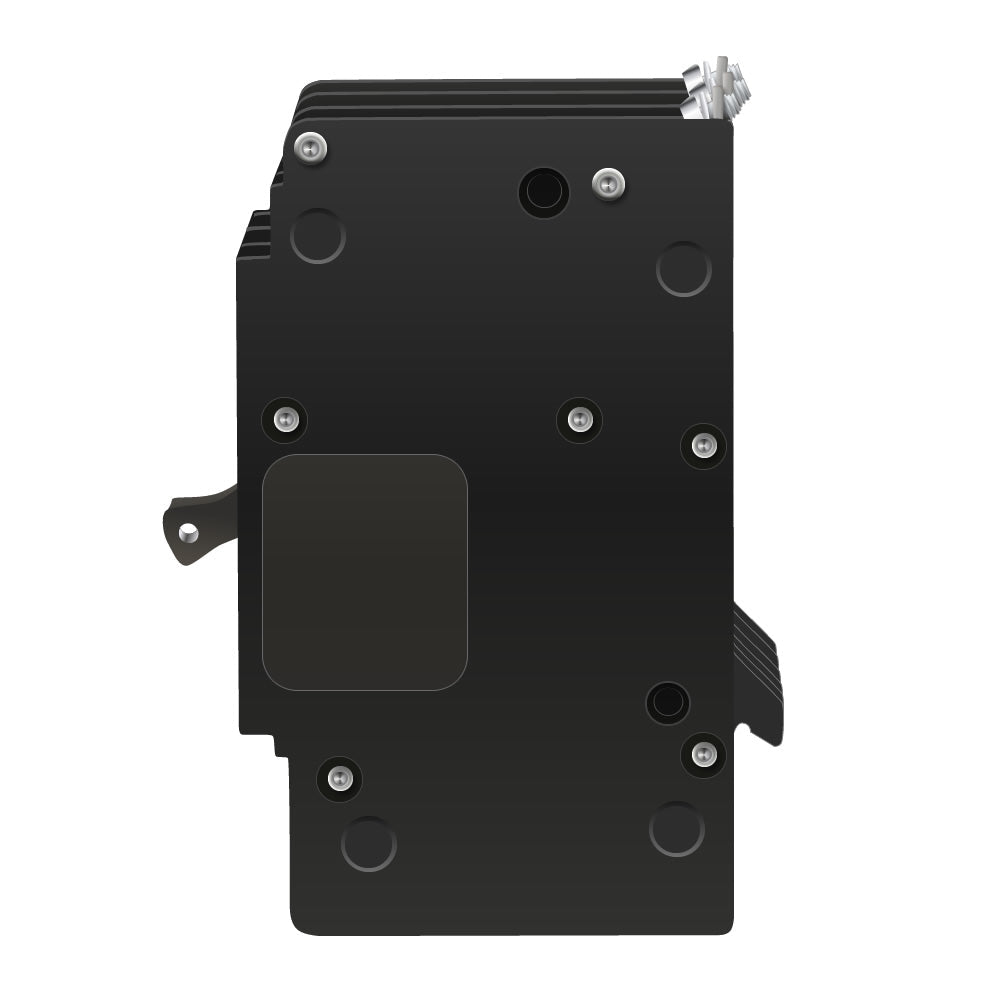

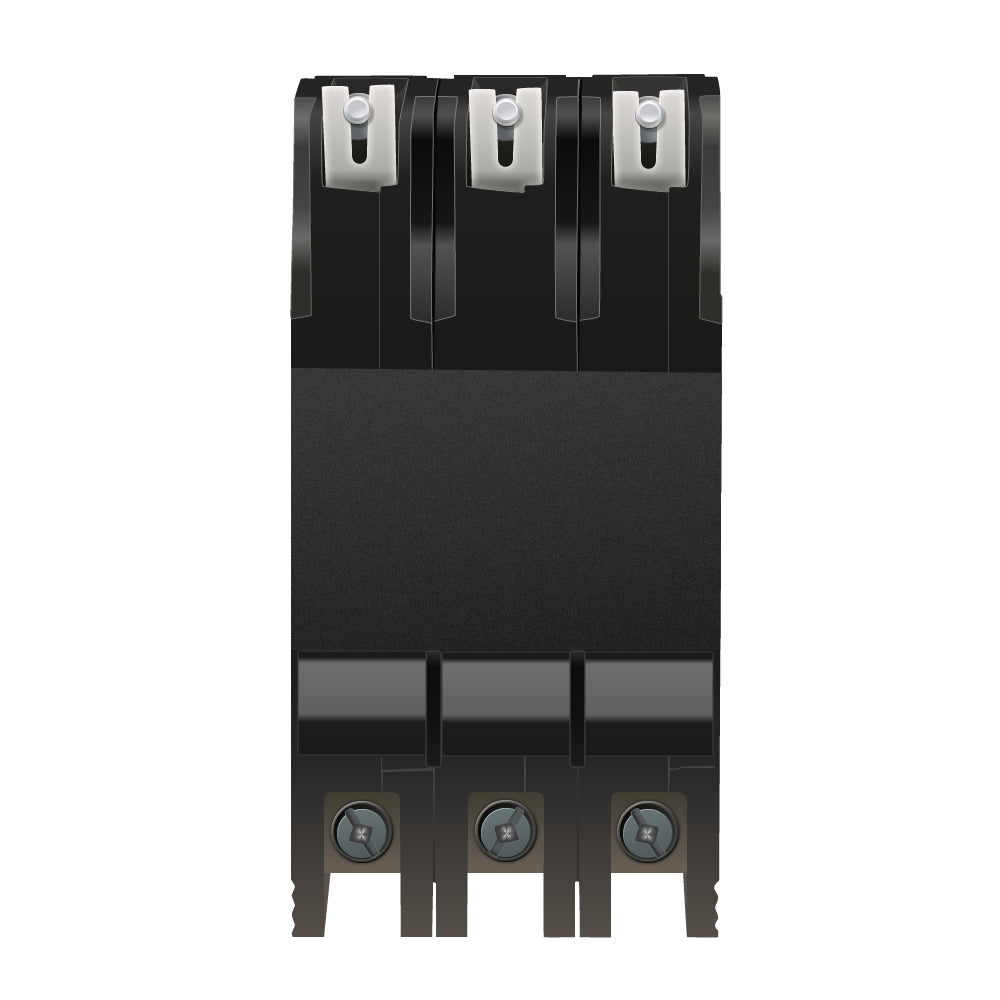

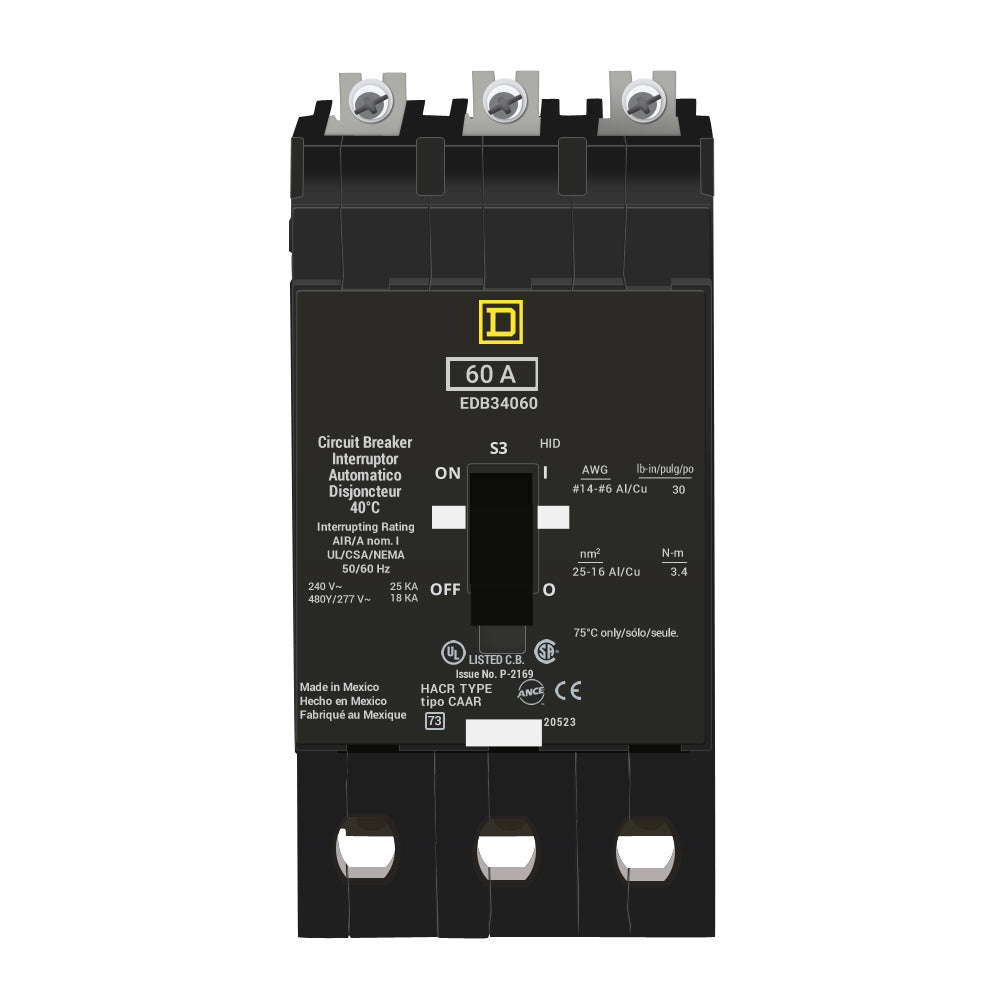

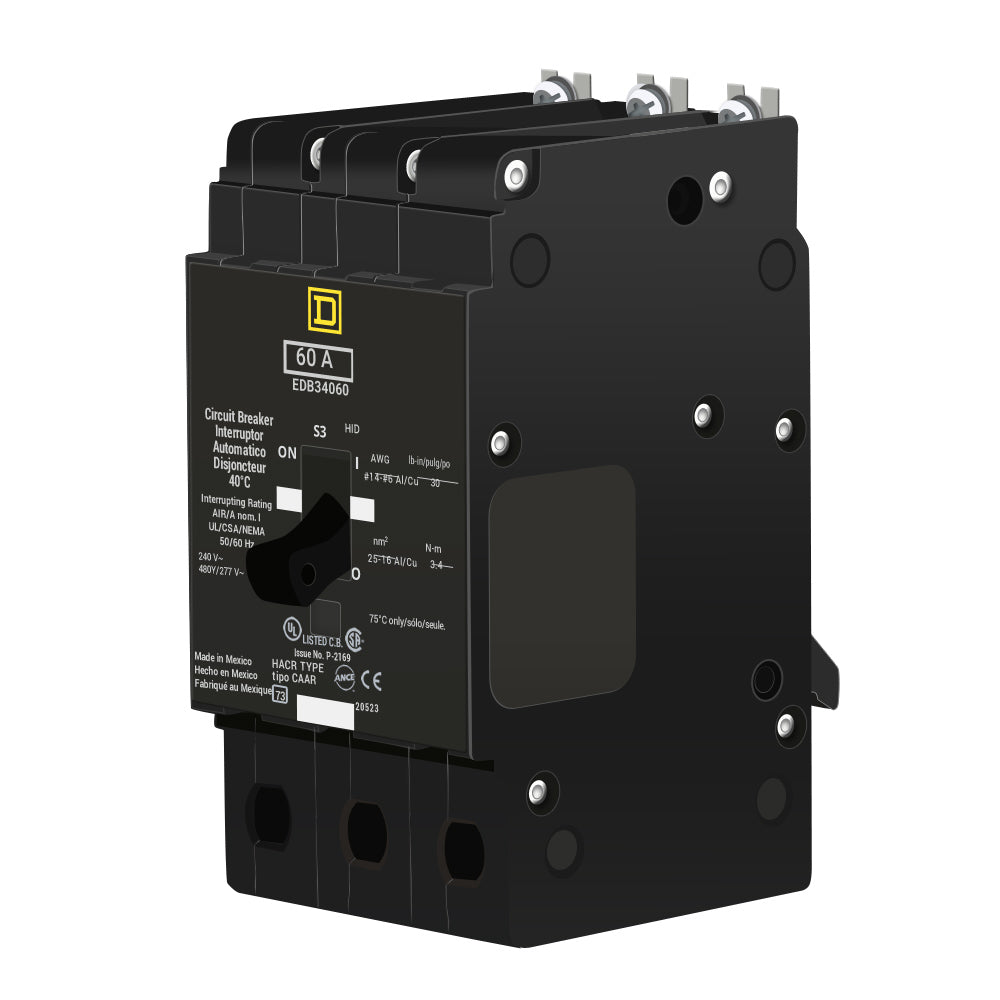

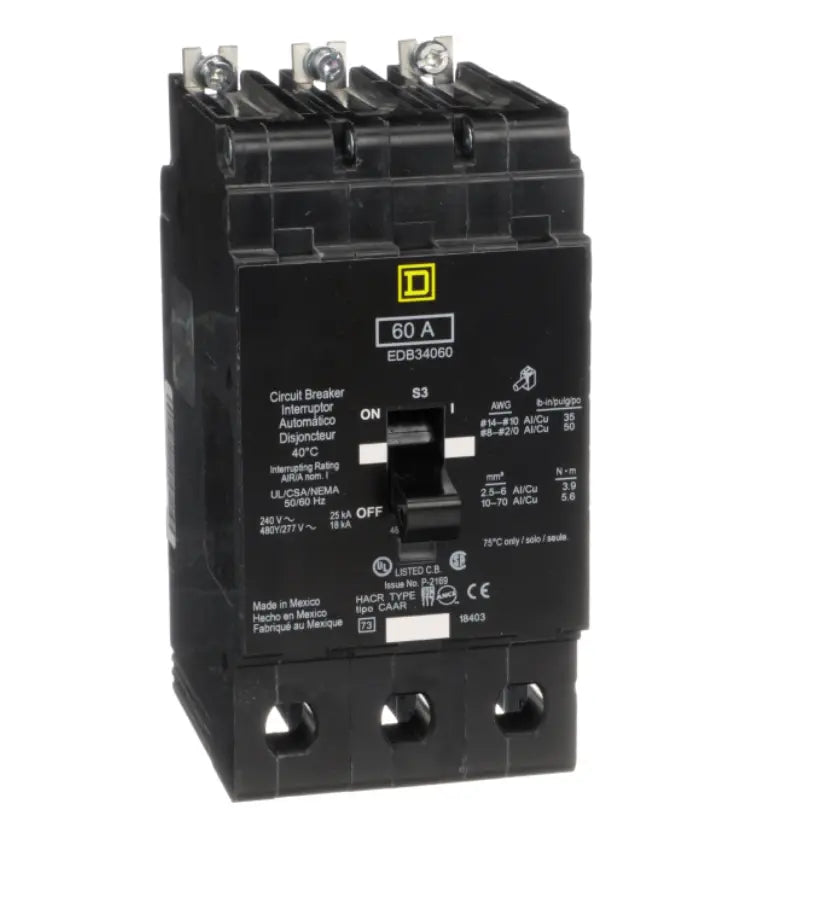

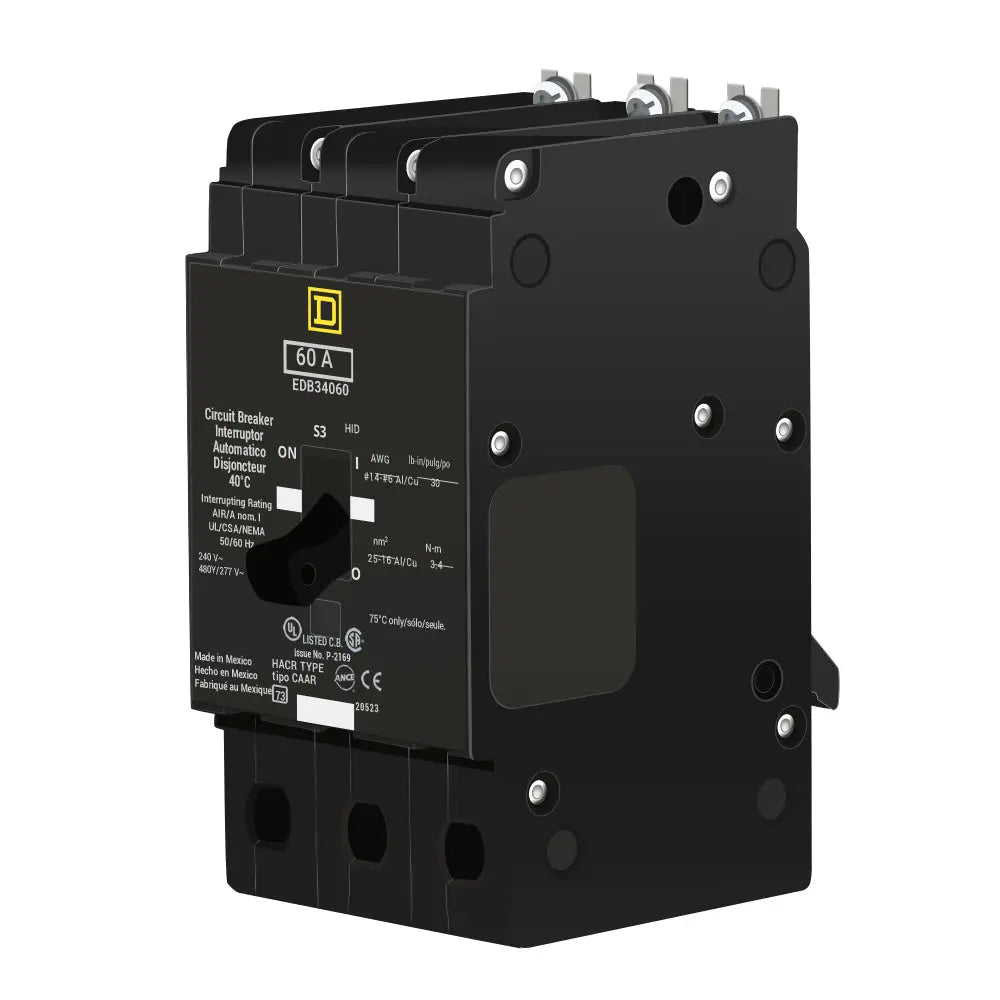

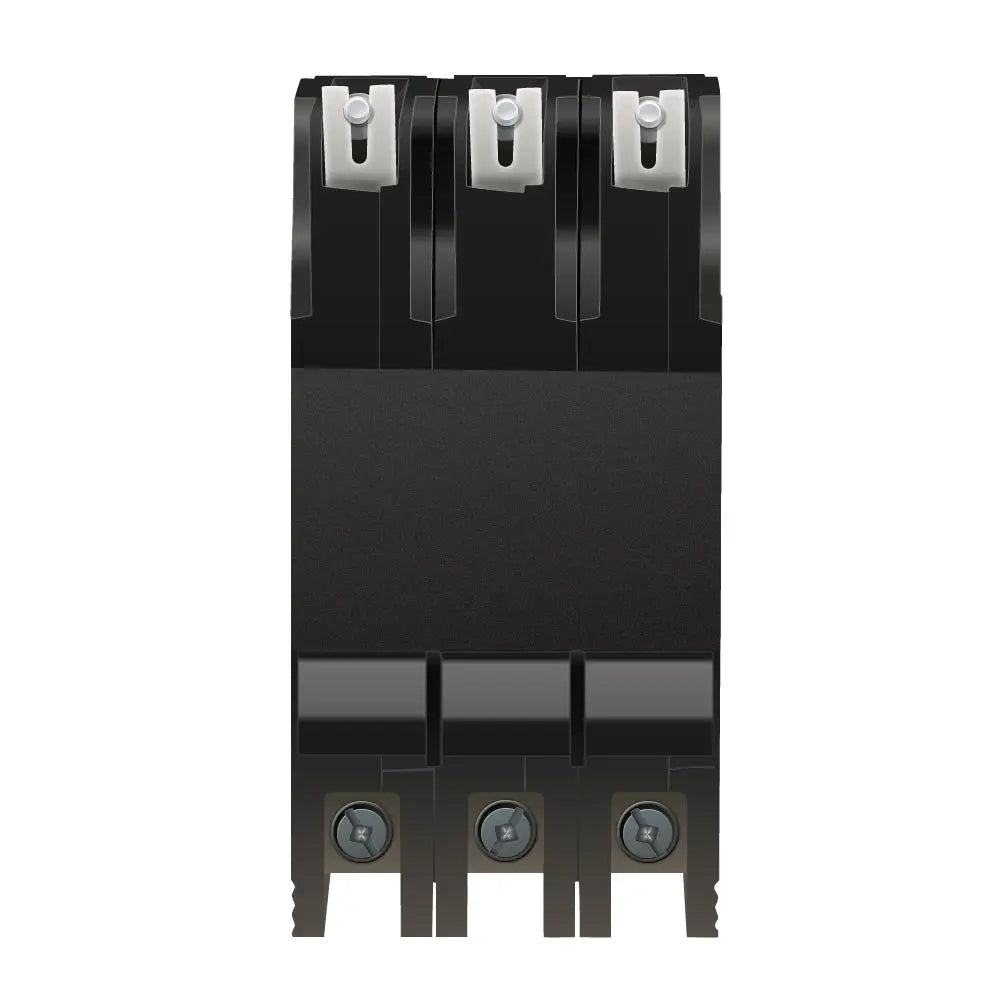

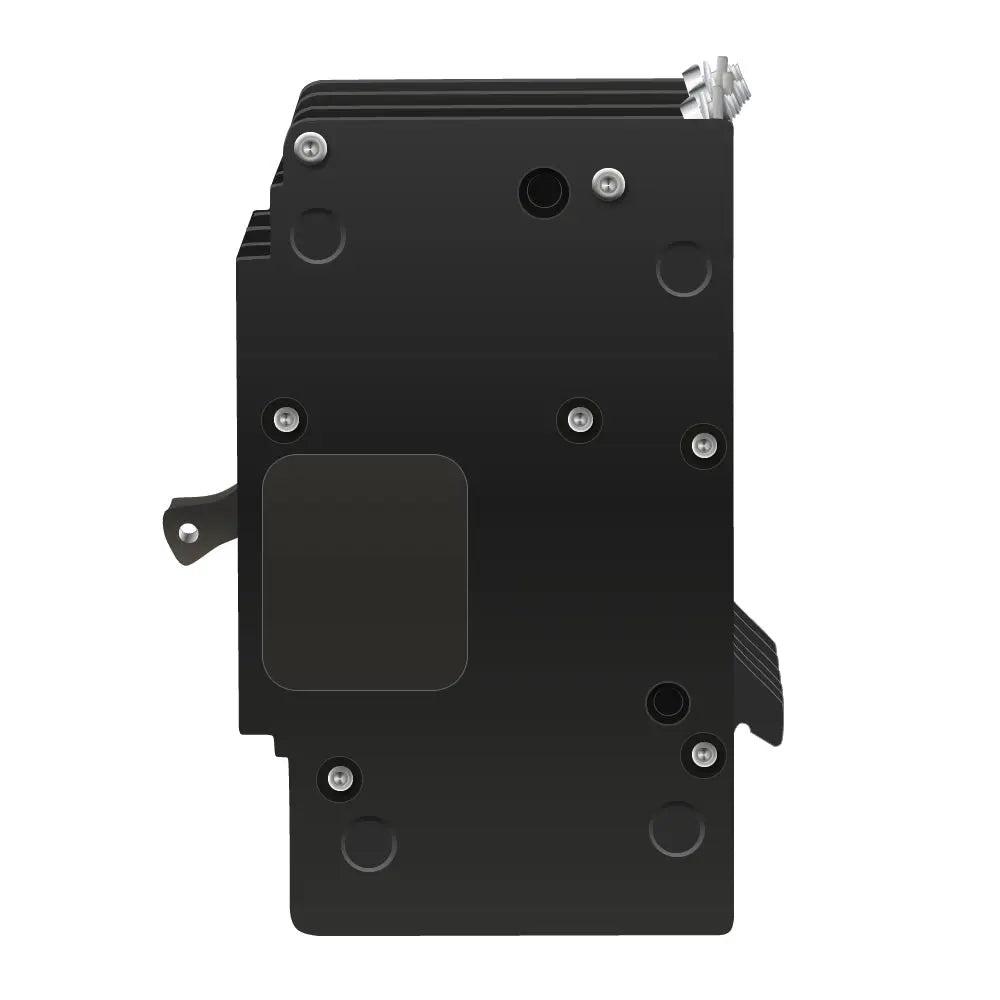

The Square D EDB34060 is a Molded Case Circuit Breaker. This type EDB circuit breaker is a member of The EDB Series family. The EDB34060 is a 3 pole, 480 Volt, 60 amp rated circuit breaker, with an AIC rating of 18kA@480V. The EDB34060 is manufactured by Square D. The EDB34060 uses a Bolt-on connection. Includes Thermal Magnetic protection. Every part Essential Electric sells is also backed by our industry-leading gold standard 2-year warranty.


Specifications

  • Part Number: EDB34060
  • Manufacturer : Square D
  • Item Subcategory : Molded Case
  • Family : EDB Series
  • Type : EDB
  • Voltage : 480
  • Amperage : 60
  • Phase : 3
  • Poles : 3
  • AIC rating : 18kA@480V
  • Connection : Bolt-on
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Lug
  • Frame Size : 125A/EDB
  • MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 2 AWG
  • Breaker Type : Standard
  • Temp Rating : 104 °F (40 °C)

Product Data

  • UPC : 785901875345
  • GTIN : 785901875345
  • Country of Origin : Mexico
  • Dimensions : Height 5.66 in (143.76 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
  • Weight : 3.68
  • Panel Type : NF panelboard
  • Standards : cULus
  • Certification : cULus
  • Wire Size : AWG 12...AWG 2/0 aluminum<br />AWG 14...AWG 2/0 copper
