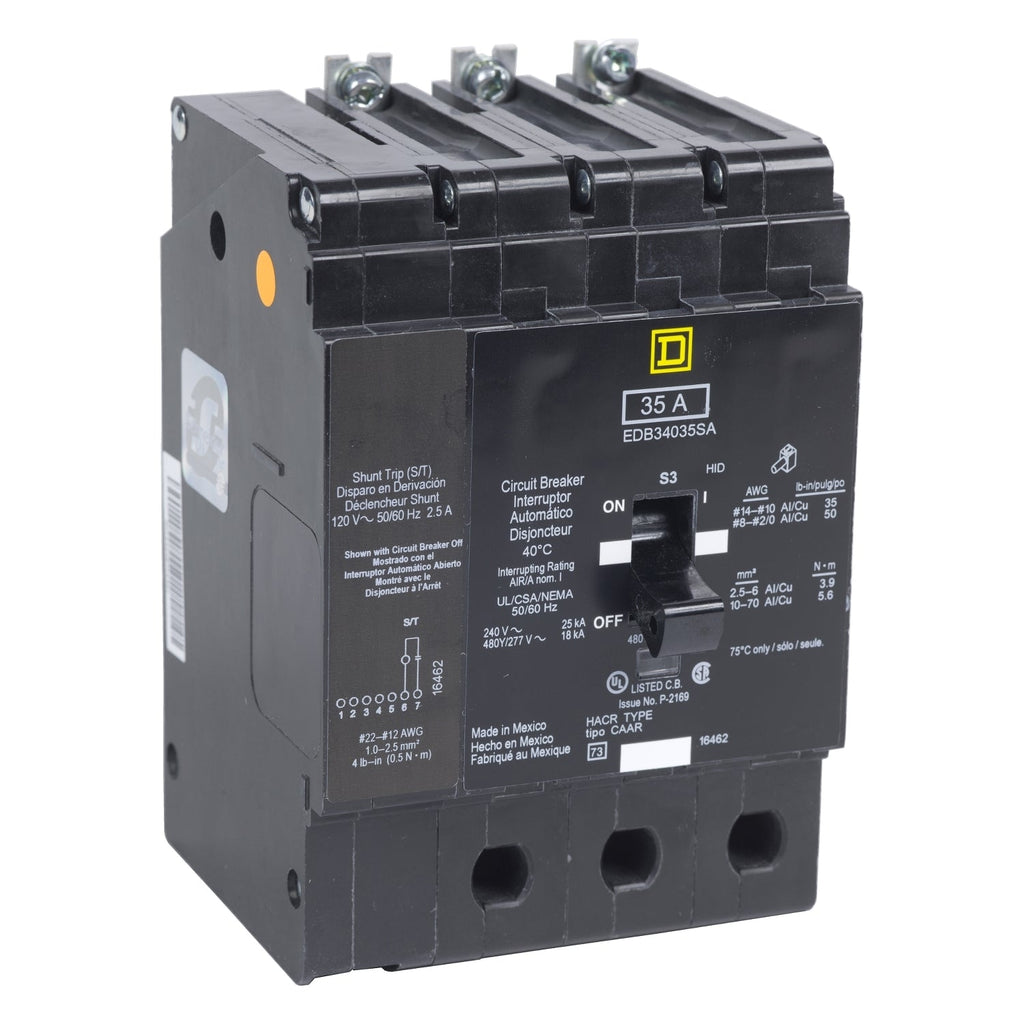

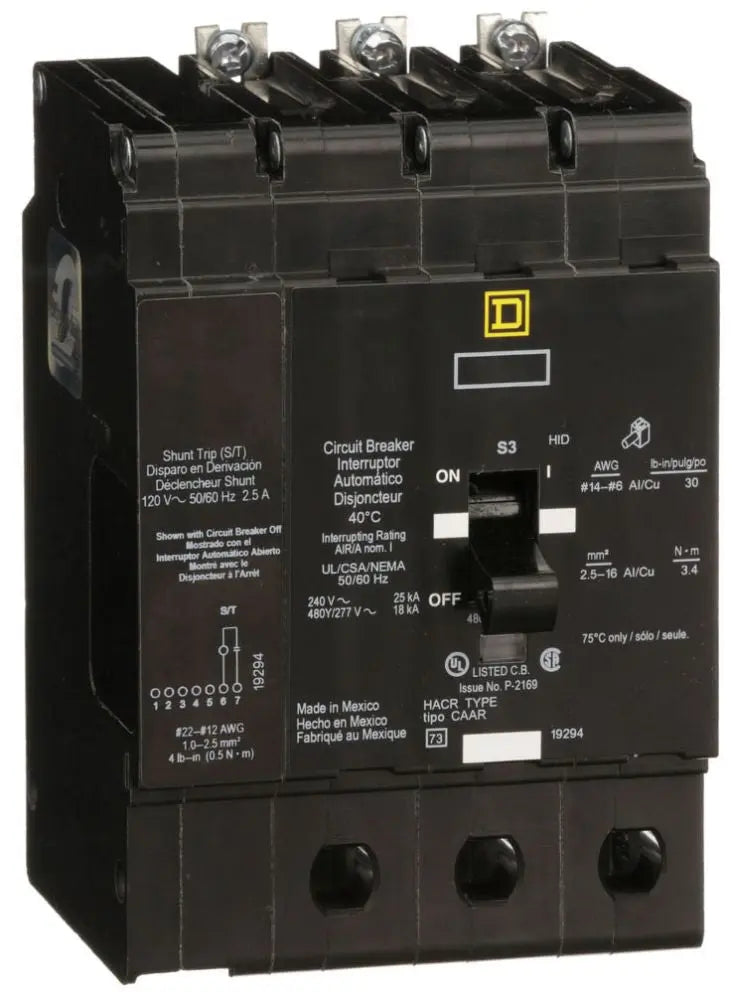

EDB34035SA - Schneider Electric (Square D) 3-Pole 35 A 480Y/277 V AC Bolt-On Circuit Breaker with Shunt Trip, Type EDB

EDB34035SA

EDB34035SA is a Schneider Electric E-Frame 3-pole miniature circuit breaker rated at 35A with factory-installed shunt trip for 480Y/277V AC systems.This thermal magnetic circuit breaker provides superior overload and short circuit protection in lighting panelboards and Class 515 NF series applications. It features bolt-on mounting, lever actuator, and shunt trip capability for remote operation. Rated for 120/240/277 VAC at 50/60 Hz and 480 VAC star/277 VAC, with verified interrupting capacities including 18 kA at 480Y/277 VAC.

• Amperage: 35A
• Poles: 3
• Voltage: 480Y/277 VAC
• Frame: E-Frame
• Mounting: Bolt-On
• Trip Type: Thermal Magnetic
• Shunt Trip: 120 VAC
• Interrupt Rating: 18 kA at 480Y/277 VAC
• Application: Lighting Panelboards
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120V shunt trip

Specifications

• Part Number: EDB34035SA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 480
• Amperage : 35
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous
• Terminal Connection : Lug
• Temp Rating : 104 ¡F (40 ¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901770084
• GTIN : 00785901770084
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 3.92 in (99.57 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 4.21
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12 to AWG 2/0 Aluminum, AWG 14 to AWG 2/0, Copper
