EDB34025SA - Schneider Electric (Square D) 3-Pole 25 A 480Y/277 V AC Bolt-On Circuit Breaker with Shunt Trip, Type EDB

EDB34025SA

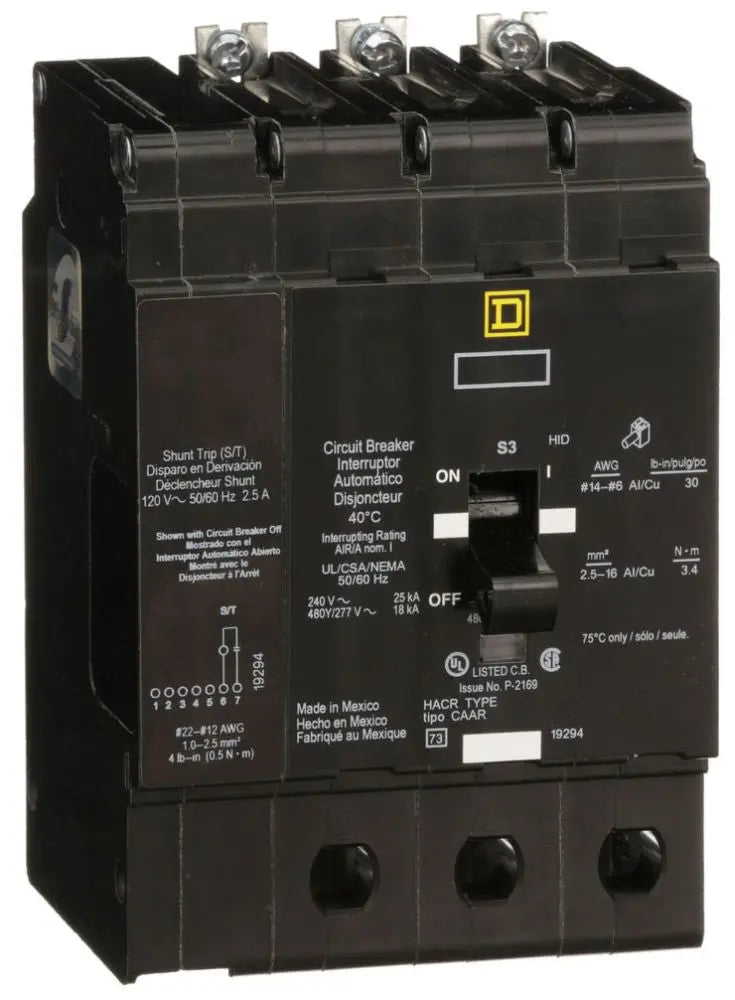

EDB34025SA is a miniature circuit breaker rated for 25 amperes, 3 poles, and 480Y/277V AC with a factory-installed shunt trip for remote control operation.

This Type EDB molded case circuit breaker features thermal magnetic tripping and is designed for use in lighting panelboards and Class 515 NF series panelboards. It provides superior overload and short circuit protection with an 18 kiloampere interrupting rating at 480Y/277V and 25 kiloampere at 120/240V. The breaker mounts bolt-on and accepts wire sizes from 14 to 6 AWG copper or 12 to 6 AWG aluminum.

• Amperage Rating: 25 Amp
• Number of Poles: 3
• Voltage Rating: 480Y/277V AC at 50/60 Hz
• Interrupt Rating: 18 kA at 480Y/277V
• Frame Type: E
• Mounting: Bolt-on
• Trip Unit: Thermal Magnetic
• Shunt Trip: 120 VAC factory-installed
• Wire Size: 14-6 AWG copper, 12-6 AWG aluminum
• Operating Temperature: 40 degrees C
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

complete with 120V shunt trip

Specifications

• Part Number: EDB34025SA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 480Y/277
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/EDB
• Temp Rating : 104 ¡F (40 ¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 2 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 785901546849
• GTIN : 00785901546849
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 3.92 in (99.57 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 4.21
• Panel Type : Square D NF Panelboards
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12 to 6 Aluminum, AWG 14 to 6 Copper
