EDB34025 - Schneider Electric (Square D) 3-Pole 25 A 480Y/277 V AC Bolt-On Circuit Breaker, Type EDB

EDB34025

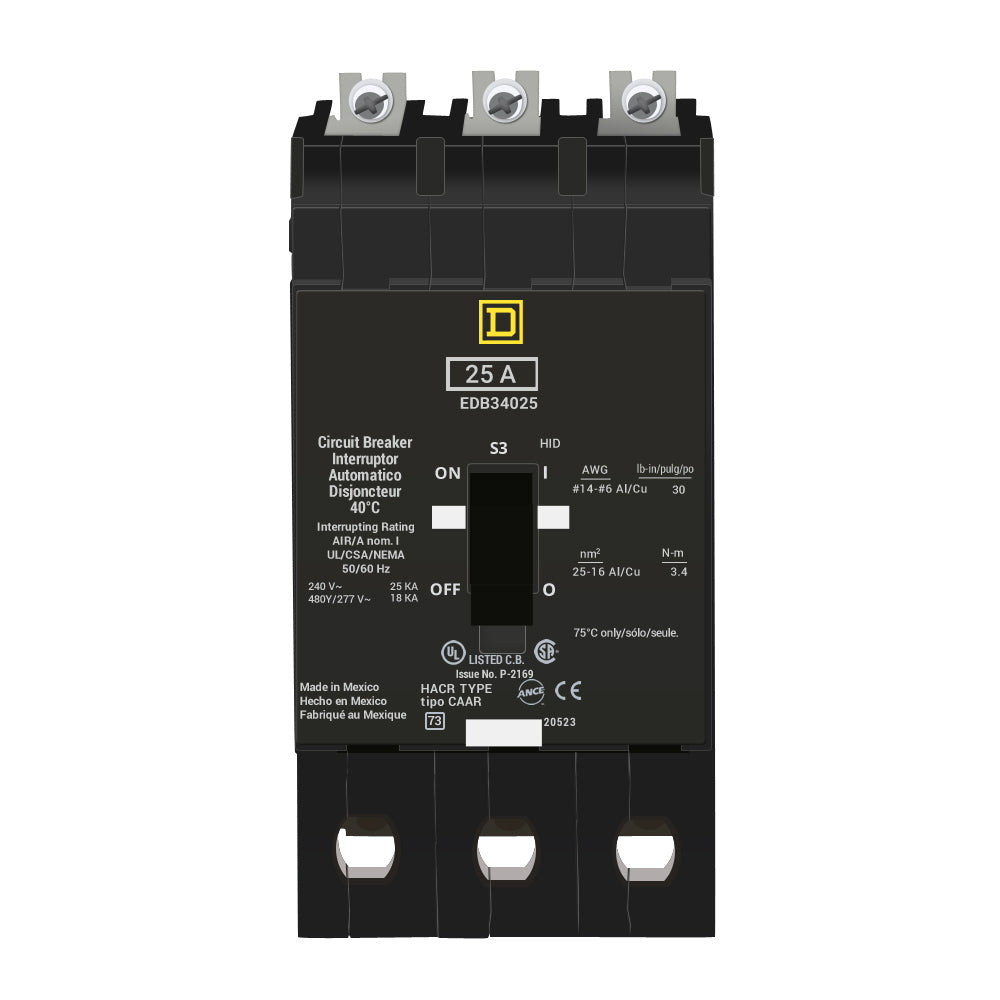

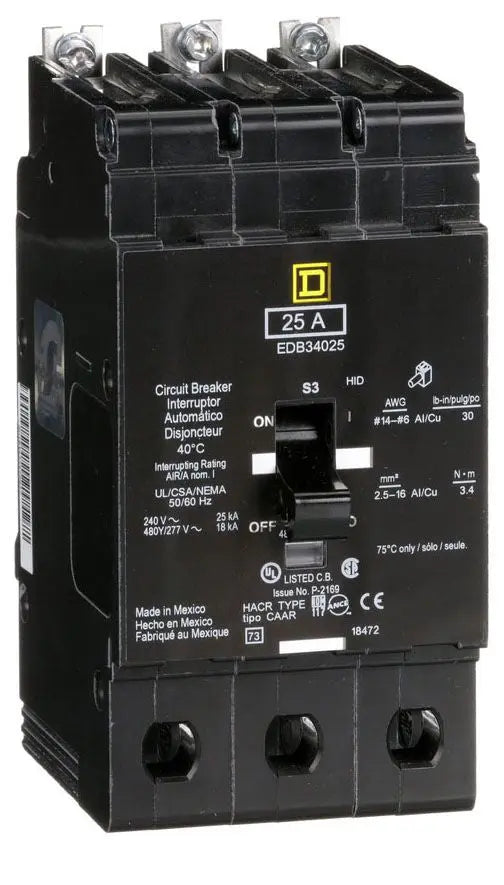

EDB34025 - Schneider Electric E-Frame molded case circuit breaker, 25A, 3-pole, bolt-on mounting for lighting panelboards.The EDB34025 features thermal-magnetic protection with long-time and instantaneous functions, Visi-Trip indicator for troubleshooting, and superior overload/short-circuit protection. Rated for 480Y/277V AC systems, it offers interrupt ratings of 18kA at 480Y/277V and 277V, 25kA at 240V and 120V. EDB series design ensures compatibility with Square D NF panelboards using aluminum or copper lugs.

• Part Number: EDB34025
• Manufacturer: Schneider Electric
• Amperage: 25A
• Poles: 3
• Voltage: 480Y/277V AC
• Mounting Type: Bolt-On
• Frame/Series: E-Frame / EDB
• Trip Unit: Thermal-Magnetic
• Interrupt Rating: 18kA@480Y/277V, 25kA@240V
• Protection: Short-Circuit / Overload
• Connection: Aluminum/Copper Lugs (AWG 14-6)
• Features: Visi-Trip Indicator

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB34025
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 480Y/277
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/EDB
• Temp Rating : 104 ¡F (40 ¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 785901875253
• GTIN : 00785901875253
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 2.94 in (74.68 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 3.627
• Panel Type : NF panelboard
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12 to AWG 6, Aluminum, AWG 14 to AWG 6, Copper
