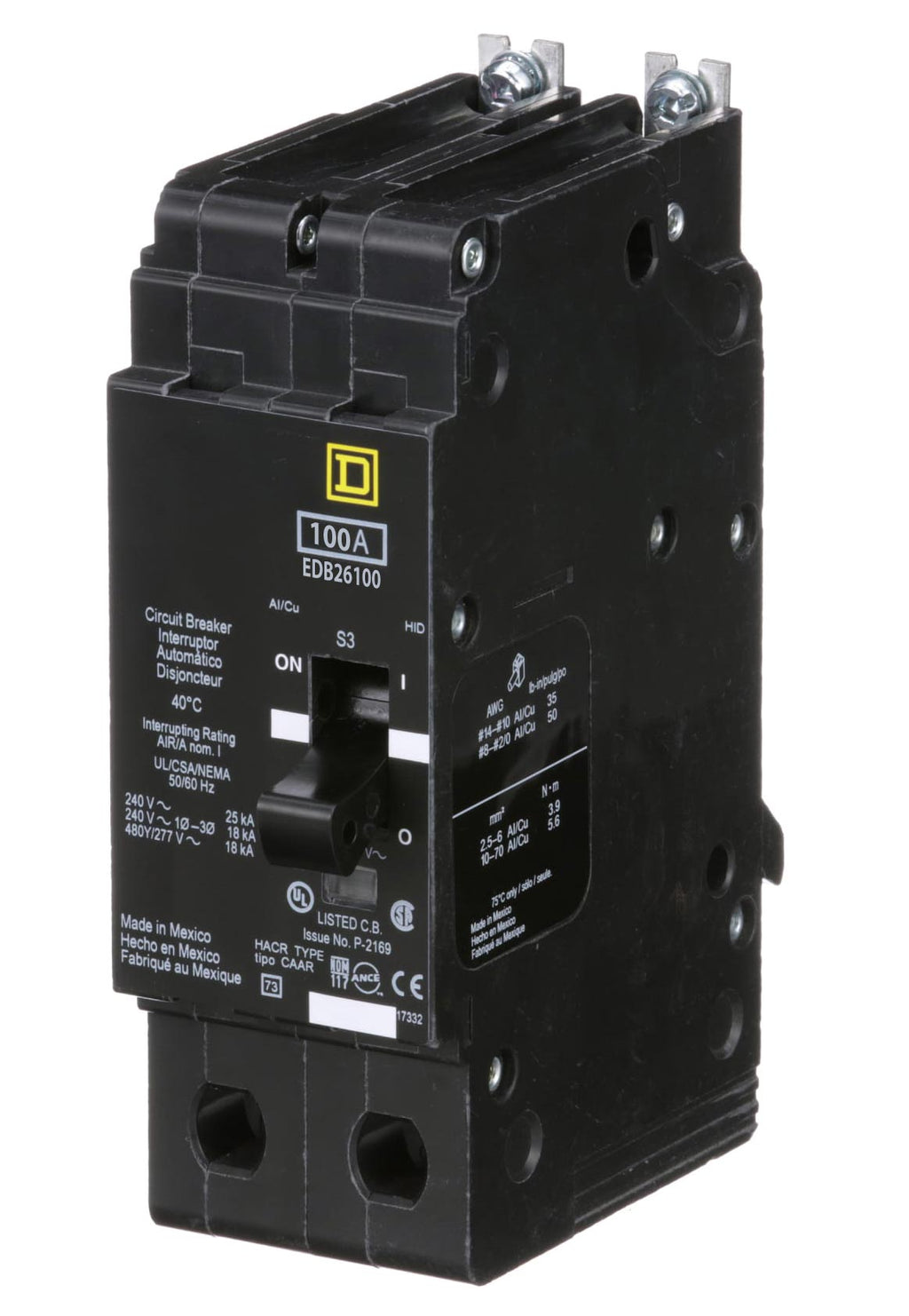

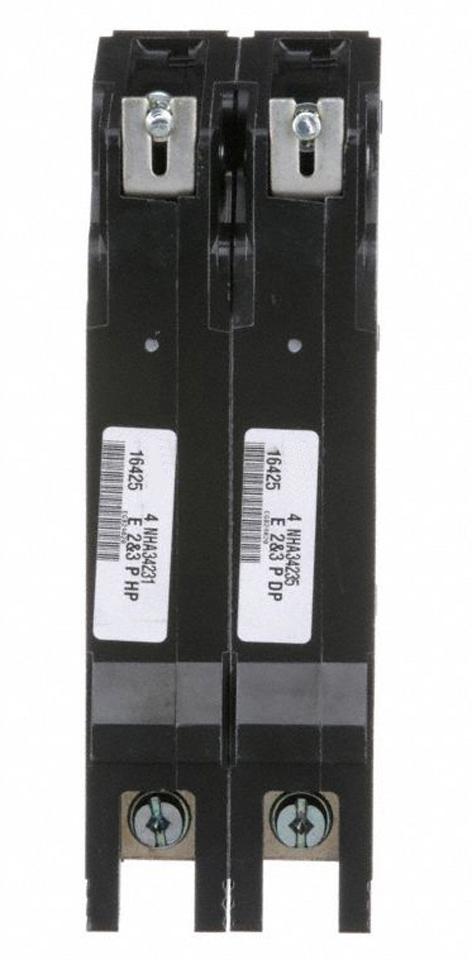

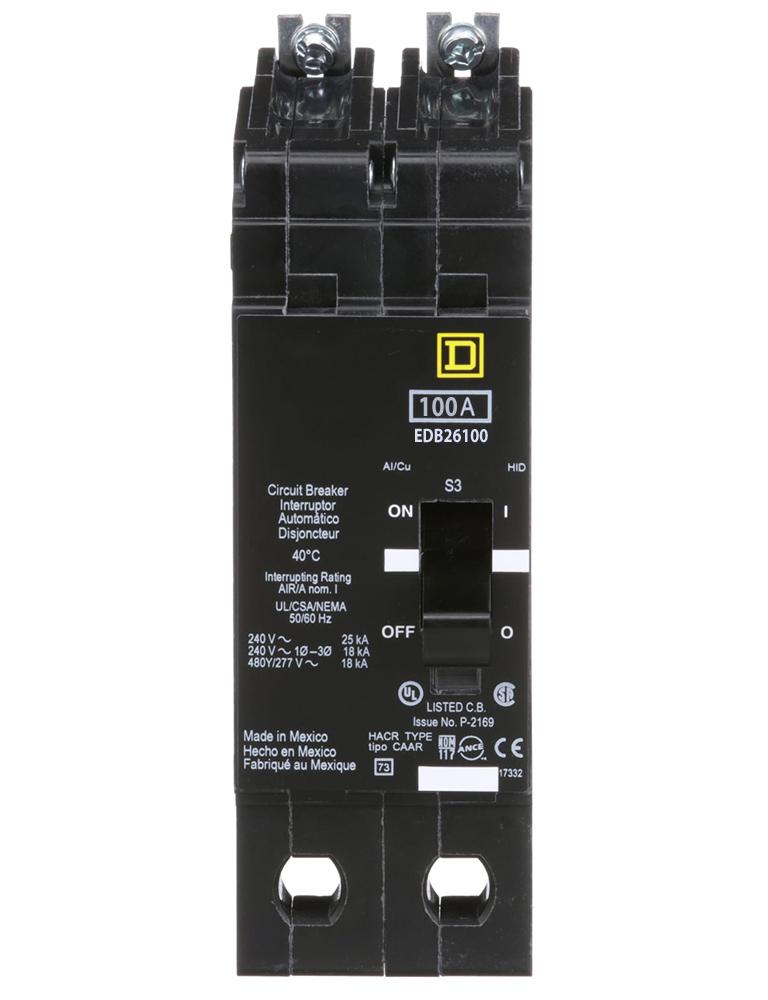

EDB26100 - Schneider Electric E-Frame 100A 2-Pole 600Y/347VAC 25kA Max Bolt-On Mini Circuit Breaker

EDB26100

EDB26100 is a 2-pole mini circuit breaker rated at 100A, 600Y/347V AC with superior overload and short-circuit protection. This E-Frame bolt-on breaker features thermal-magnetic protection and is designed for use in lighting panelboards with HACR rating and Visi-Trip indicator for faster troubleshooting. The breaker provides interrupt ratings of 14 kA at 600Y/347V AC, 18 kA at 480Y/277V AC, and 25 kA at 240V AC, making it suitable for a wide range of electrical distribution applications.

• Part Number: EDB26100
• Manufacturer: Schneider Electric (Square D)
• Amperage Rating: 100A
• Voltage Rating: 600Y/347V AC
• Number of Poles: 2
• Frame Type: E-Frame
• Mounting: Bolt-On
• Interrupt Rating: 25 kA Maximum
• Connection Type: Aluminum Lugs
• Trip Indicator: Visi-Trip
• Certifications: UL Listed, CSA, HOM Certified

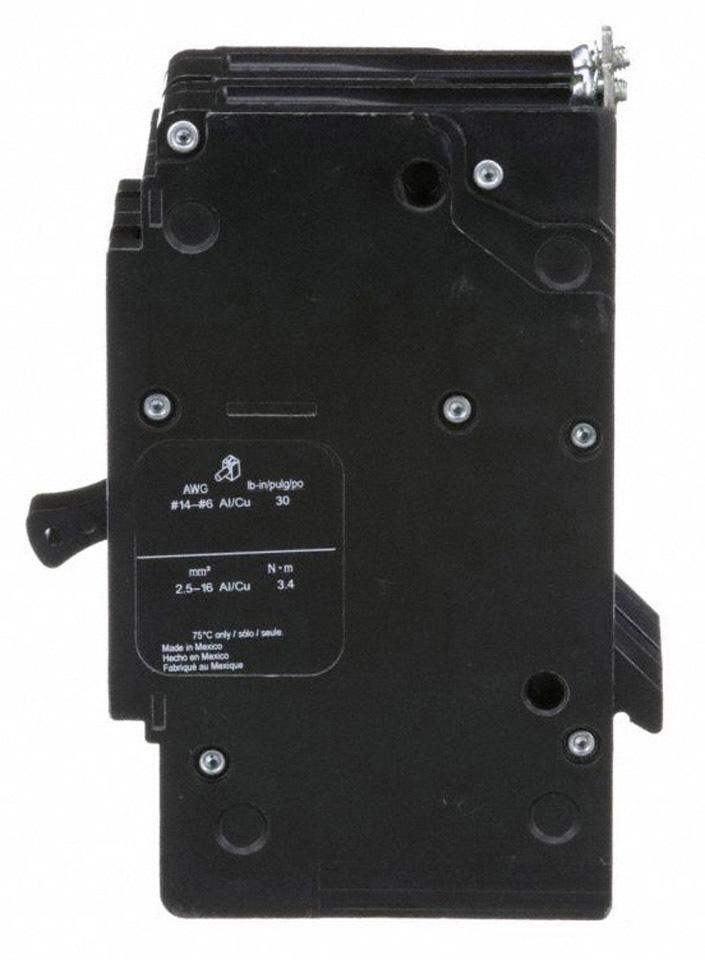

• Wire Gauge: AWG 14-AWG 6 Copper, AWG 12-AWG 6 Aluminum

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB26100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 600
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : D; E-Frame
• Temp Rating : 104 ¡F (40 ¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901412335
• GTIN : 00785901412335
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 1.96 in (49.78 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 2.63
• Panel Type : NF panelboard
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12...AWG 2/0 aluminum
  AWG 14...AWG 2/0 copper
