EDB26020 - Square D E-Frame Miniature Circuit Breaker 20A 2 Pole 600Y/347VAC 14kAIC Bolt-On

EDB26020

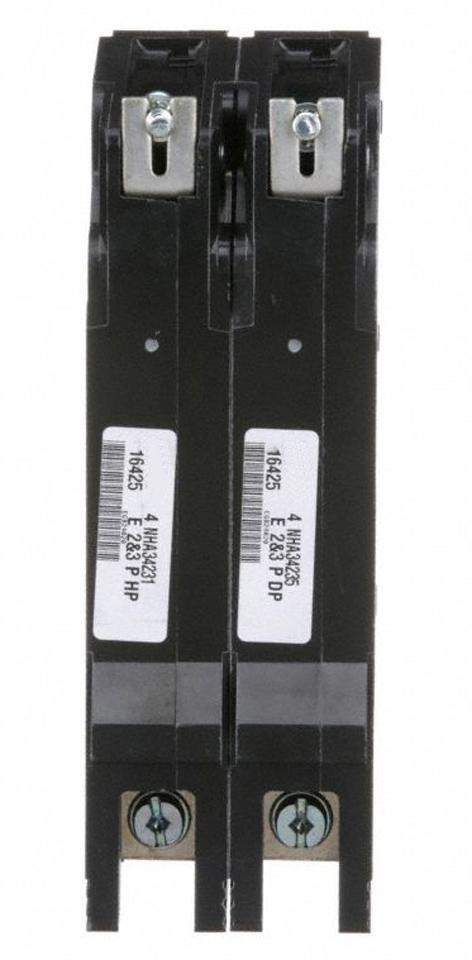

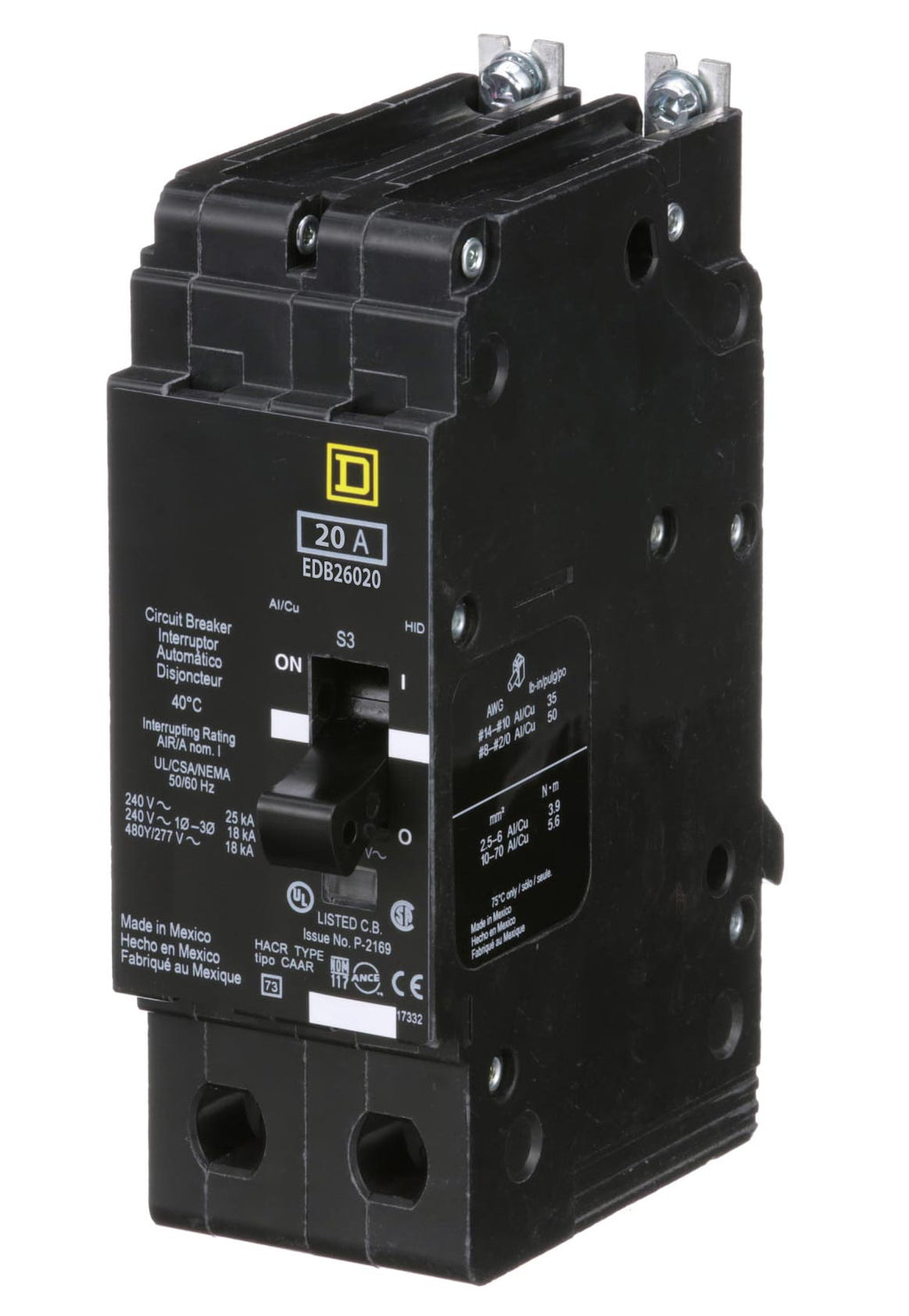

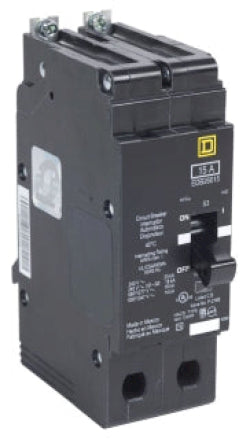

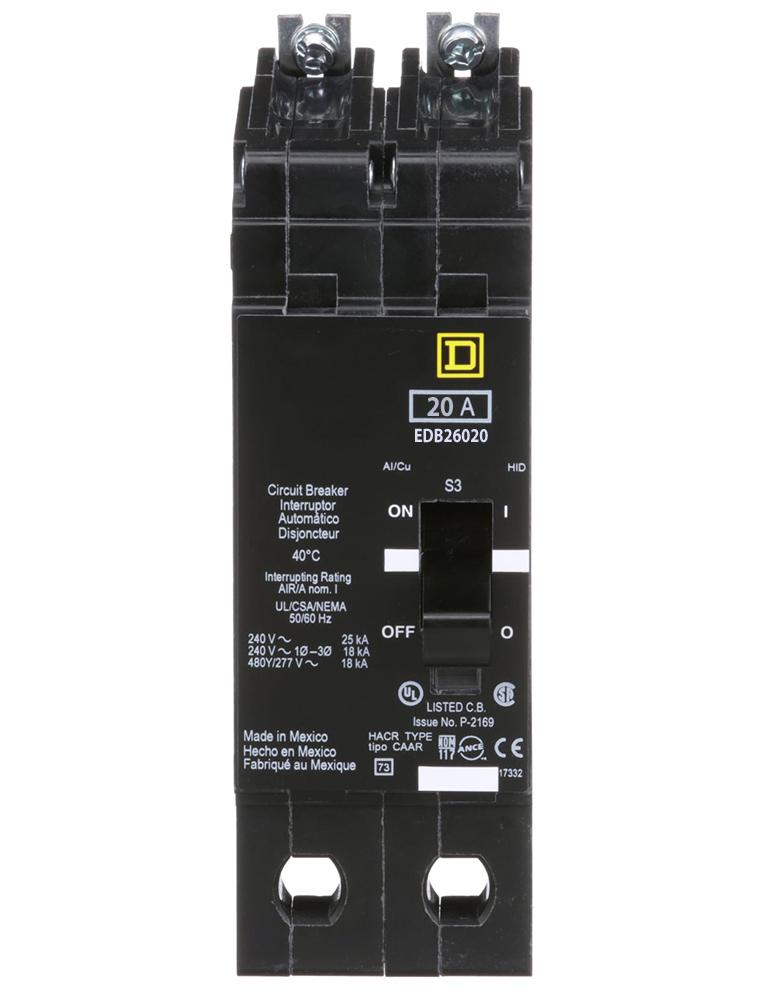

EDB26020 - Schneider Electric E-Frame 2-pole molded case circuit breaker rated at 20A, 600Y/347V AC with bolt-on mounting. The EDB26020 features thermal-magnetic protection for short-circuit and overload, designed for use in Square D NF panelboards and lighting applications. It offers superior overload and short-circuit protection with a trip indicator, aluminum lugs accepting AWG 12-6 aluminum or AWG 14-6 copper wire, and is calibrated for 40 degrees C operation.

• Part Number: EDB26020
• Manufacturer: Schneider Electric
• Series/Frame: EDB / E-Frame
• Poles: 2
• Amperage: 20A
• Voltage: 600Y/347V AC
• Mounting Type: Bolt-On
• Trip Unit: Thermal-Magnetic
• Interrupt Rating: 14kA @ 600Y/347V AC
• Protection Type: Short-Circuit / Overload
• Applications: HID-Rated / HACR-Rated / Lighting Panelboards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB26020
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 600
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : D; E-Frame
• Temp Rating : 104 ¡F (40 ¡C)

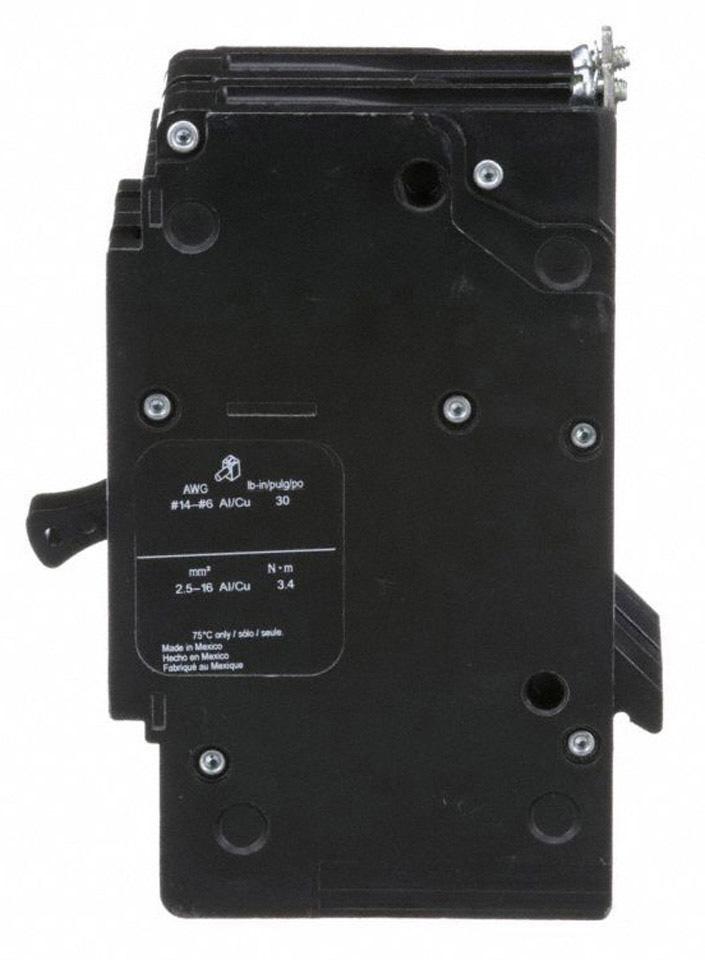

• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901234296
• GTIN : 00785901234296
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 1.96 in (49.78 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 2.599
• Panel Type : NF panelboard
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12...AWG 6 aluminum
  AWG 14...AWG 6 copper
