EDB26090 - Square D 90A 2-Pole 600Y/347V E-Frame Molded Case Circuit Breaker

EDB26090

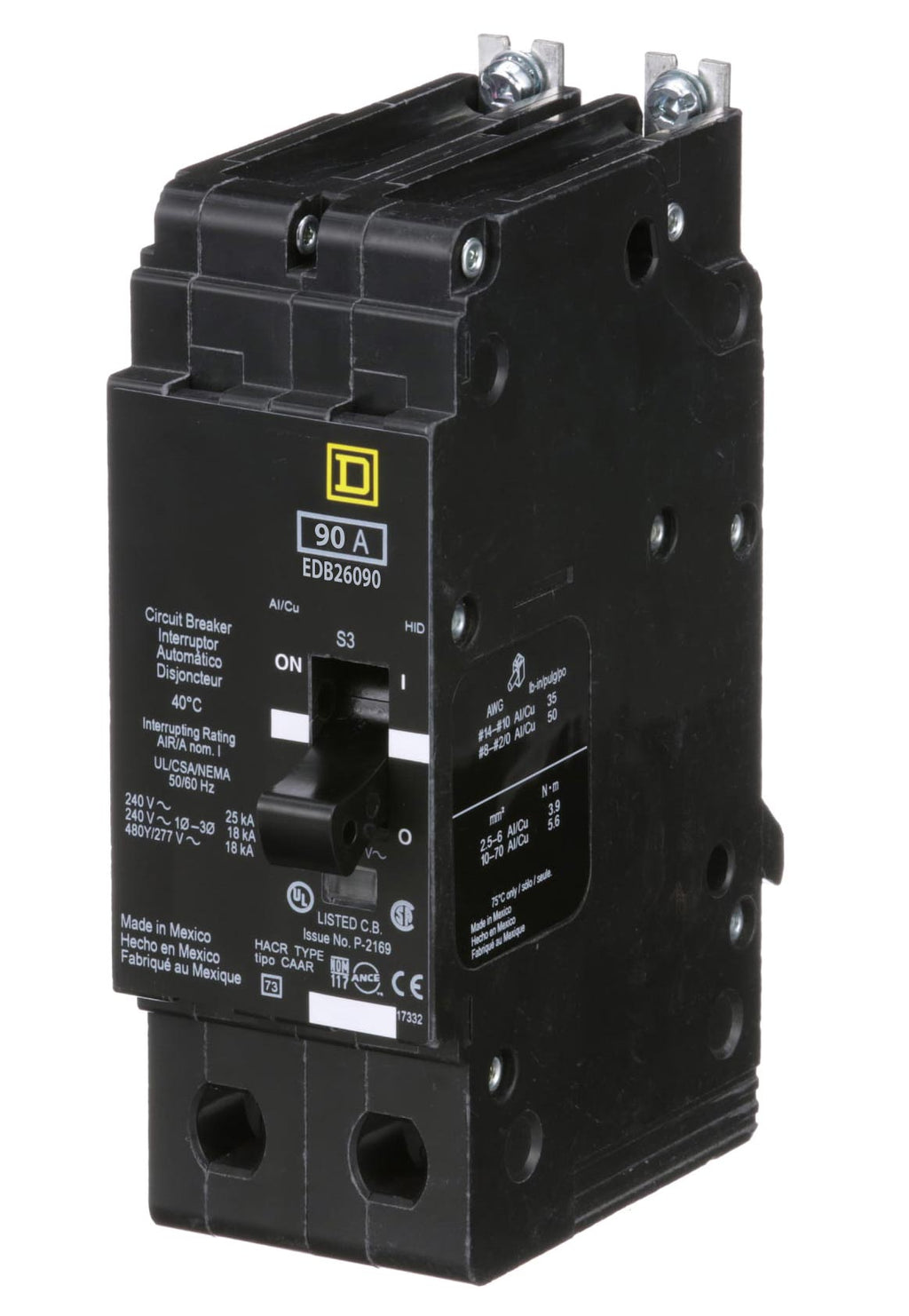

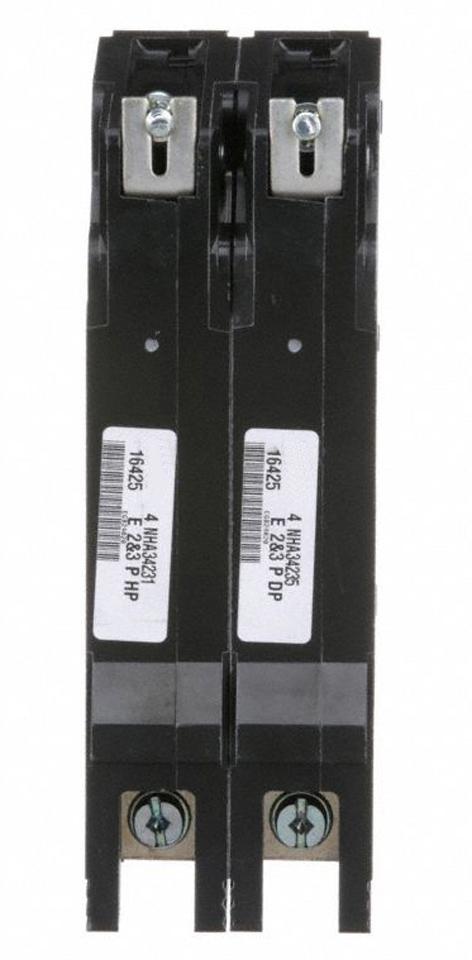

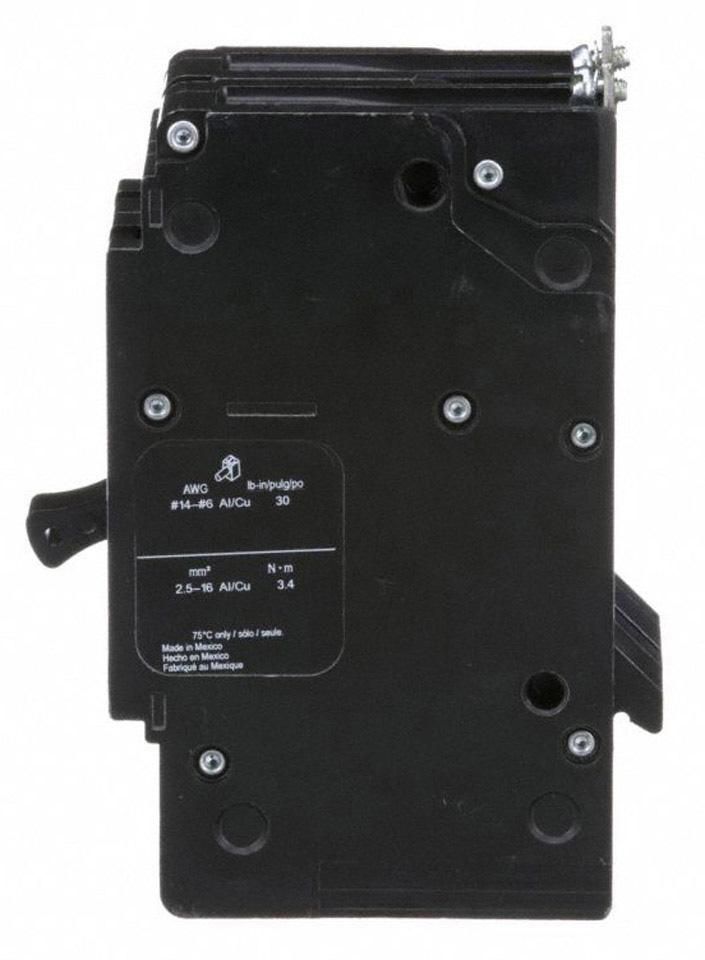

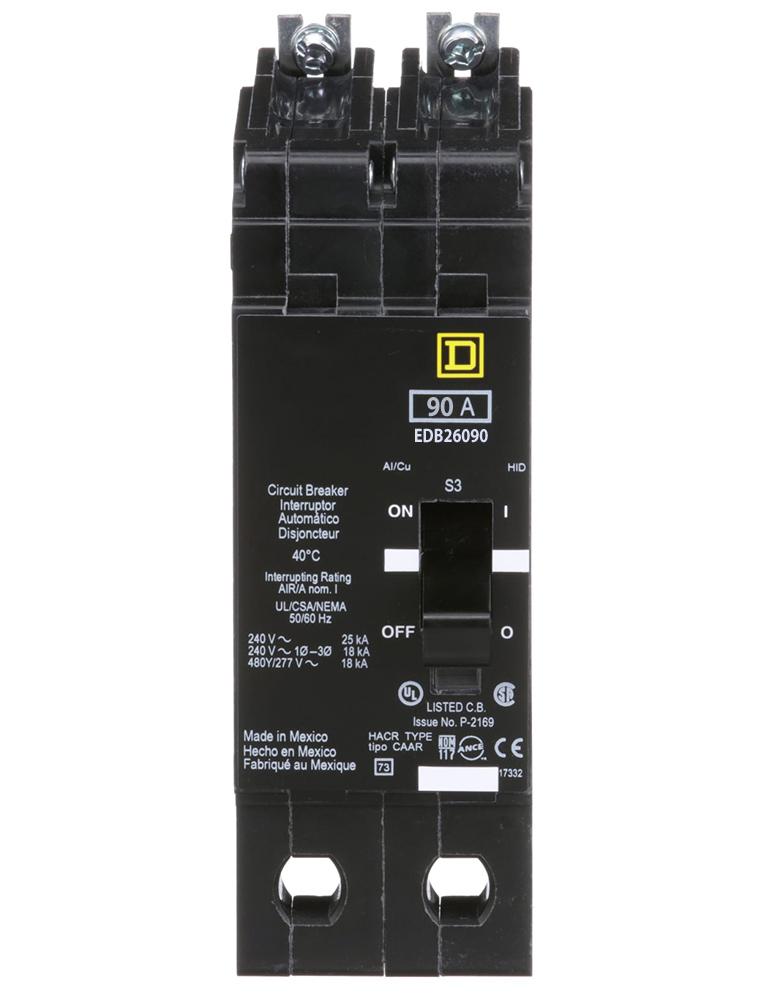

EDB26090 - Schneider Electric 2-pole molded case circuit breaker rated at 90A, 600V for bolt-on mounting in E-frame panelboards.The EDB26090 features thermal-magnetic protection with long-time and instantaneous trip functions, a trip indicator, and aluminum lugs compatible with AWG 12-6 aluminum or AWG 14-6 copper wire. It offers 14kA interrupting capacity at 600Y/347V AC and is designed for HID-rated and HACR-rated applications in Square D NF panelboards.

• Part Number: EDB26090
• Manufacturer: Schneider Electric
• Series/Frame: EDB / E-Frame
• Poles: 2
• Amperage: 90A
• Voltage: 600Y/347V AC
• Mounting Type: Bolt-On
• Trip Unit: Thermal-Magnetic
• Interrupt Rating: 14kA at 600Y/347V AC
• Connection: Aluminum Lugs
• Standards: UL489, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB26090
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 600
• Amperage : 90
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Temp Rating : 104 ¡F (40 ¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901407270
• GTIN : 00785901407270
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 1.96 in (49.78 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 2.546
• Panel Type : NF panelboard
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12...AWG 2/0 aluminum
  AWG 14...AWG 2/0 copper
