Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
EDB26080

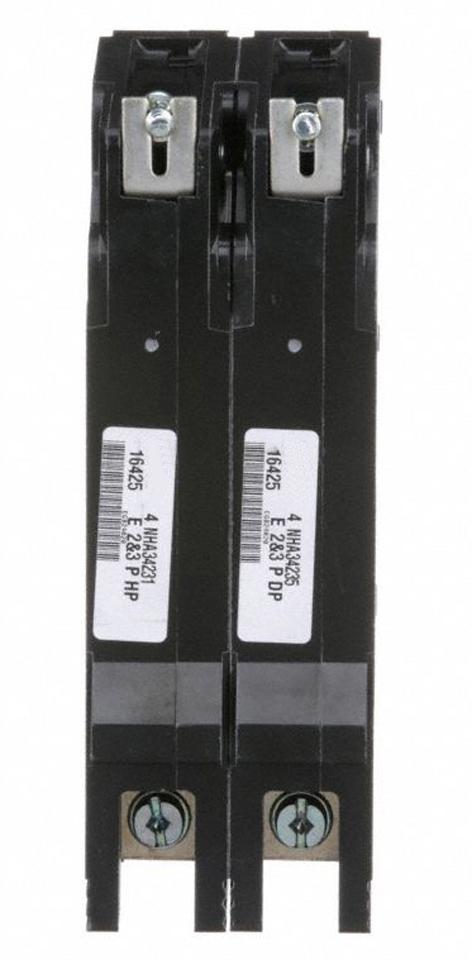

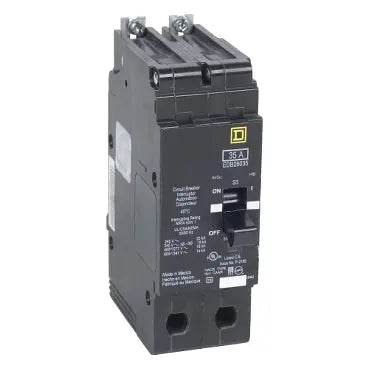

EDB26080 - Schneider Electric E-Frame molded case circuit breaker, 80A, 2-pole, rated for 600Y/347V with bolt-on mounting.This E-Frame branch circuit breaker provides superior overload and short circuit protection for lighting panelboards and other applications. It features thermal-magnetic trip protection with LI (long-time and instantaneous) functions, 14kA interrupt rating at 600Y/347V, and bolt-on mounting compatibility.
- Part Number: EDB26080
- Manufacturer: Schneider Electric
- Frame Size: E-Frame
- Amperage Rating: 80A
- Number of Poles: 2
- Voltage Rating: 600Y/347 VAC
- Mounting Type: Bolt-on
- Interrupt Rating: 14kA
- Trip Type: Thermal-Magnetic
- Protection Functions: LI (Long-Time, Instantaneous)
Specifications
- Part Number: EDB26080
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : EDB Series
- Type : EDB
- Voltage : 600
- Amperage : 80
- Phase : 1
- Poles : 2
- AIC rating : 18kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Temp Rating : 104 ¡F (40 ¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 060648614283
- GTIN : 03606486142837
- Country of Origin : Mexico
- Dimensions : 5.66 in (143.76 mm) x 1.96 in (49.78 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
- Weight : 2.546
- Panel Type : NF panelboard
- Standards : cULus, IEC
- Certification : cULus, IEC
- Wire Size : AWG 12...AWG 2/0 aluminum
AWG 14...AWG 2/0 copper
