EDB26070 - Square D Molded Case 70A 2P 600V 18kA Circuit Breaker

EDB26070

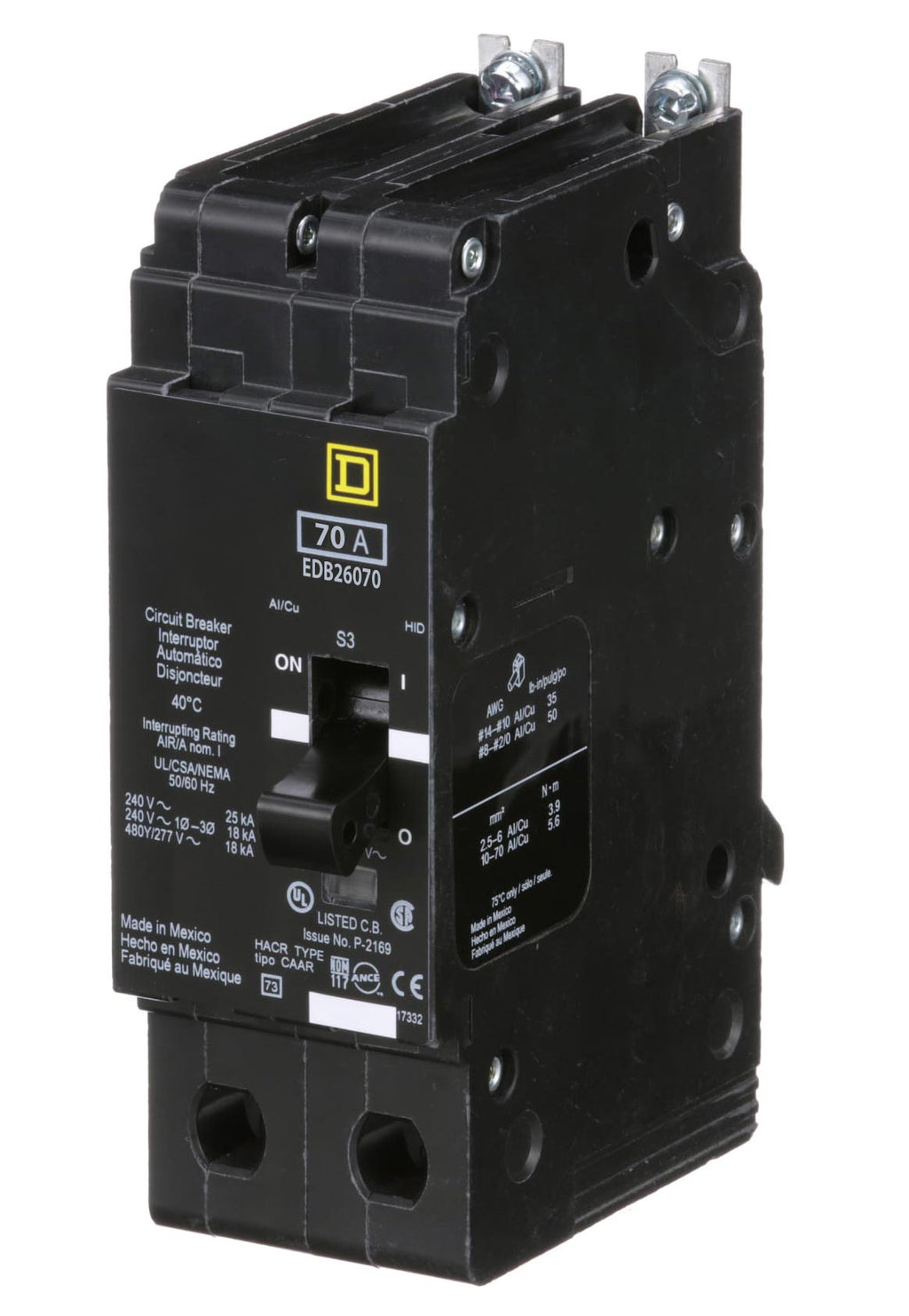

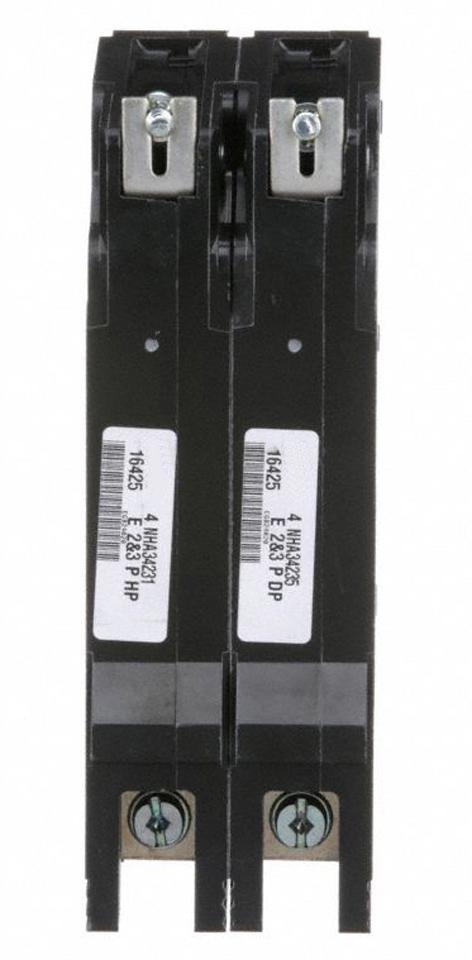

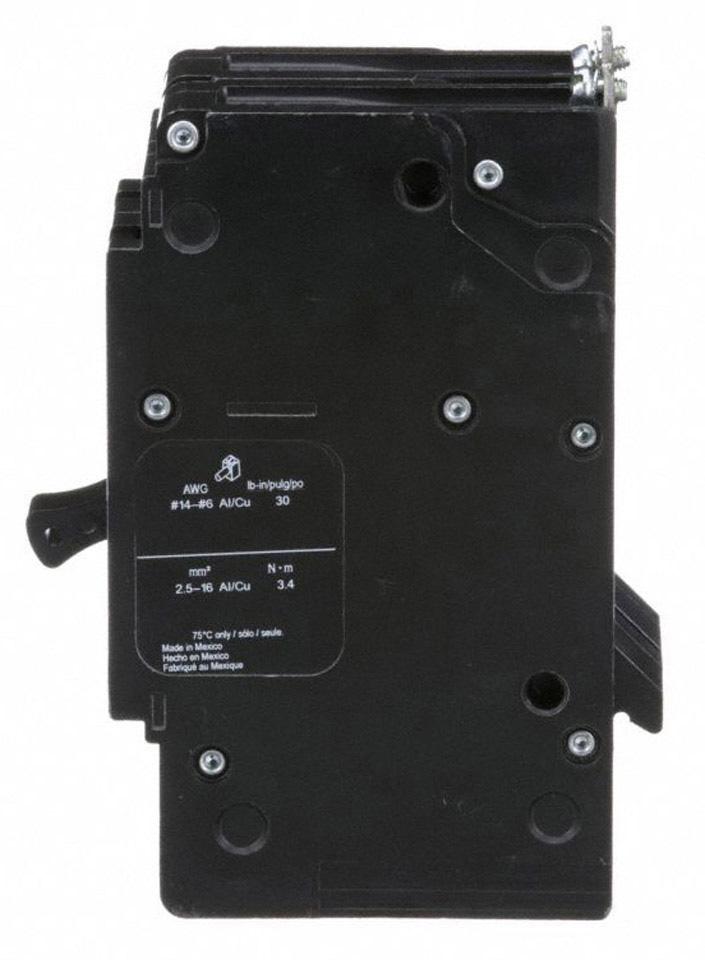

EDB26070 is a 2 pole, 600 volt, 70 amp rated molded case circuit breaker manufactured by Square D with an 18kA interrupt rating at 480V.

The EDB26070 features E-Frame construction and is designed for branch circuit protection in Class 515 NF series panelboards. This Bolt-On mounted breaker provides short-circuit and overload protection with a 875 amp trip unit rating. The breaker is UL and CSA approved for lighting applications.

• Part Number: EDB26070
• Manufacturer: Square D
• Amperage Rating: 70 Amp
• Number of Poles: 2
• Voltage Rating: 600V
• Interrupt Rating: 18kA at 480V
• Frame Size: E-Frame
• Mounting Type: Bolt-On
• Trip Unit Rating: 875 Amp
• Protection Type: Short-Circuit and Overload
• Certifications: UL, CSA
• Application: Lighting

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB26070
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 600
• Amperage : 70
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Temp Rating : 104 ¡F (40 ¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901297505
• GTIN : 00785901297505
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 1.96 in (49.78 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 2.546
• Panel Type : NF panelboard
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12...AWG 2/0 aluminum
  AWG 14...AWG 2/0 copper
