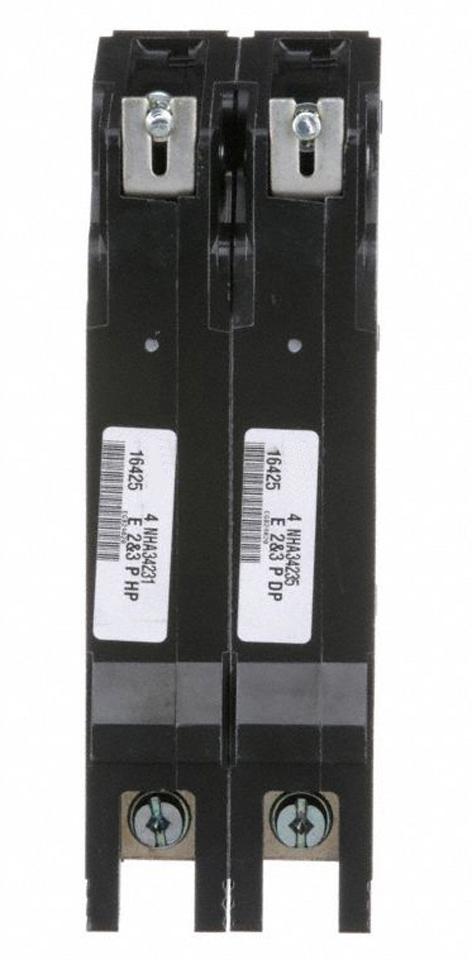

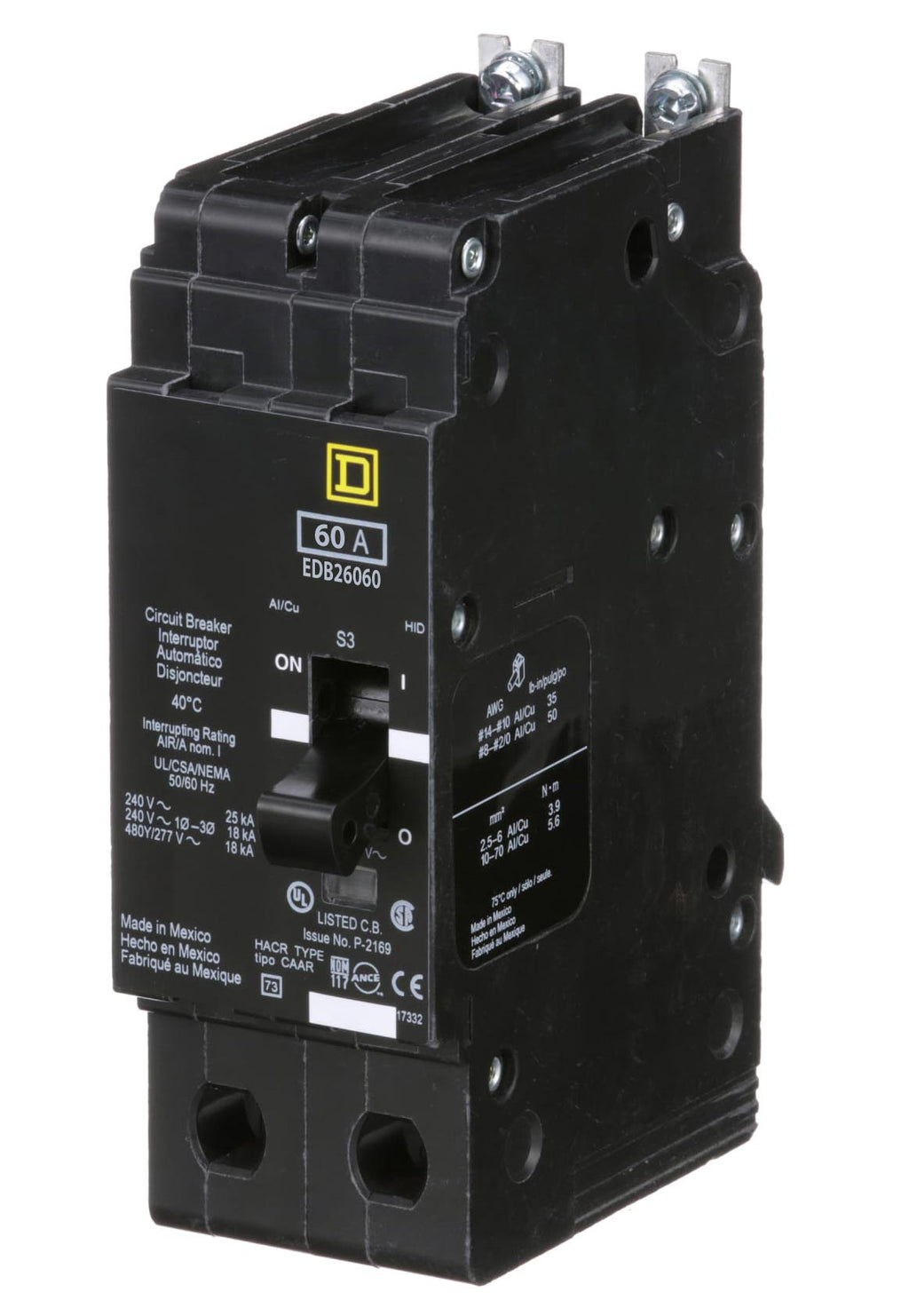

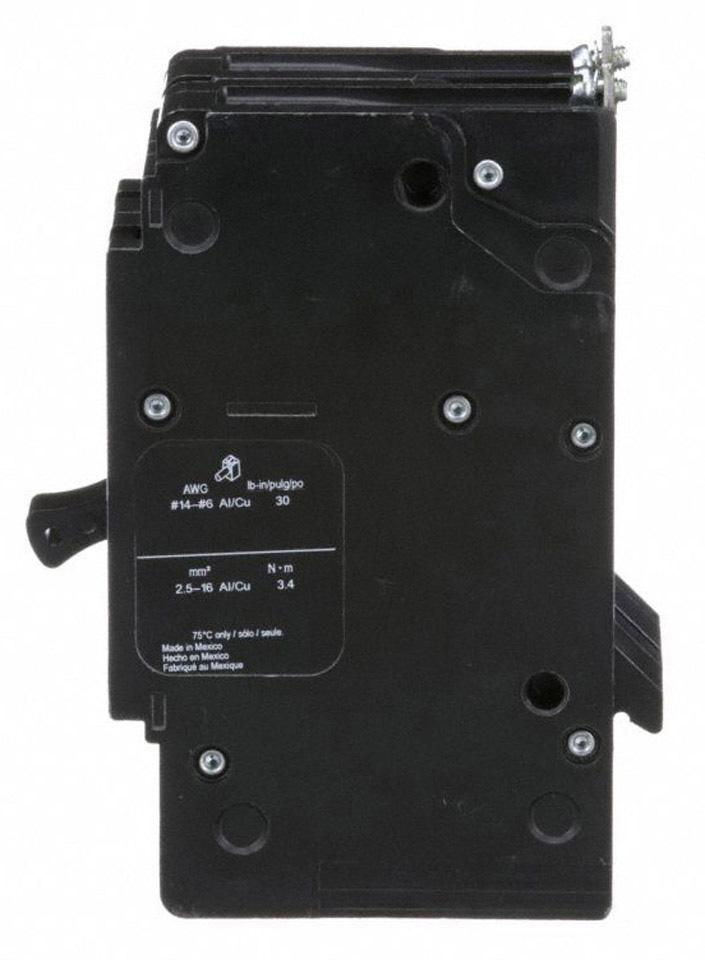

EDB26060 - Square D 60 Amp 2-Pole 600Y/347 VAC Bolt-On E-Frame Circuit Breaker 14kA Interrupt Rating

Save $301.20
SKU: EDB26060-New
Condition: New
Price:
$234.80 $536.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

EDB26060 - Essential Electric Supply
EDB26060 - Square D 60 Amp 2-Pole 600Y/347 VAC Bolt-On E-Frame Circuit Breaker 14kA Interrupt Rating - Essential Electric Supply
EDB26060 - Square D 60 Amp 2-Pole 600Y/347 VAC Bolt-On E-Frame Circuit Breaker 14kA Interrupt Rating - Essential Electric Supply
EDB26060 - Square D 60 Amp 2-Pole 600Y/347 VAC Bolt-On E-Frame Circuit Breaker 14kA Interrupt Rating - Essential Electric Supply
EDB26060 - Square D 60 Amp 2-Pole 600Y/347 VAC Bolt-On E-Frame Circuit Breaker 14kA Interrupt Rating - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
EDB26060 - Essential Electric Supply
EDB26060 - Square D 60 Amp 2-Pole 600Y/347 VAC Bolt-On E-Frame Circuit Breaker 14kA Interrupt Rating - Essential Electric Supply
EDB26060 - Square D 60 Amp 2-Pole 600Y/347 VAC Bolt-On E-Frame Circuit Breaker 14kA Interrupt Rating - Essential Electric Supply
EDB26060 - Square D 60 Amp 2-Pole 600Y/347 VAC Bolt-On E-Frame Circuit Breaker 14kA Interrupt Rating - Essential Electric Supply
EDB26060 - Square D 60 Amp 2-Pole 600Y/347 VAC Bolt-On E-Frame Circuit Breaker 14kA Interrupt Rating - Essential Electric Supply

Description

EDB26060


EDB26060 - Schneider Electric E-Frame molded case circuit breaker, 60A, 2-pole, thermal-magnetic trip, bolt-on mounting for lighting panelboards.The EDB26060 is a 2-pole, 60A mini circuit breaker from the EDB series with E-Frame design, rated for 600Y/347 VAC operation. It features thermal-magnetic protection for short-circuit and overload, bolt-on mounting, Visi-Trip indicator, and aluminum lugs compatible with AWG 12-6 aluminum or AWG 14-6 copper wire. Holding current is 270A and trip unit rating is 875A, calibrated for 40C.
  • Part Number: EDB26060
  • Manufacturer: Schneider Electric (Square D)
  • Amperage: 60A
  • Poles: 2
  • Voltage: 600Y/347 VAC
  • Frame/Series: E-Frame / EDB
  • Mounting Type: Bolt-On
  • Trip Unit: Thermal-Magnetic (LI)
  • Interrupt Rating: 25kA @ 240VAC, 18kA @ 480Y/277VAC, 14kA @ 600Y/347VAC
  • Protection: Short-Circuit / Overload
  • Applications: HID-Rated / HACR-Rated, Lighting Panelboards
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: EDB26060
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : EDB Series
  • Type : EDB
  • Voltage : 600
  • Amperage : 60
  • Phase : 1
  • Poles : 2
  • AIC rating : 18kA@480V
  • Connection : Bolt-On
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Lug
  • Temp Rating : 104 ¡F (40 ¡C)
  • Protection : Thermal Magnetic

Product Data

  • UPC : 785901542629
  • GTIN : 00785901542629
  • Country of Origin : Mexico
  • Dimensions : 5.66 in (143.76 mm) x 1.96 in (49.78 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
  • Weight : 2.54
  • Panel Type : NF panelboard
  • Standards : cULus, IEC
  • Certification : cULus, IEC
  • Wire Size : AWG 12...AWG 2/0 aluminum
    AWG 14...AWG 2/0 copper
