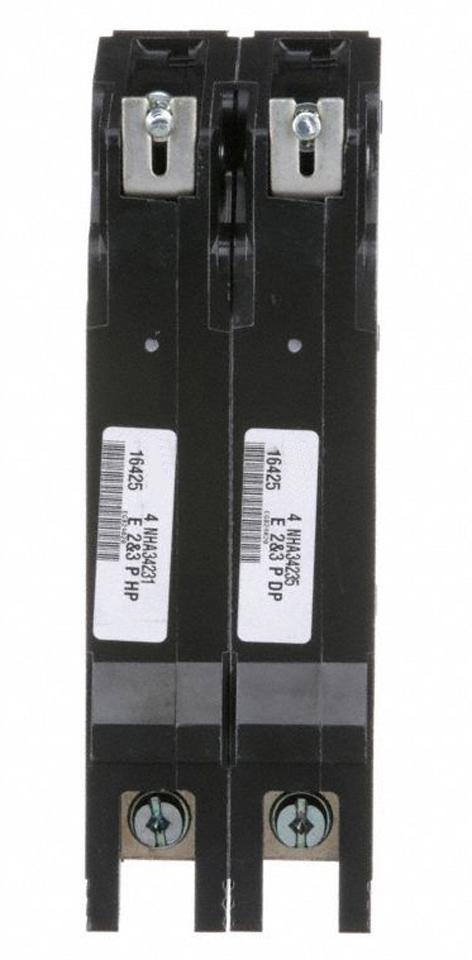

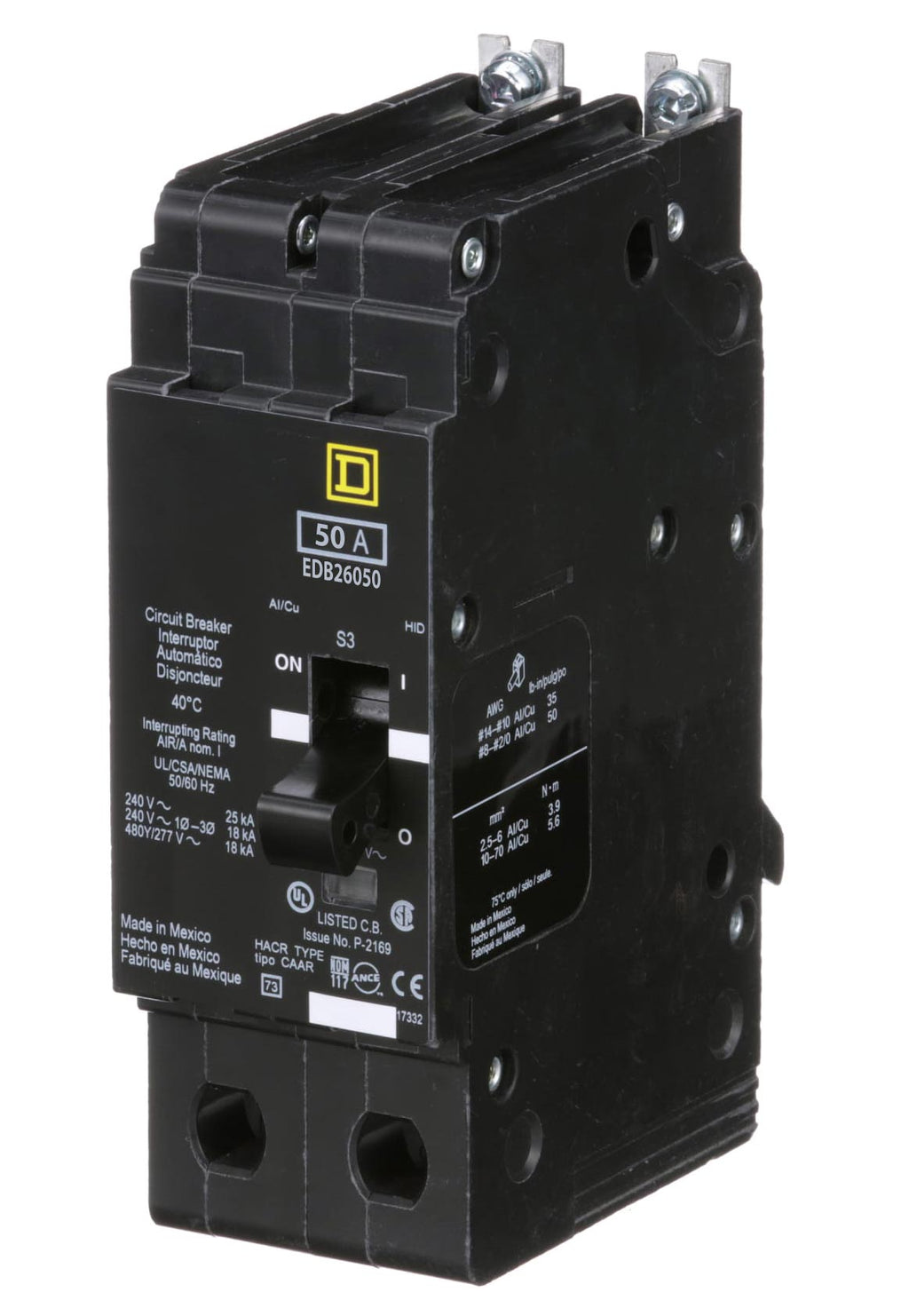

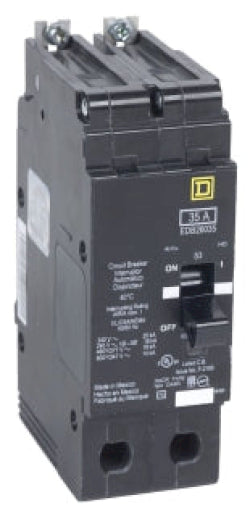

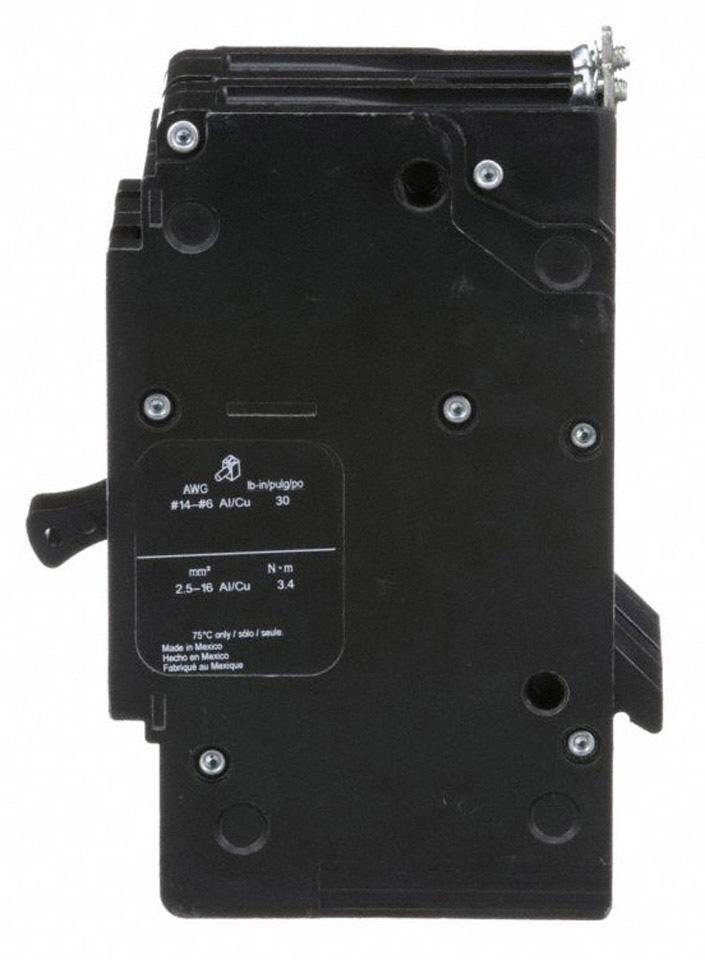

EDB26050 - Square D 50A 600V 2 Pole Bolt-On Miniature Circuit Breaker E-Frame Thermal Magnetic

EDB26050

EDB26050 - Schneider Electric E-Frame molded case circuit breaker, 50A, 2-pole, bolt-on mounting, thermal-magnetic protection.The EDB26050 is a 2-pole, 50A miniature circuit breaker from the EDB series with E-Frame design, rated for 600Y/347V AC operation. It features bolt-on mounting, aluminum lugs, thermal-magnetic trip unit for short-circuit and overload protection, and a trip indicator. HACR rated with breaking capacity of 14kA at 600Y/347V AC.

• Part Number: EDB26050
• Manufacturer: Schneider Electric
• Series/Frame: EDB, E-Frame
• Poles: 2
• Amperage: 50A
• Voltage: 600Y/347V AC
• Mounting Type: Bolt-On
• Trip Unit: Thermal-Magnetic
• Interrupt Rating: 14kA @ 600Y/347V AC
• Electrical Connection: Aluminum Lugs
• Application: HACR Rated
• Local Signaling: Trip Indicator

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB26050
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 600
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : D; E-Frame
• Temp Rating : 104 ¡F (40 ¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 78590163464
• GTIN : 00785901634645
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 1.96 in (49.78 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 2.619
• Panel Type : NF panelboard
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12...AWG 2/0 aluminum
  AWG 14...AWG 2/0 copper
