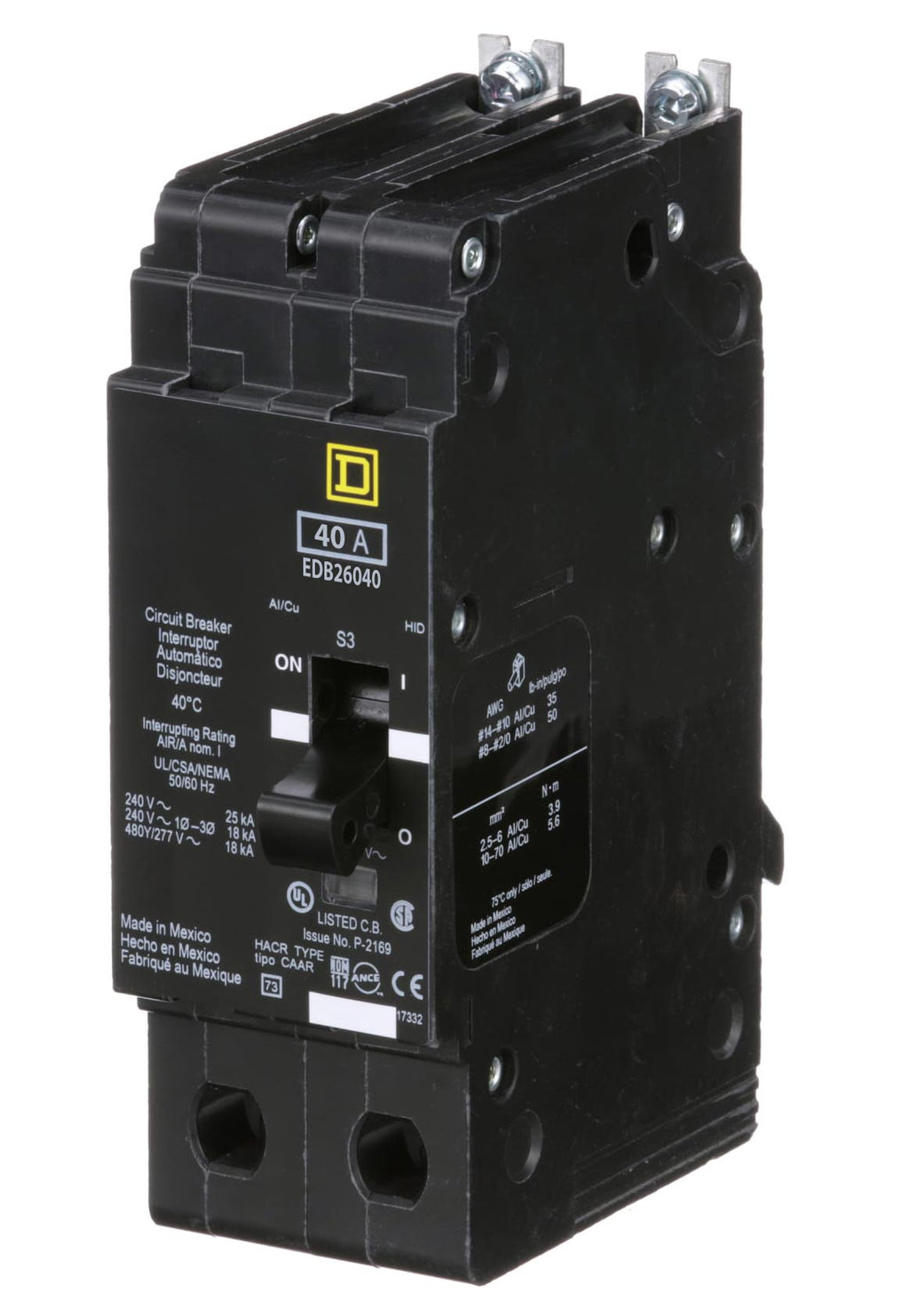

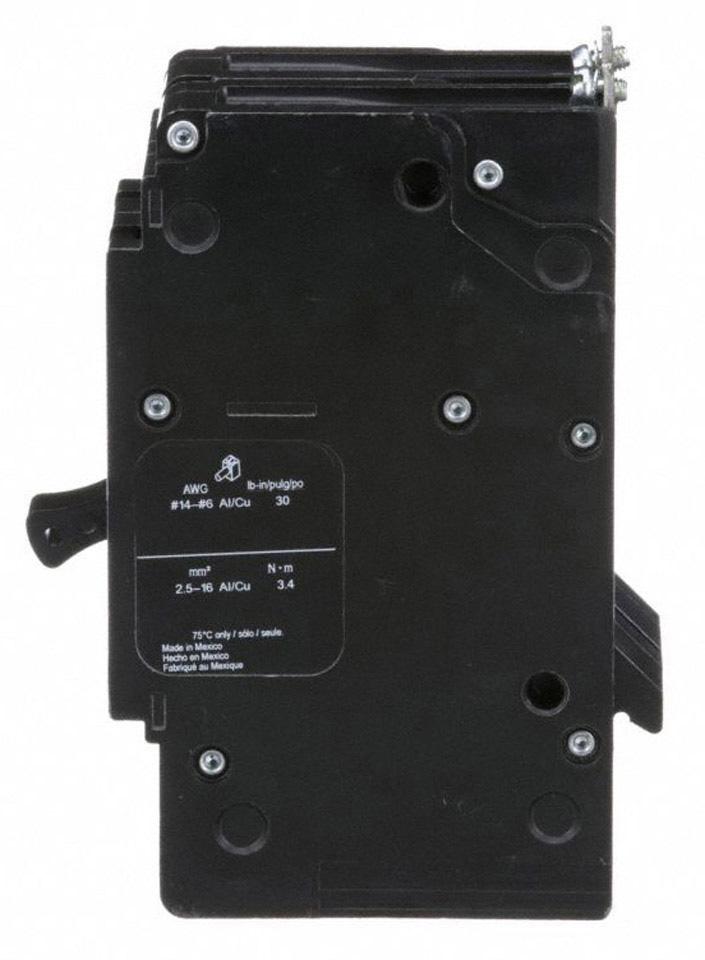

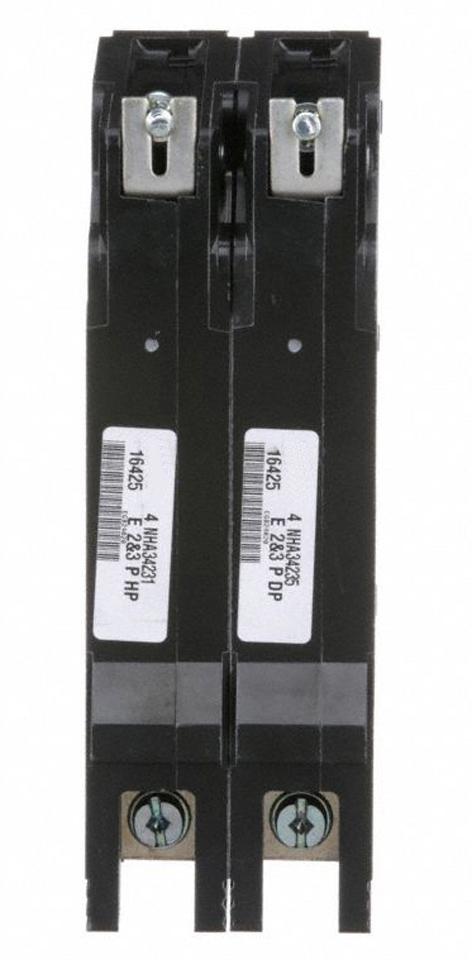

EDB26040 - Square D 40 Amp 2 Pole 600V Bolt-On Molded Case Circuit Breaker, E-Frame, Thermal-Magnetic Trip, 14kA Interrupt, HACR Rated, NF Panelboard

EDB26040

EDB26040 - Schneider Electric 2-pole, 40A molded case circuit breaker with thermal-magnetic trip for E-Frame panelboards.The EDB26040 is a bolt-on branch circuit breaker from the EDB series, rated at 40A and 600Y/347V AC with 14kA interrupt rating at 600Y/347V. It features thermal-magnetic protection for overload and short-circuit, trip indicator, and aluminum/copper lugs compatible with AWG 14-6 copper or AWG 12-6 aluminum.

• Part Number: EDB26040
• Manufacturer: Schneider Electric (Square D)
• Amperage: 40A
• Voltage: 600Y/347V AC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 14kA at 600Y/347V AC
• Series/Frame: EDB / E-Frame
• Trip Unit: Thermal-Magnetic
• Protection: Long-Time and Instantaneous (LI)
• Applications: HID-Rated / HACR-Rated
• Wire Range: AWG 14-6 Cu / AWG 12-6 Al

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB26040
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 600
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : D; E-Frame
• Temp Rating : 104 ¡F (40 ¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG (Cu/Al)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901412410
• GTIN : 00785901412410
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 1.96 in (49.78 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 2.619
• Panel Type : NF panelboard
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12...AWG 2/0 aluminum
  AWG 14...AWG 2/0 copper
