EDB26035 - Square D 2-Pole 35 Amp 600V Molded Case Circuit Breaker E-Frame Bolt-On

EDB26035

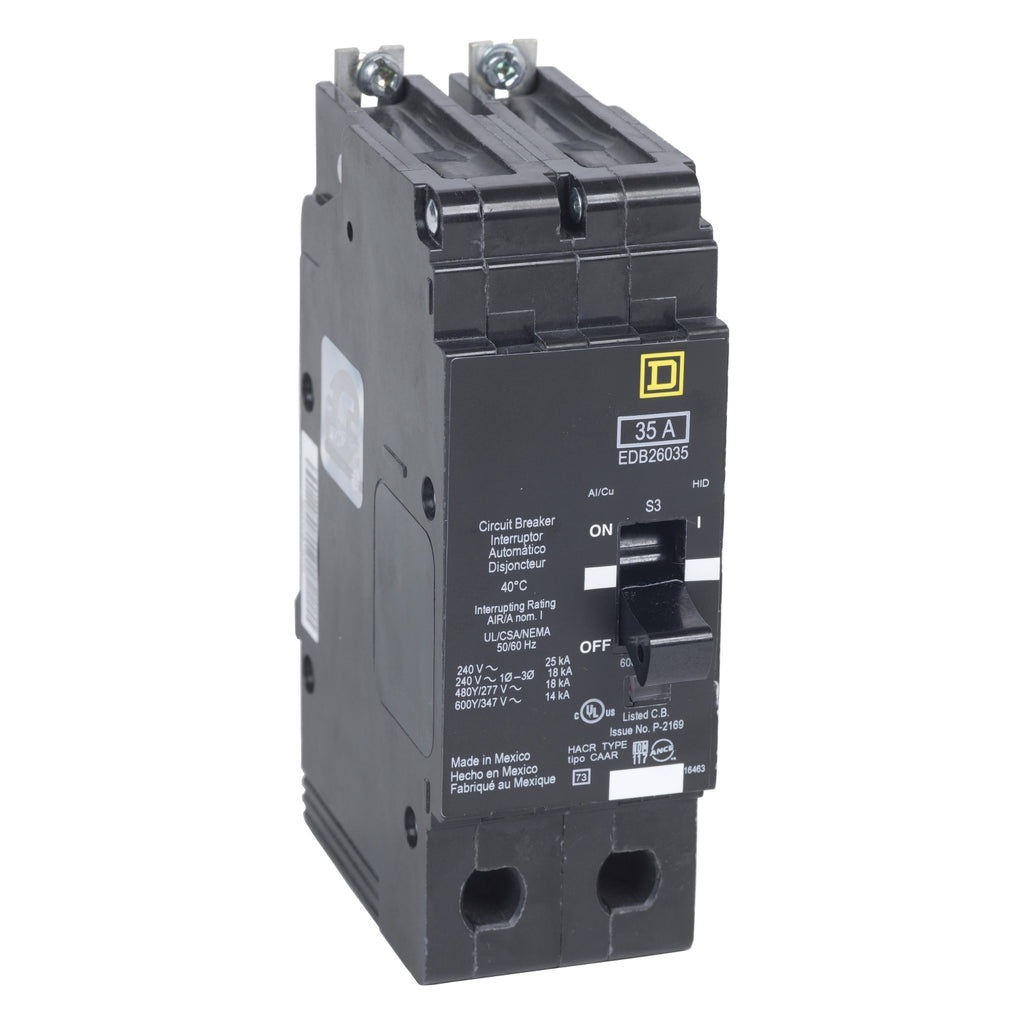

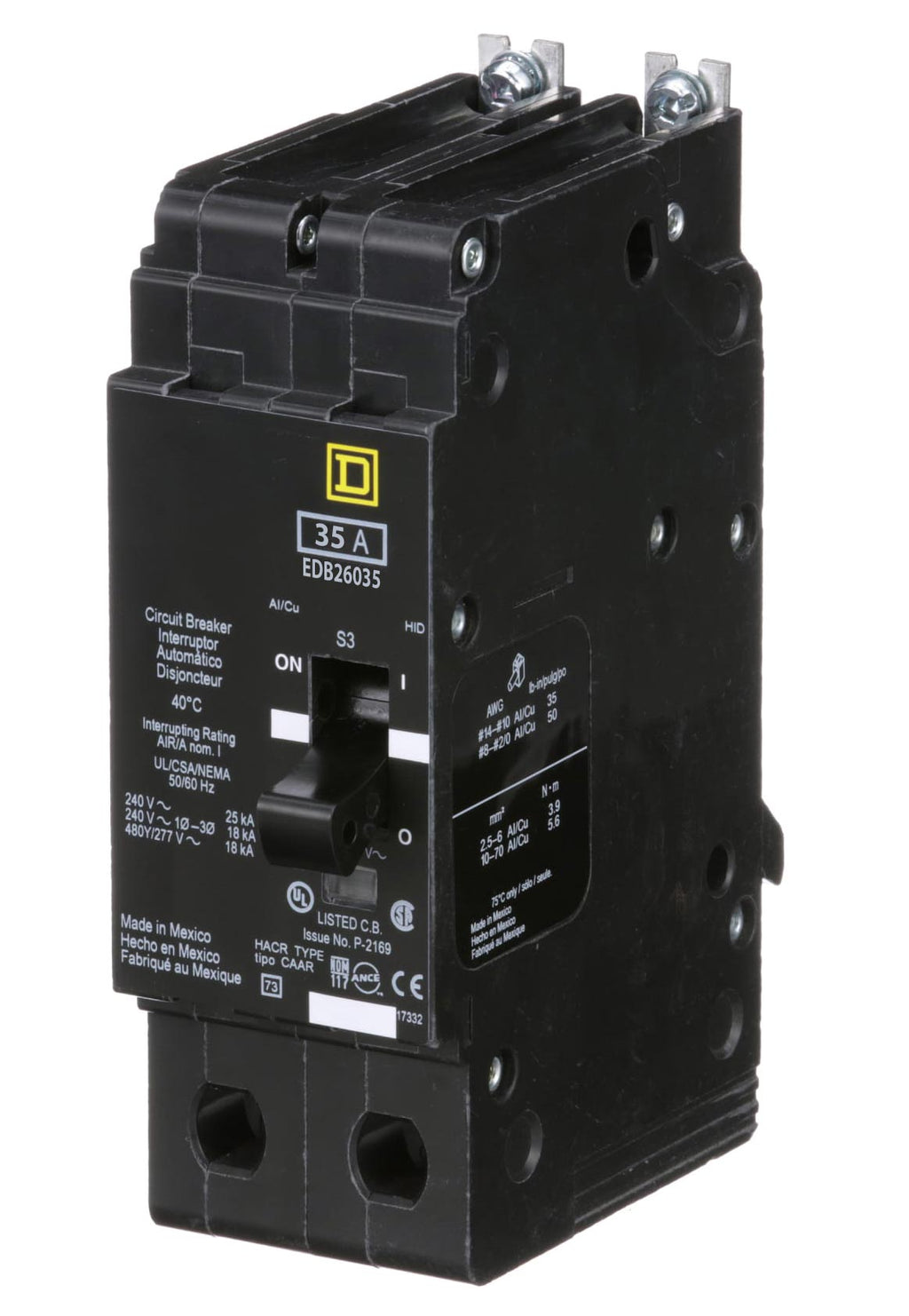

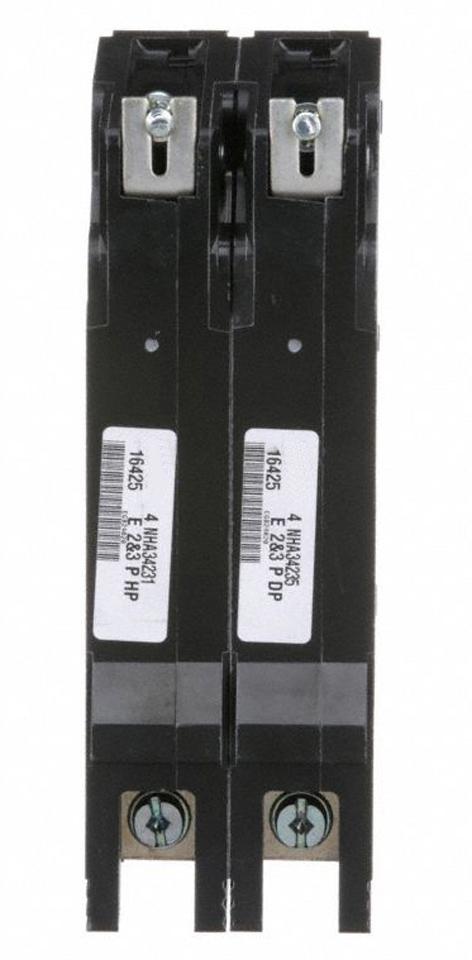

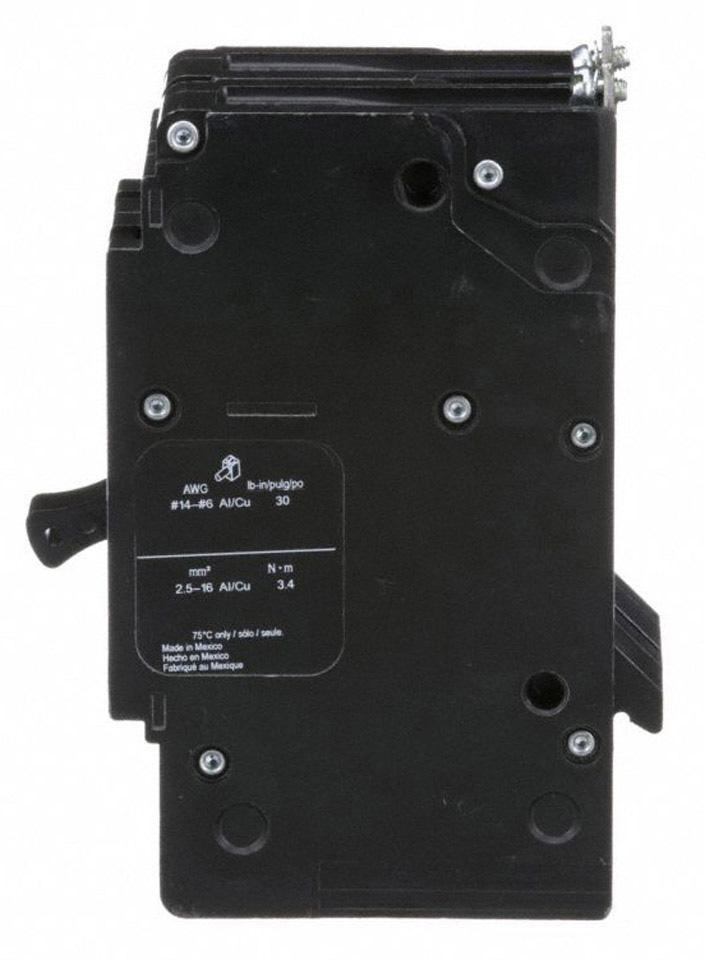

EDB26035 is a 2-pole, 35A molded case circuit breaker from Schneider Electric's EDB series, designed for bolt-on mounting in NF panelboards.This thermal-magnetic circuit breaker provides long-time and instantaneous protection with a 14kA interrupting rating at 600Y/347V AC. It features aluminum lugs accepting AWG 12-6 aluminum or AWG 14-6 copper wires, a trip indicator, and is rated for HID and HACR applications in lighting panelboards.

• Part Number: EDB26035
• Manufacturer: Schneider Electric (Square D)
• Family/Series: EDB
• Frame: E-Frame
• Poles: 2
• Amperage: 35A
• Voltage: 600Y/347V AC
• Mounting: Bolt-On
• Trip Unit: Thermal-Magnetic
• Interrupt Rating: 14kA at 600Y/347V AC
• Protection: Short-Circuit / Overload
• Certifications: UL (Canada and US)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB26035
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : EDB Series
• Type : EDB
• Voltage : 600
• Amperage : 35
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Temp Rating : 104 ¡F (40 ¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 78590140725
• GTIN : 00785901407256
• Country of Origin : Mexico
• Dimensions : 5.66 in (143.76 mm) x 1.96 in (49.78 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
• Weight : 2.546
• Panel Type : NF panelboard
• Standards : cULus, IEC
• Certification : cULus, IEC
• Wire Size : AWG 12...AWG 2/0 aluminum
  AWG 14...AWG 2/0 copper
