EDB26025 - Square D 25A 2-Pole 600Y/347VAC E-Frame Bolt-On Circuit Breaker 25kA Interrupt Rating

SKU: EDB26025-New
Condition: New
Price:
$807.07
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

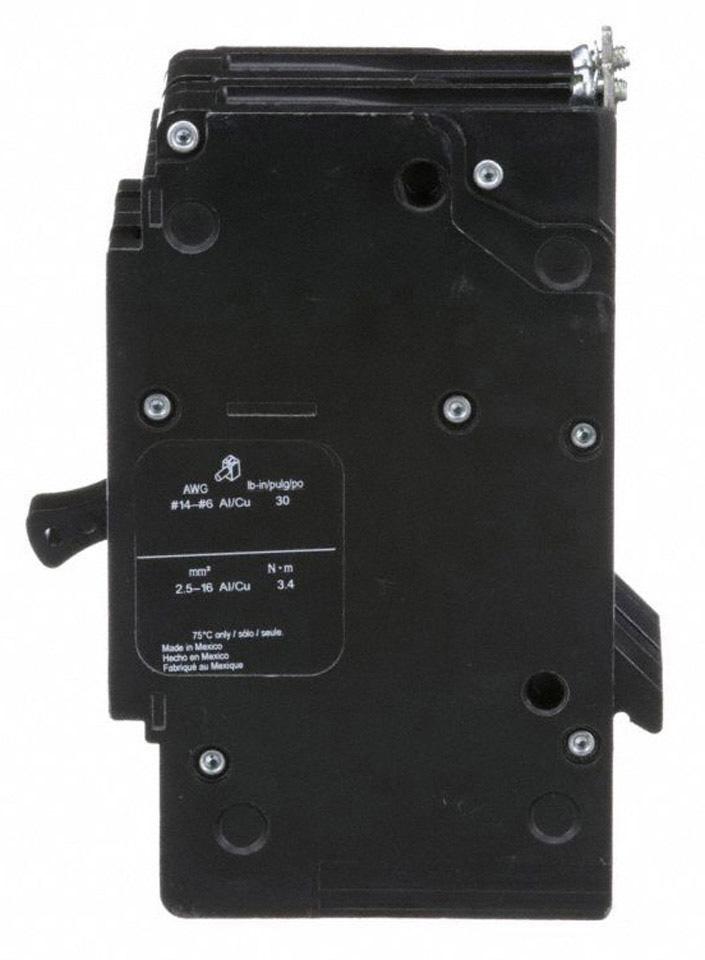

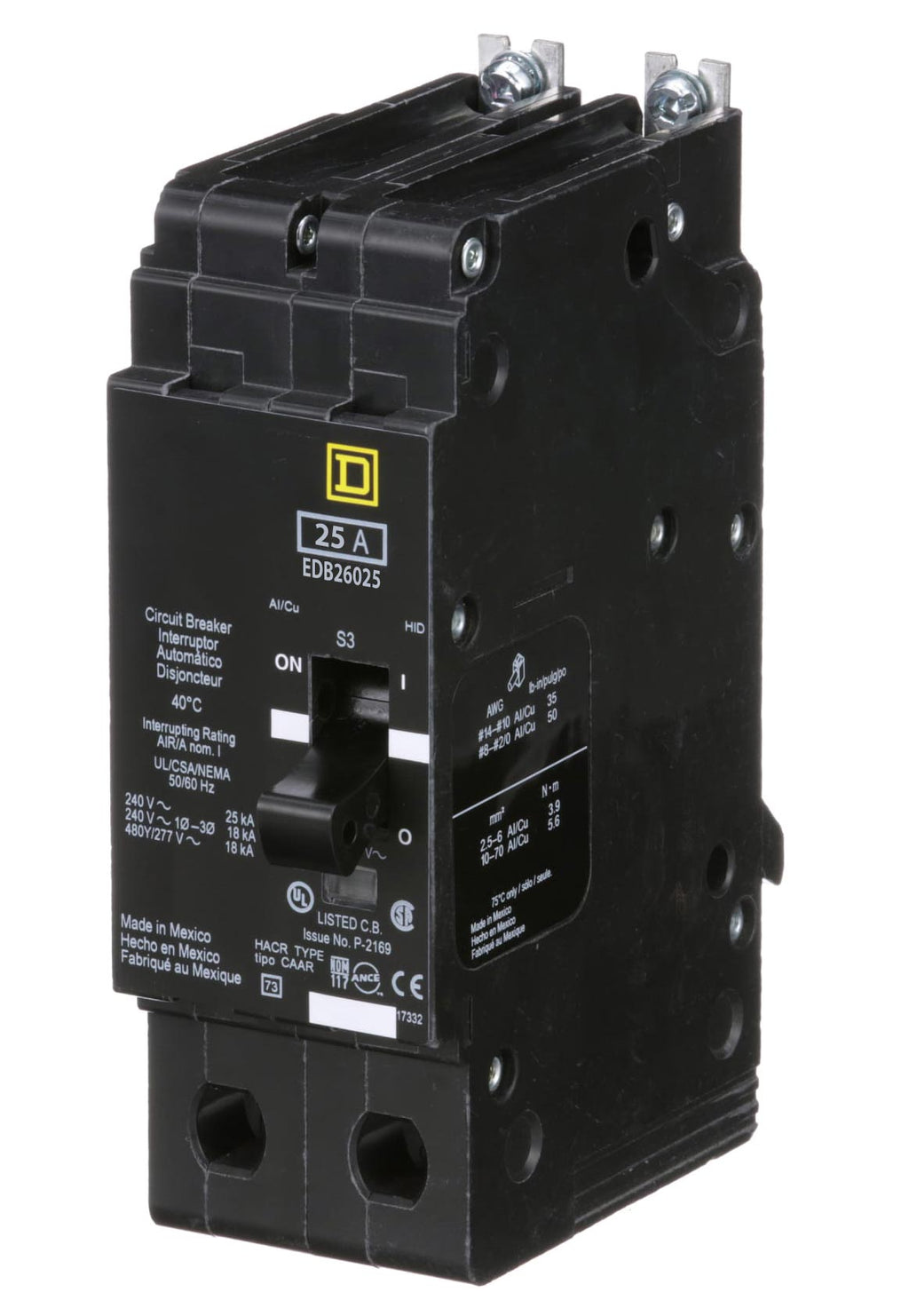

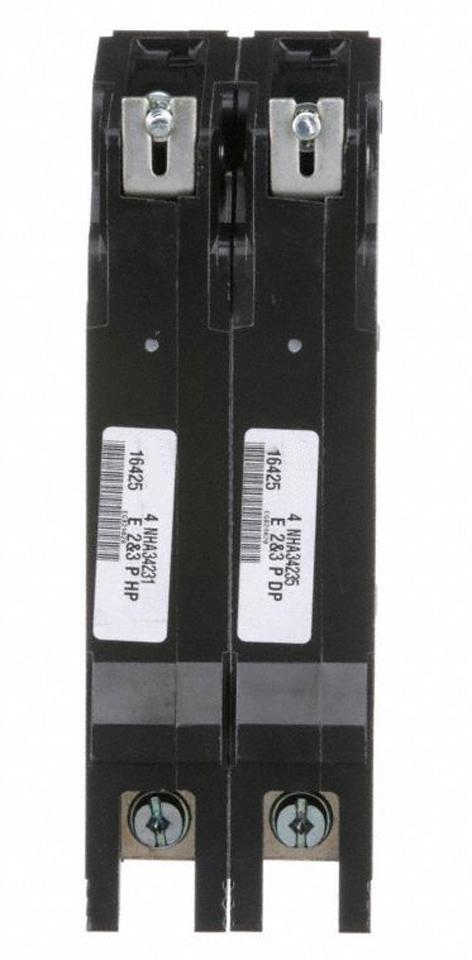

EDB26025 - Square D Bolt-On 600V 25A 2 pole circuit breaker 18kA@480V - Essential Electric Supply
EDB26025 - Square D 25A 2-Pole 600Y/347VAC E-Frame Bolt-On Circuit Breaker 25kA Interrupt Rating - Essential Electric Supply
EDB26025 - Square D 25A 2-Pole 600Y/347VAC E-Frame Bolt-On Circuit Breaker 25kA Interrupt Rating - Essential Electric Supply
EDB26025 - Square D 25A 2-Pole 600Y/347VAC E-Frame Bolt-On Circuit Breaker 25kA Interrupt Rating - Essential Electric Supply
EDB26025 - Square D 25A 2-Pole 600Y/347VAC E-Frame Bolt-On Circuit Breaker 25kA Interrupt Rating - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
EDB26025 - Square D Bolt-On 600V 25A 2 pole circuit breaker 18kA@480V - Essential Electric Supply
EDB26025 - Square D 25A 2-Pole 600Y/347VAC E-Frame Bolt-On Circuit Breaker 25kA Interrupt Rating - Essential Electric Supply
EDB26025 - Square D 25A 2-Pole 600Y/347VAC E-Frame Bolt-On Circuit Breaker 25kA Interrupt Rating - Essential Electric Supply
EDB26025 - Square D 25A 2-Pole 600Y/347VAC E-Frame Bolt-On Circuit Breaker 25kA Interrupt Rating - Essential Electric Supply
EDB26025 - Square D 25A 2-Pole 600Y/347VAC E-Frame Bolt-On Circuit Breaker 25kA Interrupt Rating - Essential Electric Supply

Description

EDB26025


EDB26025 is a Square D 2-pole, 25 amp Bolt-On circuit breaker designed for use in lighting panelboards and other applications requiring reliable short-circuit and overload protection.

This E-Frame molded case circuit breaker operates at 600Y/347 VAC with a 25 kA interrupt rating. It features a thermal magnetic trip unit for dependable overload and short-circuit protection. The breaker is UL listed for both US and Canada and mounts via Bolt-On installation for secure panel integration.

    Key Specifications
    • Amperage: 25 Amp
    • Voltage: 600Y/347 VAC
    • Poles: 2
    • Mounting Type: Bolt-On
    • Interrupt Rating: 25 kA
    • Series/Frame: E-Frame
    • Trip Unit: Thermal Magnetic
    • Certifications: UL Listed (US and Canada)
    • Application: Lighting Panelboards

    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


    Specifications

    • Part Number: EDB26025
    • Manufacturer : Schneider Electric
    • Brand : Square D
    • Category : Circuit Breaker
    • Item Subcategory : Molded Case
    • Family : EDB Series
    • Type : EDB
    • Voltage : 600
    • Amperage : 25
    • Phase : 1
    • Poles : 2
    • AIC rating : 18kA@480V
    • Connection : Bolt-On
    • Functions : LI - Long-Time and Instantaneous
    • Terminal Connection : Lug
    • Temp Rating : 104 ¡F (40 ¡C)
    • Protection : Thermal Magnetic

    Product Data

    • UPC : 785901406723
    • GTIN : 00785901406723
    • Country of Origin : Mexico
    • Dimensions : 5.66 in (143.76 mm) x 1.96 in (49.78 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
    • Weight : 2.546
    • Panel Type : NF panelboard
    • Standards : cULus, IEC
    • Certification : cULus, IEC
    • Wire Size : AWG 12...AWG 6 aluminum
      AWG 14...AWG 6 copper
