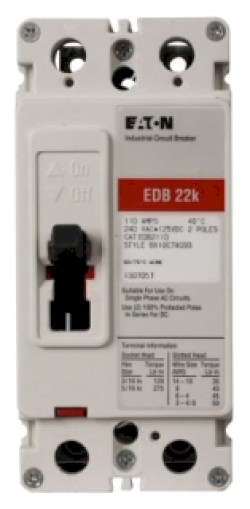

EDB2100L - Eaton Series C 100A 240VAC 2-Pole Molded Case Circuit Breaker

EDB2100L

EDB2100L is an Eaton Series C molded case circuit breaker designed for reliable power distribution and circuit protection in industrial and commercial applications. This two-pole breaker features fixed thermal and fixed magnetic trip units for dependable overcurrent protection across a wide range of electrical systems. The F-frame design provides a compact footprint suitable for panel mounting installations. Key Specifications

• Amperage Rating: 100A
• Voltage Rating: 240 VAC / 125 VDC
• Number of Poles: 2-Pole
• Series: Series C
• Frame Type: F-Frame
• Trip Type: Fixed Thermal / Fixed Magnetic
• Interrupt Rating: 22 kAIC at 240 VAC
• Frequency Rating: 50/60 Hz
• Terminals: Load Side Lugs
• Certifications: UL Listed
• Mounting: Panel Mount
• Weight: 4 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: EDB2100L
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : EDB
• Voltage : 600
• Amperage : 20
• Phase : 2
• Poles : 2
• AIC rating : 25kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : F Frame
• Temp Rating : 104 ¡F (40 ¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 782116976072
• GTIN : 00782116976072
• Country of Origin : Mexico
• Dimensions : 3.38 in x 6 in x 2.75 in (Length/Depth x Height x Width)
• Weight : 3
• Standards : cULus, IEC
• Certification : cULus, IEC
