Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
EDB14020AABA

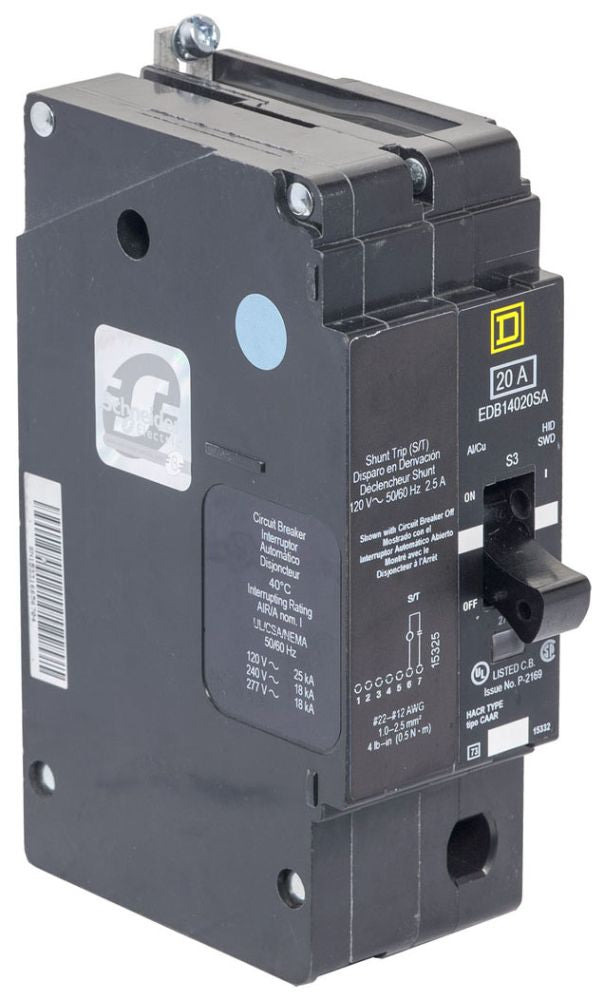

EDB14020 - Schneider Electric E-Frame molded case circuit breaker, 20A, 1-pole, 277VAC, bolt-on mounting with thermal-magnetic trip.EDB14020 is a mini circuit breaker from the EDB series, designed for lighting panelboards with superior overload and short-circuit protection. It features Visi-Trip indicator for faster troubleshooting, aluminum lugs accepting AWG 12-6 aluminum or AWG 14-6 copper wires, and is calibrated for 40 degrees C.
- Part Number: EDB14020
- Manufacturer: Schneider Electric
- Series/Frame: E-Frame / EDB
- Amperage: 20A
- Voltage: 277VAC
- Poles: 1
- Mounting Type: Bolt-On
- Trip Unit: Thermal-Magnetic
- Interrupt Rating: 18kA@277V, 25kA@240V, 25kA@120V
- Protection: Short-Circuit / Overload
- Certifications: UL Listed
- Wire Range: AWG 12-6 Al, AWG 14-6 Cu
Specifications
- Part Number: EDB14020AABA
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : EDB Series
- Type : EDB
- Voltage : 277
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 18kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Temp Rating : 104 ¡F (40 ¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 785901159308
- GTIN : 00785901159308
- Country of Origin : Mexico
- Dimensions : 5.66 in (143.76 mm) x 1.96 in (49.78 mm) x 4.05 in (102.87 mm) (Height x Width x Depth)
- Weight : 1.995
- Standards : cULus, IEC
- Certification : cULus, IEC
