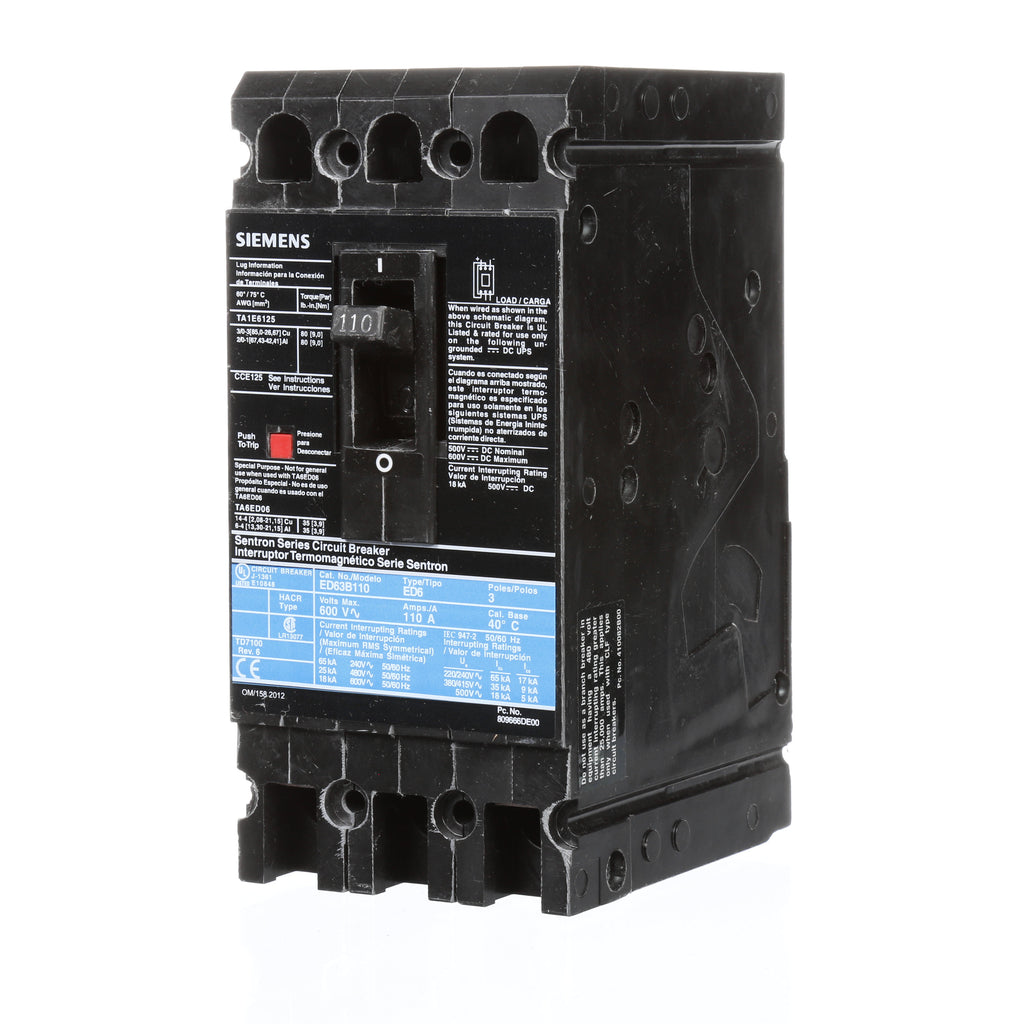

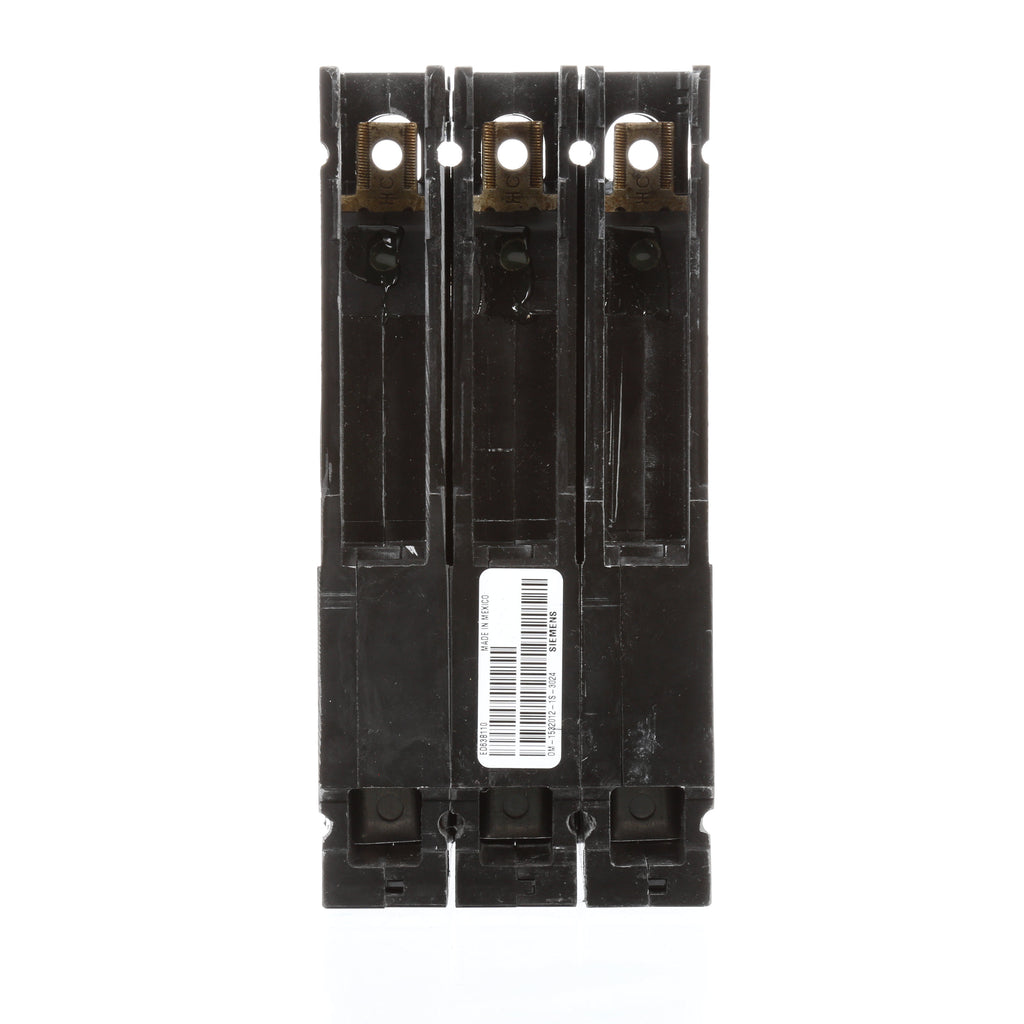

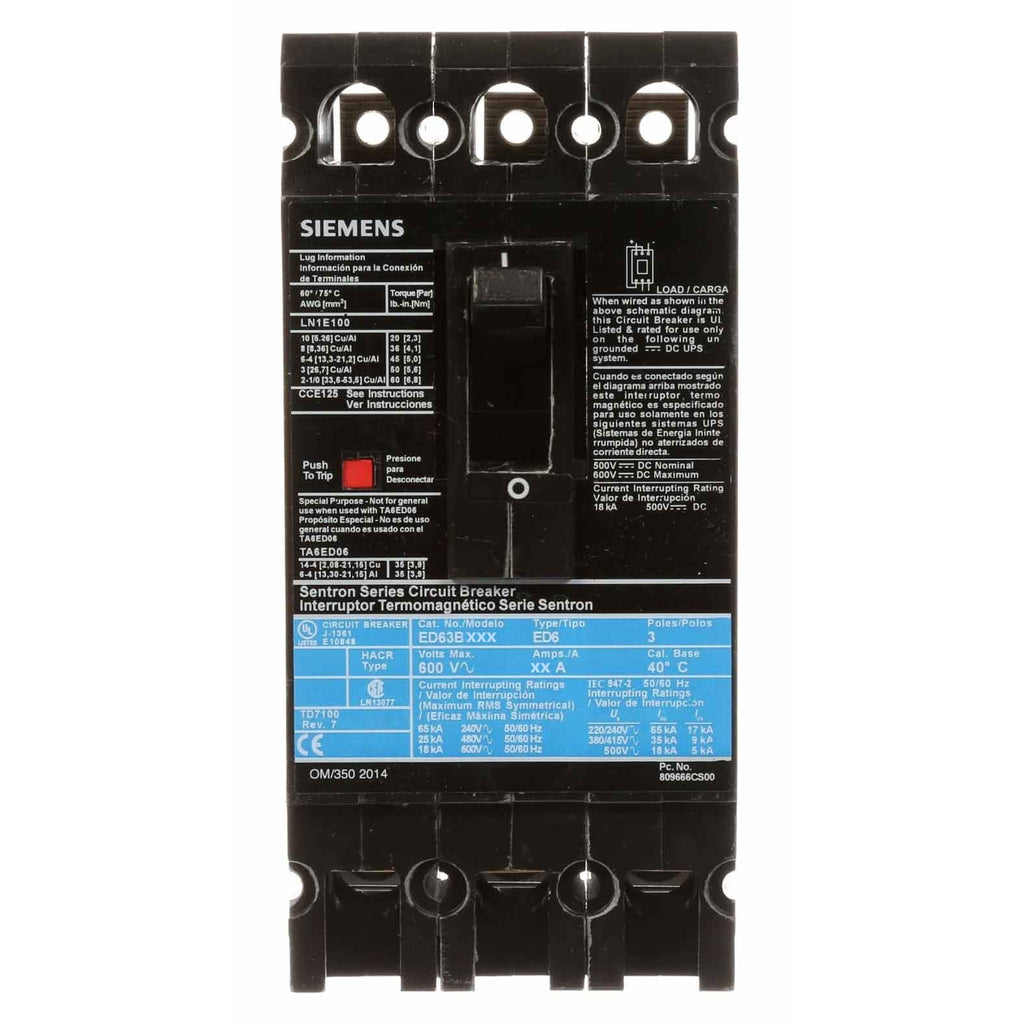

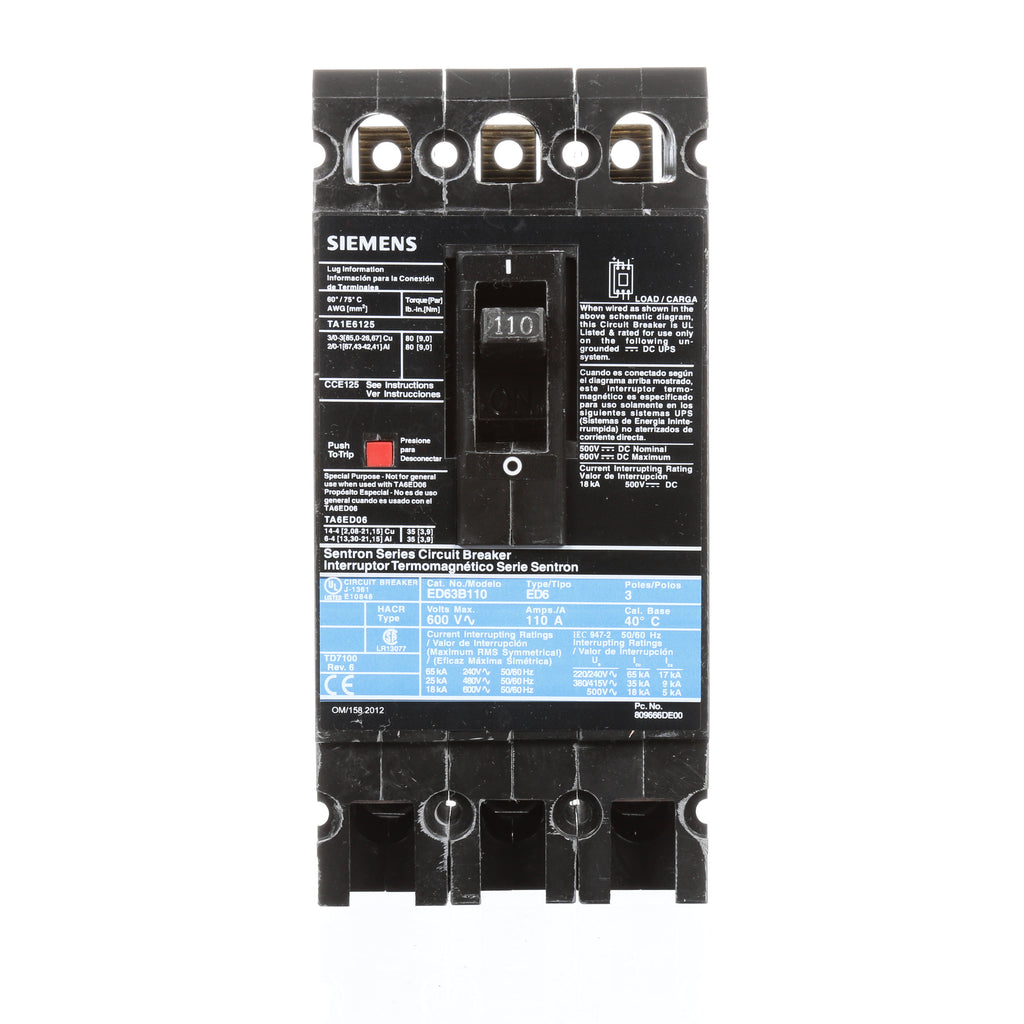

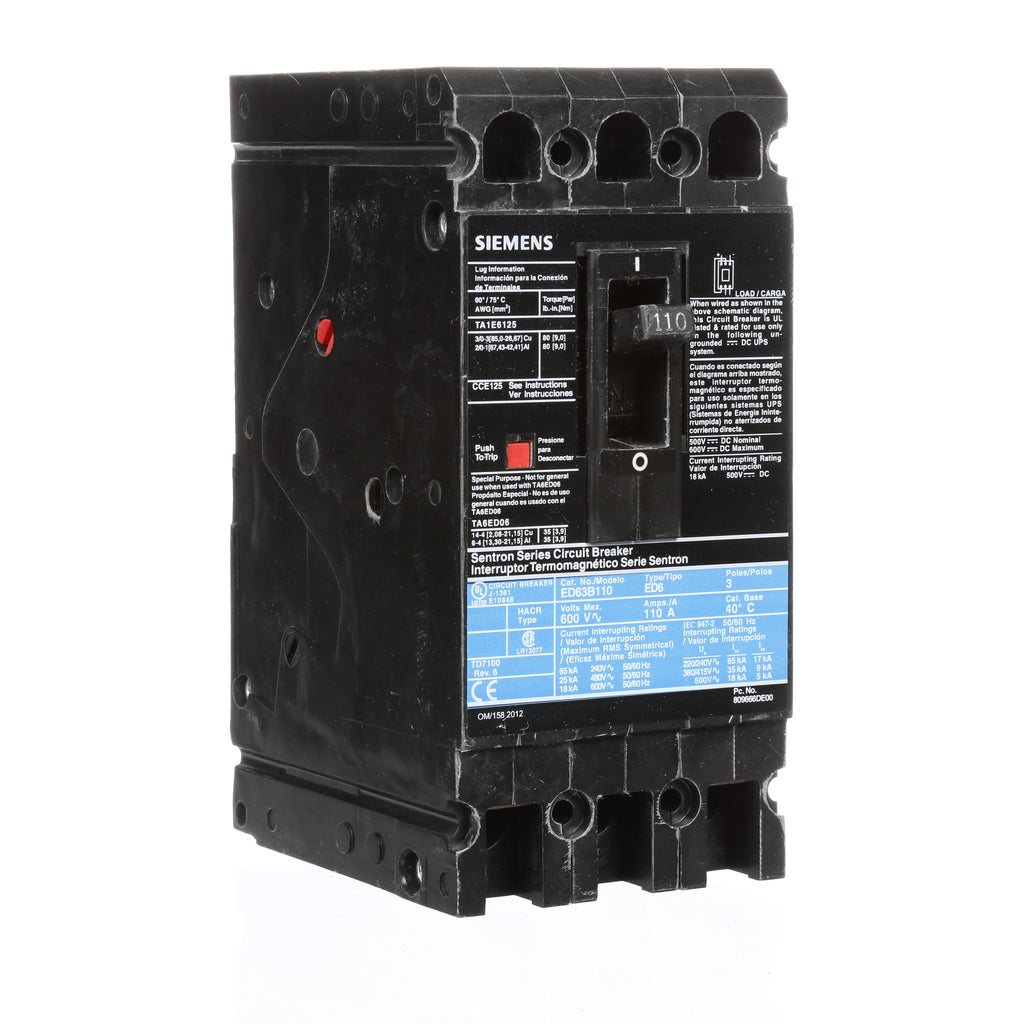

ED63B110 - Siemens 3 Pole 110A 600V Molded Case Circuit Breaker, ED Frame, Bolt-On, 18kAIC @ 600V

ED63B110

ED63B110 is a Siemens 3-pole, 110A, 600V molded case circuit breaker designed for reliable low-voltage power distribution applications. This Siemens Sentron Series ED frame breaker features bolt-on mounting, thermal-magnetic trip, and load lug terminals for secure connections. It meets UL 489 and IEC 60947-2 standards and is rated for 18kAIC at 600V and 25kAIC at 480V, making it suitable for a wide range of commercial and industrial uses.

• Part Number: ED63B110
• Manufacturer: Siemens
• Series/Frame: Sentron ED
• Amperage: 110A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 18kAIC @ 600V, 25kAIC @ 480V
• Trip Unit: Thermal-Magnetic, Long-Time and Instantaneous
• Terminals: Load Lugs Only (TA1E6125)
• Wire Range: 3 - 3/0 AWG (CU), 1 - 2/0 AWG (AL)
• Certifications: UL 489, IEC 60947-2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED63B110
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 600 AC
• Amperage : 110
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Frame Size : ED Frame
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643209794
• GTIN : 00783643209794
• Country of Origin : Mexico
• Dimensions : 6.693 x 5.906 x 3.1016
• Weight : 3.75
• Certification : IEC Certified, UL Listed
• Wire Size : AWG 3 to AWG 3/0, Cu, AWG 1 to AWG 2/0, Al
