Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

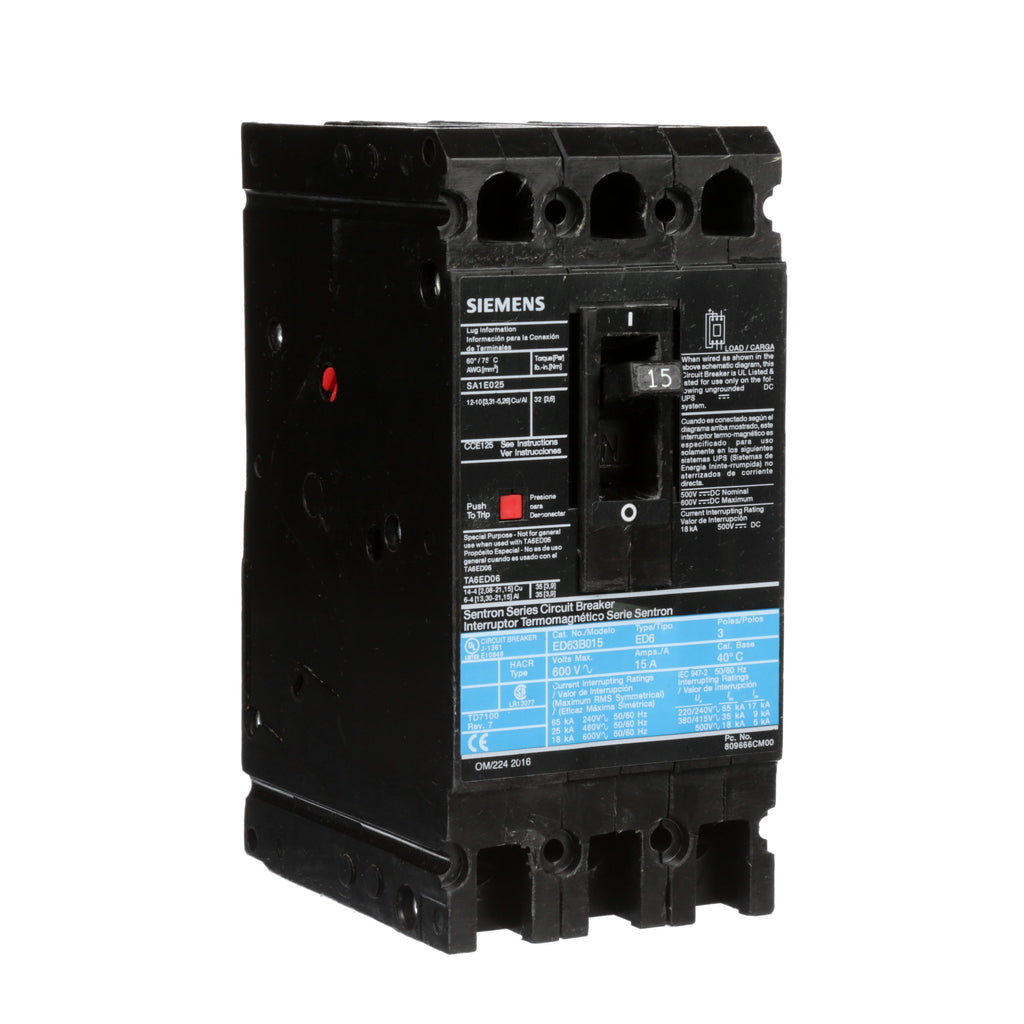

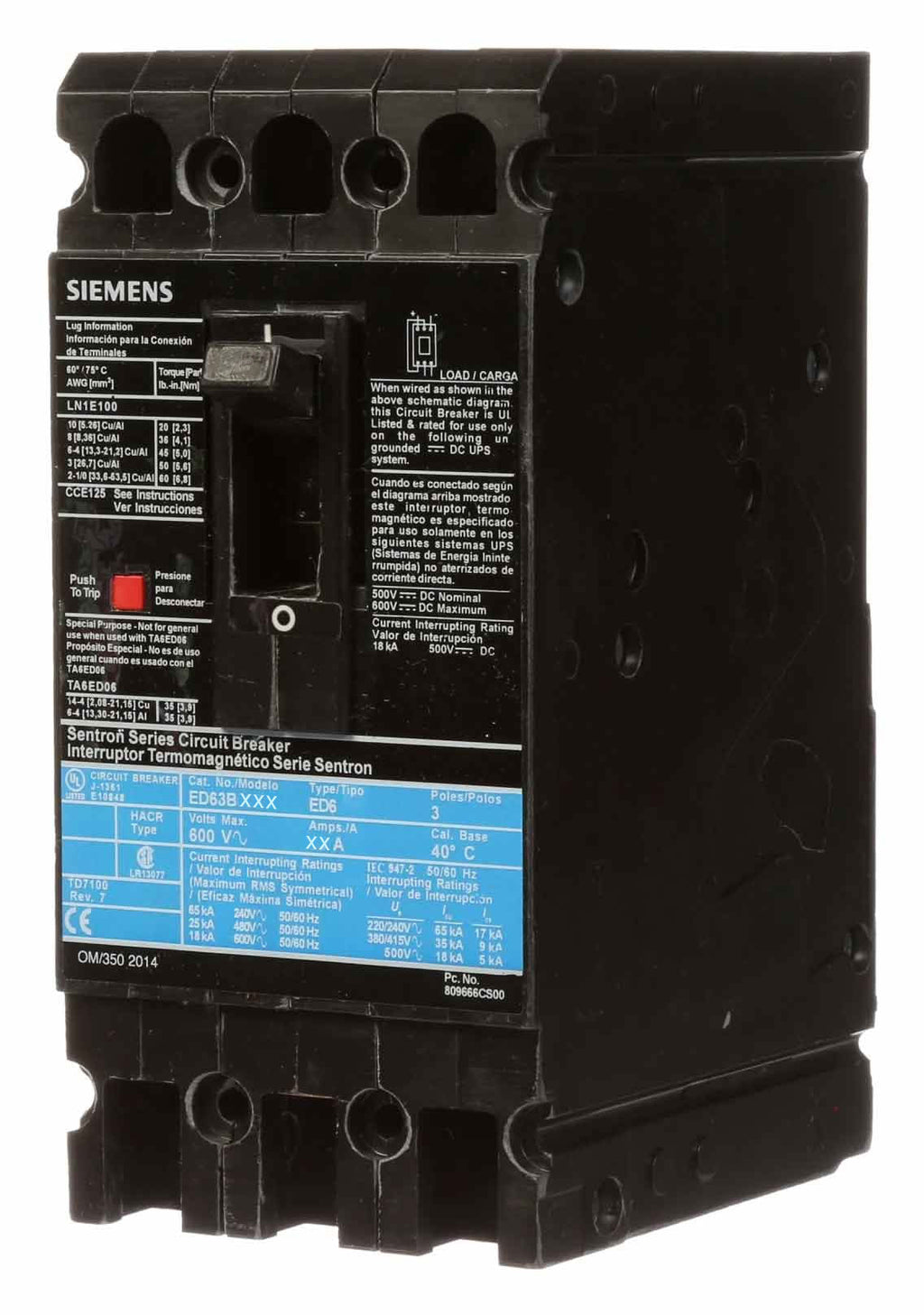

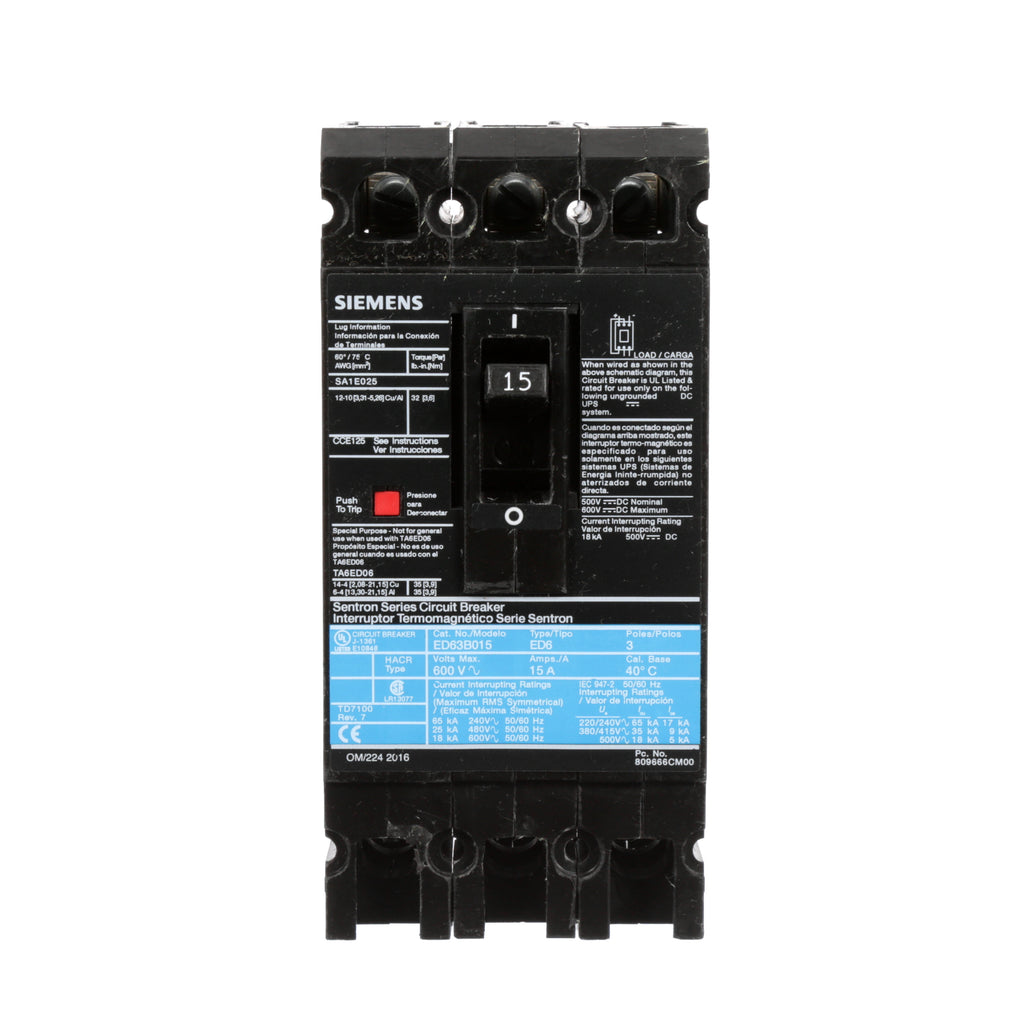

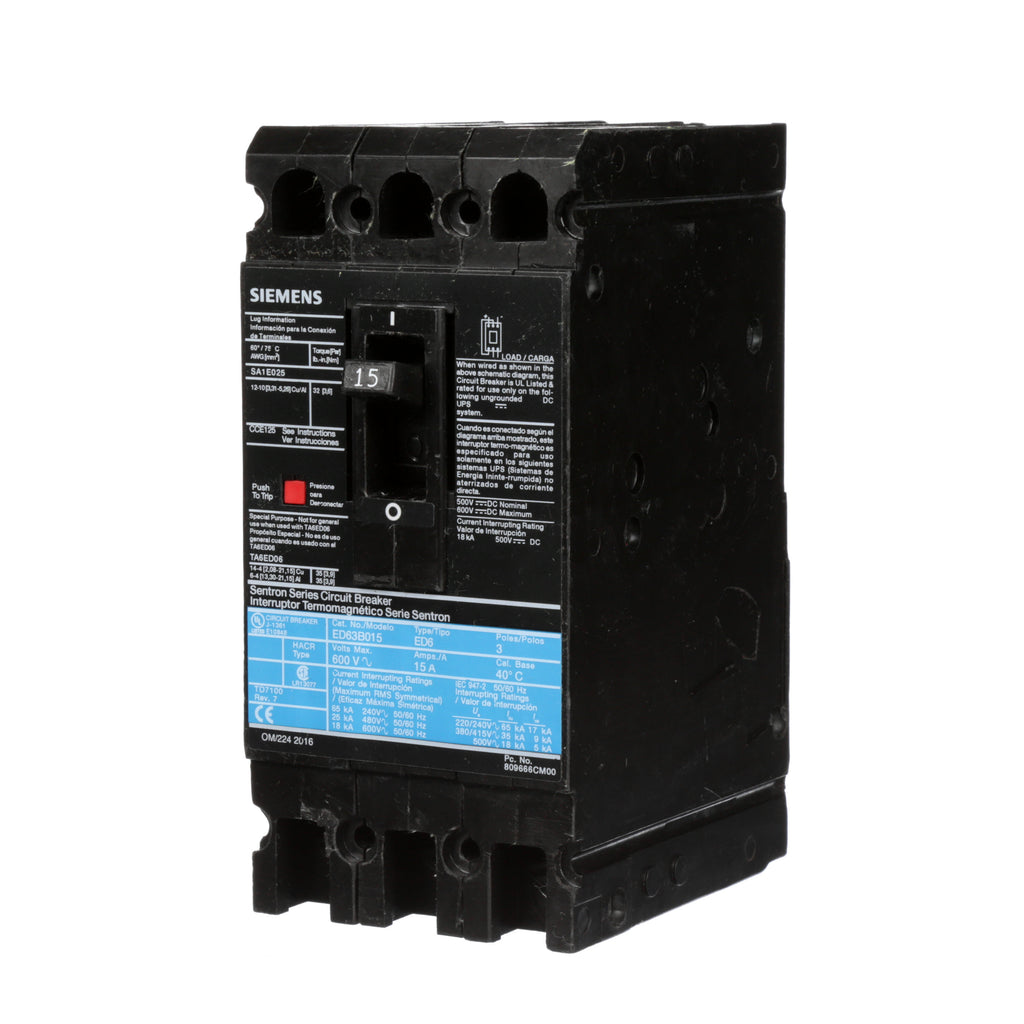

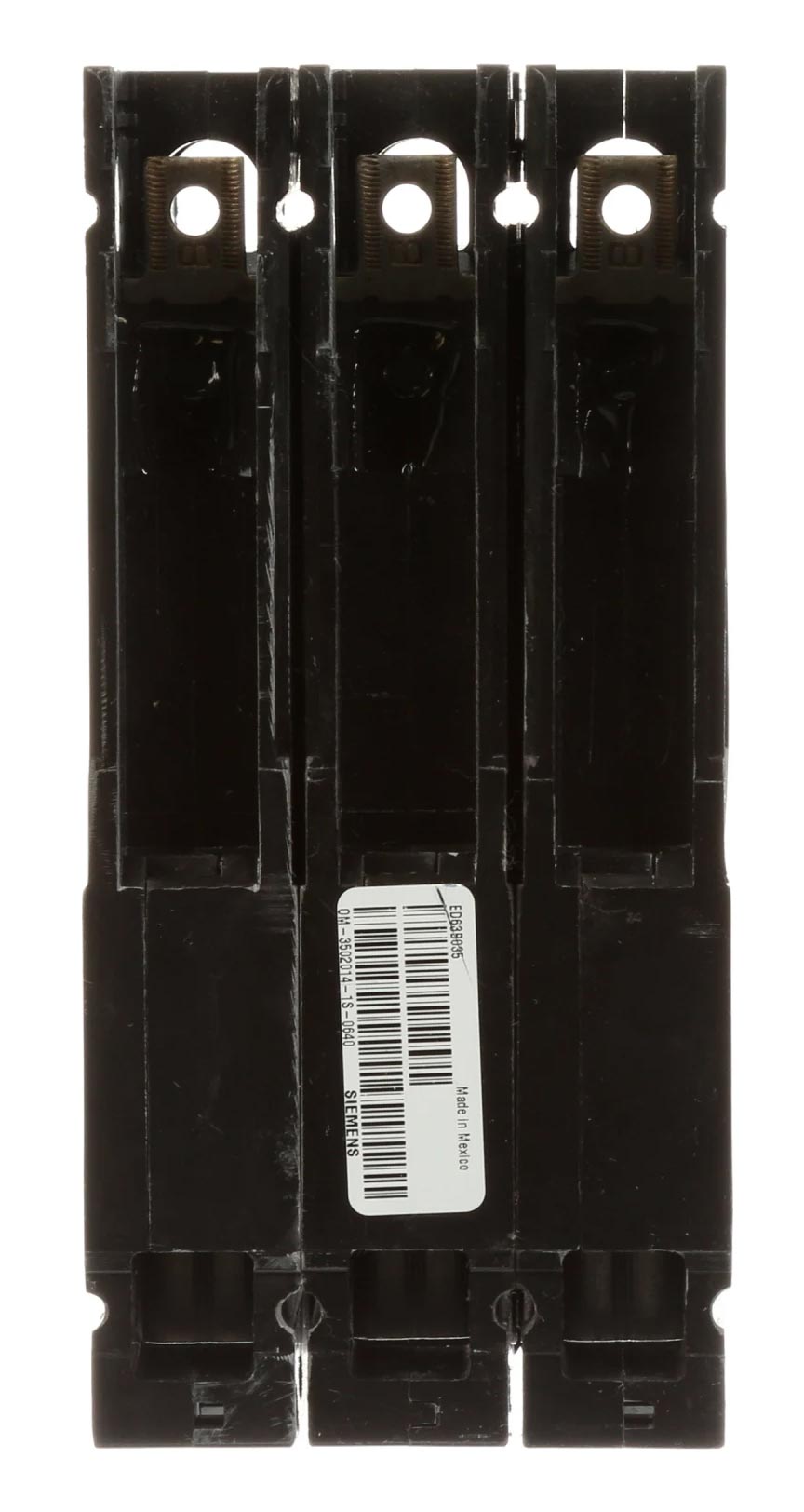

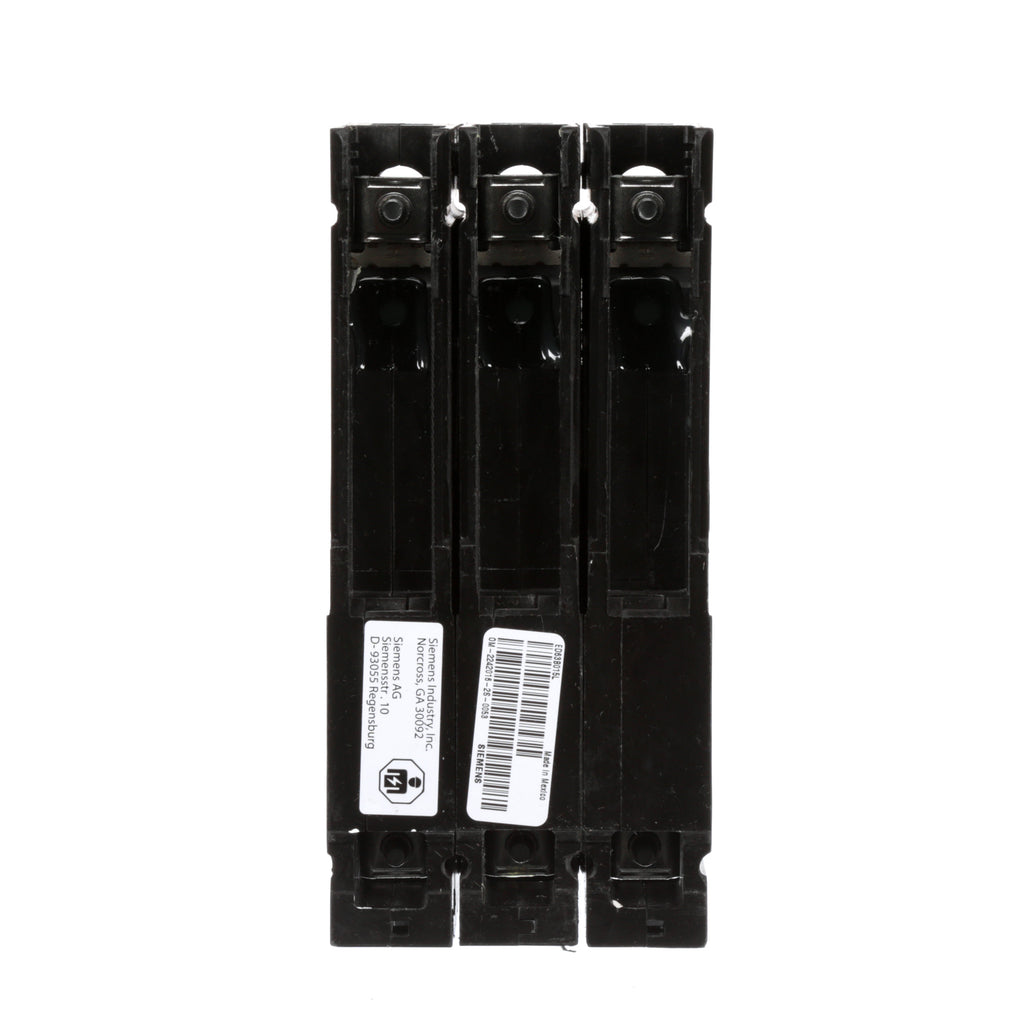

ED63B015L
ED63B015L is a Siemens 15 amp, 600 volt, 3-pole molded case circuit breaker with thermal-magnetic trip unit and standard ED frame.This Siemens Sentron series breaker features a standard 40 degree C rating, line and load side lugs, and meets UL 489 and IEC 60947-2 standards. It has an interrupting rating of 18kA at 600V and 25kA at 480V, suitable for low voltage power distribution applications.
- Amperage: 15A
- Voltage Rating: 600 VAC
- Poles: 3
- Interrupt Rating: 18kA at 600V, 25kA at 480V
- Frame: ED Frame
- Trip Unit: Thermal-Magnetic
- Mounting Type: Feed-Thru with line and load side lugs
- Wire Range: 14-10 AWG (Copper), 12-10 AWG (Aluminum)
- Standards: UL 489, IEC 60947-2
- Dimensions (W x H x D): 3 x 6.35 x 3.92 inches
Specifications
- Part Number: ED63B015L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : ED
- Voltage : 600 AC
- Amperage : 15
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : ED Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643236264
- GTIN : 00783643236264
- Country of Origin : Mexico
- Dimensions : 6.693 x 5.906 x 3.975
- Weight : 3.713 lb
- Certification : Ul Listed, IEC
