Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
ED63B090

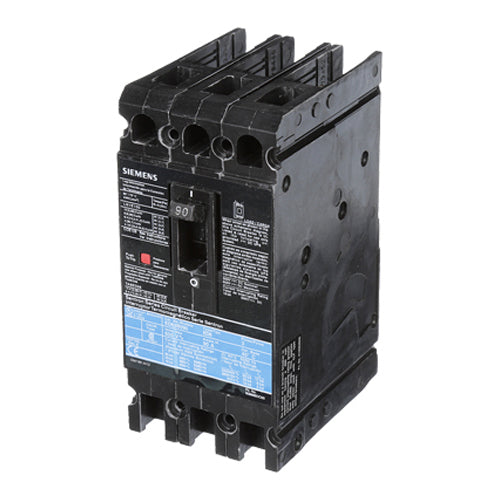

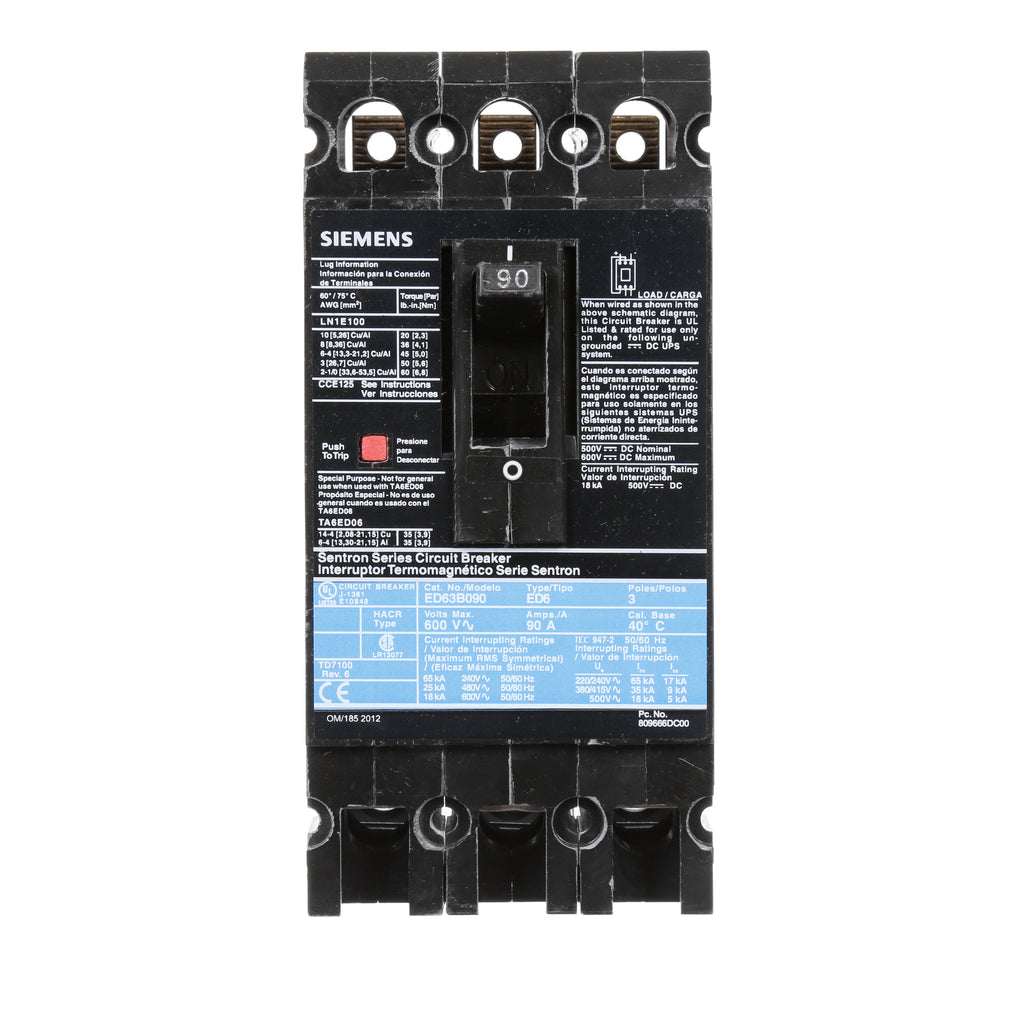

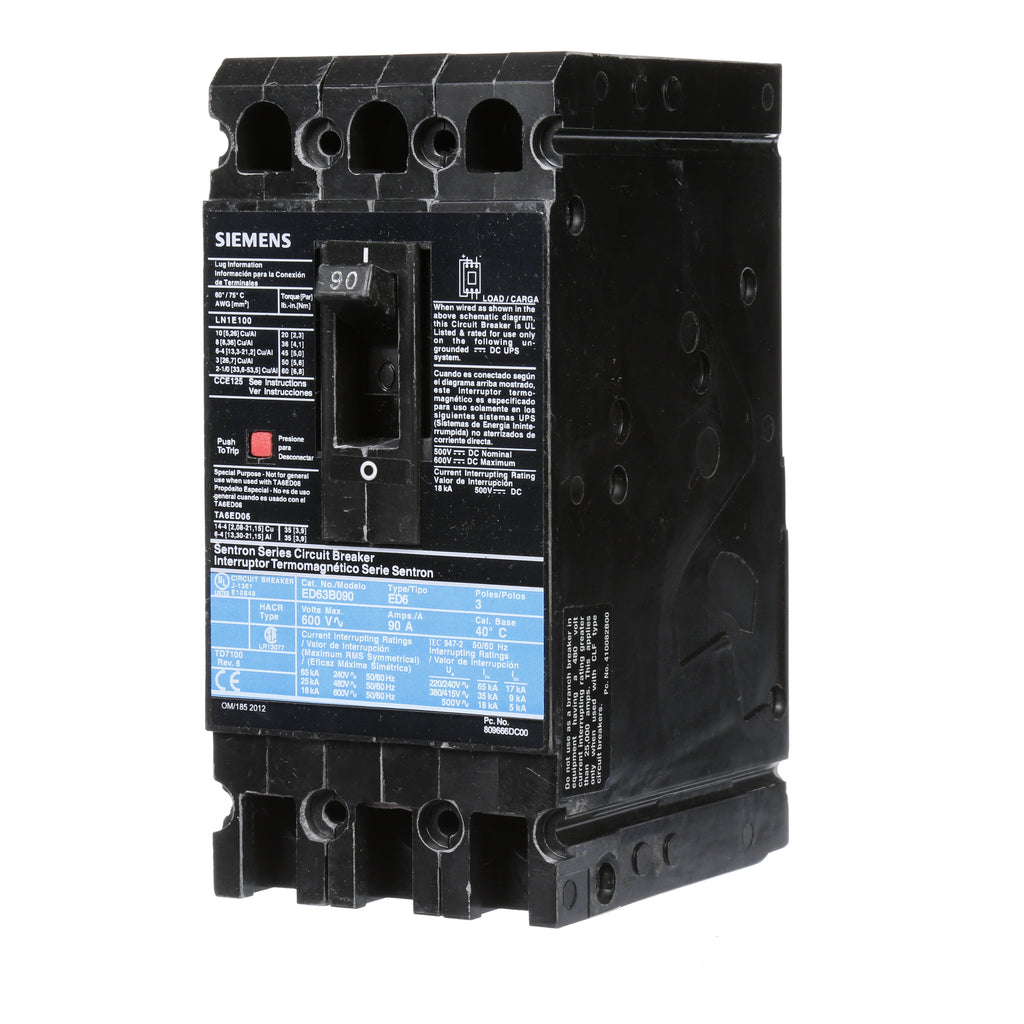

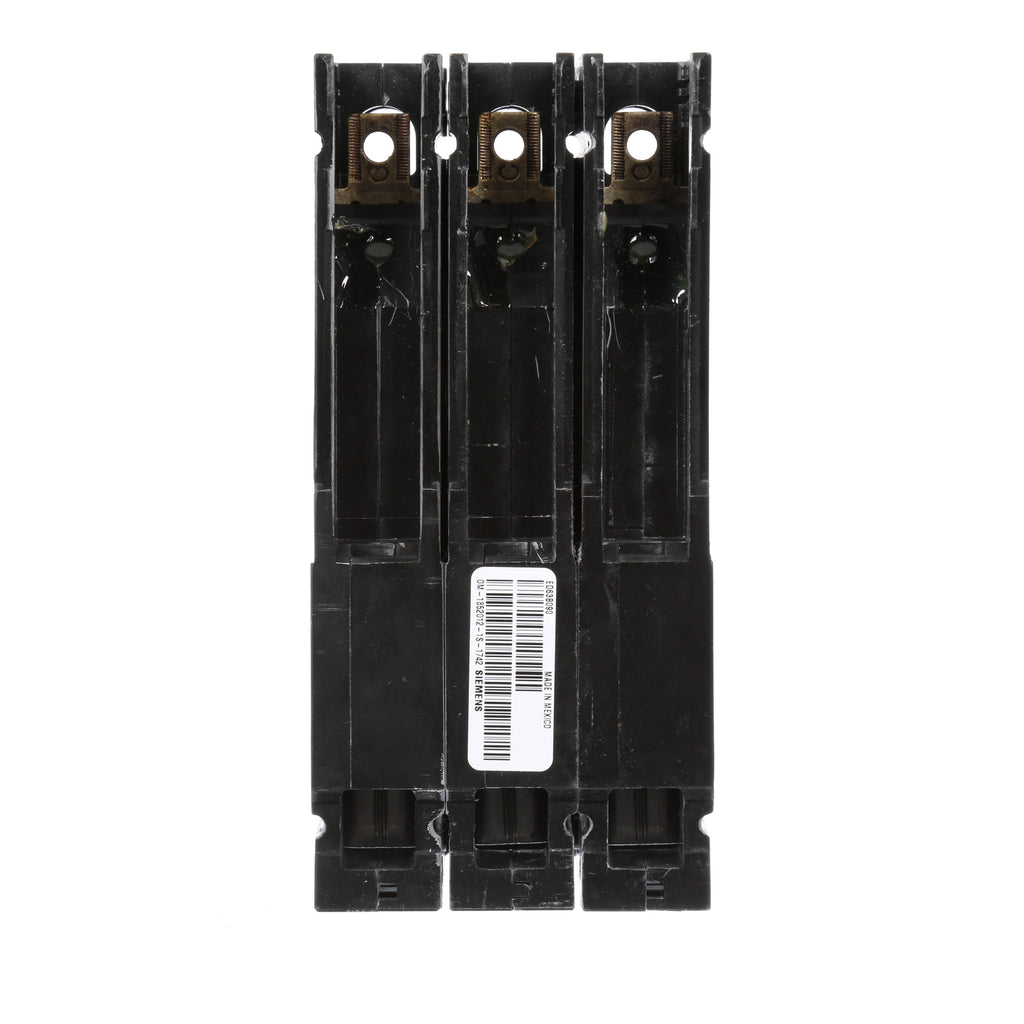

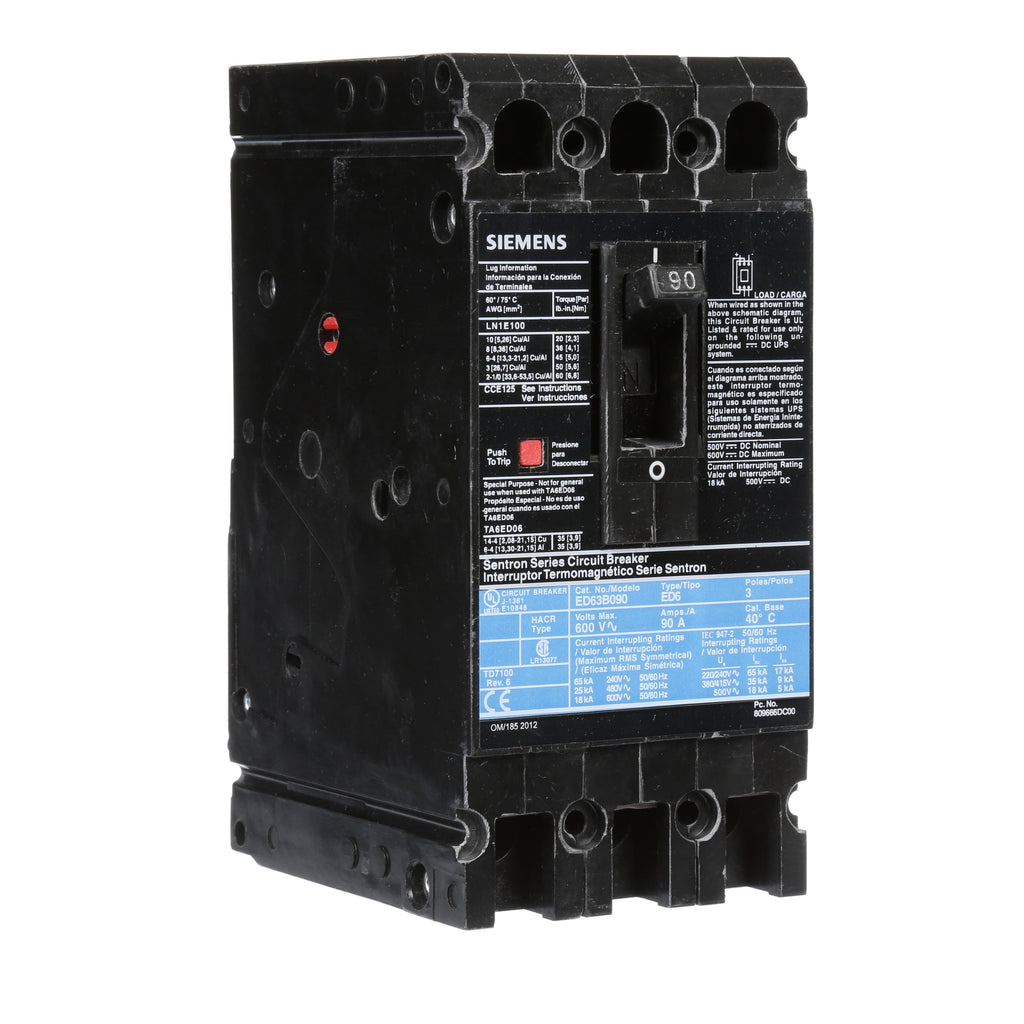

ED63B090 is a Siemens 3 pole molded case circuit breaker with a 90 ampere rating and 600 volt capacity designed for reliable power distribution protection.This Siemens ED series breaker features thermal magnetic trip units, lug-type line side connections, and an interrupt rating of 18kA at 600V. It is suitable for industrial and commercial applications requiring robust circuit protection with a compact design.
- Amperage: 90 Amps
- Voltage: 600 Volts
- Poles: 3
- Series/Frame: ED
- Trip Unit: Thermal Magnetic
- Interrupt Rating: 18kA at 600V
- Mounting Type: Lug (line side)
- Certifications: UL Listed
- Weight: Approximately 3.6 lbs
- Dimensions: Approx. 6.35" x 3" x 3.92"
Specifications
- Part Number: ED63B090
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : ED
- Voltage : 600 AC
- Amperage : 90
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : ED Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643209770
- GTIN : 00783643209770
- Country of Origin : Mexico
- Dimensions : 6.693 x 5.906 x 3.1010
- Weight : 3.6
- Certification : IEC Certified, UL Listed
- Wire Size : AWG 10 to AWG 1/0, Cu/Al
