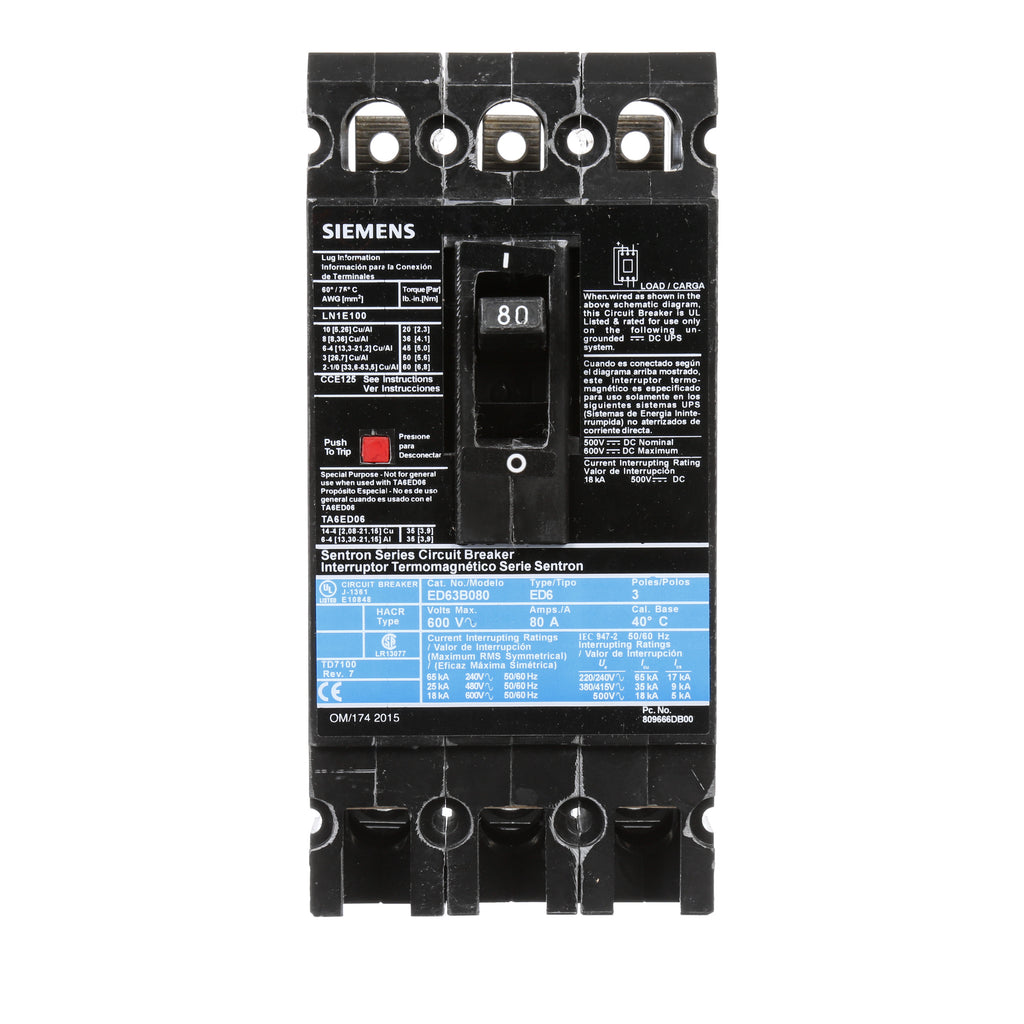

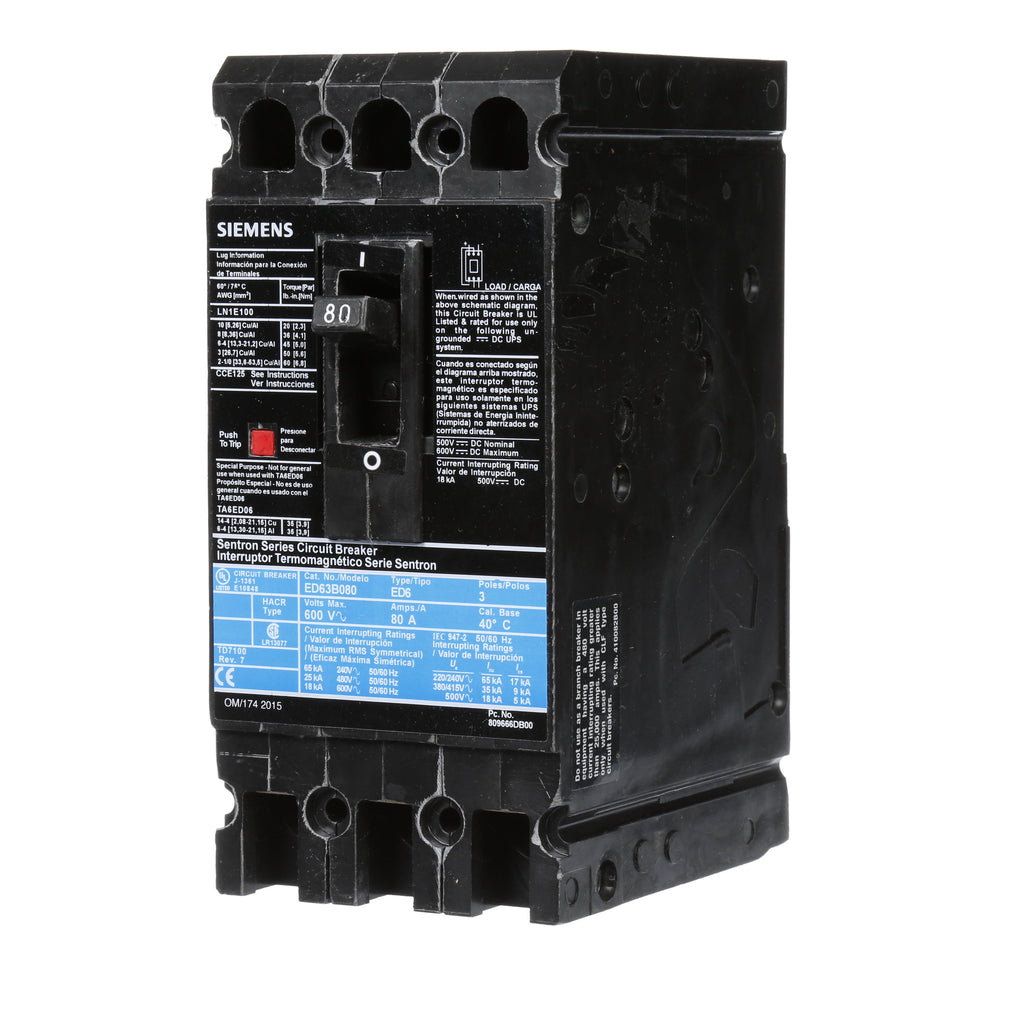

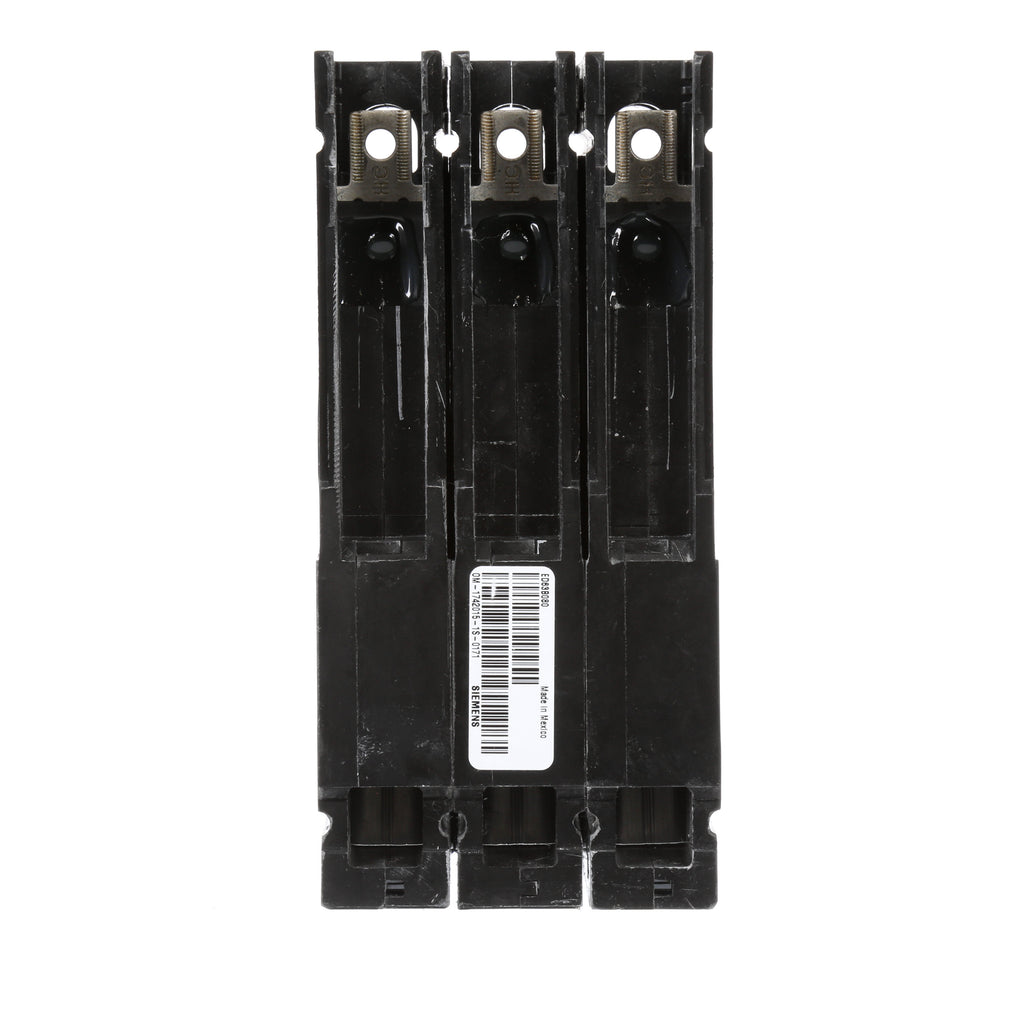

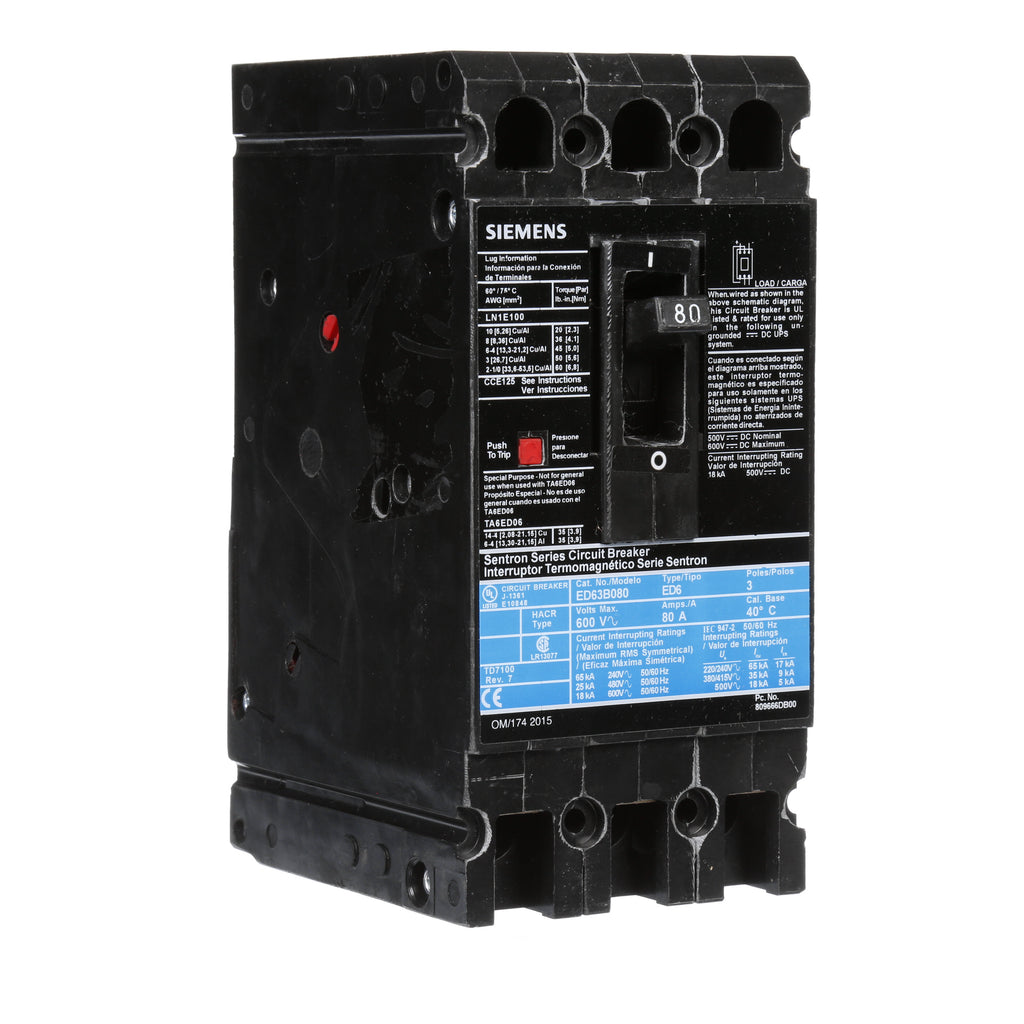

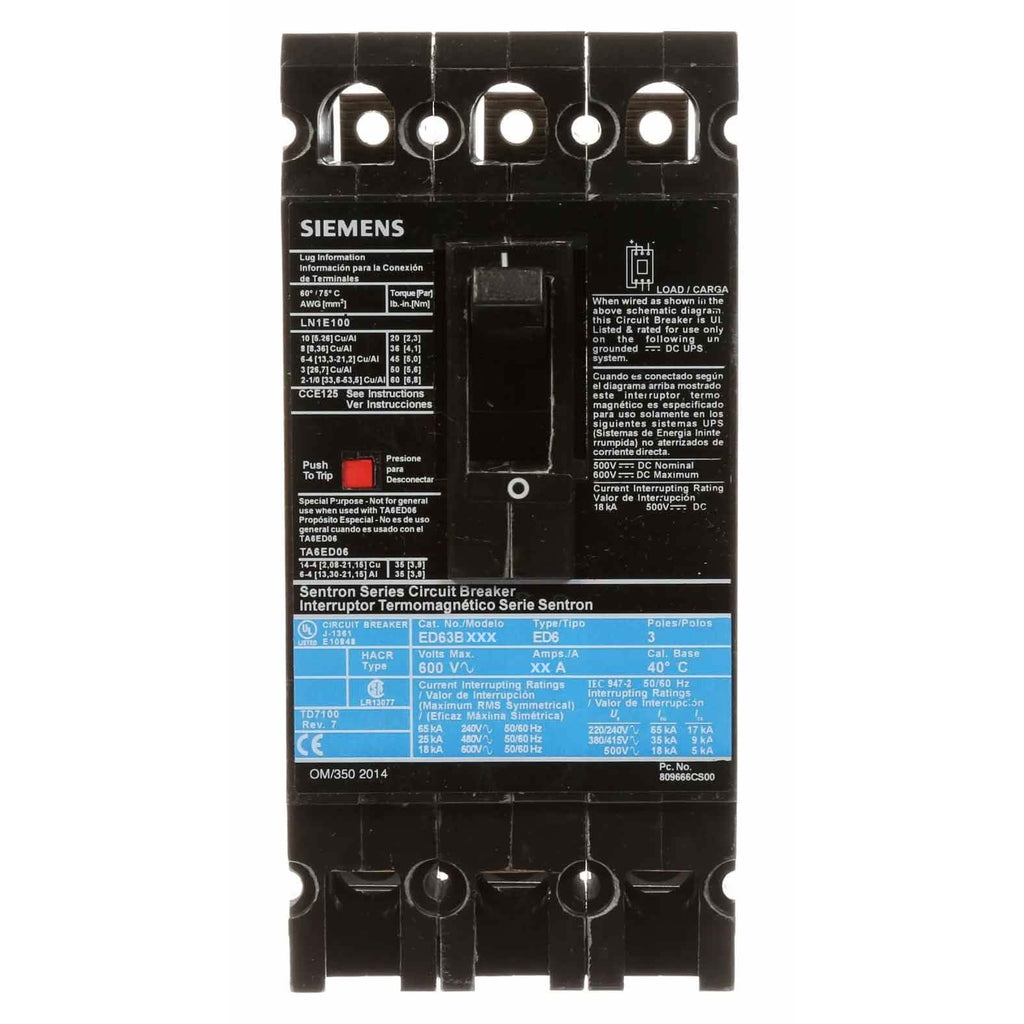

ED63B080 - Siemens 80A 600V 3 Pole Molded Case Circuit Breaker, Thermal Magnetic Trip, Bolt-On Mount, 18kA@600V

ED63B080

ED63B080 is a Siemens Type ED molded case circuit breaker designed for industrial and commercial power distribution applications requiring reliable thermal magnetic overcurrent protection. This 3-pole breaker features a compact ED frame design with bolt-on mounting for easy installation in standard electrical panels and enclosures. The breaker delivers consistent performance across 50/60 Hz frequencies with non-interchangeable trip unit construction and is rated for standard 40 degree Celsius operation. Key Specifications

• Amperage Rating: 80 Amps
• Voltage Rating: 600 VAC / 250 VDC
• Number of Poles: 3
• Frame Type: ED
• Mounting Type: Bolt-On
• Trip Unit: Thermal Magnetic
• Interrupt Rating: 65 kA at 240 VAC, 25 kA at 480 VAC, 18 kA at 600 VAC
• Wire Size: 10 AWG to 1/0 AWG
• Frequency: 50/60 Hz
• Certifications: UL 489 Listed, HACR Rated, CSA Certified
• Dimensions: 4 inches L x 6 inches W x 7 inches H
• Weight: 3.8 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED63B080
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 600 AC
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Frame Size : ED Frame
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643209763
• GTIN : 00783643209763
• Country of Origin : Mexico
• Dimensions : 7.244 x 5.512 x 3.937 inch
• Weight : 3.657
• Certification : IEC Certified, UL Listed
• Wire Size : AWG 10 to AWG 1/0, Cu/Al
