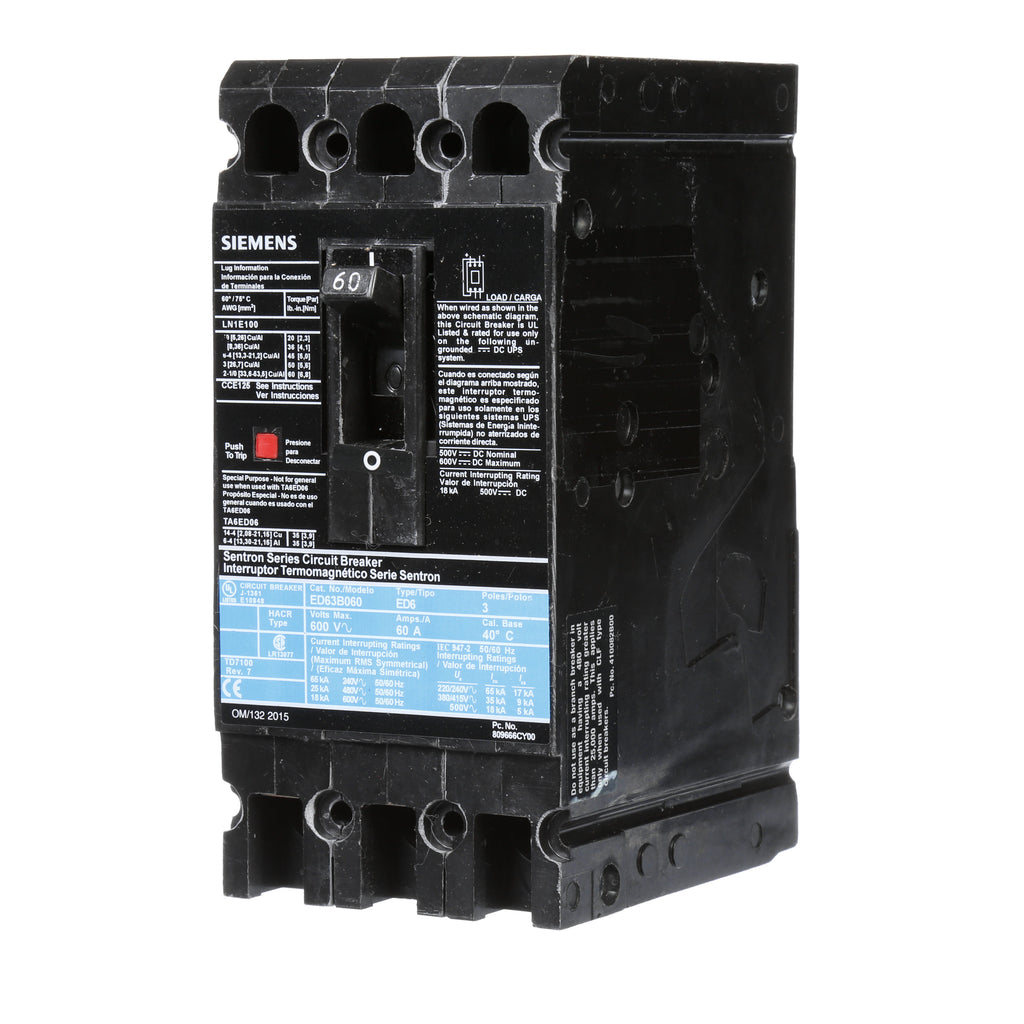

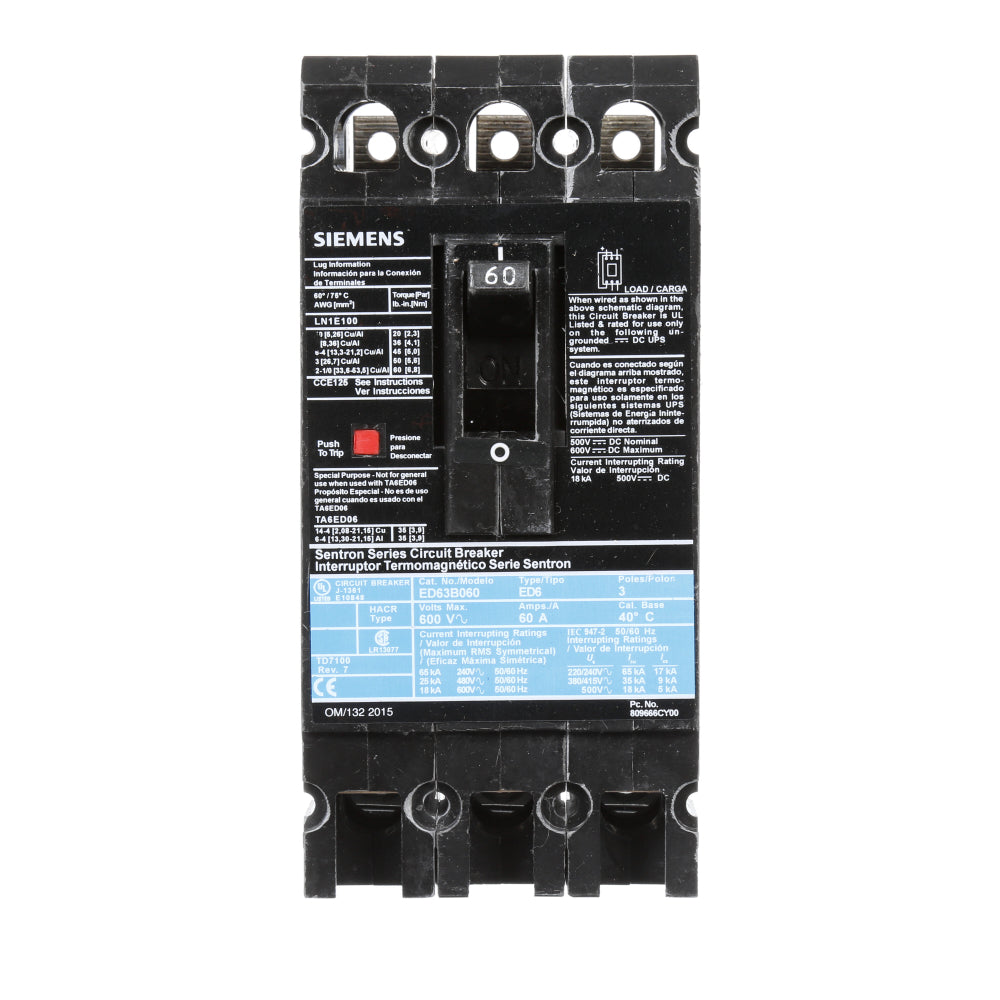

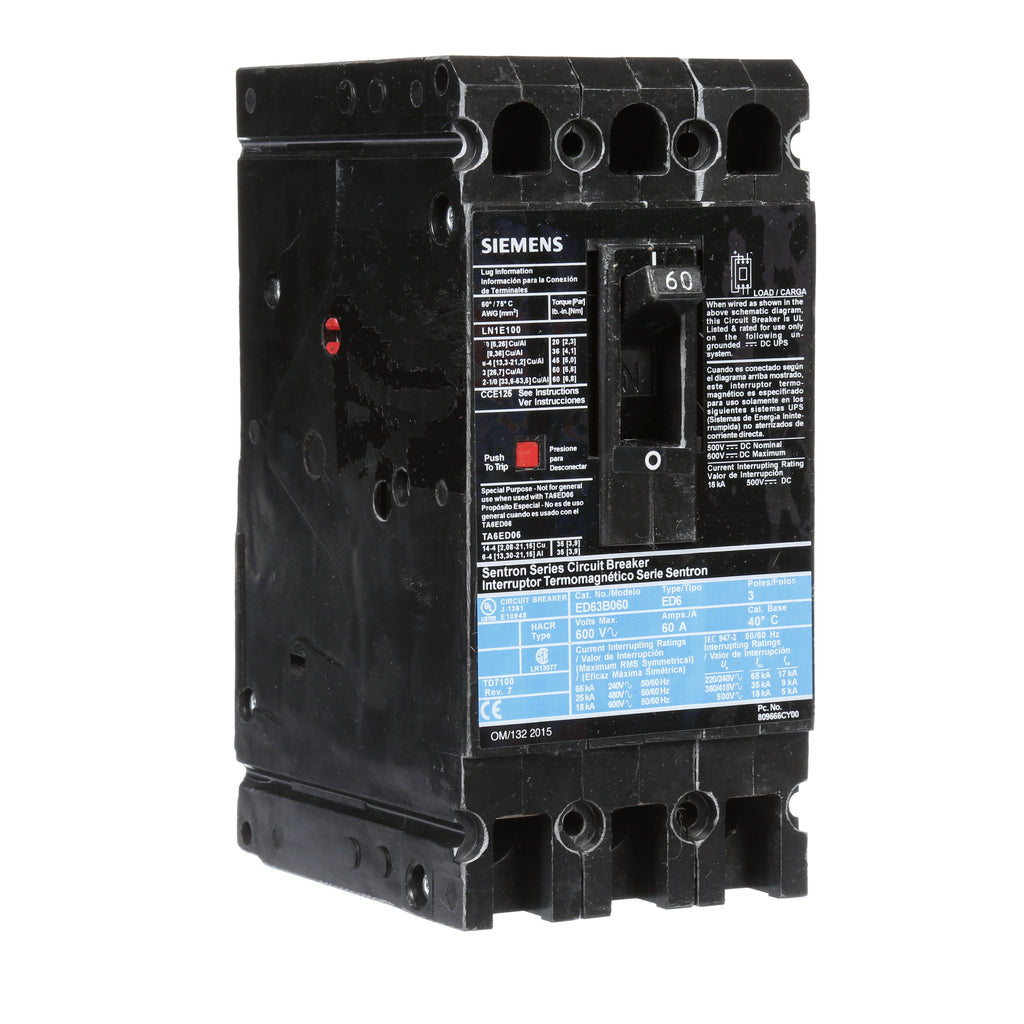

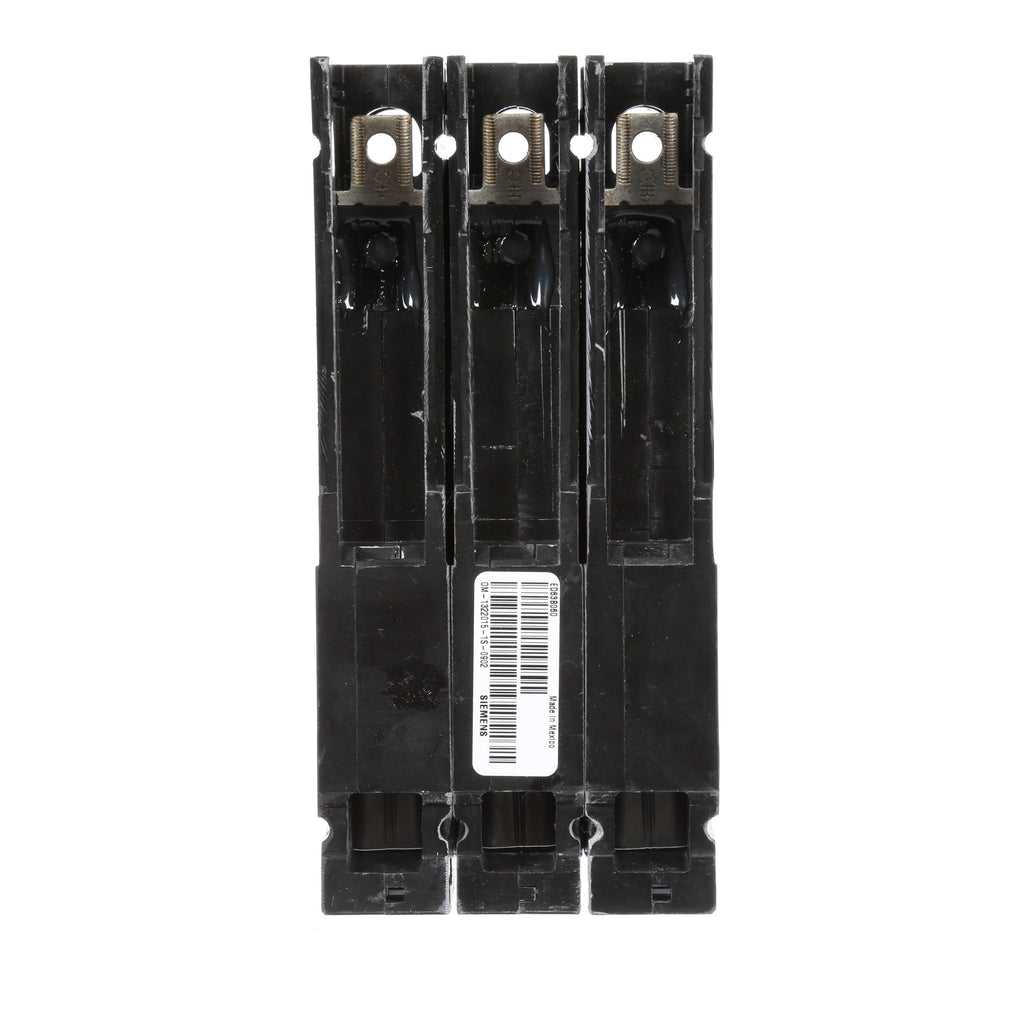

ED63B060 - Siemens 60 Amp 600 Volt 3 Pole Molded Case Circuit Breaker ED Series Bolt-On

ED63B060

ED63B060 is a Siemens 3 Pole molded case circuit breaker rated for 60 Amps and 600 Volts AC with bolt-on mounting.This Siemens Sentron ED Series circuit breaker features a thermal magnetic trip unit, 18 kA interrupt rating at 600 VAC, and is designed for low voltage applications. It provides reliable protection with a bolt-on frame and is suitable for industrial and commercial electrical distribution systems.

Key Specifications
• Amperage: 60 Amps
• Voltage Rating: 600 VAC / 250 VDC
• Number of Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 18 kA at 600 VAC
• Series/Frame: ED (Sentron)
• Trip Unit: Thermal Magnetic
• Frequency: 50/60 Hz
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED63B060
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 600 AC
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Frame Size : ED Frame
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643209749
• GTIN : 00783643209749
• Country of Origin : Mexico
• Dimensions : 6.693 x 5.906 x 3.1000
• Weight : 0.328
• Certification : IEC Certified, UL Listed
• Wire Size : AWG 10 to AWG 1/0, Cu/Al
