Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
ED63B045

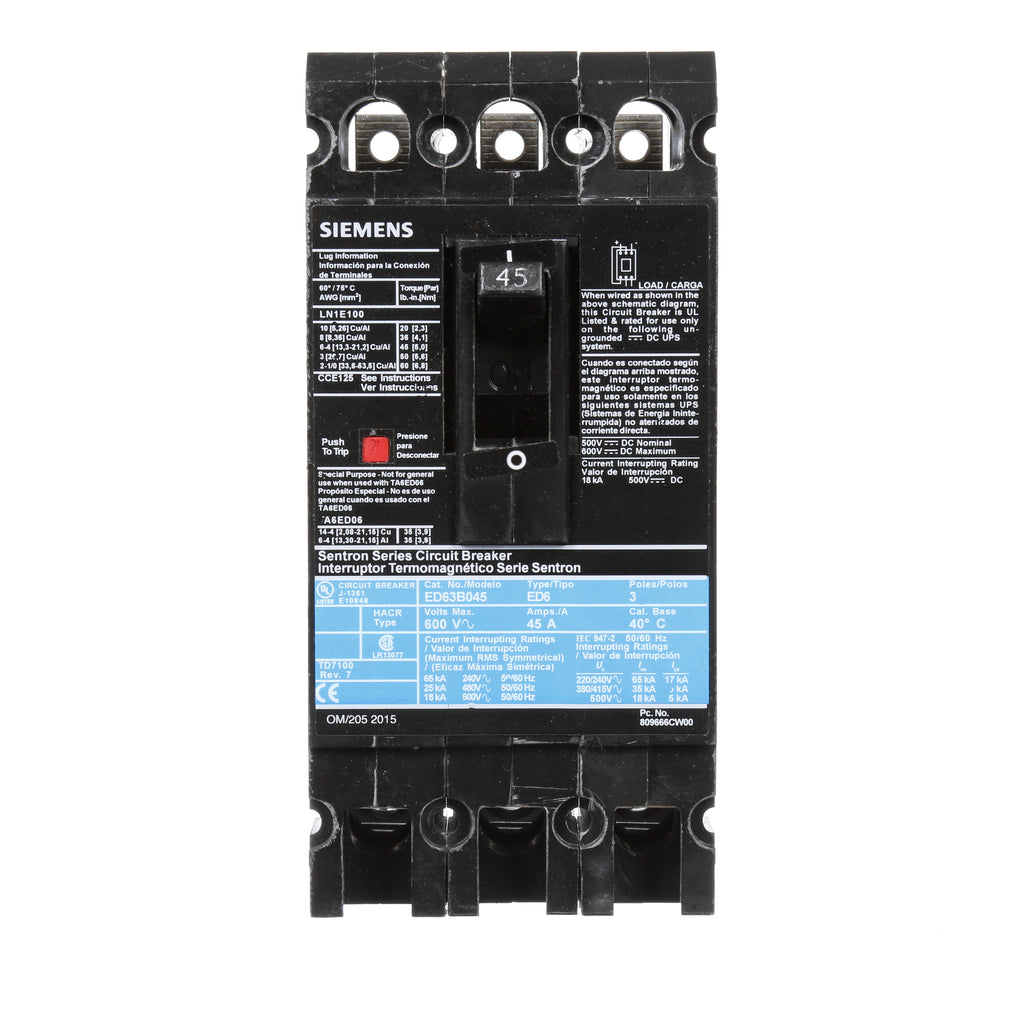

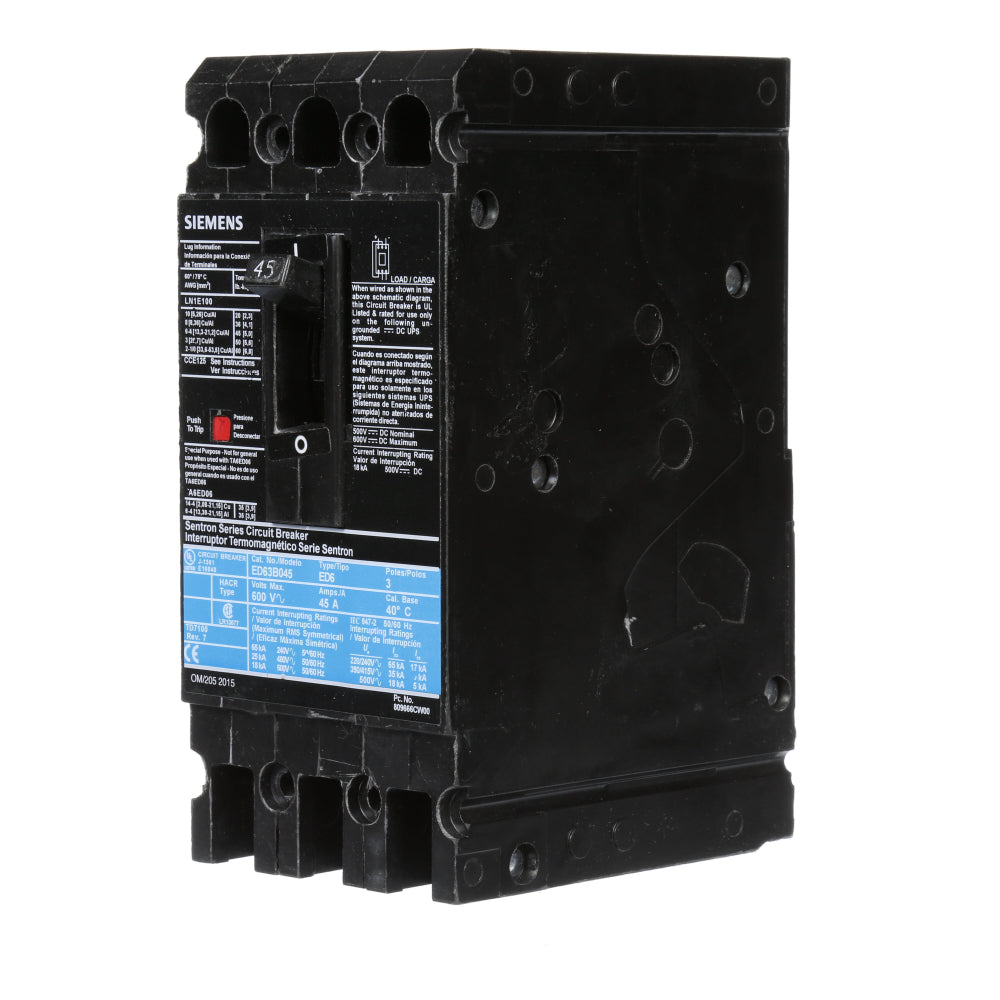

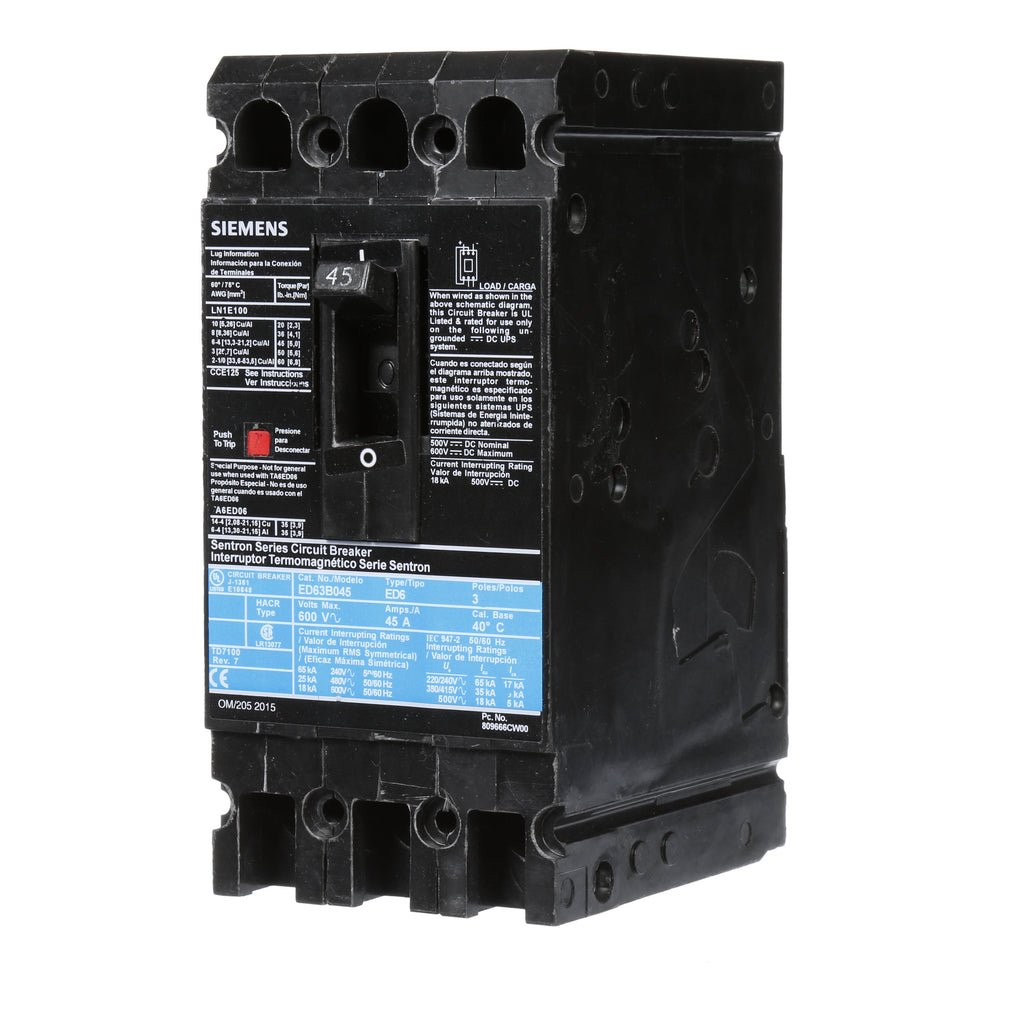

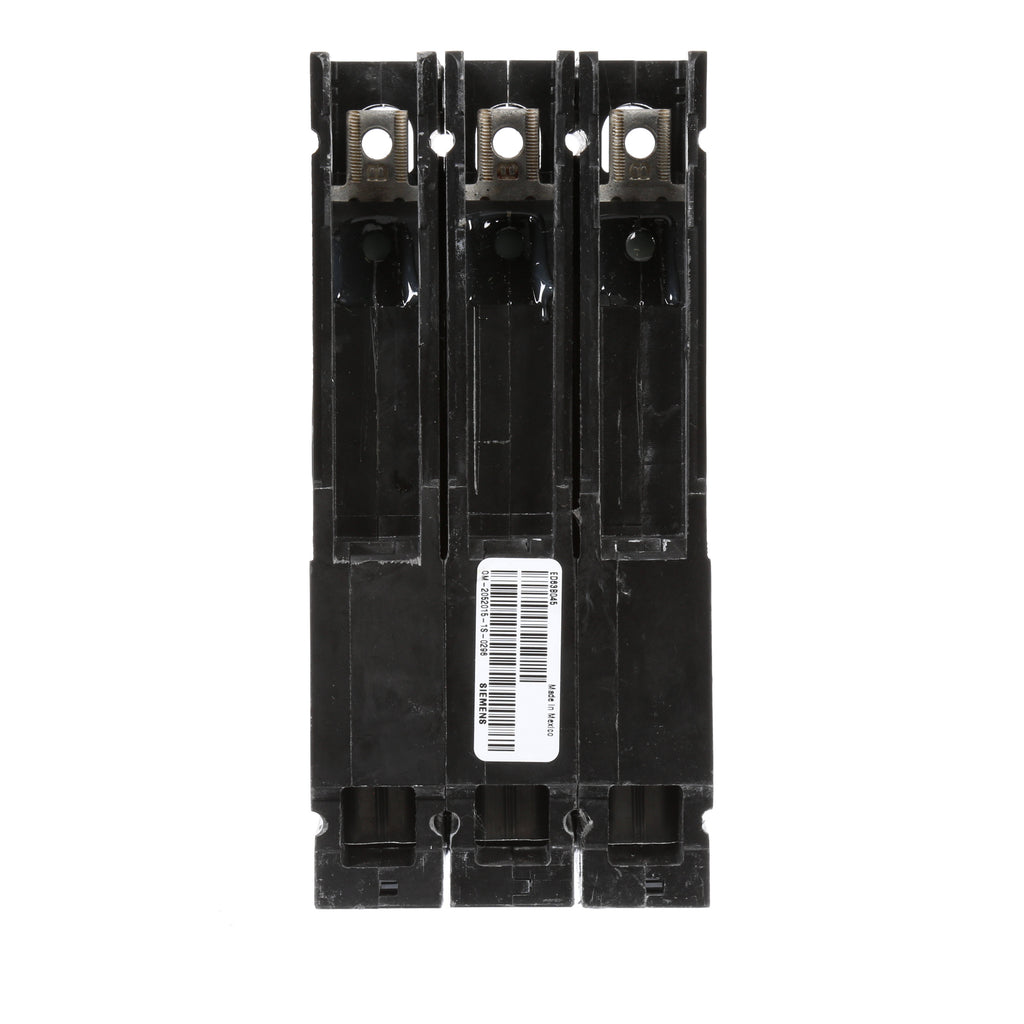

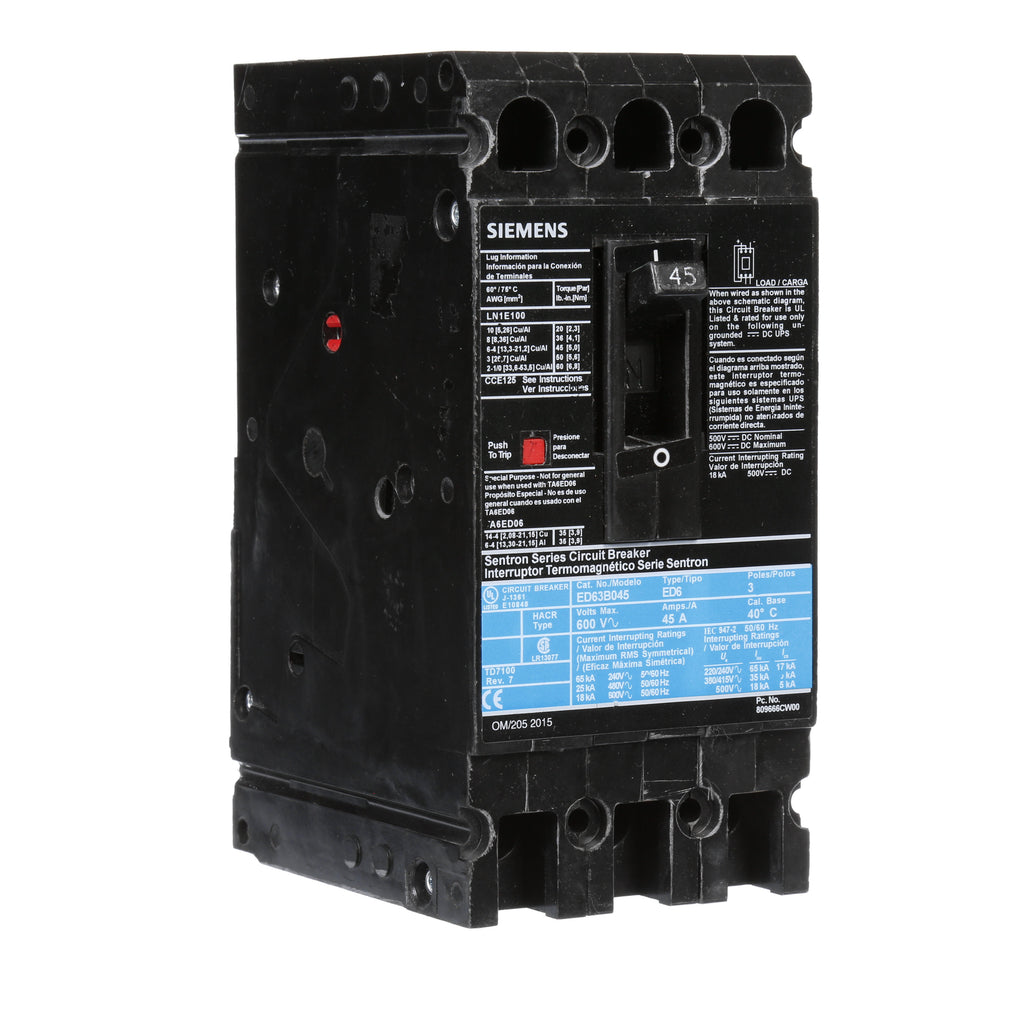

ED63B045 is a Siemens 3-pole molded case circuit breaker rated for 45 amps and 600 VAC with a thermal magnetic trip unit.
This Siemens Sentron ED63B045 breaker features a 3-pole design with a 45 ampere rating and voltage ratings of 600 VAC and 250 VDC. It has an interrupt rating of 18 kA at 600 VAC and uses a thermal magnetic trip mechanism. The breaker is part of the ED frame series and meets UL 489 and IEC 60947-2 certification standards.
- Key Specifications
- Amperage: 45 A
- Voltage: 600 VAC / 250 VDC
- Poles: 3
- Interrupt Rating: 18 kA at 600 VAC
- Trip Unit: Thermal Magnetic
- Series/Frame: ED Frame
- Mounting Type: Molded Case
- Certifications: UL 489, IEC 60947-2
- Part Number: ED63B045
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : ED
- Voltage : 600 AC
- Amperage : 45
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : ED Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
- UPC : 783643209725
- GTIN : 00783643209725
- Country of Origin : Mexico
- Dimensions : 6.693 x 5.906 x 3.994
- Weight : 3.71
- Certification : IEC Certified, UL Listed
- Wire Size : AWG 10 to AWG 1/0, Cu/Al
