Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
ED63B035

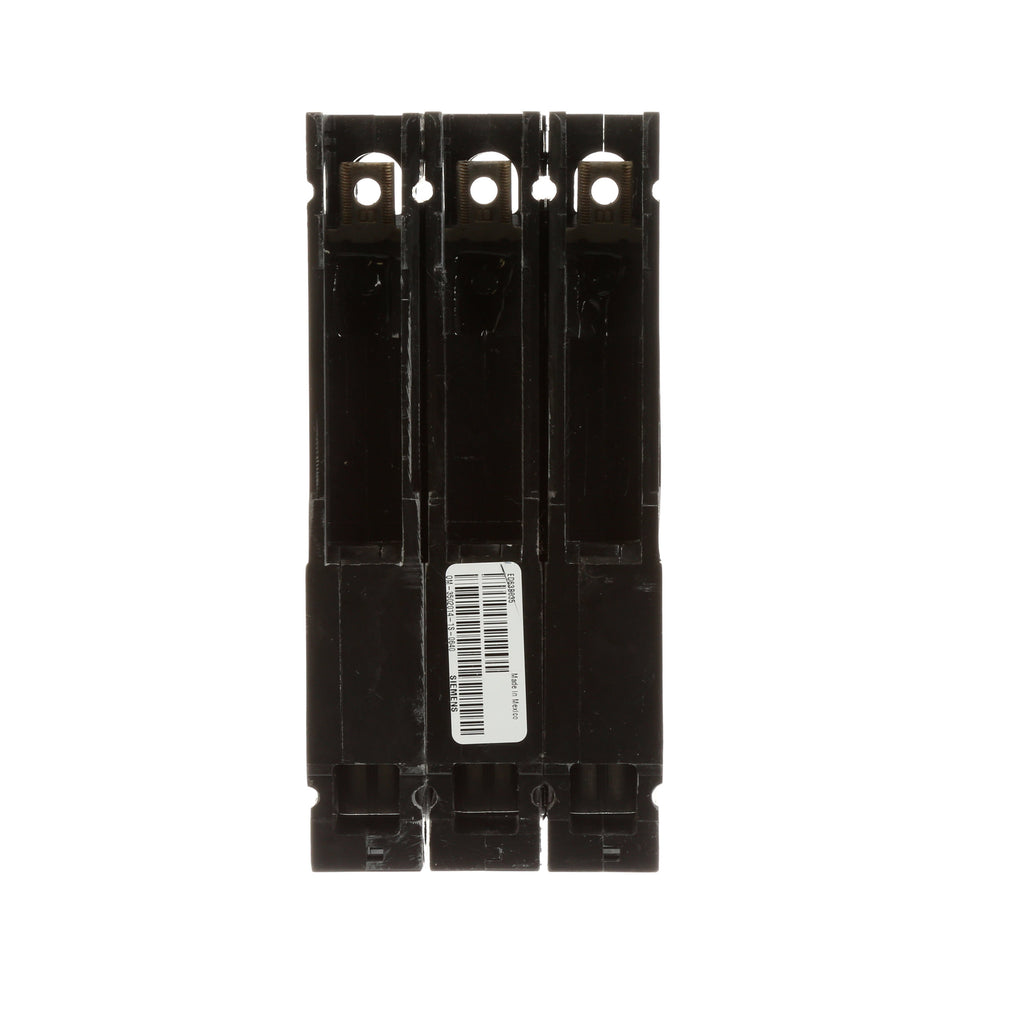

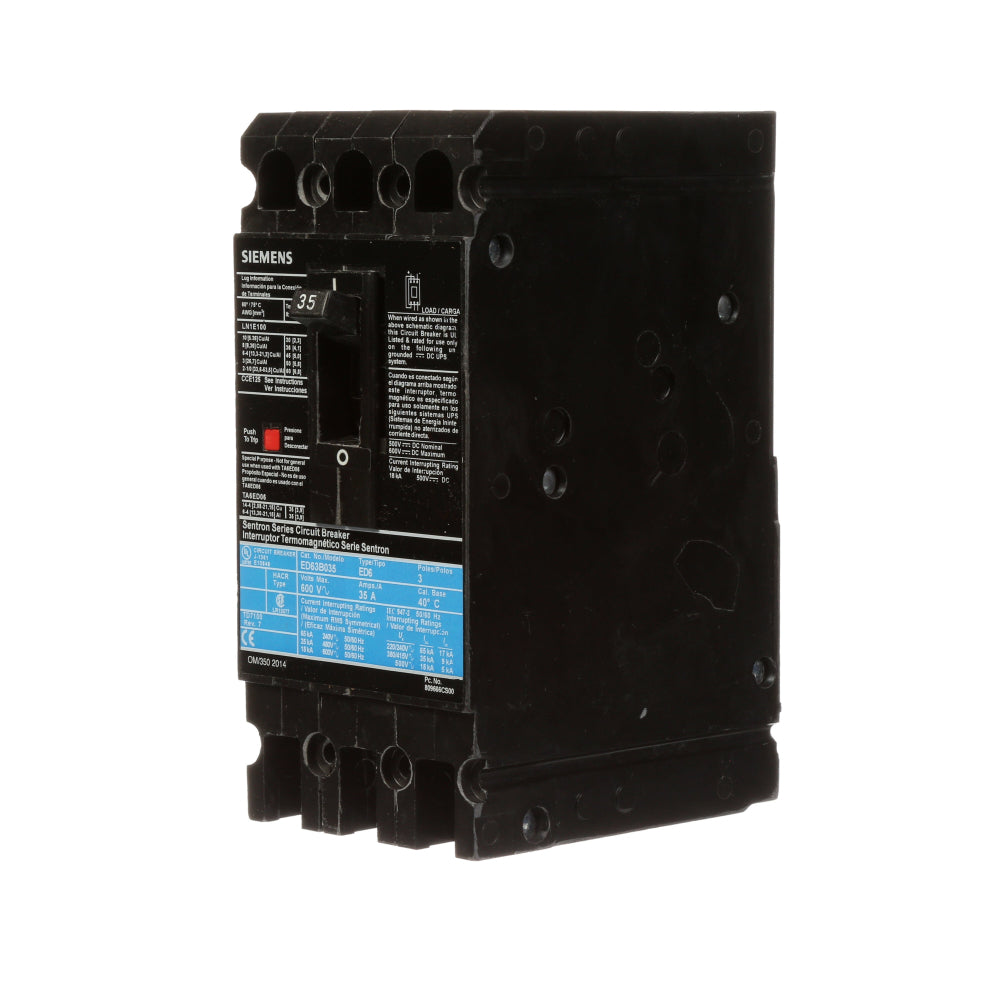

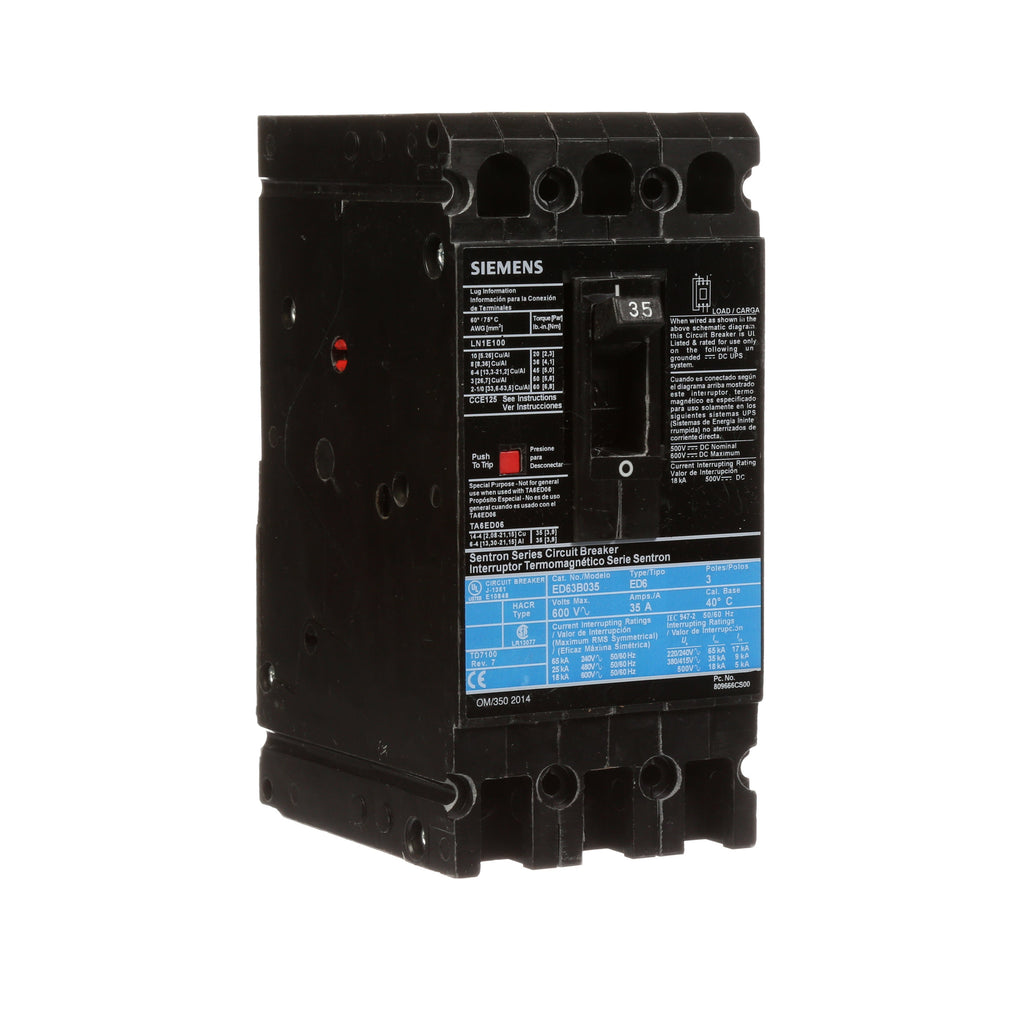

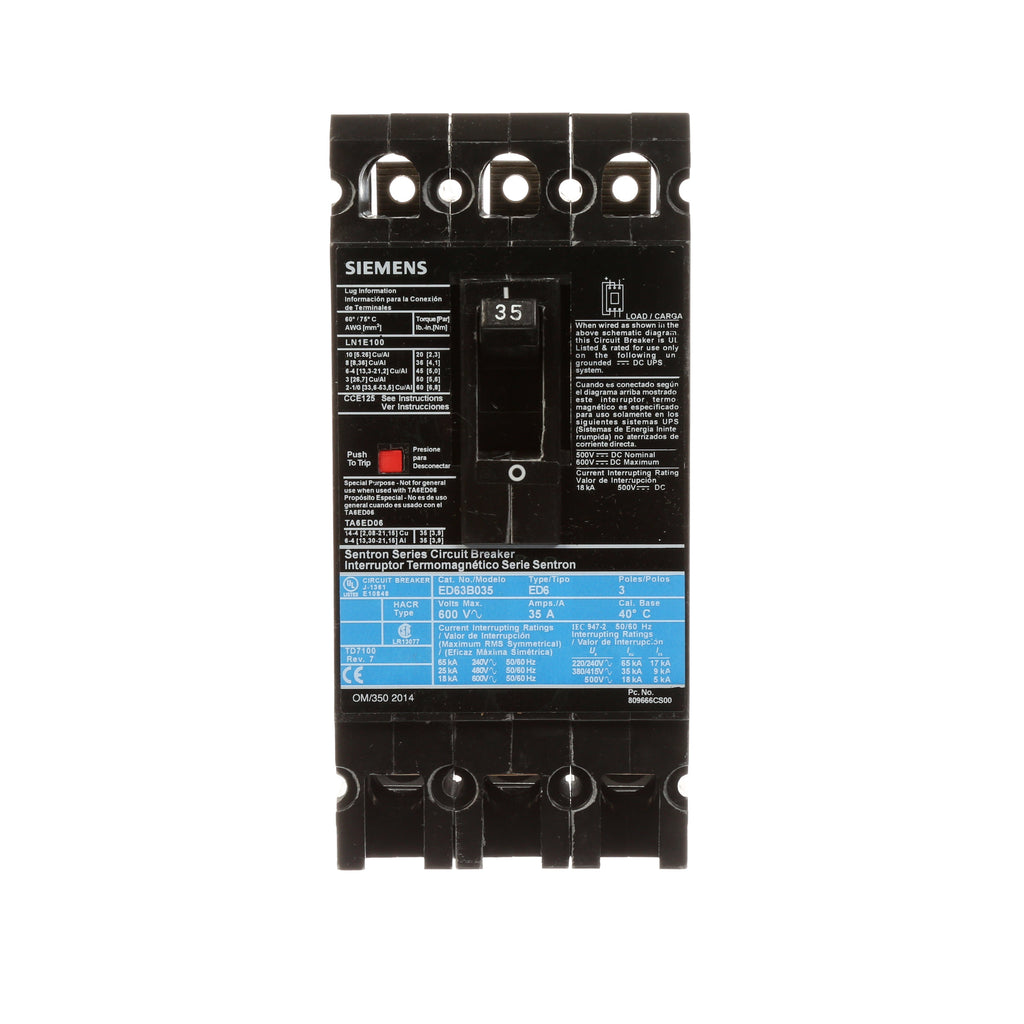

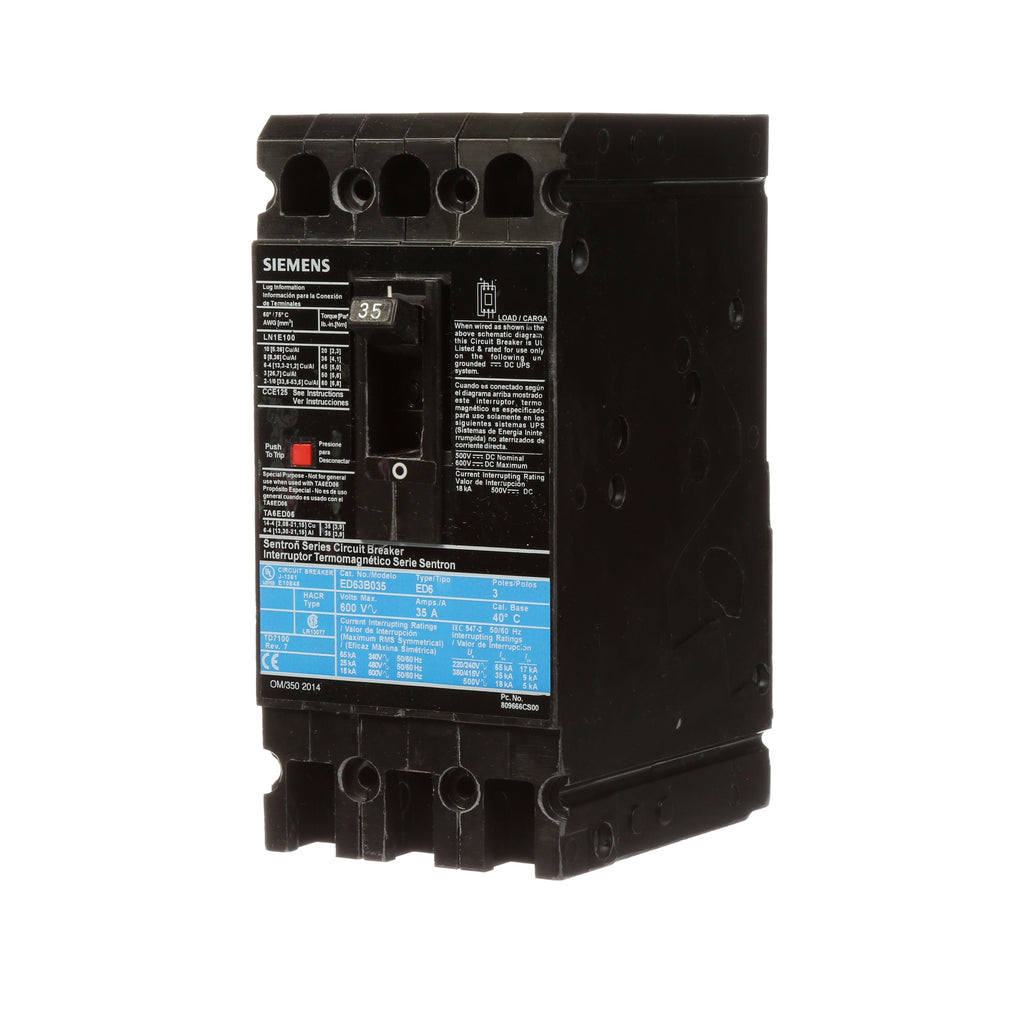

ED63B035 is a Siemens 3-pole molded case circuit breaker designed for reliable protection in 600VAC applications.
This ED frame breaker features a 35A current rating, thermal magnetic trip unit, and bolt-on mounting for secure installation. It is certified to UL 489 and IEC 60947-2 standards, ensuring compliance and safety for industrial and commercial power distribution systems.
-
Key Specifications
- Amperage: 35A
- Voltage: 600VAC
- Poles: 3
- Mounting Type: Bolt-on
- Interrupt Rating: 18kA at 600V, 25kA at 480V
- Series/Frame: ED
- Trip Unit: Thermal magnetic
- Certifications: UL 489, IEC 60947-2
- Connection: Line lug
- Frequency: 50/60 Hz
- Temperature Rating: 40¡C
- Dimensions: 4" L x 7" W x 6" H
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: ED63B035
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : ED
- Voltage : 600 AC
- Amperage : 35
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : ED Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643209701
- GTIN : 00783643209701
- Country of Origin : Mexico
- Dimensions : 6.693 x 5.906 x 3.988
- Weight : 0.359
- Certification : IEC Certified, UL Listed
- Wire Size : AWG 10 to AWG 1/0, Cu/Al
