Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
ED63B030L

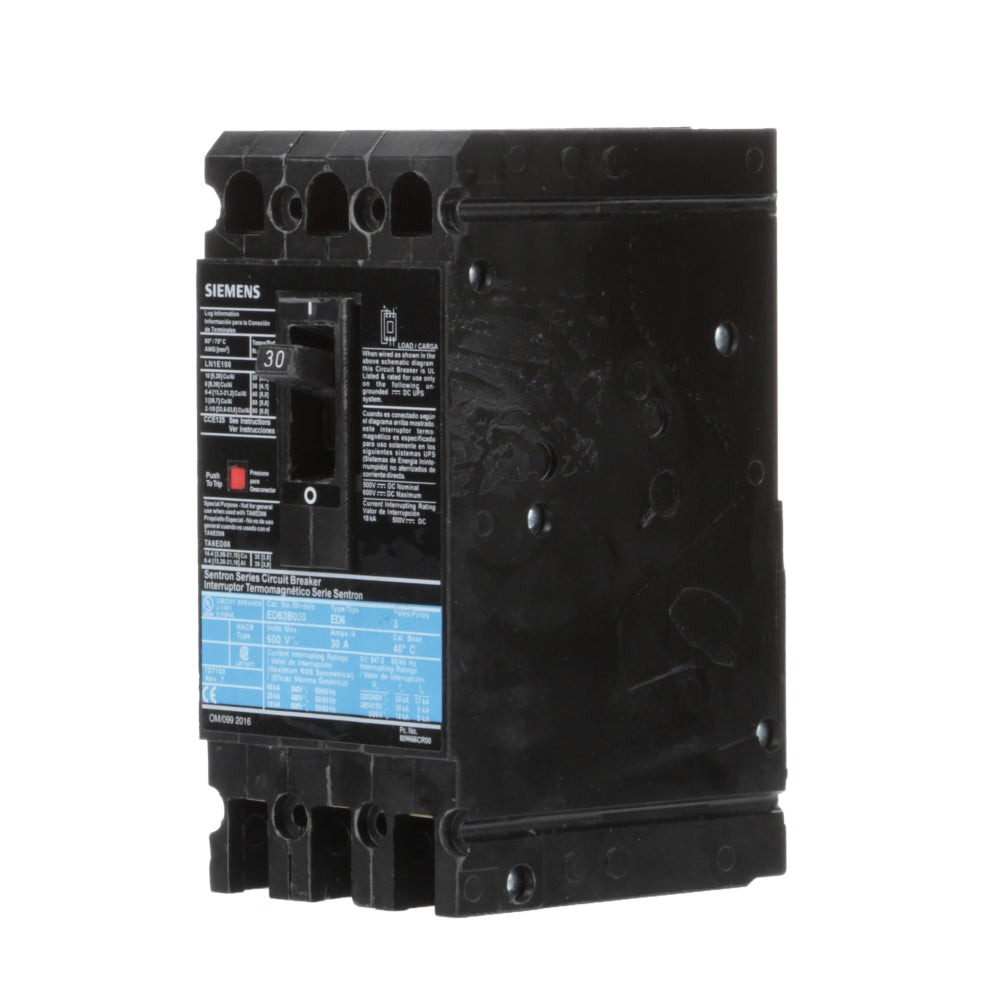

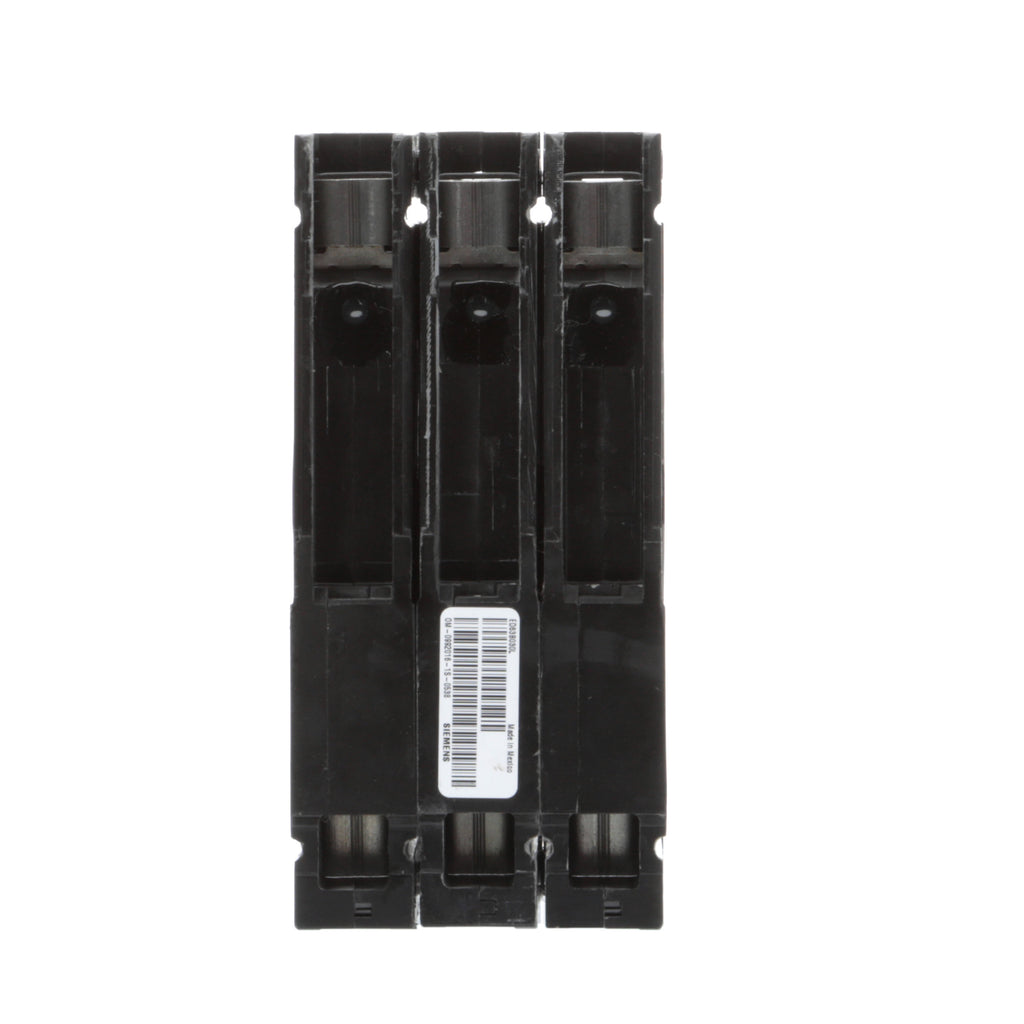

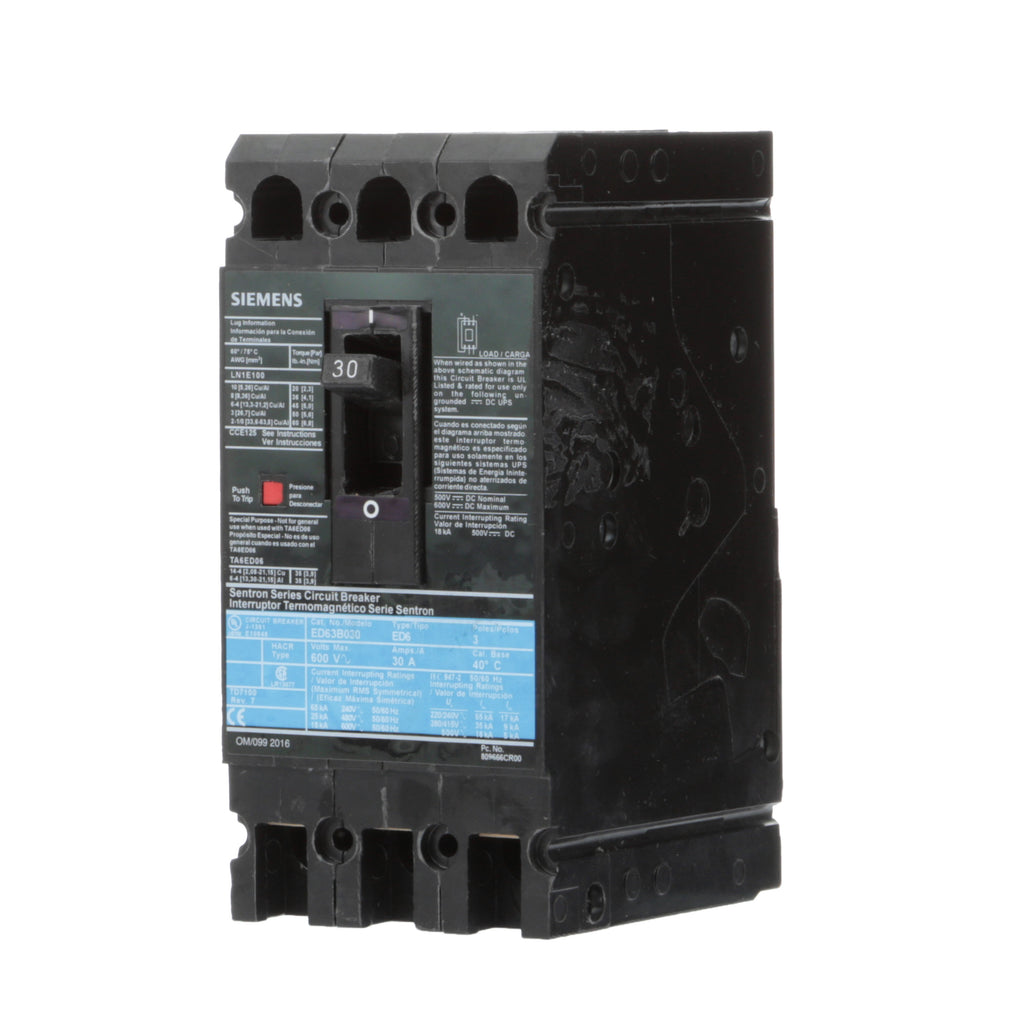

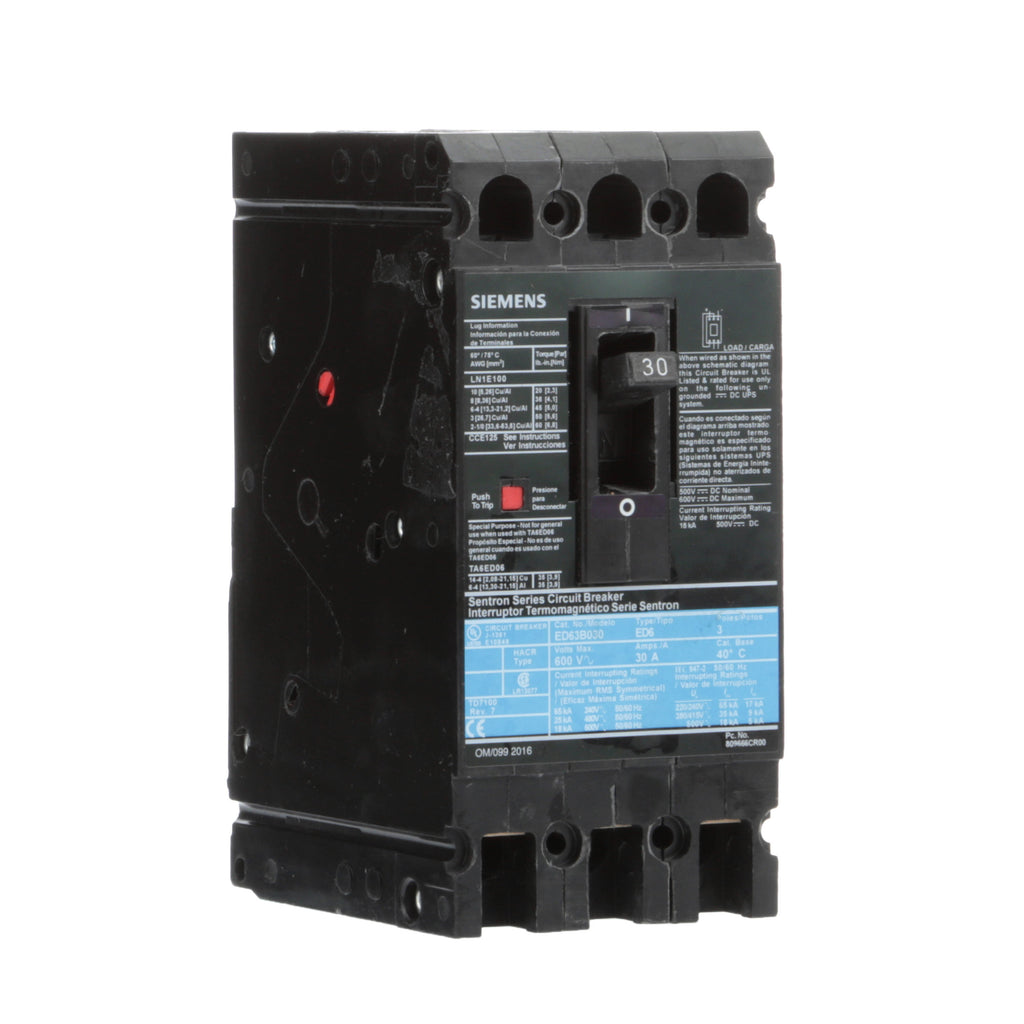

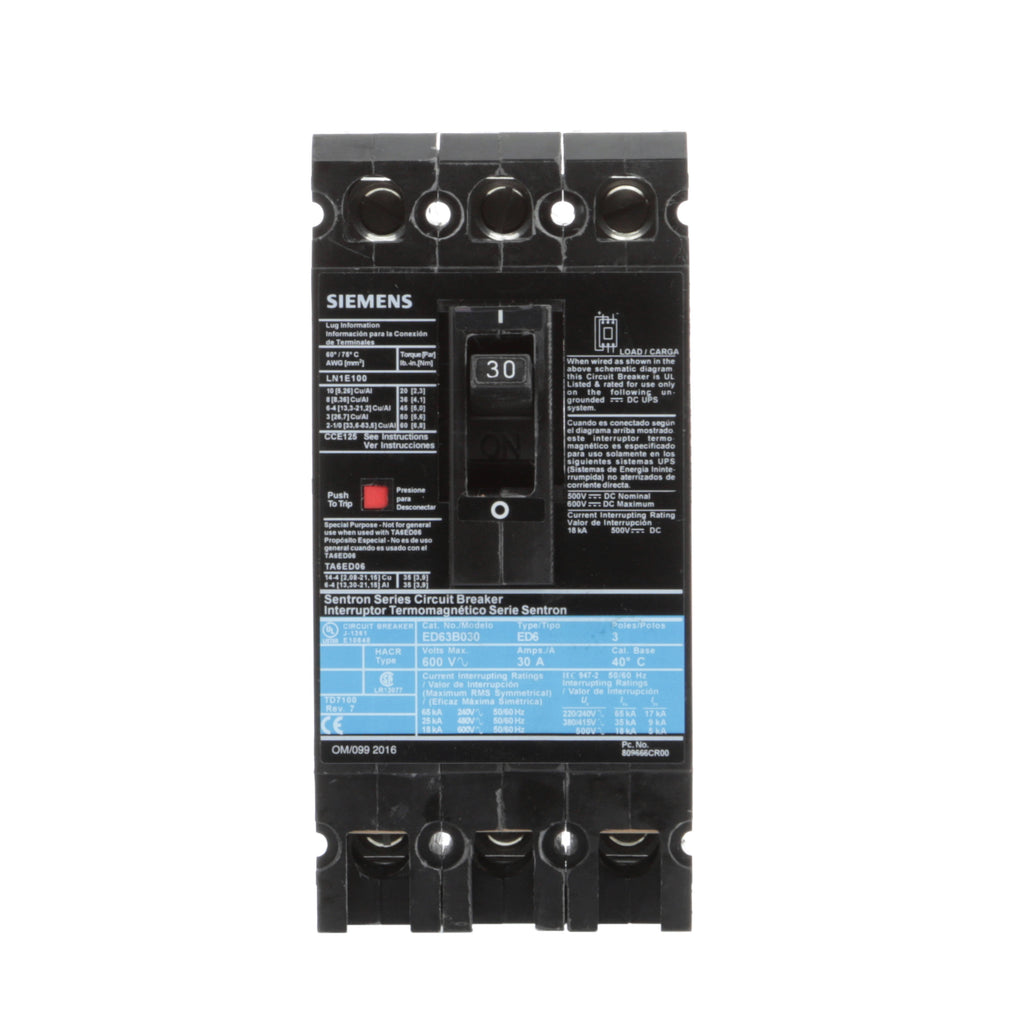

ED63B030L - Siemens Sentron ED frame 3-pole molded case circuit breaker rated at 30A and 600VAC.This thermal-magnetic circuit breaker features a robust ED6 frame, 3 poles, and lug terminals for secure feed-thru connections. It provides reliable overcurrent protection with standard interrupting capacity suitable for industrial applications.
- Part Number: ED63B030L
- Manufacturer: Siemens
- Frame Type: ED / ED6
- Poles: 3
- Amperage Rating: 30A
- Voltage Rating: 600VAC
- Trip Type: Thermal-Magnetic
- Mounting: Panel Mount
- Terminals: Line and Load Lugs
Specifications
- Part Number: ED63B030L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : ED
- Voltage : 600 AC
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Frame Size : ED Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643319189
- GTIN : 00783643319189
- Country of Origin : Mexico
- Dimensions : 6.693 x 5.906 x 3.985
- Weight : 3.651
- Certification : Ul Listed, IEC
- Wire Size : AWG 10 to AWG 1/0, Cu/Al
