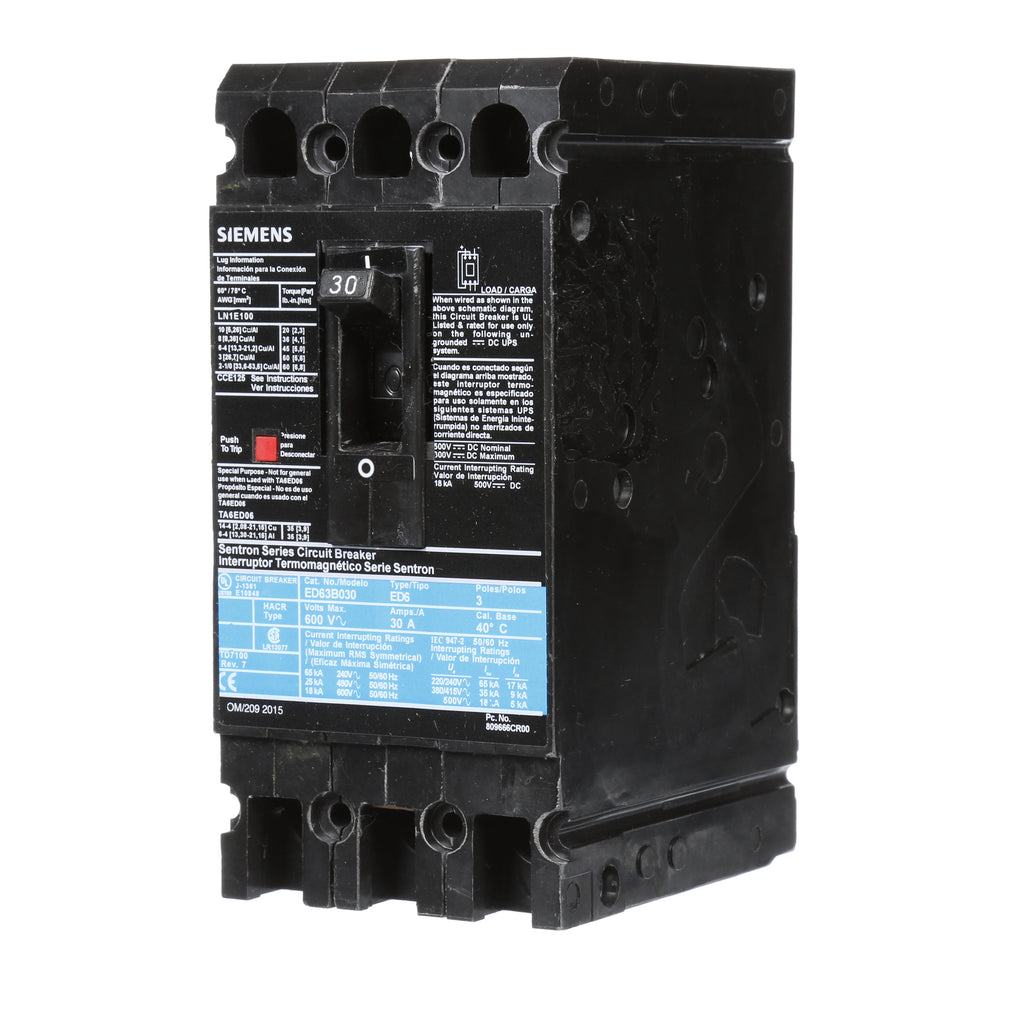

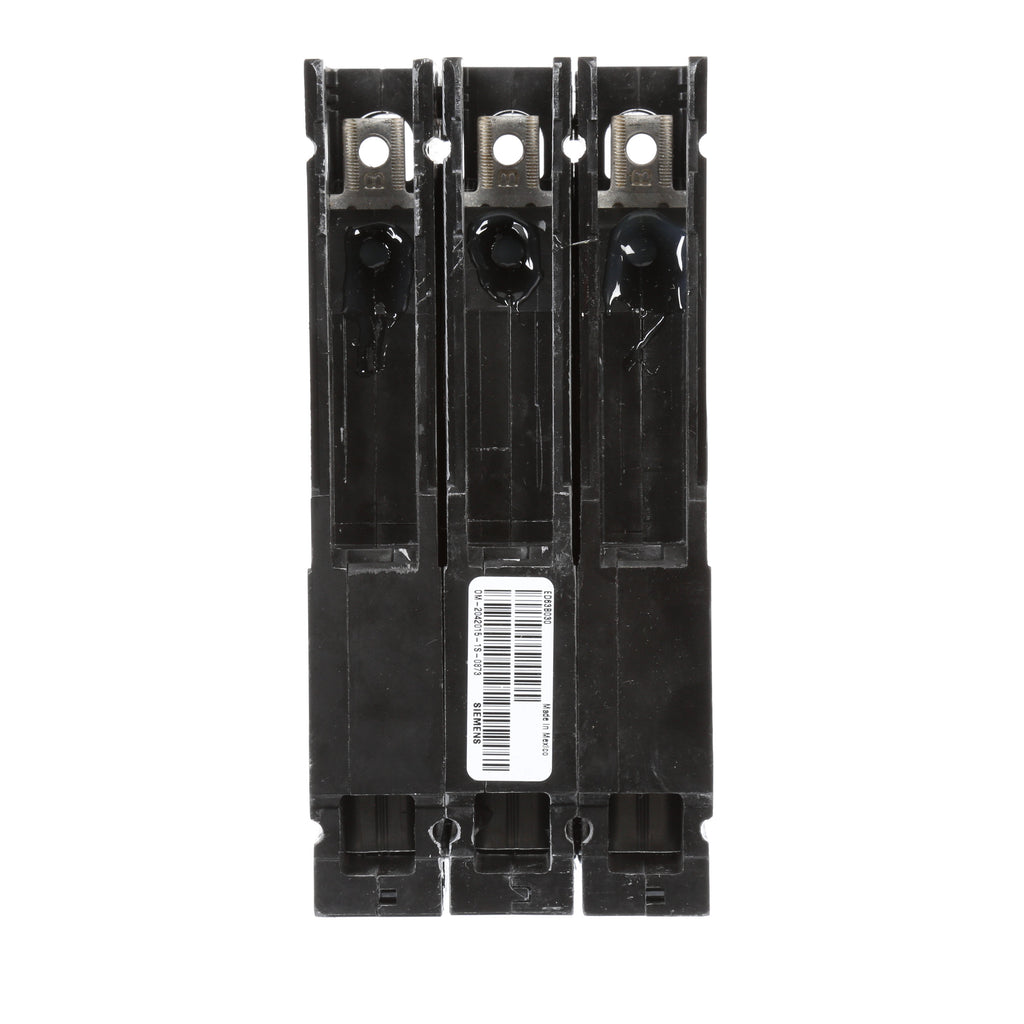

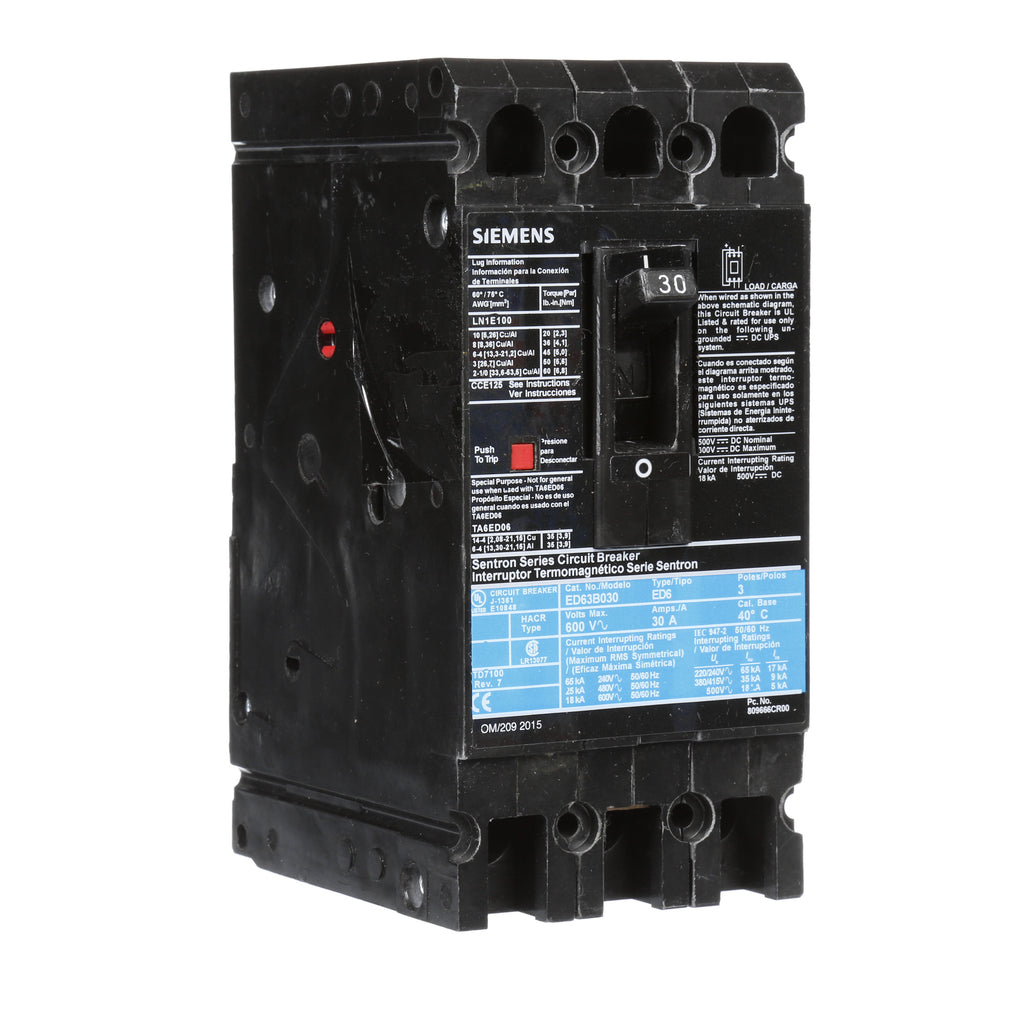

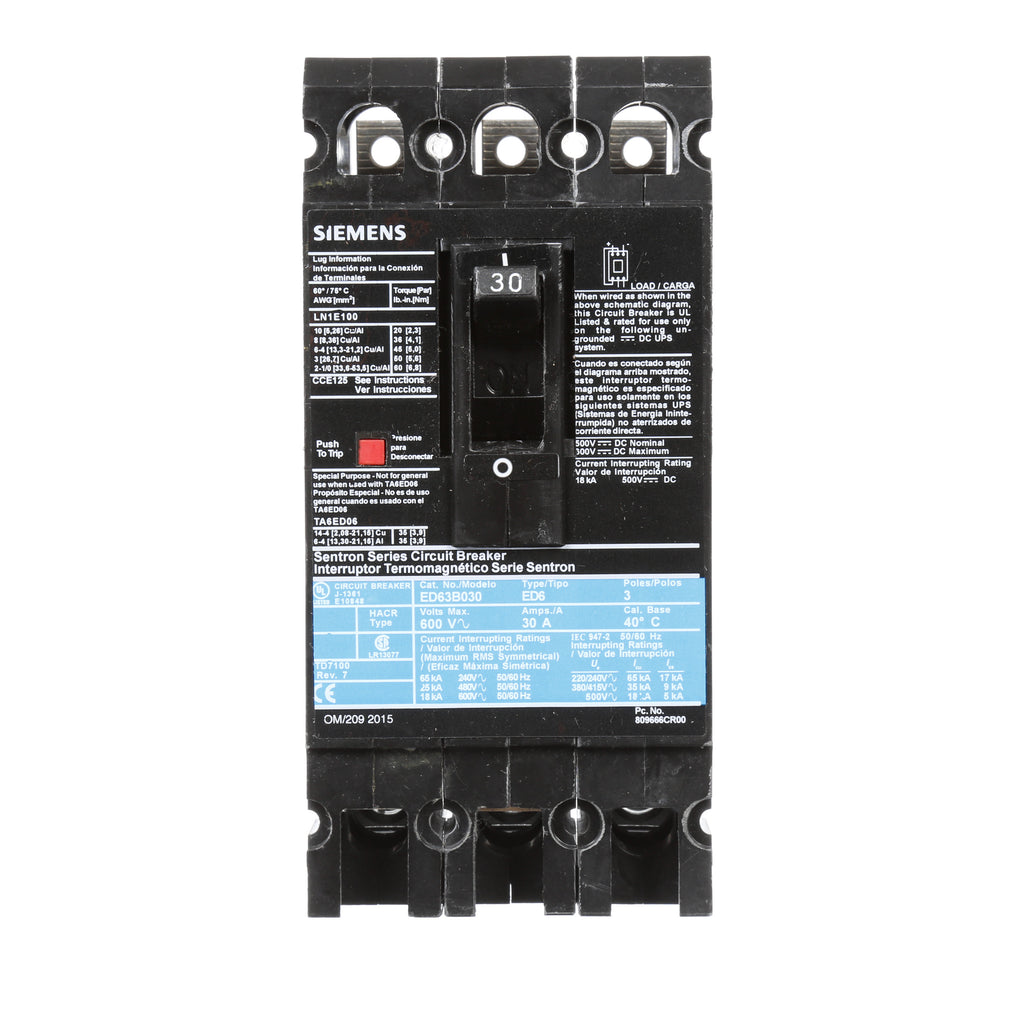

ED63B030 - Siemens 30A 600V 3-Pole Molded Case Circuit Breaker ED Frame Thermal Magnetic Trip

ED63B030

ED63B030 is a Siemens 3-pole molded case circuit breaker designed for low voltage applications with a 30 amp rating and 600 volts AC maximum voltage.This Siemens Sentron ED63B030 circuit breaker features a thermal/magnetic trip unit, an 18 kA interrupt rating at 600 VAC, and bolt-on mounting. It is part of the ED frame series and suitable for use in NEMA Type 12 enclosures. The breaker provides reliable protection with a standard breaking capacity and is HACR rated.

Key Specifications
• Amperage: 30 A
• Voltage: 600 VAC / 250 VDC
• Poles: 3
• Interrupt Rating: 18 kA at 600 VAC
• Trip Unit: Thermal/Magnetic
• Mounting Type: Bolt-On
• Series/Frame: ED Frame
• Standards: HACR Rated
• Enclosure Type: NEMA Type 12 compatible

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED63B030
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 600 AC
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Frame Size : ED Frame
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643209695
• GTIN : 00783643209695
• Country of Origin : Mexico
• Dimensions : 6.693 x 5.906 x 3.984
• Weight : 3.664
• Certification : IEC Certified, UL Listed
• Wire Size : AWG 10 to AWG 1/0, Cu/Al
