Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
ED63B015

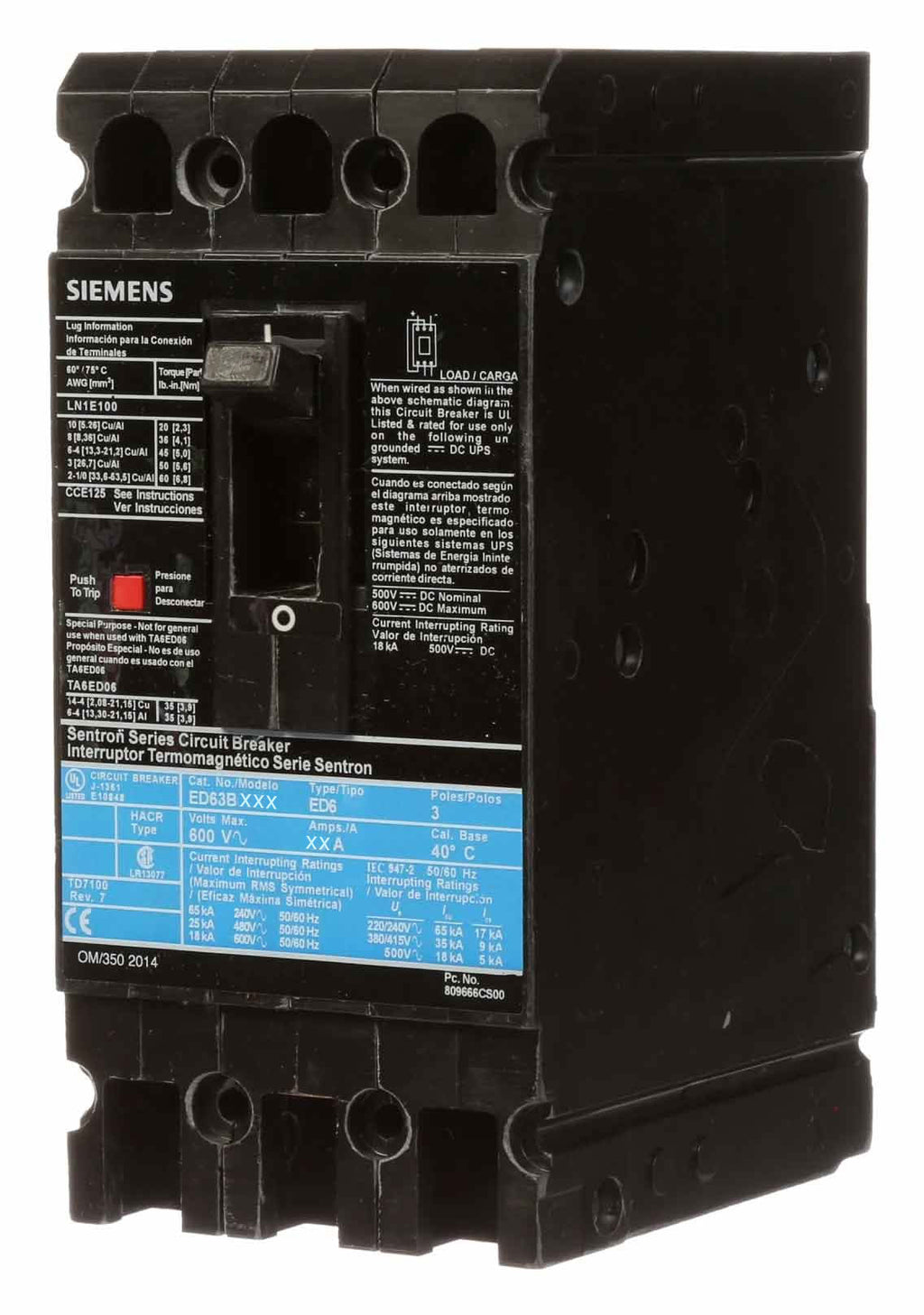

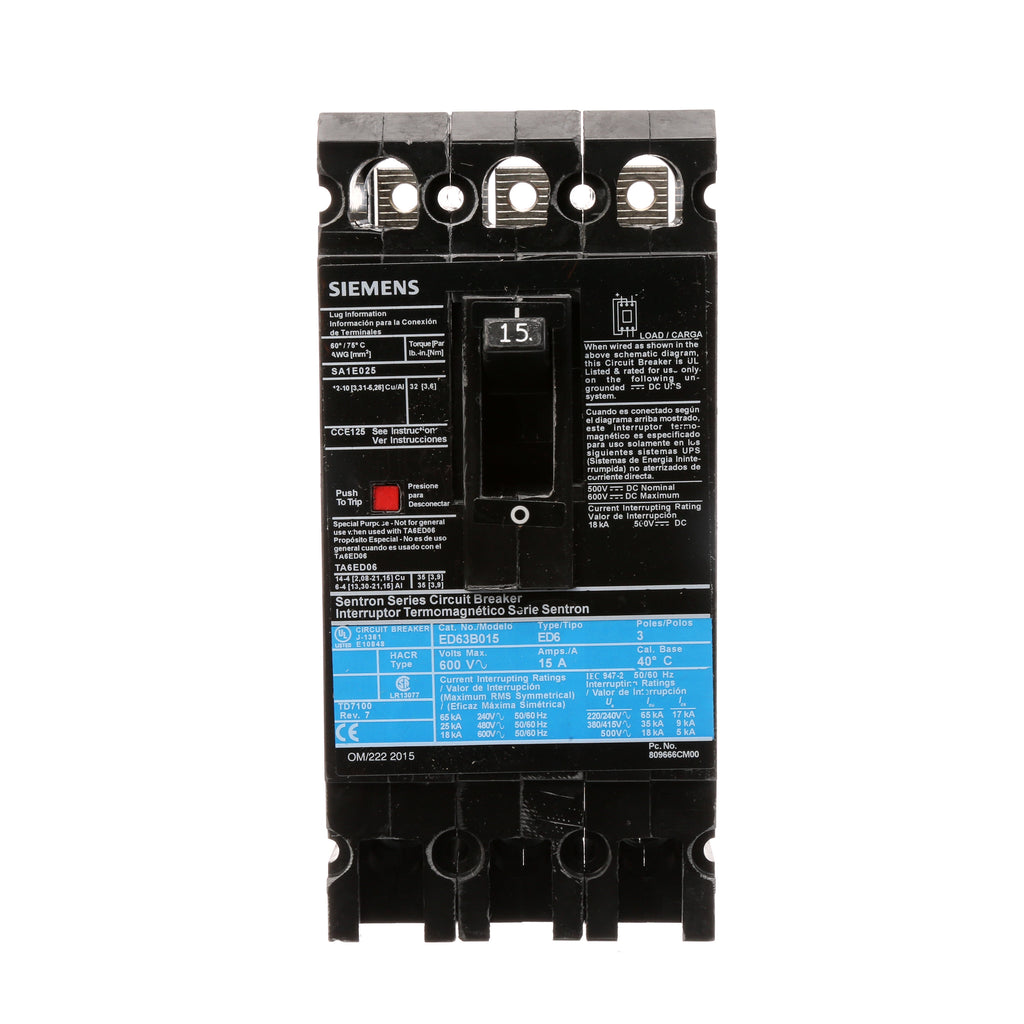

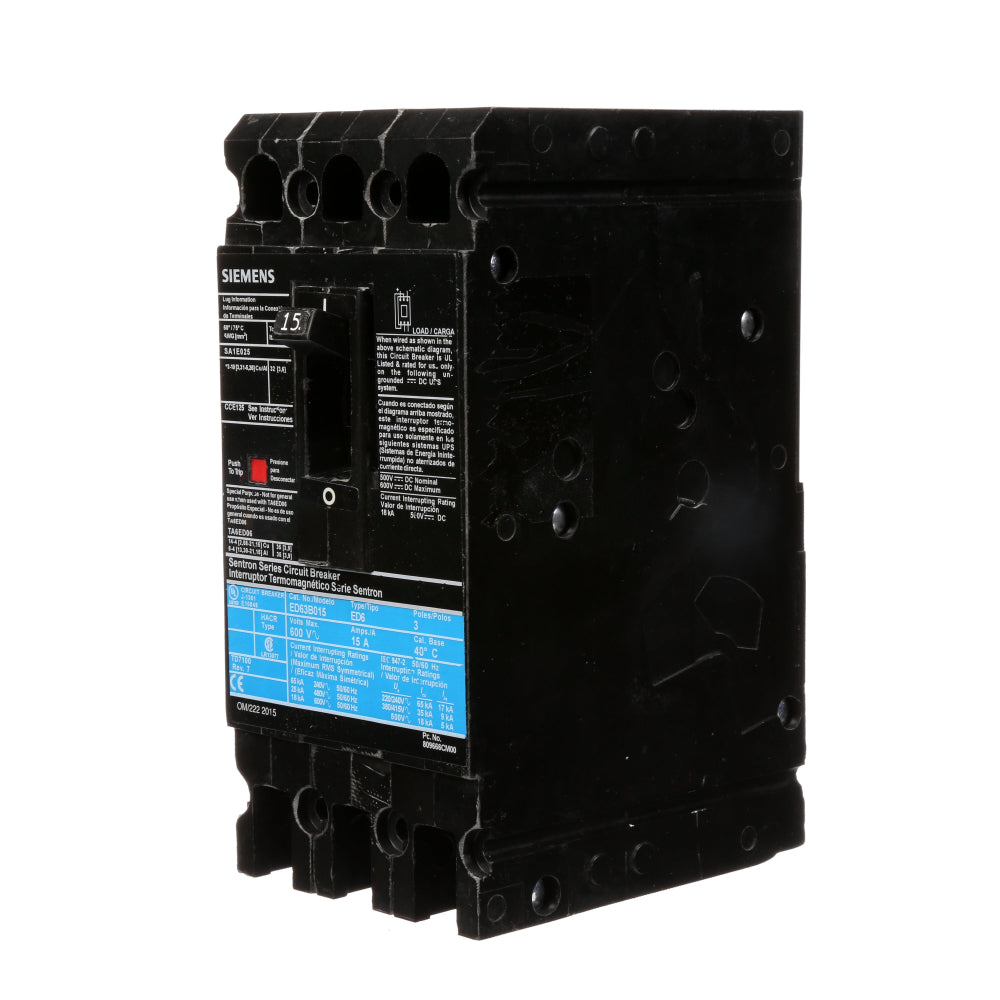

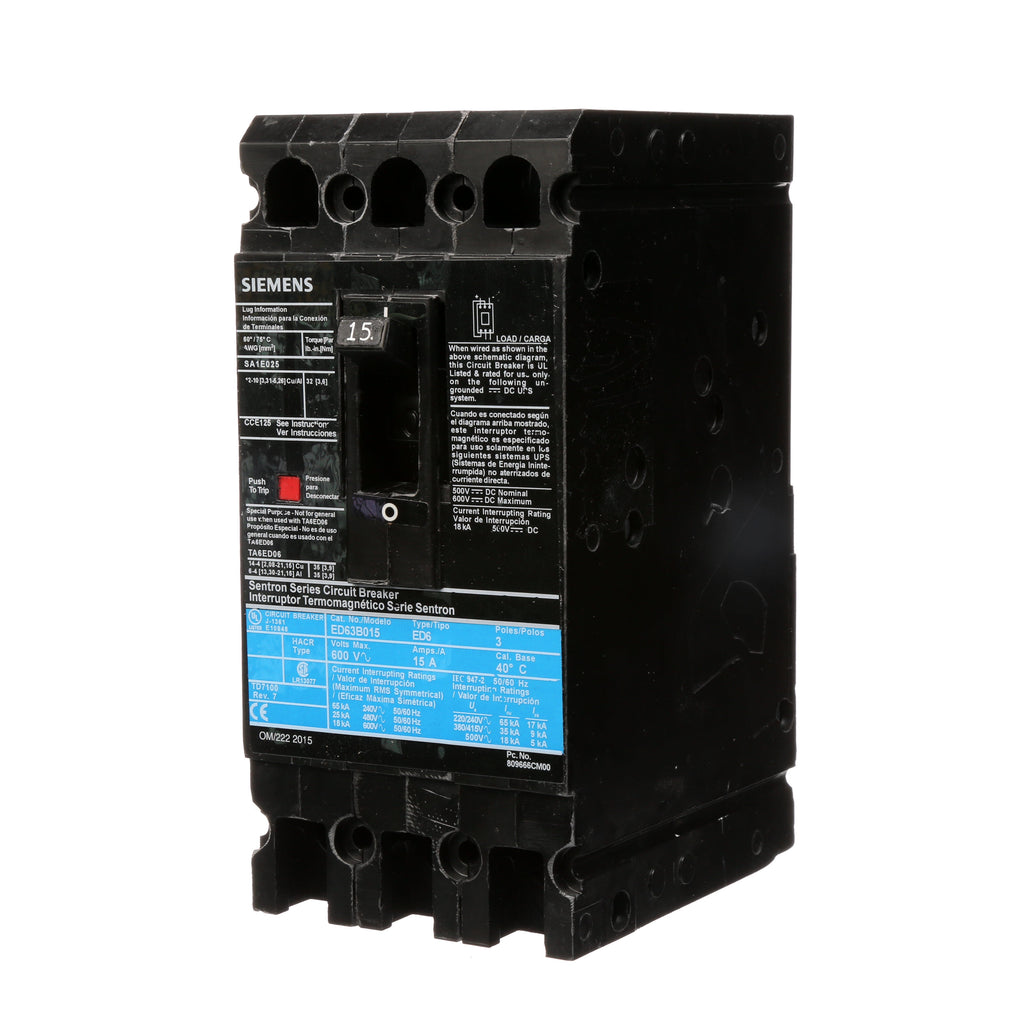

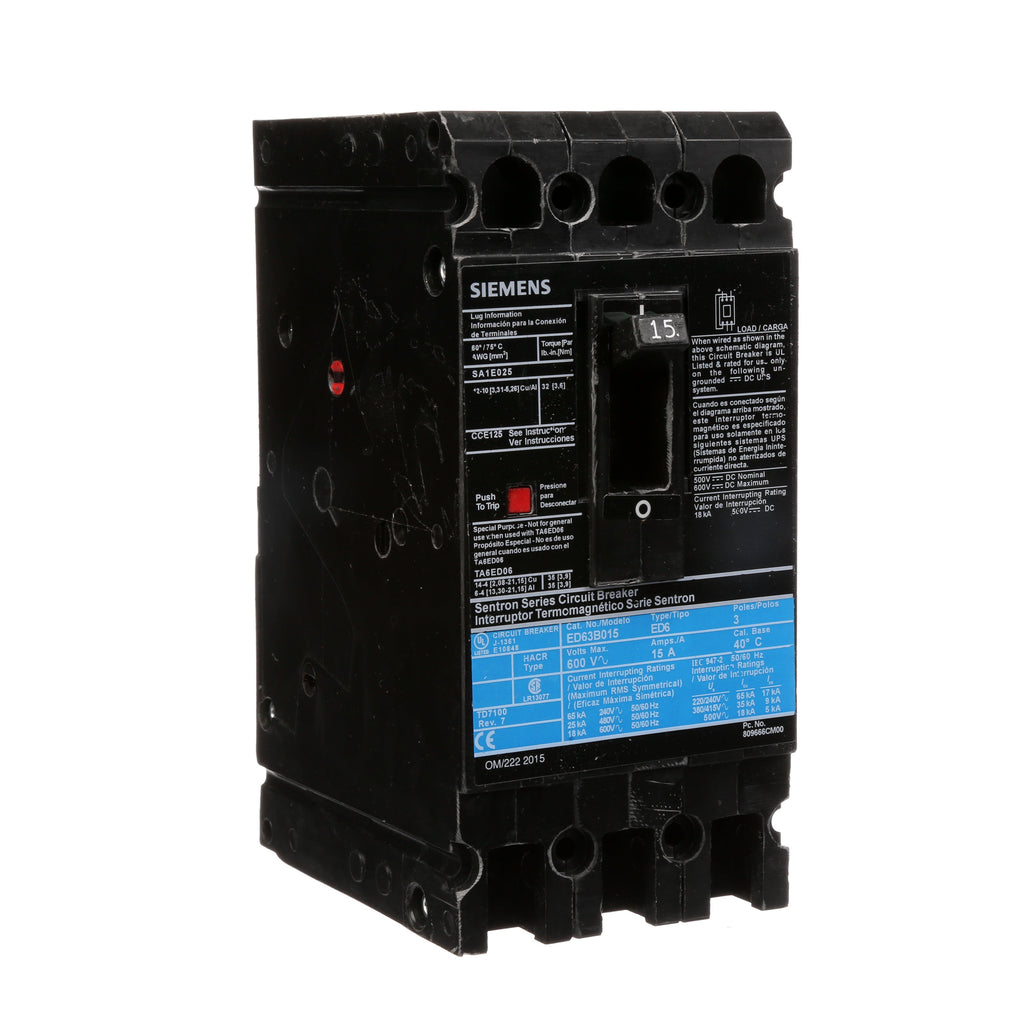

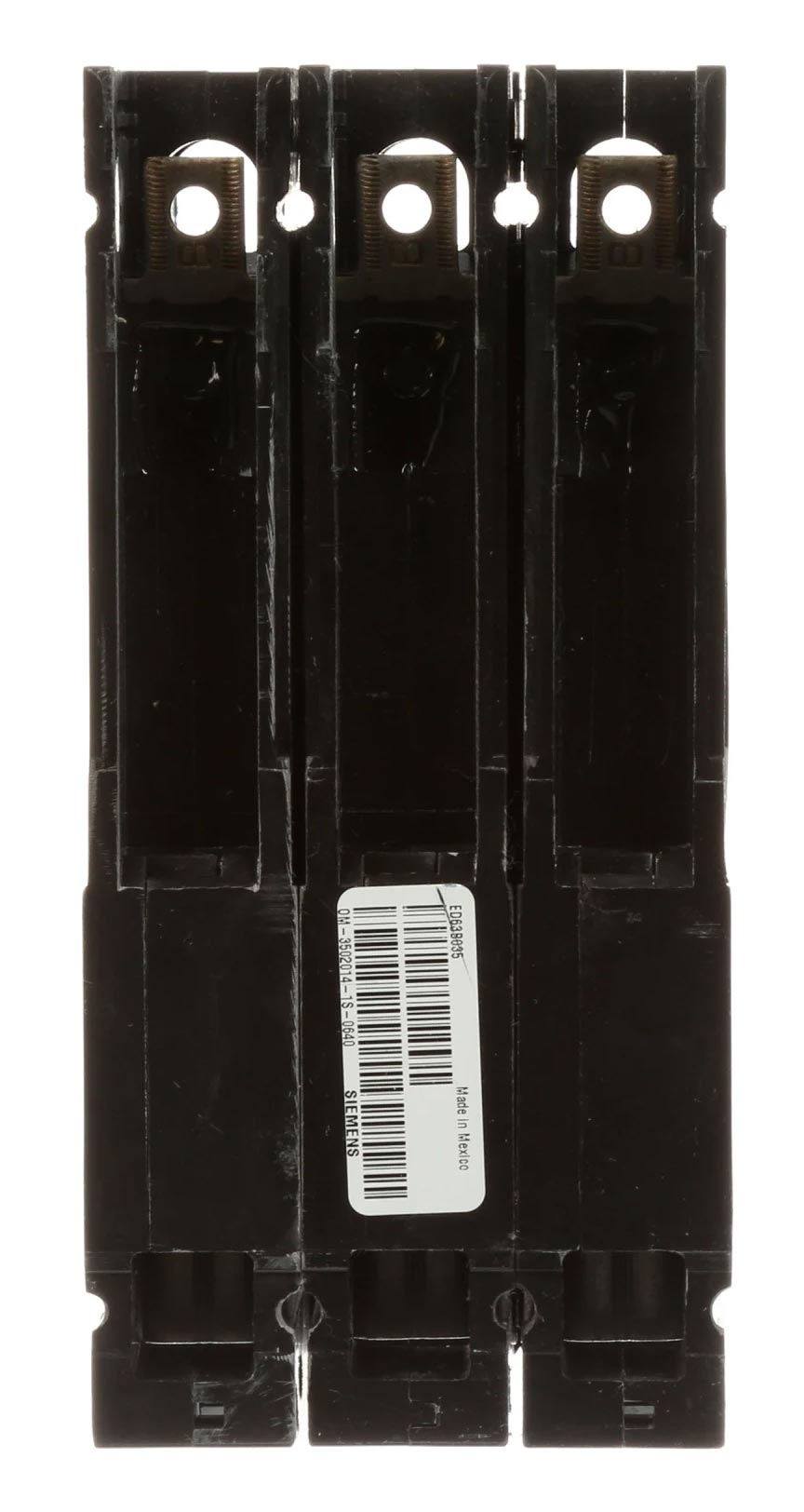

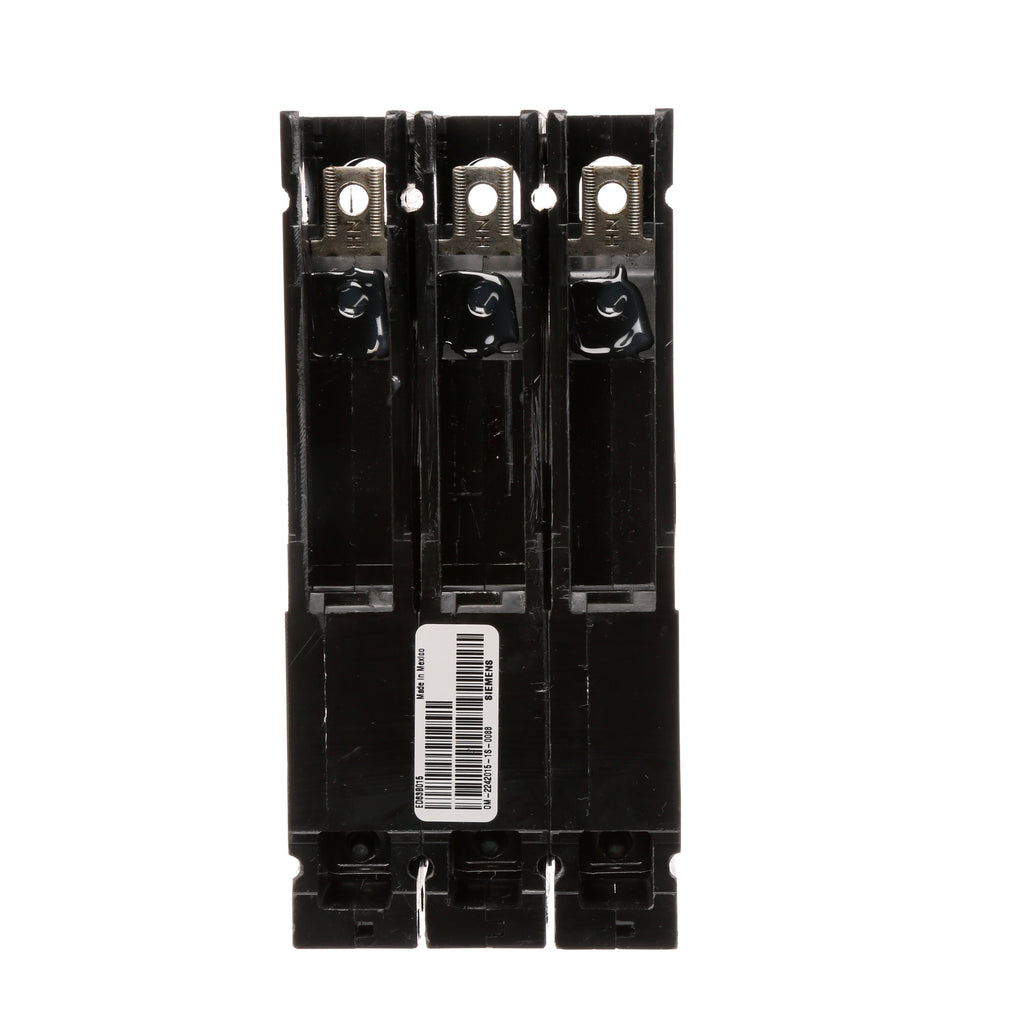

ED63B015 - Siemens Sentron Series type ED molded case circuit breaker, 3 pole, 15A, 600V, bolt-on mounting with thermal magnetic protection.This Siemens ED frame circuit breaker provides long-time and instantaneous trip functions (LI) for reliable overcurrent protection in 3-phase systems. It features standard interrupting capacity rated at 25kA@480V and 18kA@600V, with load side lug terminals and compatibility for copper/aluminum wire.
- Part Number: ED63B015
- Manufacturer: Siemens
- Series/Frame: Sentron ED
- Poles: 3
- Amperage: 15A
- Voltage: 600V AC
- Phase: 3
- Mounting Type: Bolt-On
- Trip Unit: Thermal Magnetic, LI
- Interrupt Rating: 25kA@480V, 18kA@600V
- Certifications: UL, CSA
Specifications
- Part Number: ED63B015
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : ED
- Voltage : 600 AC
- Amperage : 15
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : ED Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643209664
- GTIN : 00783643209664
- Country of Origin : Mexico
- Dimensions : 6.693 x 5.906 x 3.974
- Weight : 3.715
- Certification : IEC Certified, UL Listed
- Wire Size : AWG 14 to AWG 10, Cu, AWG 12 to AWG 10, Al
