Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
ED43S125A

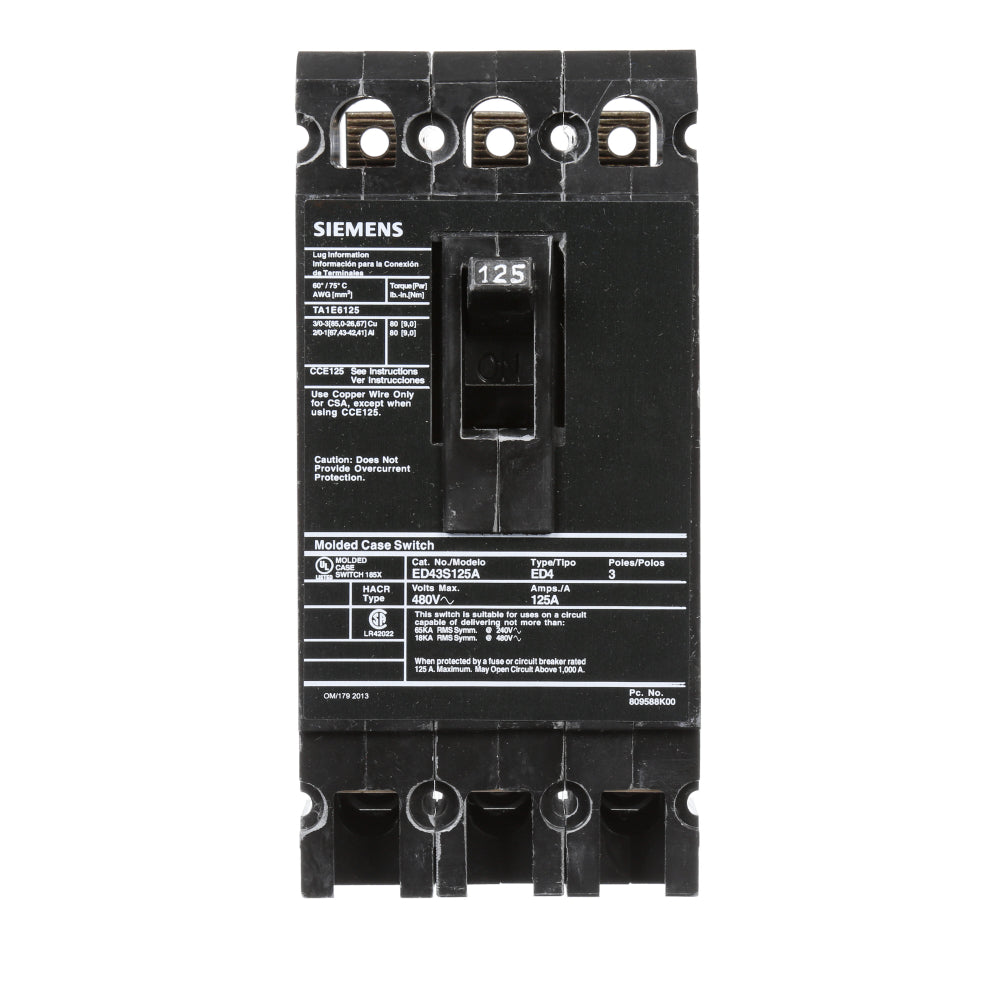

ED43S125A is a Siemens 3 pole circuit breaker rated for 125 amps and 480 volts, designed for reliable electrical protection.ED43S125A features an ED frame with a bolt-on mounting type, 18kA interrupting rating at 480V, and load lug connections. It includes a self-protective instantaneous override trip unit and meets industry certifications for safety and performance.
- Key Specifications
- Amperage: 125A
- Voltage: 480V
- Poles: 3
- Frame: ED
- Interrupt Rating: 18kA at 480V
- Mounting Type: Bolt-On
- Connection Type: Load Lug
- Trip Unit: Self-protective instantaneous override
- Frequency Rating: 50/60 Hz
- Dimensions: Approx. 6.35" H x 3" W x 3.92" D
- Certifications: Industry standard compliant
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: ED43S125A
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : ED
- Voltage : 480 AC
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Bolt-On
- Functions : NA - No Overcurrent Protection
- Frame Size : ED Frame
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Protection : Non-Automatic
Product Data
- UPC : 783643216549
- GTIN : 00783643216549
- Country of Origin : Mexico
- Dimensions : 6.693 x 5.906 x 3.980
- Weight : 3.781
- Certification : IEC Certified, UL Listed
