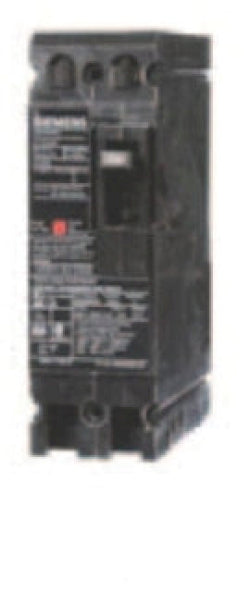

ED42S125AL - Siemens Molded Case Circuit Breaker 125A 2P 480V 18kA

ED42S125AL

ED42S125AL is a Siemens molded case circuit breaker designed for industrial and commercial power distribution applications requiring reliable overload and short circuit protection. This 2-pole, 125-ampere rated breaker operates at 480 volts AC and features thermal-magnetic trip protection with an 18,000-ampere interrupting rating at 480 volts AC and 65,000-ampere interrupting rating at 240 volts AC. The bolt-on mounting configuration integrates seamlessly into Siemens Sentron Series ED-frame panelboards and switchgear assemblies.

• Part Number: ED42S125AL
• Manufacturer: Siemens
• Amperage Rating: 125 Amps
• Voltage Rating: 480V AC
• Number of Poles: 2
• Mounting Type: Bolt-On
• Series: Sentron ED
• Trip Unit: Thermal Magnetic
• Interrupting Rating: 18kA @ 480V AC
• Interrupting Rating: 65kA @ 240V AC
• Protection Type: Overload and Short Circuit

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED42S125AL
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 480 AC
• Amperage : 125
• Phase : 1
• Poles : 2
• AIC rating : 18kA@240V
• Connection : Feed-Thru
• Functions : NA - No Overcurrent Protection
• Frame Size : ED Frame
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Protection : Non-Automatic

Product Data

• UPC : 783643199941
• GTIN : 00783643199941
• Country of Origin : Mexico
• Dimensions : 5.906 x 6.693 x 2.756 inch
• Weight : 2.712
• Certification : Ul Listed, IEC
