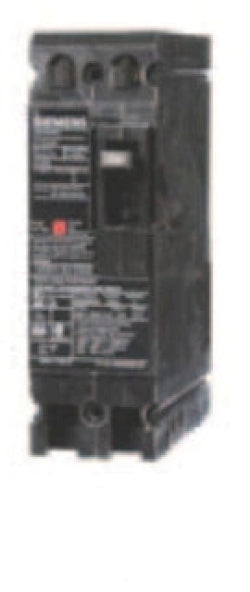

ED42S100AL - Siemens 100A 480V 2 Pole Bolt-On Circuit Breaker ED Frame Thermal Magnetic Switch Only

ED42S100AL

ED42S100AL is a 2 pole, 100 amp, 480V AC molded case circuit breaker from Siemens, designed for bolt-on mounting in ED frame applications. This breaker features a thermal magnetic trip unit and is rated for non-automatic switching with no overcurrent protection. The ED42S100AL is ideal for retrofit and maintenance applications, offering a compact design and reliable performance. It supports wire sizes from #10 AWG to 1/0 AWG and is suitable for use in industrial and commercial power distribution systems.

• Manufacturer: Siemens
• Part Number: ED42S100AL
• Amperage: 100A
• Voltage: 480V AC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupting Rating: 18kA @ 480V AC, 65kA @ 240V AC
• Frame Type: ED
• Series: Sentron ED Frame
• Trip Unit: Thermal Magnetic, Switch Only
• Wire Size: #10 AWG to 1/0 AWG
• Weight: 2.5 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED42S100AL
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 480 AC
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 18kA@240V
• Connection : Feed-Thru
• Functions : NA - No Overcurrent Protection
• Frame Size : ED Frame
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Protection : Non-Automatic

Product Data

• UPC : 783643204720
• GTIN : 00783643204720
• Country of Origin : Mexico
• Dimensions : 6.693 x 5.906 x 2.756 inch
• Weight : 2.601
• Certification : Ul Listed, IEC
