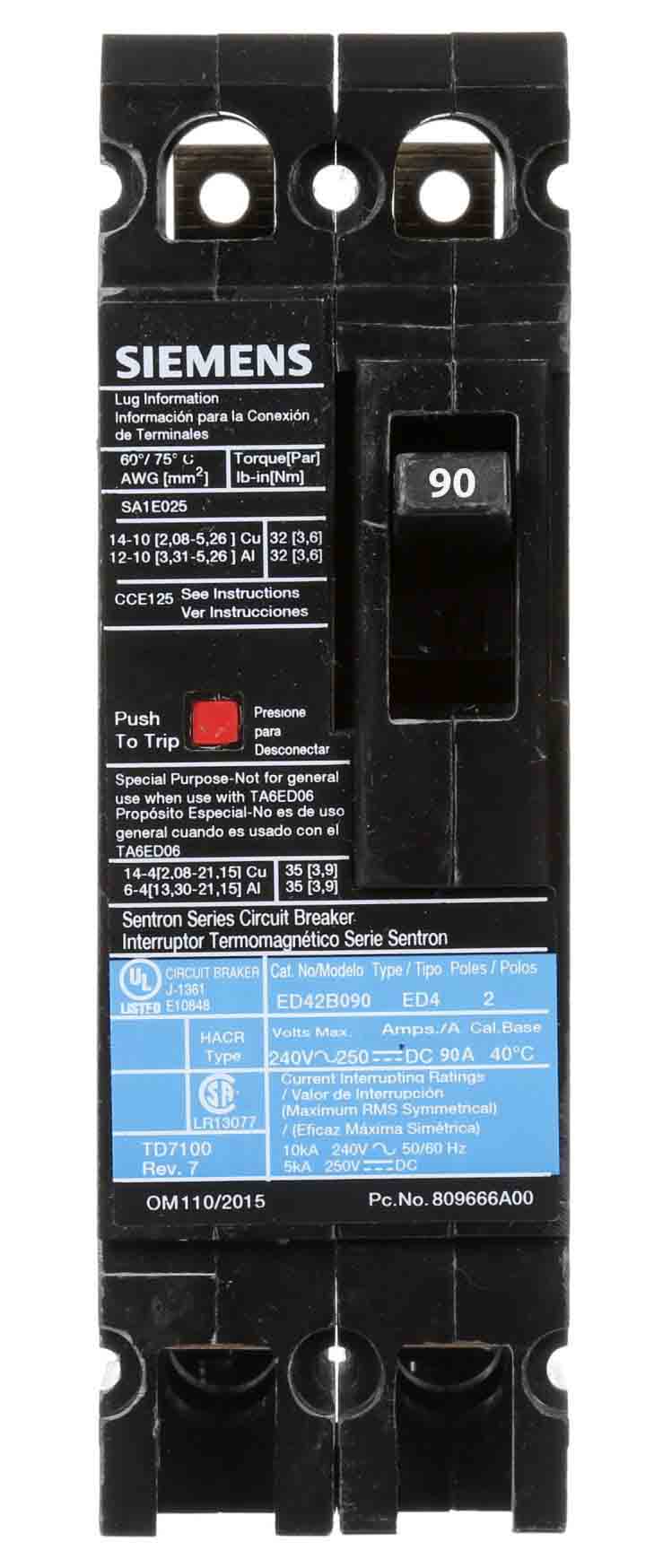

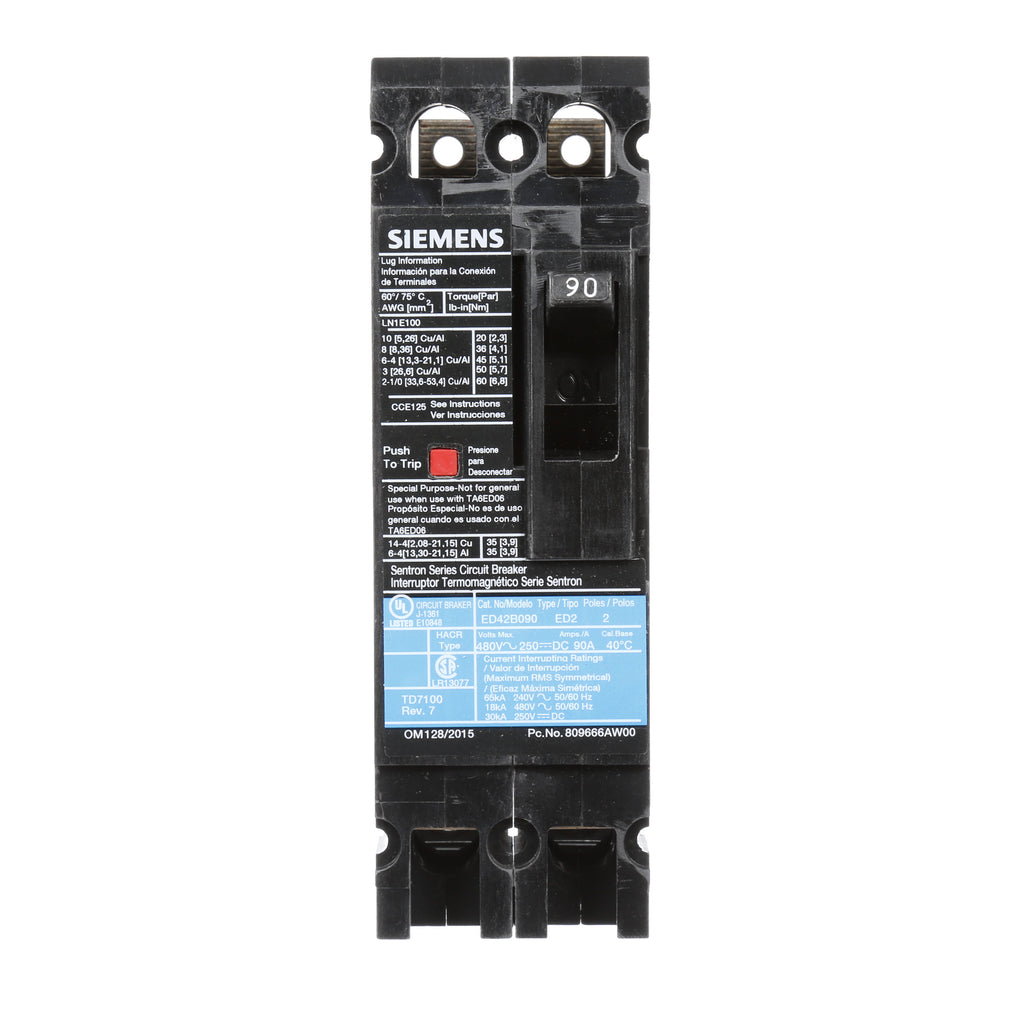

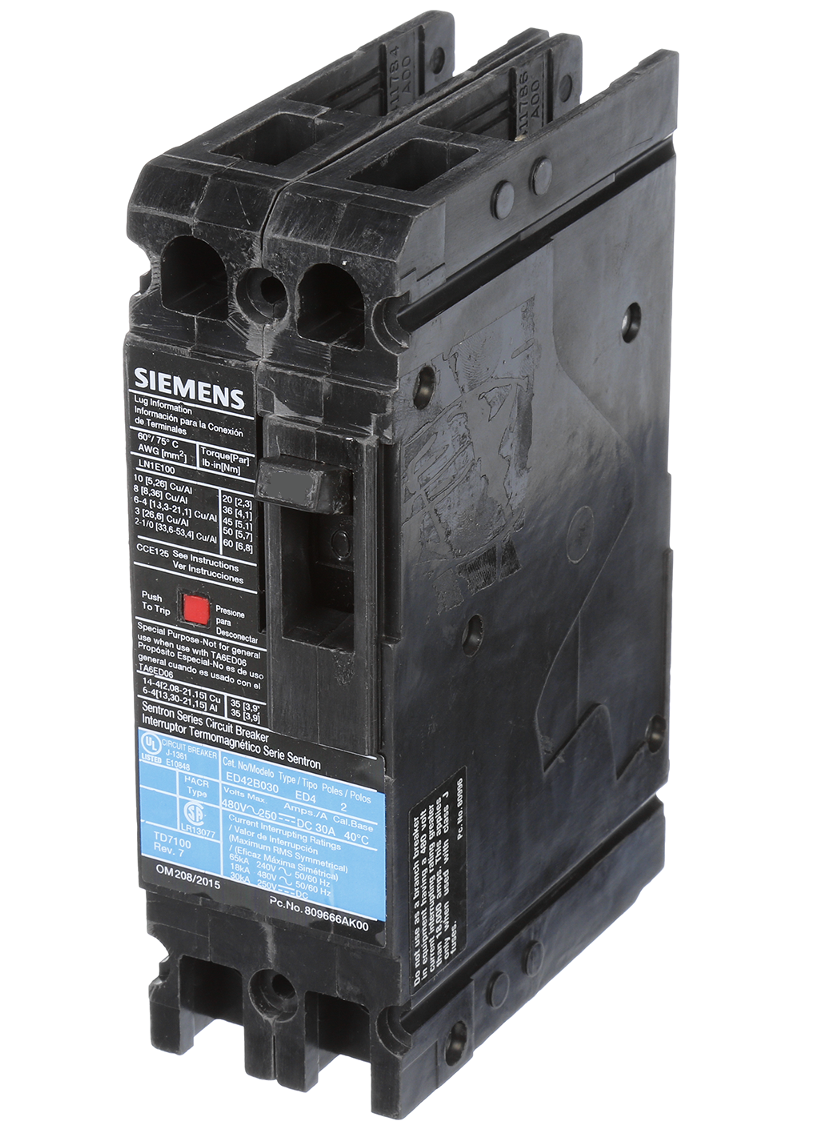

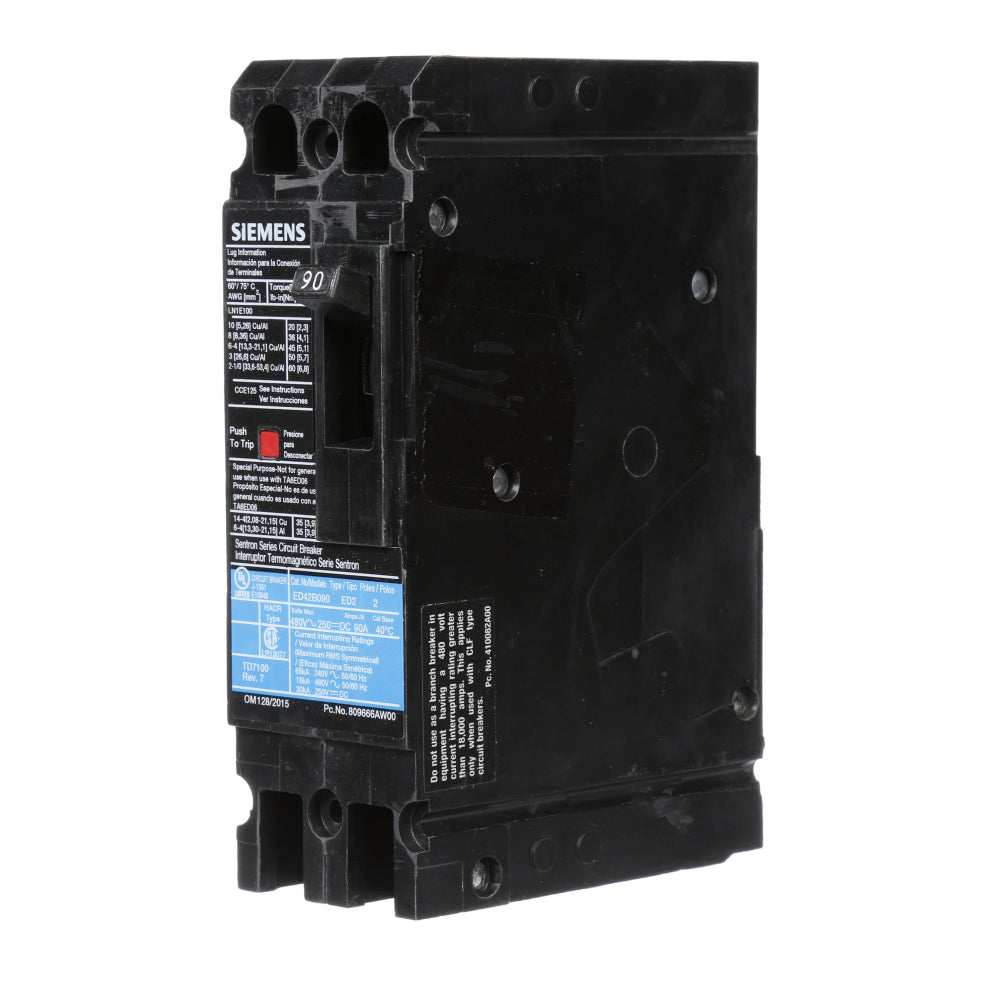

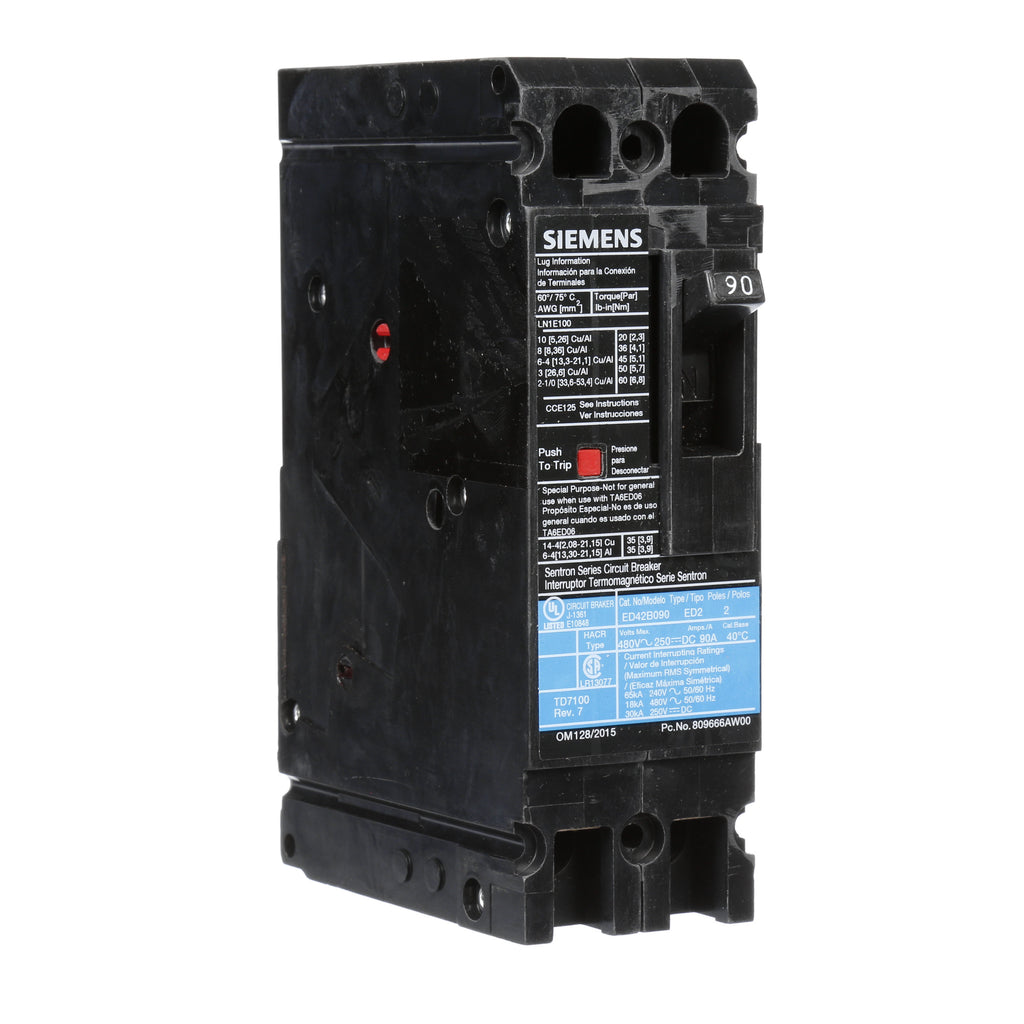

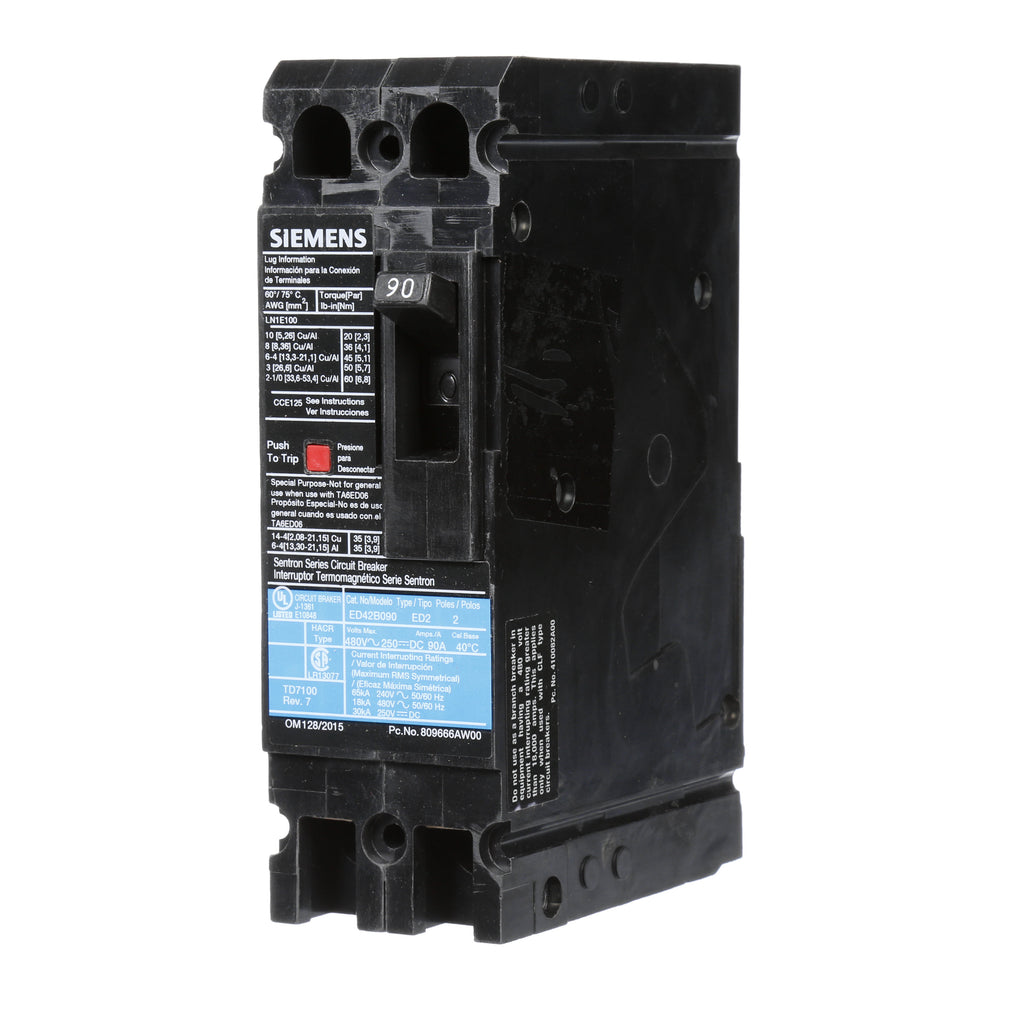

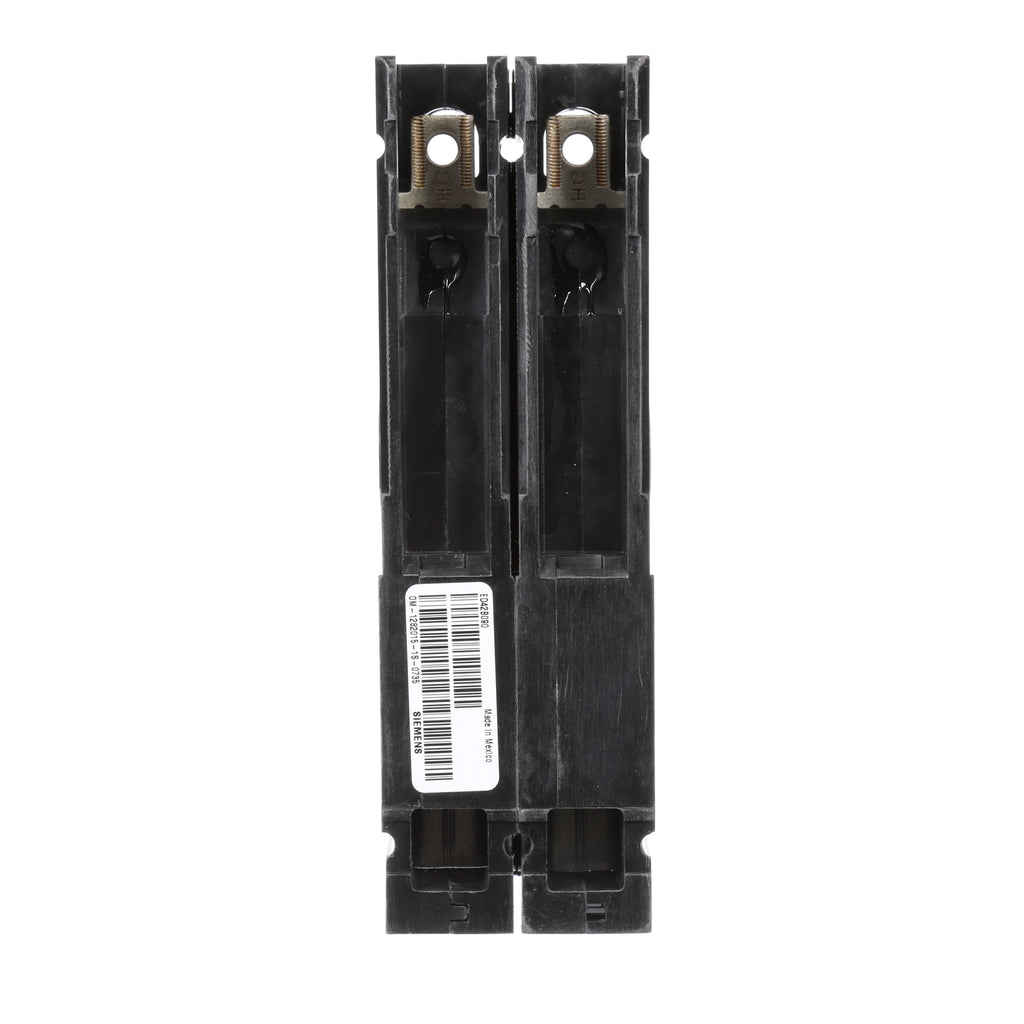

ED42B090 - Siemens ED Frame 2 Pole 90A 480V Molded Case Circuit Breaker Bolt-On Mount

ED42B090

ED42B090 - Siemens 2-pole molded case circuit breaker rated at 90A and 480VAC with thermal-magnetic trip.

This Siemens ED frame circuit breaker features bolt-on mounting and provides reliable thermal-magnetic protection against overloads and short circuits. It supports copper/aluminum wire sizes #10-1/0 AWG and includes load lugs for easy installation in standard 40C environments.

Key Specifications

• Amperage: 90A
• Voltage: 480VAC/250VDC
• Poles: 2
• Mounting Type: Bolt-On
• Series/Frame: ED
• Trip Unit: Thermal-Magnetic
• Interrupt Rating: 18kA@480VAC; 65kA@240VAC
• Certifications: UL and CSA
• Wire Range: #10-1/0 AWG (CU/AL)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED42B090
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 480 AC
• Amperage : 90
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Lug In Panelboard
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Any

Product Data

• UPC : 783643209329
• GTIN : 00783643209329
• Country of Origin : Mexico
• Dimensions : 6.693 x 5.906 x 2.778
• Weight : 2.63
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : IEC Certified, UL Listed
• Certification : IEC Certified, UL Listed
• Wire Size : 10 To 1/0 AWG (Aluminum/Copper)
