2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
ED42B015

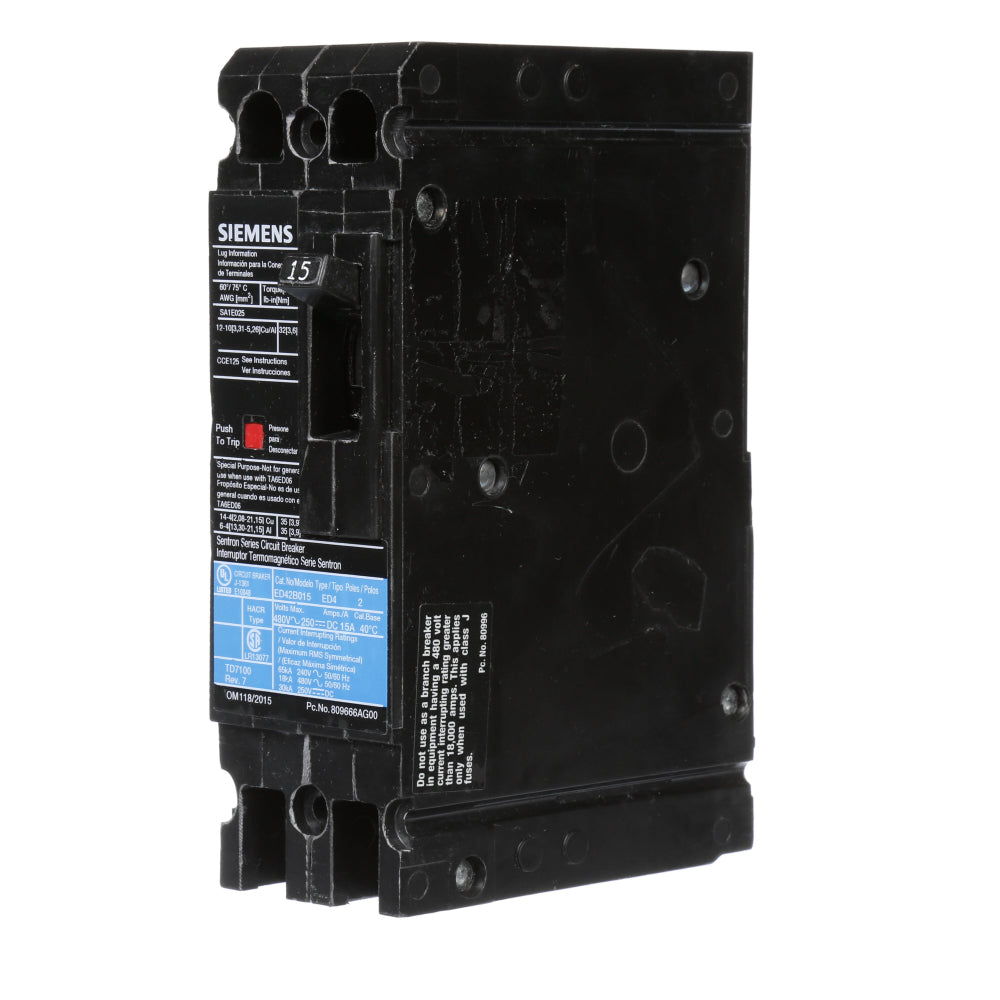

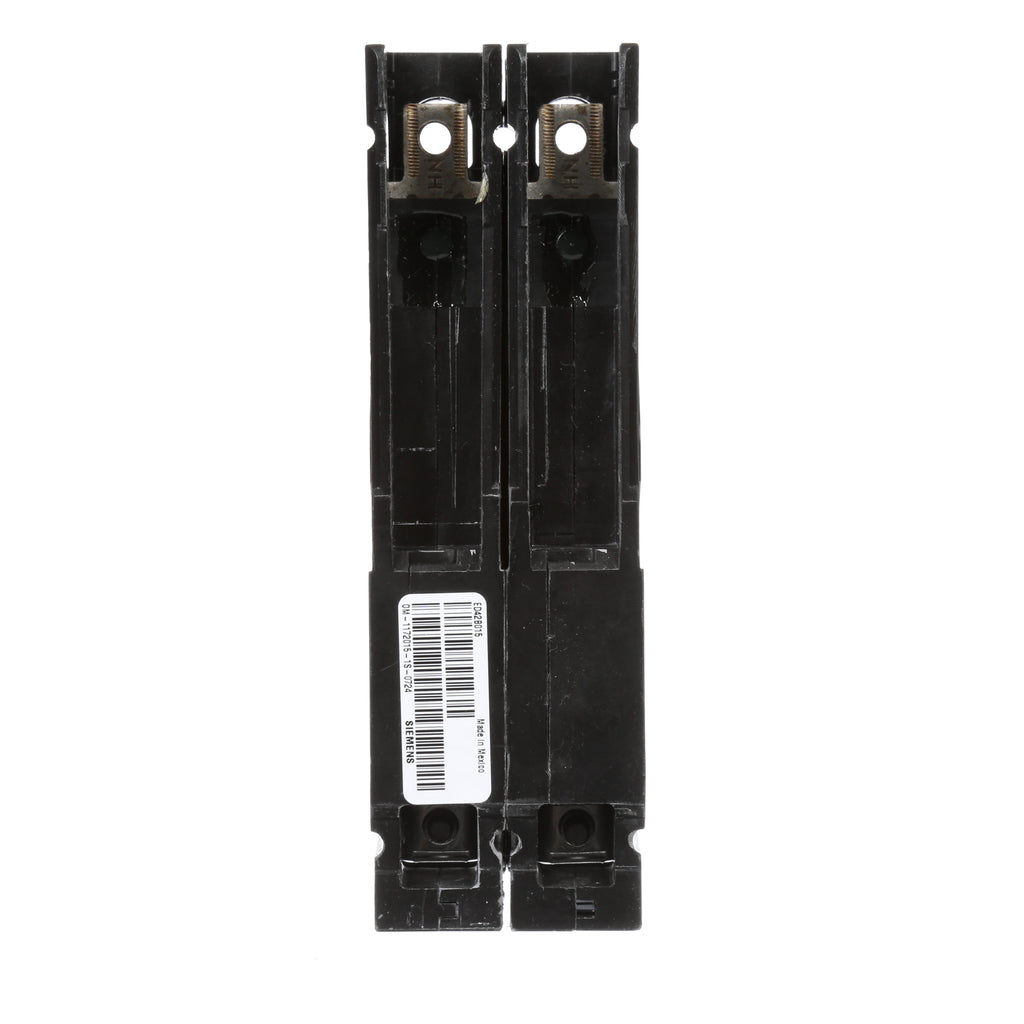

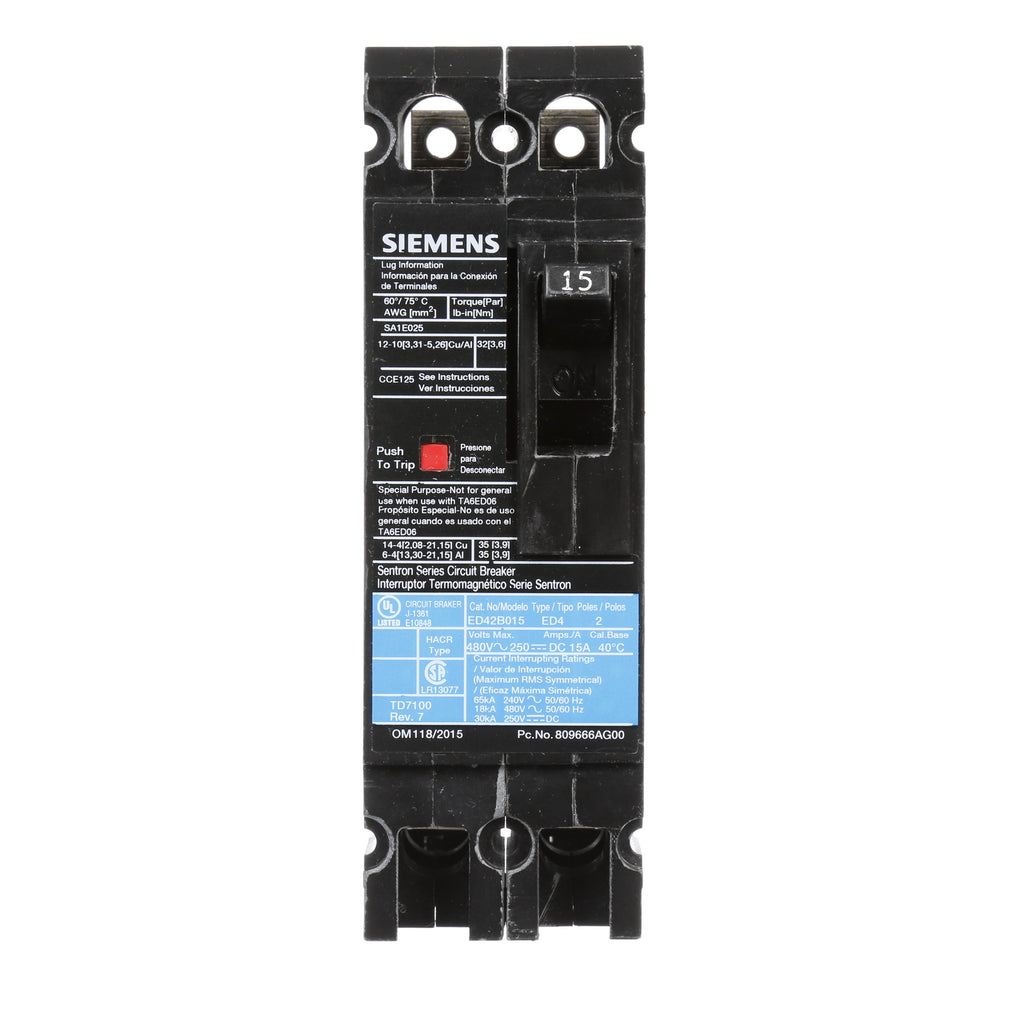

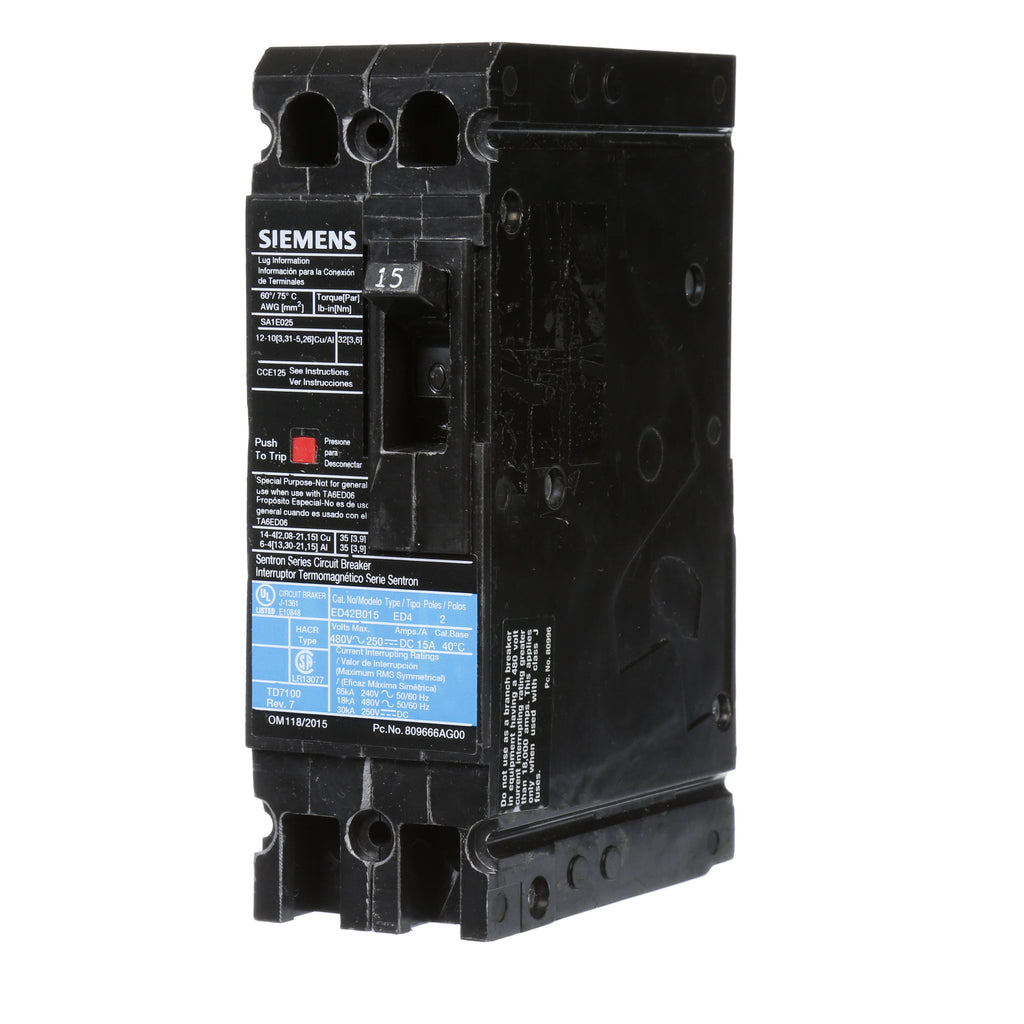

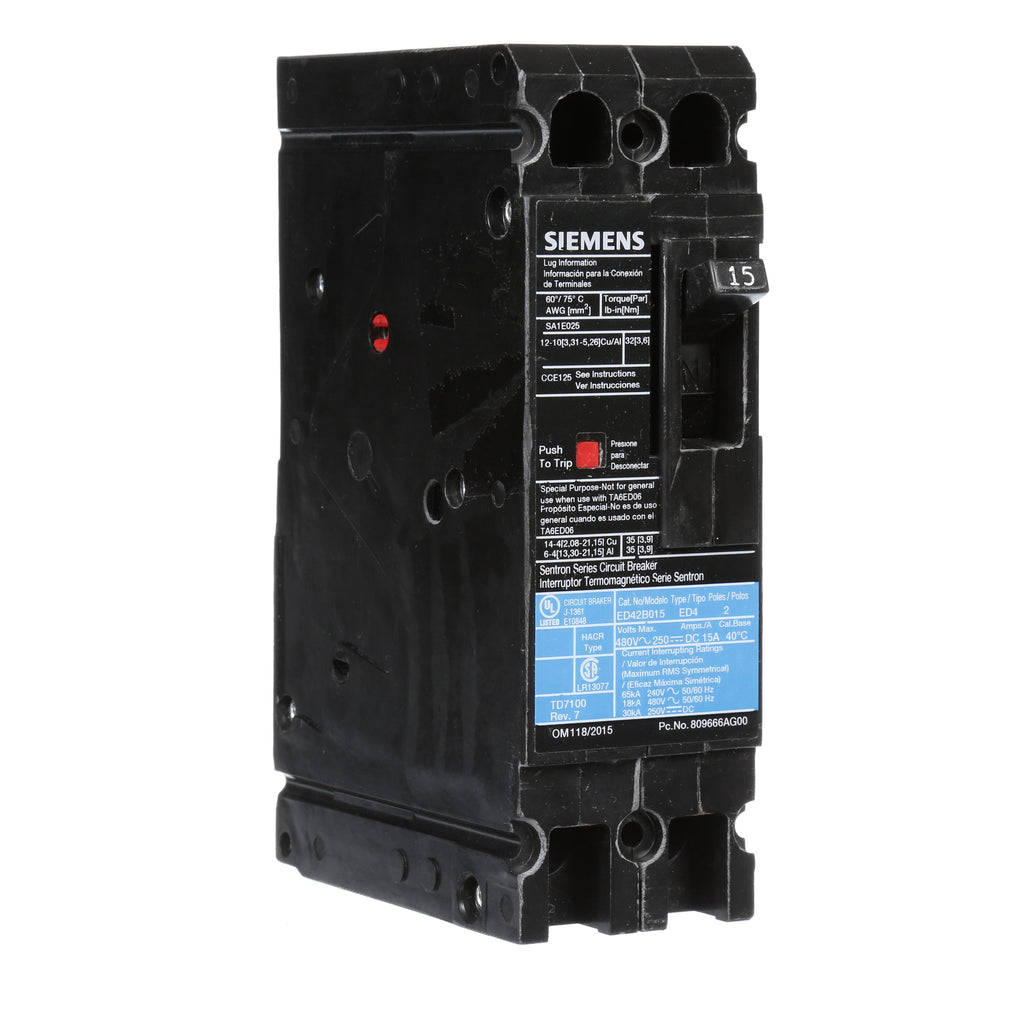

ED42B015 - Siemens 2-pole molded case circuit breaker rated at 15A and 480VAC with thermal-magnetic trip.The Siemens ED42B015 is a type ED frame, bolt-on circuit breaker designed for reliable overcurrent protection in industrial and commercial applications. It features a thermal-magnetic trip unit for precise response to overloads and short circuits, with line and load side lugs.
- Part Number: ED42B015
- Manufacturer: Siemens
- Series/Frame: ED / ED4
- Amperage: 15A
- Voltage: 480VAC / 250VDC
- Poles: 2
- Mounting Type: Bolt-On
- Trip Unit: Thermal-Magnetic
- Interrupt Rating: 18kA @ 480VAC; 65kA @ 240VAC
- Certifications: UL; CSA
Specifications
- Part Number: ED42B015
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : ED
- Voltage : 480 AC
- Amperage : 15
- Phase : 1
- Poles : 2
- AIC rating : 18kA@480V
- Connection : Lug In Panelboard
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Load Side Lug
- Frame Size : 125A/ED
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : Any
Product Data
- UPC : 783643209213
- GTIN : 00783643209213
- Country of Origin : Mexico
- Dimensions : 6.693 x 5.906 x 2.756
- Weight : 2.701
- Panel Type : SB Switchboards, Sentron Panelboards
- Standards : IEC Certified, UL Listed
- Certification : IEC Certified, UL Listed
- Wire Size : 12 To 10 AWG (Aluminum)
