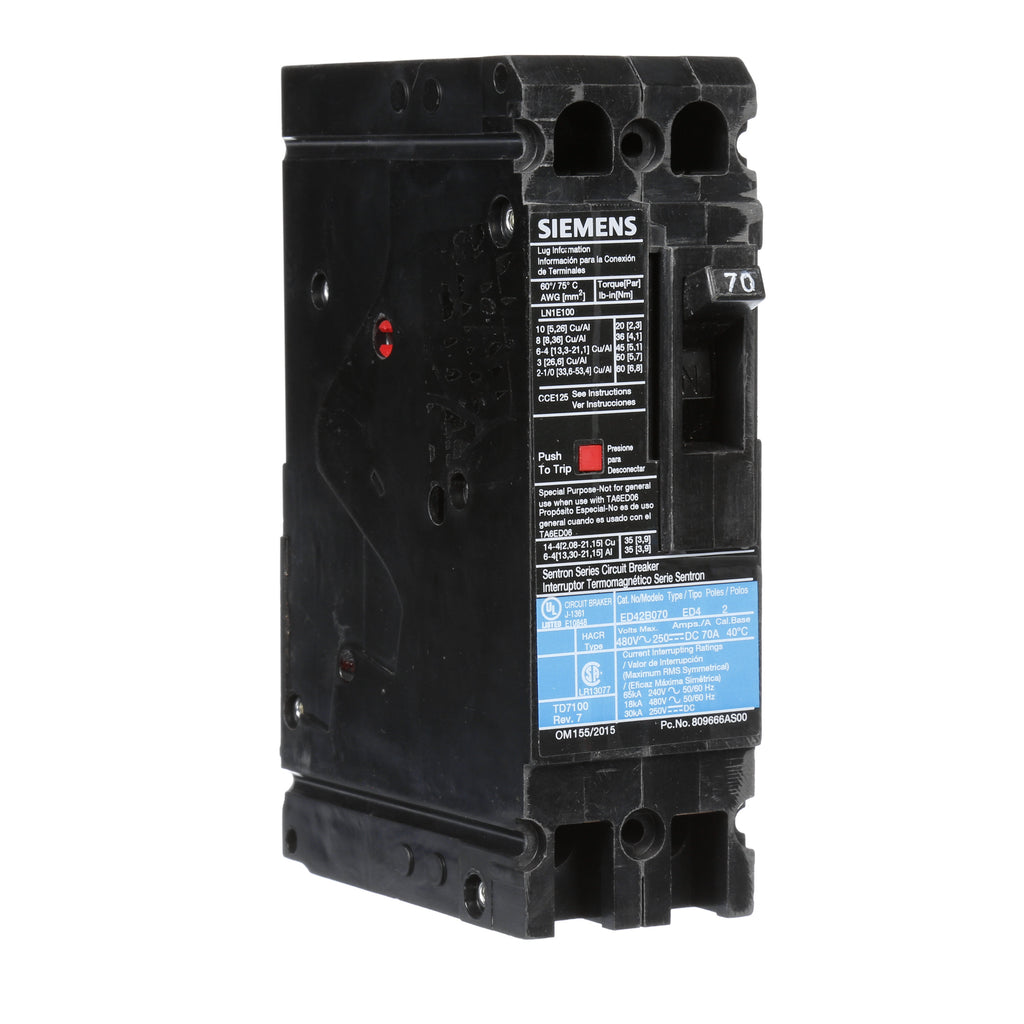

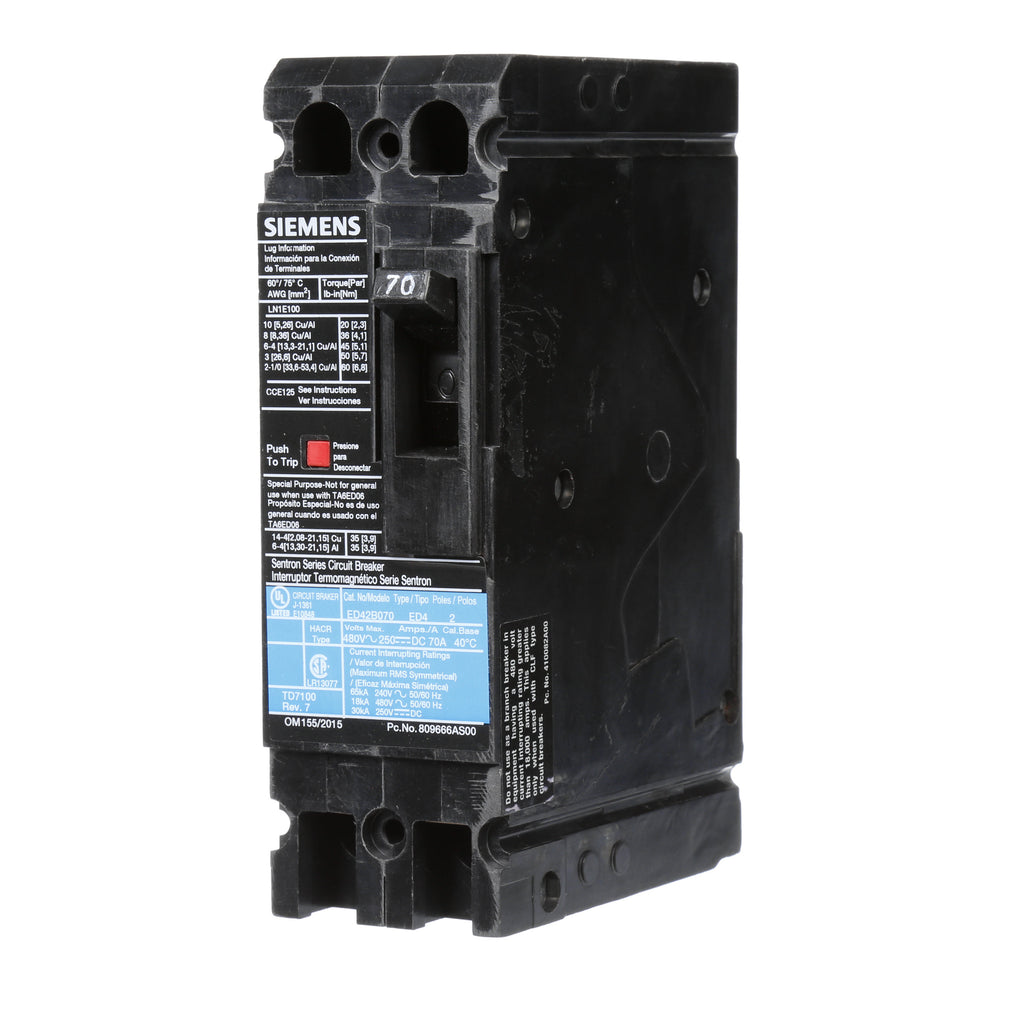

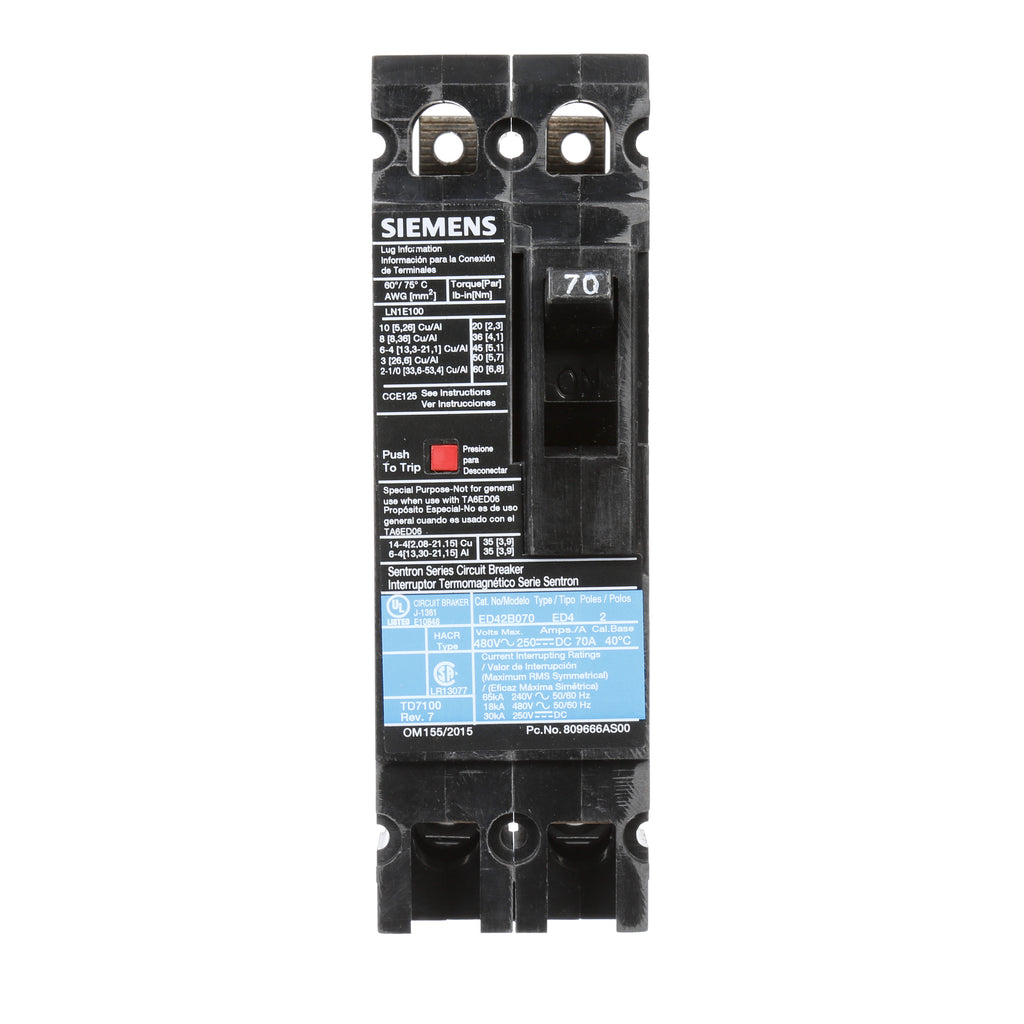

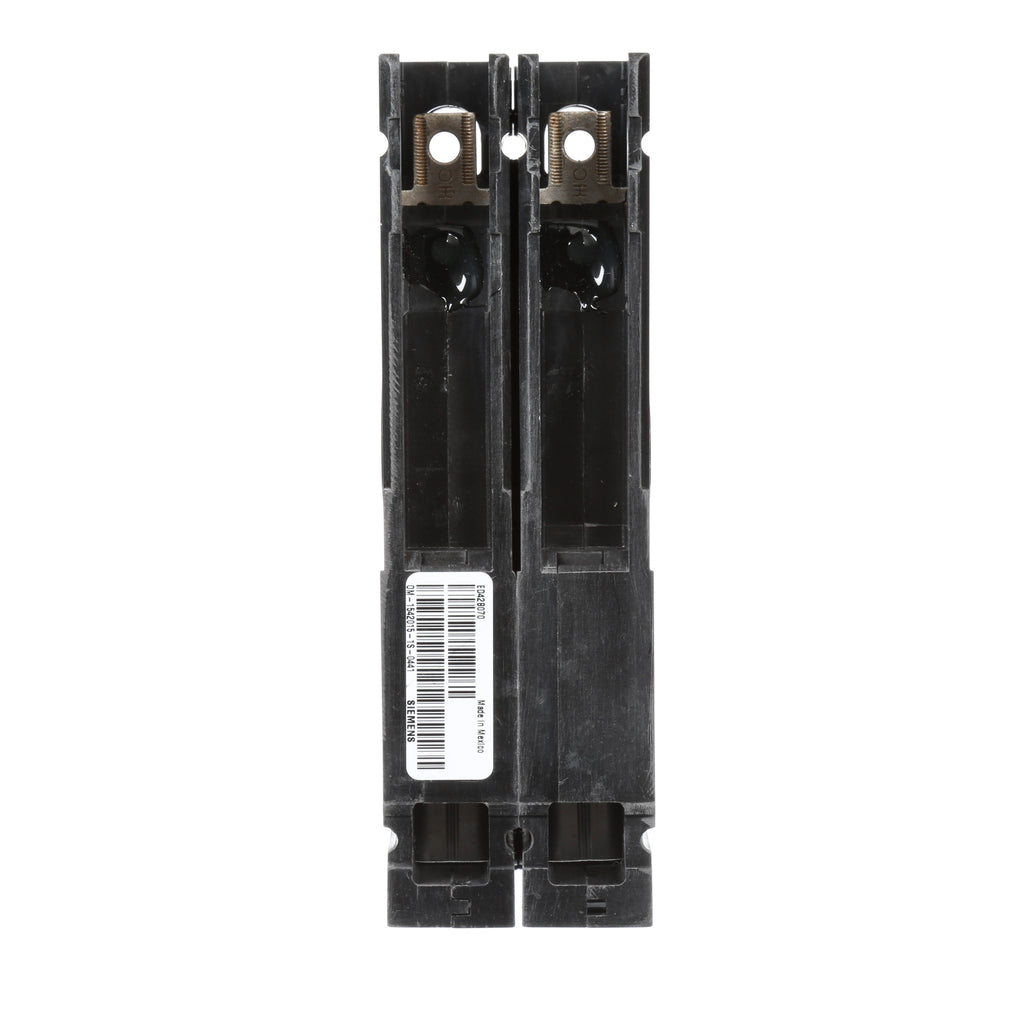

ED42B070 - Siemens 70A 480VAC 2 Pole Molded Case Circuit Breaker Type ED4 Bolt-On Frame

ED42B070

ED42B070 is a Siemens Sentron Series Type ED4 molded case circuit breaker designed for low voltage applications with 70 amps current rating and 2 poles.This breaker features a 480 VAC/250 VDC voltage rating, 18 kA interrupting capacity at 480V, thermal magnetic trip unit, and bolt-on mounting. It is built on the ED frame with standard breaking capacity and is suitable for panelboard and load lug installations.

• Manufacturer: Siemens
• Series: Sentron ED4
• Amperage: 70 A
• Voltage Rating: 480 VAC / 250 VDC
• Poles: 2
• Interrupt Rating: 18 kA at 480V
• Trip Unit: Thermal Magnetic
• Mounting Type: Bolt-On
• Frame Type: ED
• Operating Temperature: 40¡C standard
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED42B070
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 480 AC
• Amperage : 70
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Lug In Panelboard
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Any

Product Data

• UPC : 783643209305
• GTIN : 00783643209305
• Country of Origin : Mexico
• Dimensions : 6.693 x 5.906 x 2.774
• Weight : 2.69
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : IEC Certified, UL Listed
• Certification : IEC Certified, UL Listed
• Wire Size : 10 To 1/0 AWG (Aluminum/Copper)
