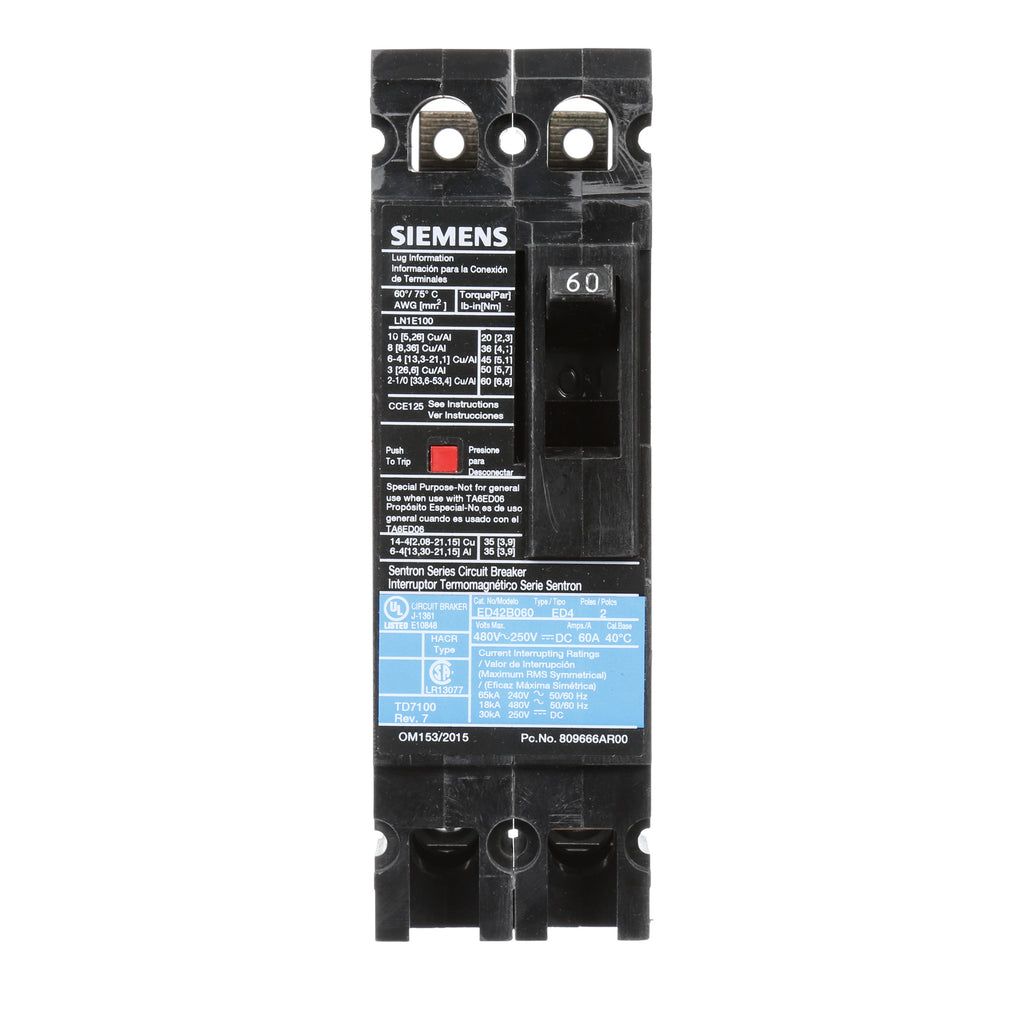

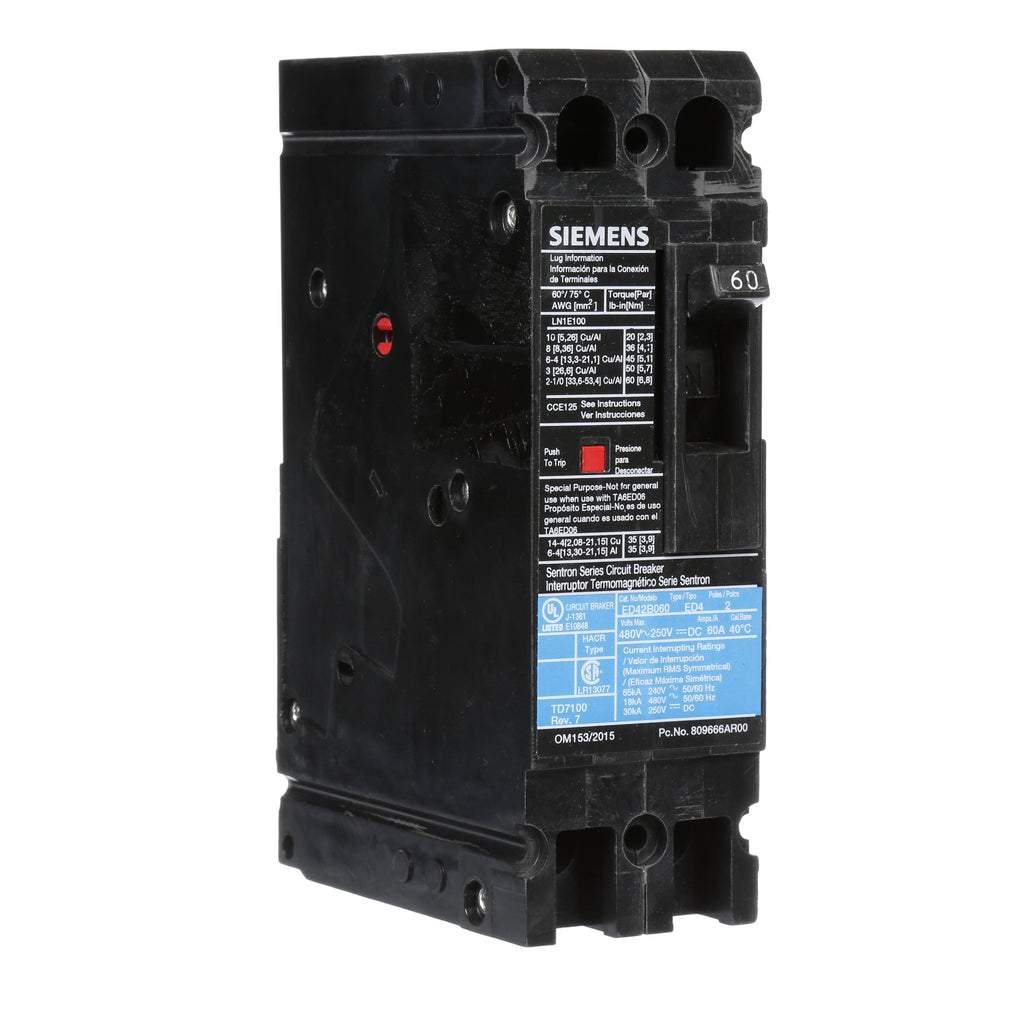

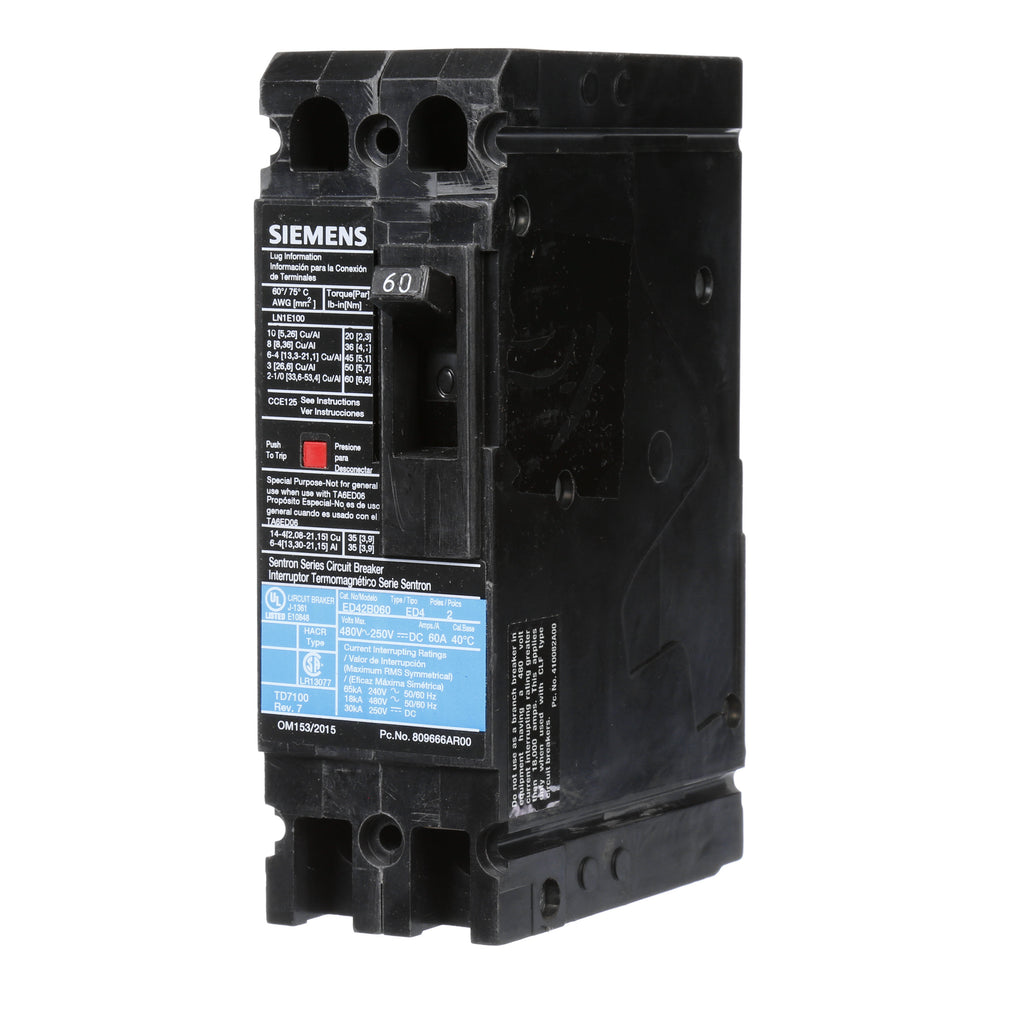

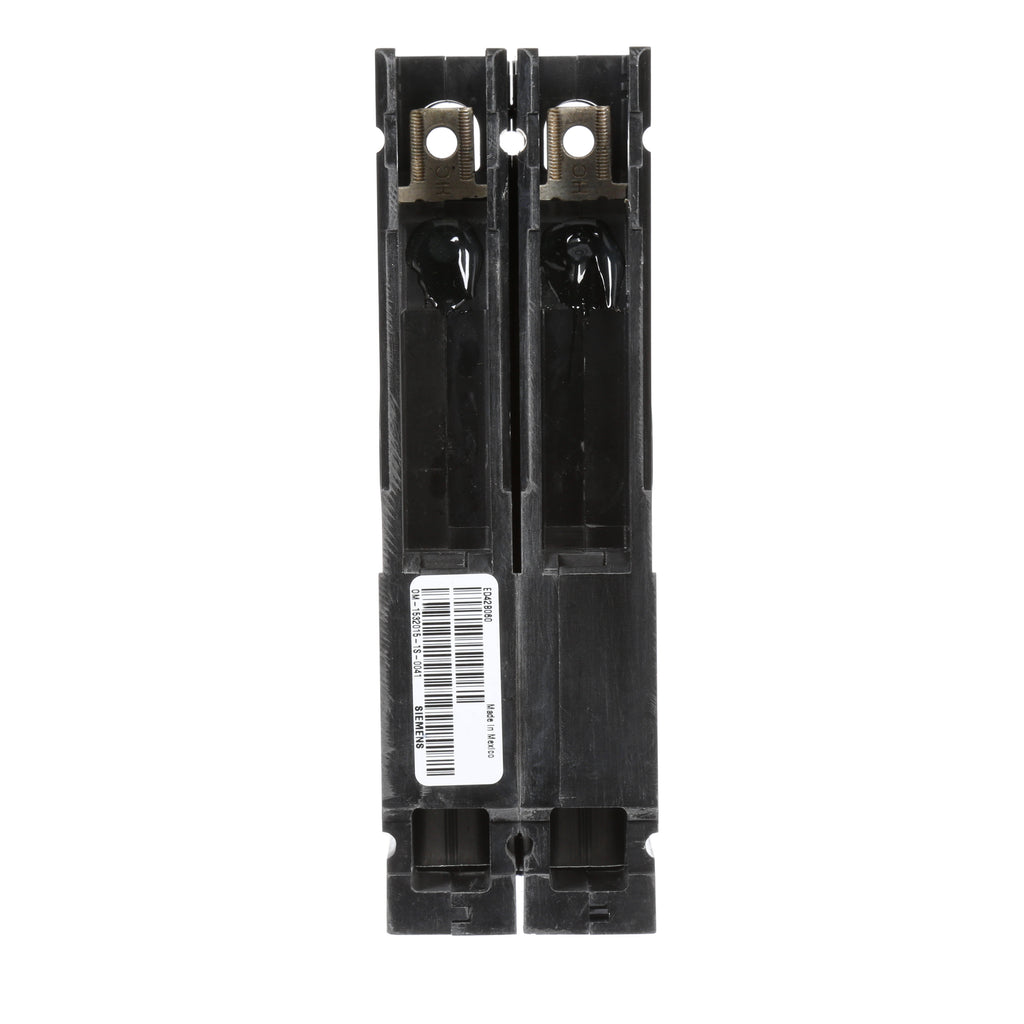

ED42B060 - Siemens 60A 480V 2 Pole ED Frame Bolt-On Circuit Breaker

ED42B060

ED42B060 is a Siemens 2 Pole 60 Amp 480 Volt circuit breaker with ED frame and bolt-on mounting designed for reliable power distribution protection.This molded case circuit breaker features a thermal magnetic trip unit, 18kA interrupt rating at 480V AC, and bolt-on mounting for secure installation. It is ideal for industrial and commercial electrical panels requiring a 2 pole, 60 amp protective device with Siemens quality and certifications.

• Manufacturer: Siemens
• Part Number: ED42B060
• Frame Type: ED
• Voltage Rating: 480V AC
• Amperage: 60 Amps
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 18kA at 480V AC
• Trip Unit: Thermal Magnetic
• Certifications: Siemens standard industrial certifications

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED42B060
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 480 AC
• Amperage : 60
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Lug In Panelboard
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Any

Product Data

• UPC : 783643209299
• GTIN : 00783643209299
• Country of Origin : Mexico
• Dimensions : 6.693 x 5.906 x 2.772
• Weight : 0.278
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : IEC Certified, UL Listed
• Certification : IEC Certified, UL Listed
• Wire Size : 10 To 1/0 AWG (Aluminum/Copper)
