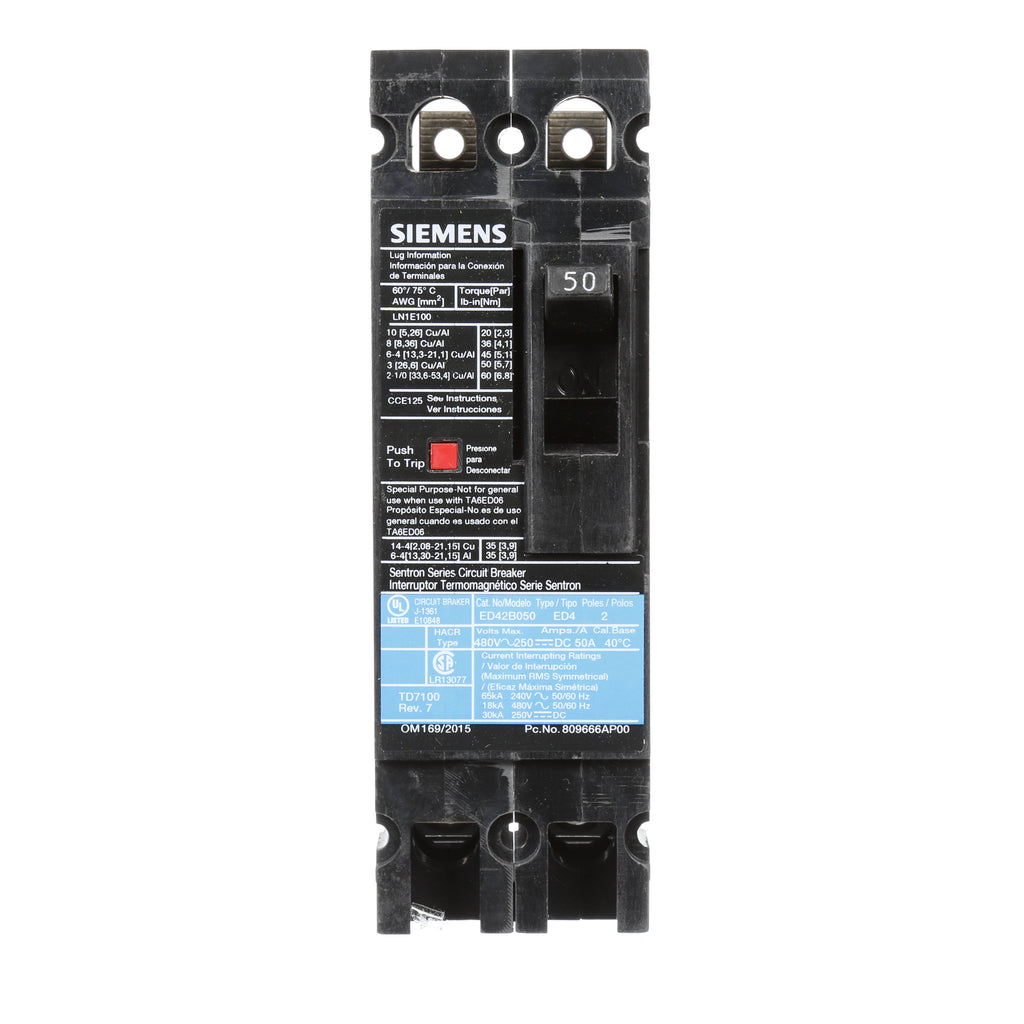

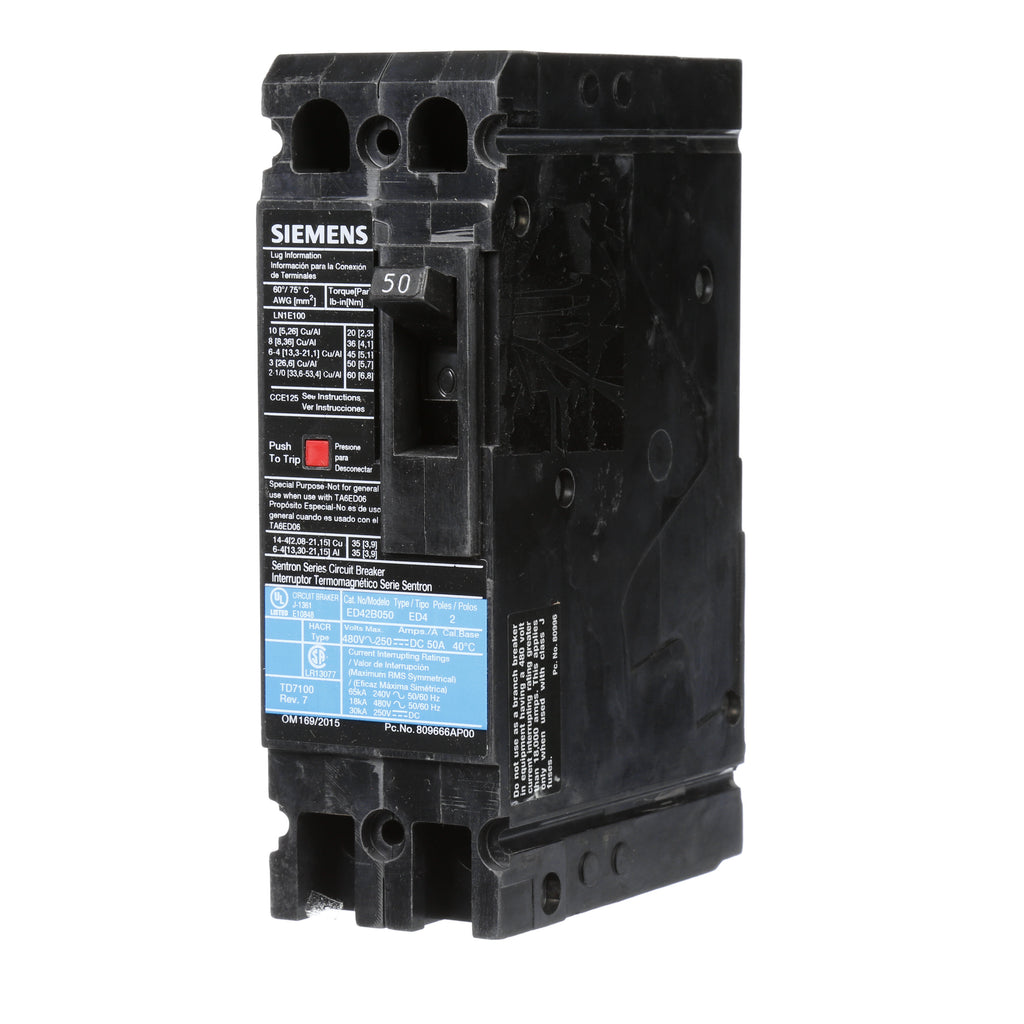

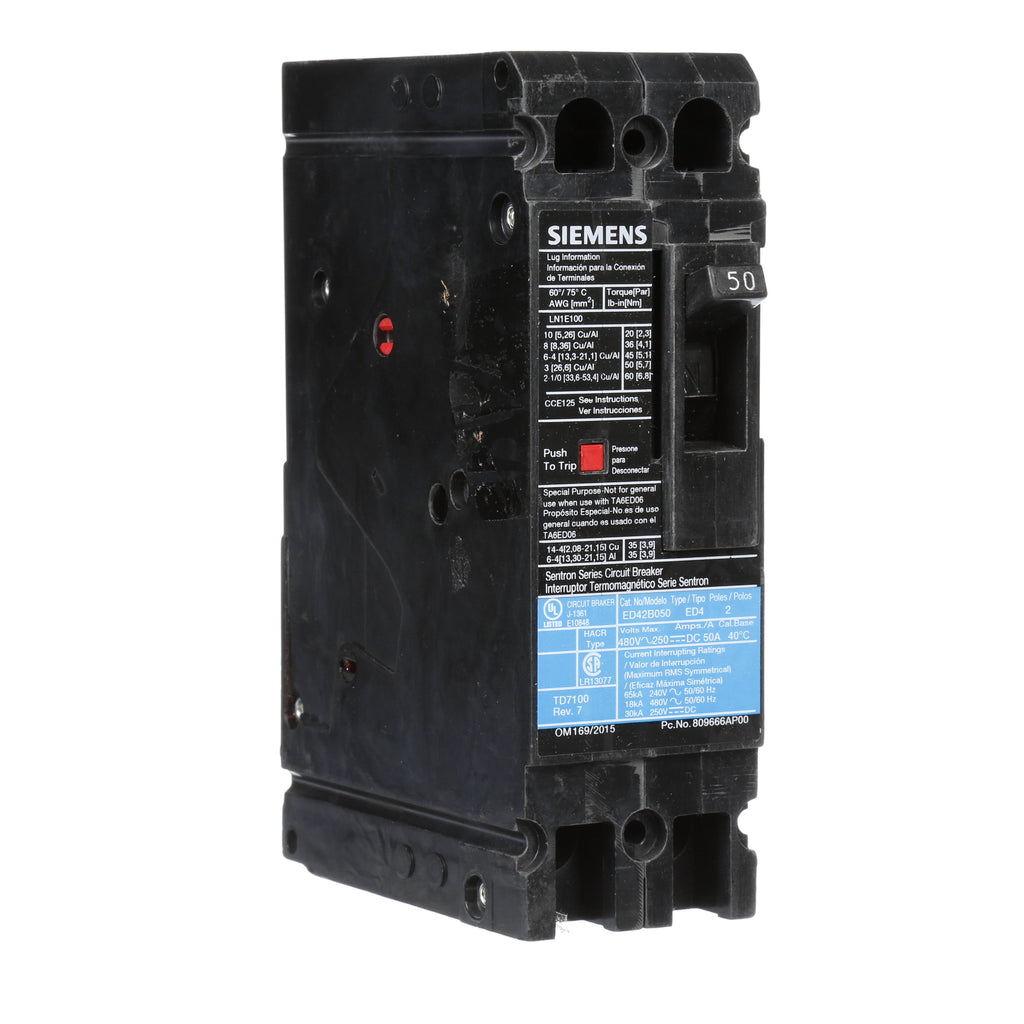

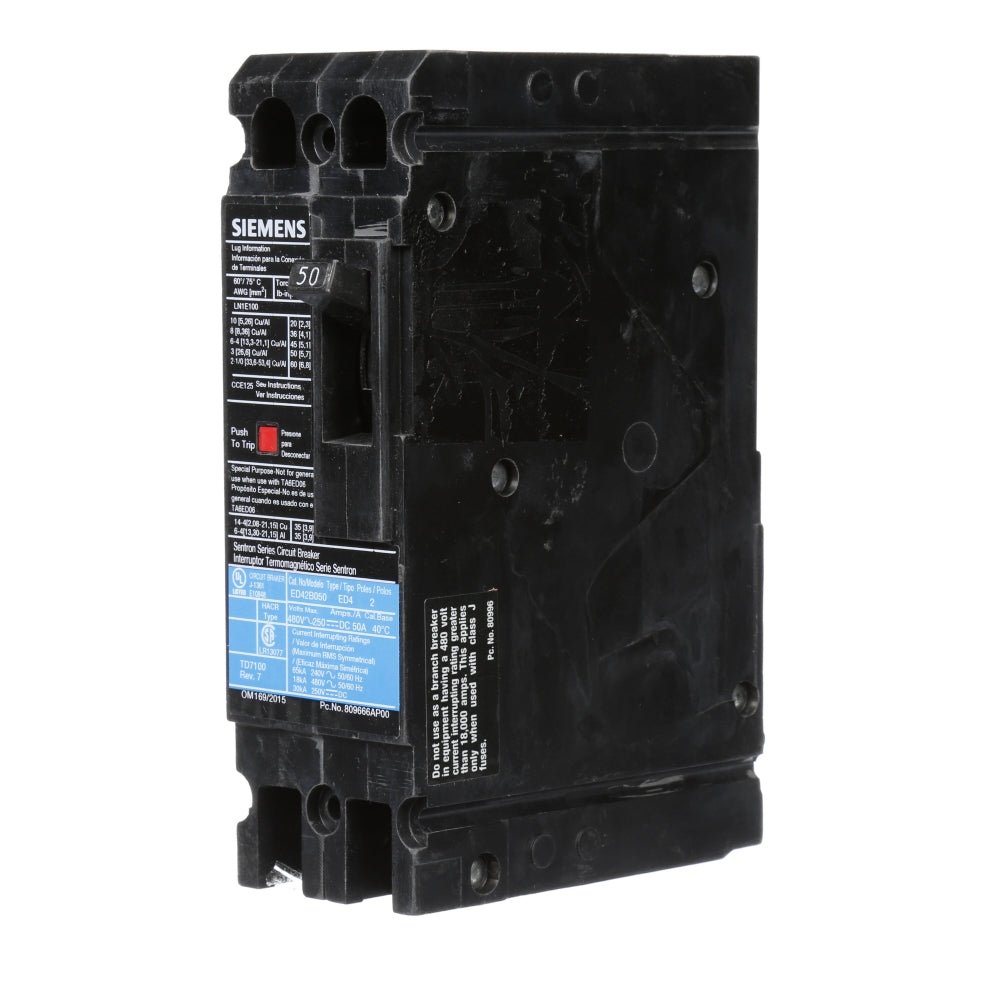

ED42B050 - Siemens 2 Pole 50A 480V Bolt-On Molded Case Circuit Breaker, ED Frame, 18kAIC, Thermal Magnetic Trip, UL 489 / IEC 60947-2

ED42B050

ED42B050 - Siemens Sentron Series type ED molded case circuit breaker rated at 50A, 480V, 2 pole, bolt-on mounting with thermal magnetic trip.This Siemens ED42B050 features LI (Long-Time and Instantaneous) trip functions, standard interrupting capacity of 18kA at 480V, and load side lug terminals. It is a 40 degree C calibrated breaker from the ED frame family, designed for reliable overcurrent protection in panelboard applications.

• Part Number: ED42B050
• Manufacturer: Siemens
• Series/Frame: Sentron ED
• Poles: 2
• Amperage: 50A
• Voltage: 480V AC
• Mounting Type: Bolt-On
• Interrupt Rating: 18kA @ 480V
• Trip Unit: Thermal Magnetic (LI)
• Phase: 1
• Connection: Load side lug terminals

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED42B050
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 480 AC
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Lug In Panelboard
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Any

Product Data

• UPC : 783643209282
• GTIN : 00783643209282
• Country of Origin : Mexico
• Dimensions : 6.693 x 5.906 x 2.770
• Weight : 0.258
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
