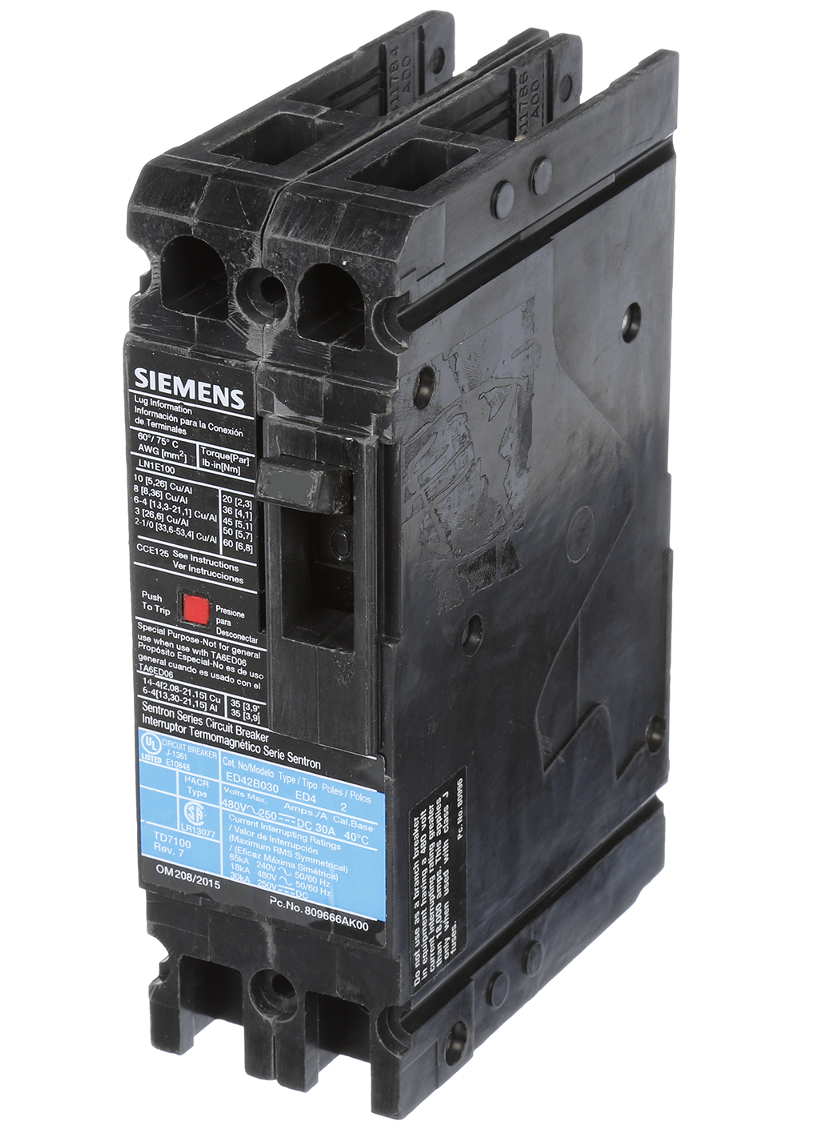

ED42B045 - Siemens 45 Amp 480V 2 Pole Molded Case Circuit Breaker ED Frame

ED42B045

ED42B045 is a Siemens 2 pole molded case circuit breaker rated for 45 amps and 480 volts AC, designed for reliable circuit protection.This Siemens ED frame breaker features a thermal magnetic trip unit with a standard interrupt rating suitable for industrial and commercial applications. It supports bolt-on mounting and is rated for 480VAC and 250VDC operation. The breaker has a standard breaking capacity and is NEMA Type 12 rated for enclosure protection.

• Amperage: 45 Amps
• Voltage Rating: 480VAC, 250VDC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: Standard breaking capacity (approx. 18kA at 480V AC)
• Frame/Series: ED Frame
• Trip Unit: Thermal Magnetic, Non-Interchangeable
• Enclosure Rating: NEMA Type 12
• Certifications: UL Listed, CSA Certified
• Dimensions: Approx. 6.35 in H x 2 in W x 3.92 in D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED42B045
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 480 AC
• Amperage : 45
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Lug In Panelboard
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• MCM Size : Min. Wire Size 1/0 AWG (Al), 3 AWG (Cu) Max. Wire Size 2 AWG (Al), 3 AWG (Cu)
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 783643209275
• GTIN : 00783643209275
• Country of Origin : Mexico
• Dimensions : 6.693 x 5.906 x 2.768
• Weight : 2.551
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
• Wire Size : 10 AWG to 1/0 AWG, Aluminum/Copper
