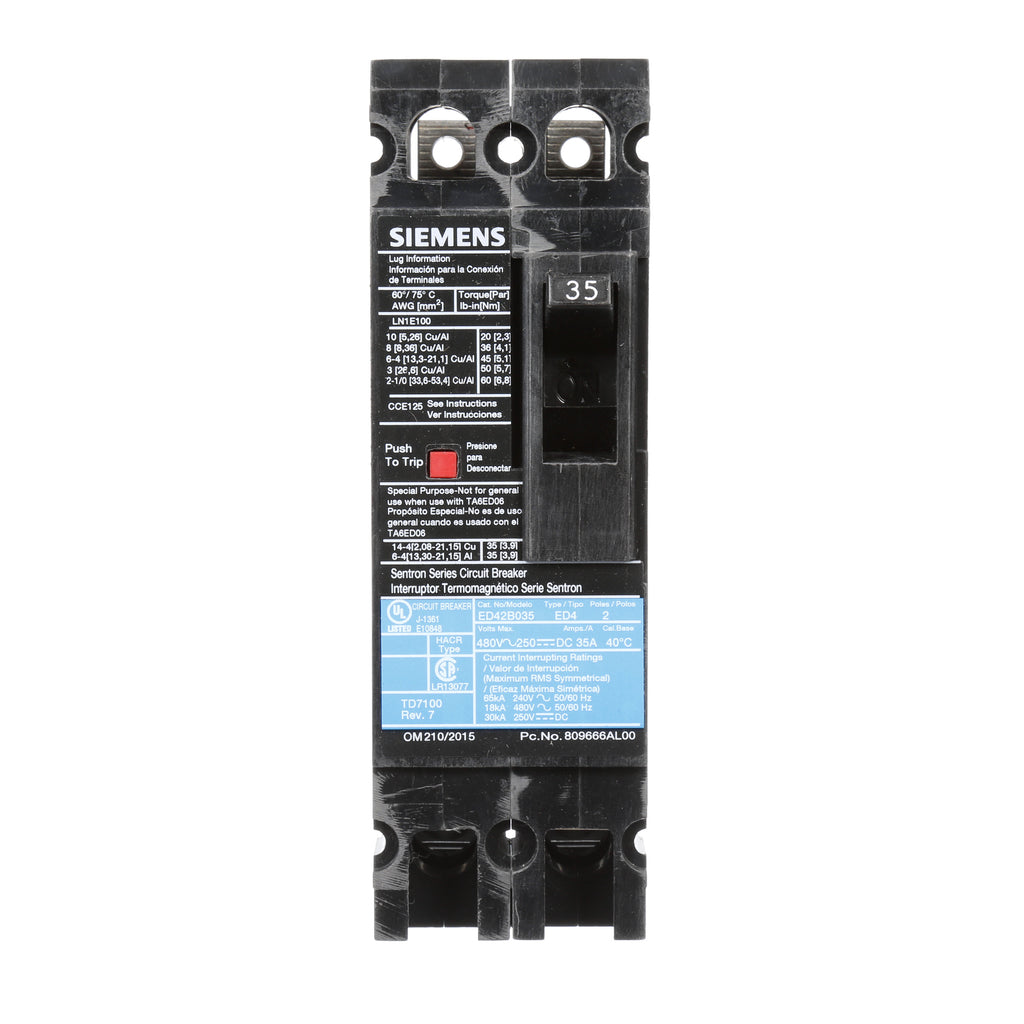

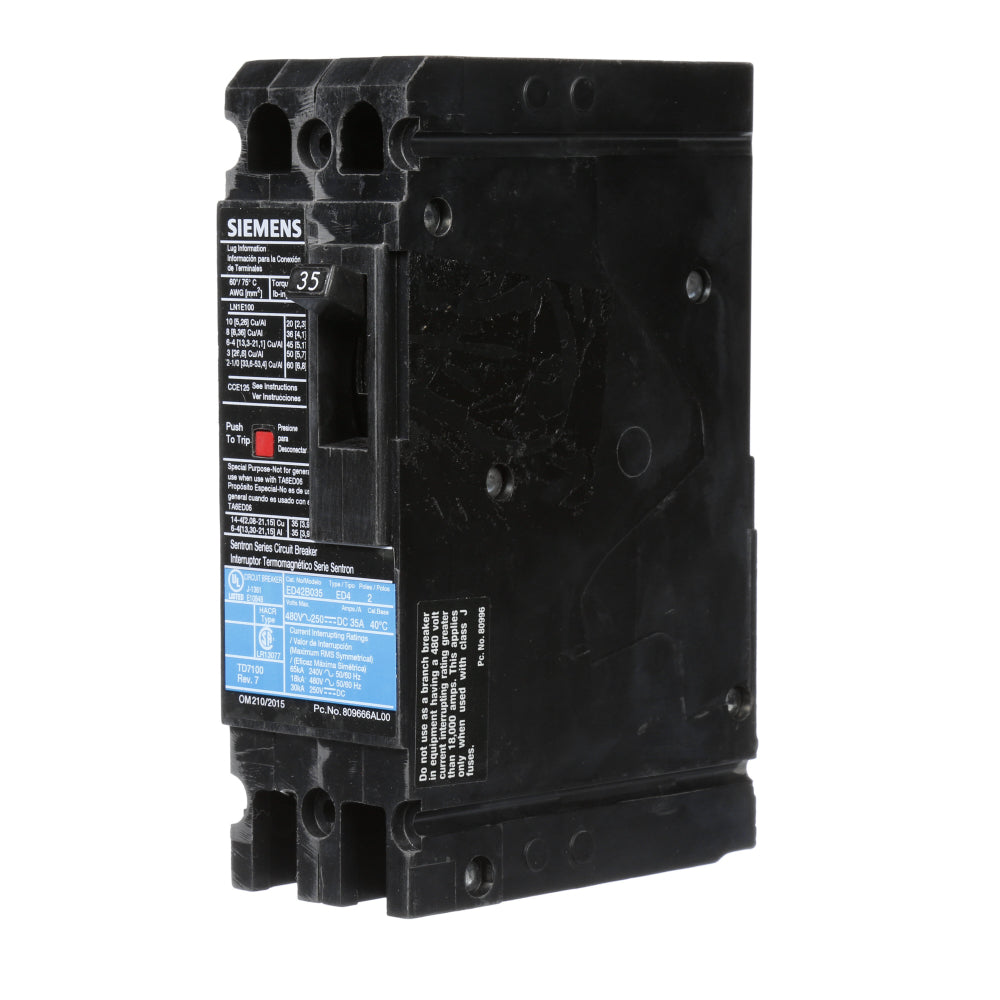

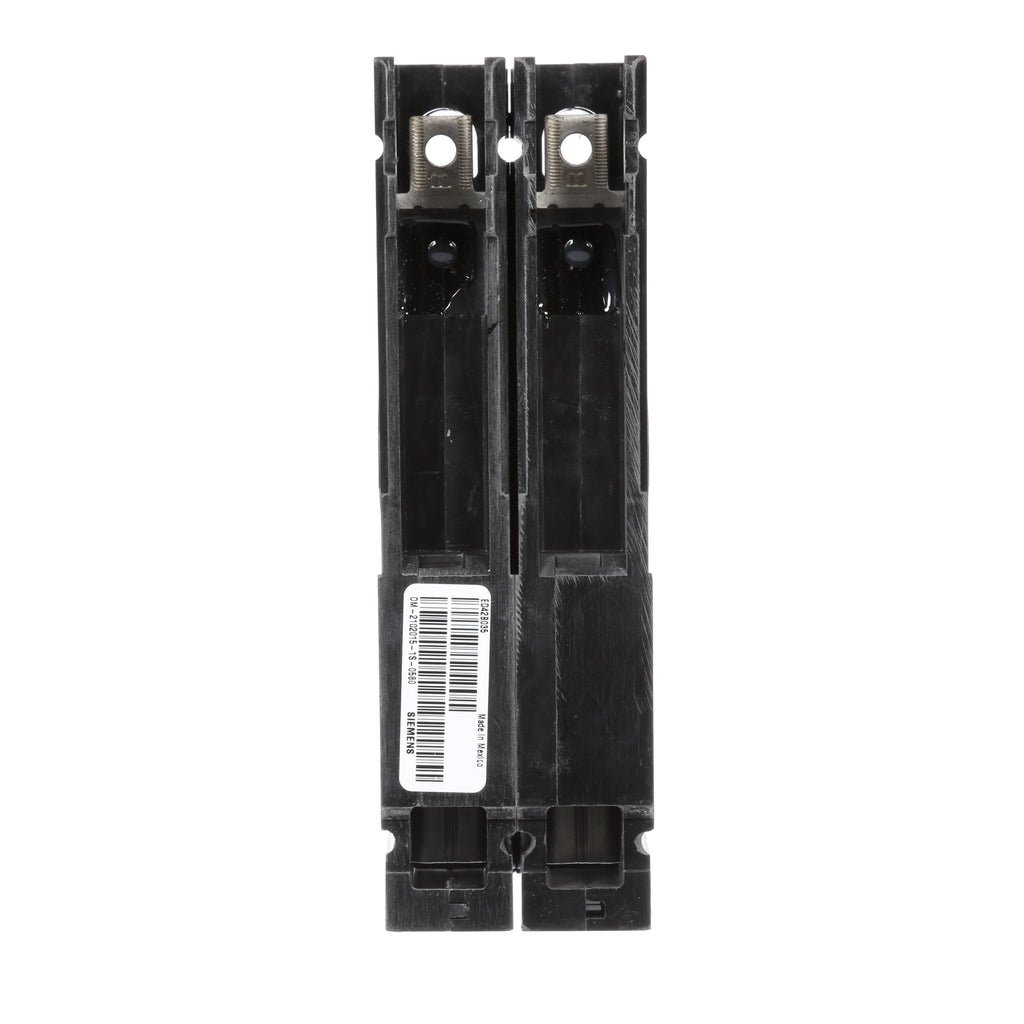

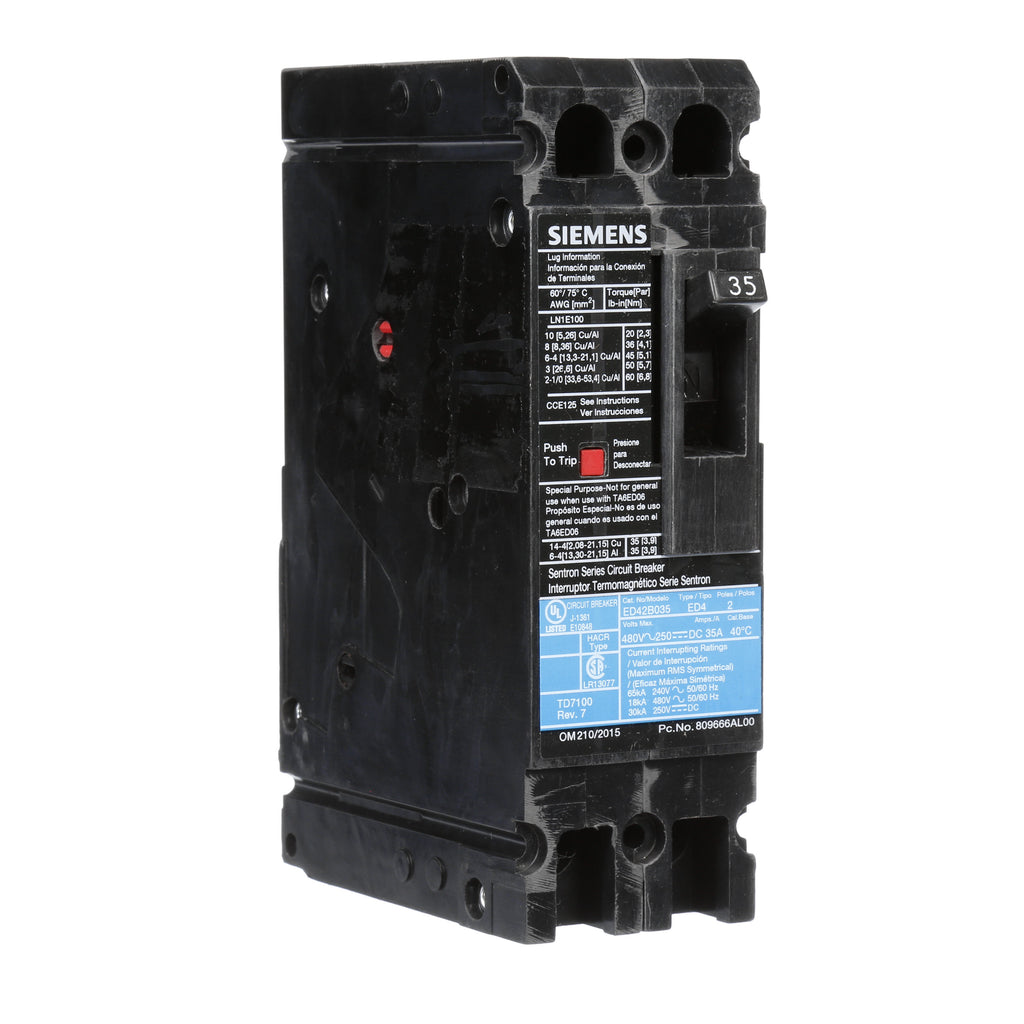

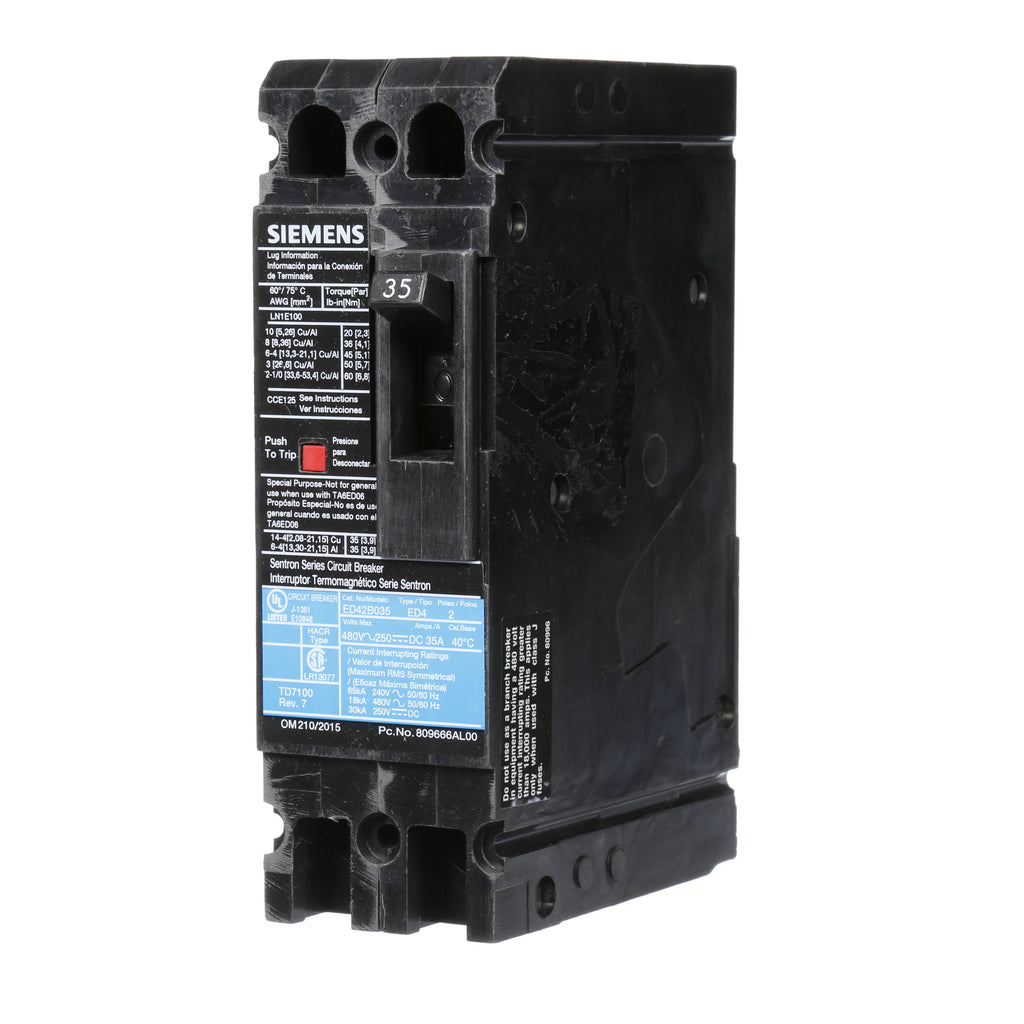

ED42B035 - Siemens 35 Amp 480V 2 Pole Molded Case Circuit Breaker ED Frame

ED42B035

ED42B035 is a Siemens 35 Amp, 2 Pole molded case circuit breaker designed for reliable circuit protection in industrial and commercial applications.This Siemens ED frame breaker features a 480 VAC voltage rating with a thermal magnetic trip unit. It has a bolt-on mounting type and an interrupt rating of 18kA at 480 VAC and 65kA at 240 VAC. The breaker supports lug-type line side connections and is suitable for conductor sizes from 10 AWG to 1/0 AWG. It is UL listed and meets industry safety certifications.

• Amperage: 35 Amp
• Voltage: 480 VAC
• Poles: 2
• Frame Type: ED
• Mounting Type: Bolt-On
• Interrupt Rating: 18kA @ 480 VAC, 65kA @ 240 VAC
• Trip Unit: Thermal Magnetic
• Line Side Termination: Lug (not included)
• Conductor Size Range: #10 AWG to 1/0 AWG
• Weight: Approx. 2.5 to 5 lbs
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED42B035
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 480 AC
• Amperage : 35
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : ED Frame
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643209251
• GTIN : 00783643209251
• Country of Origin : Mexico
• Dimensions : 6.693 x 5.906 x 2.764
• Weight : 0.179
• Certification : IEC Certified, UL Listed
• Wire Size : 10 To 1/0 AWG (Aluminum/Copper)
