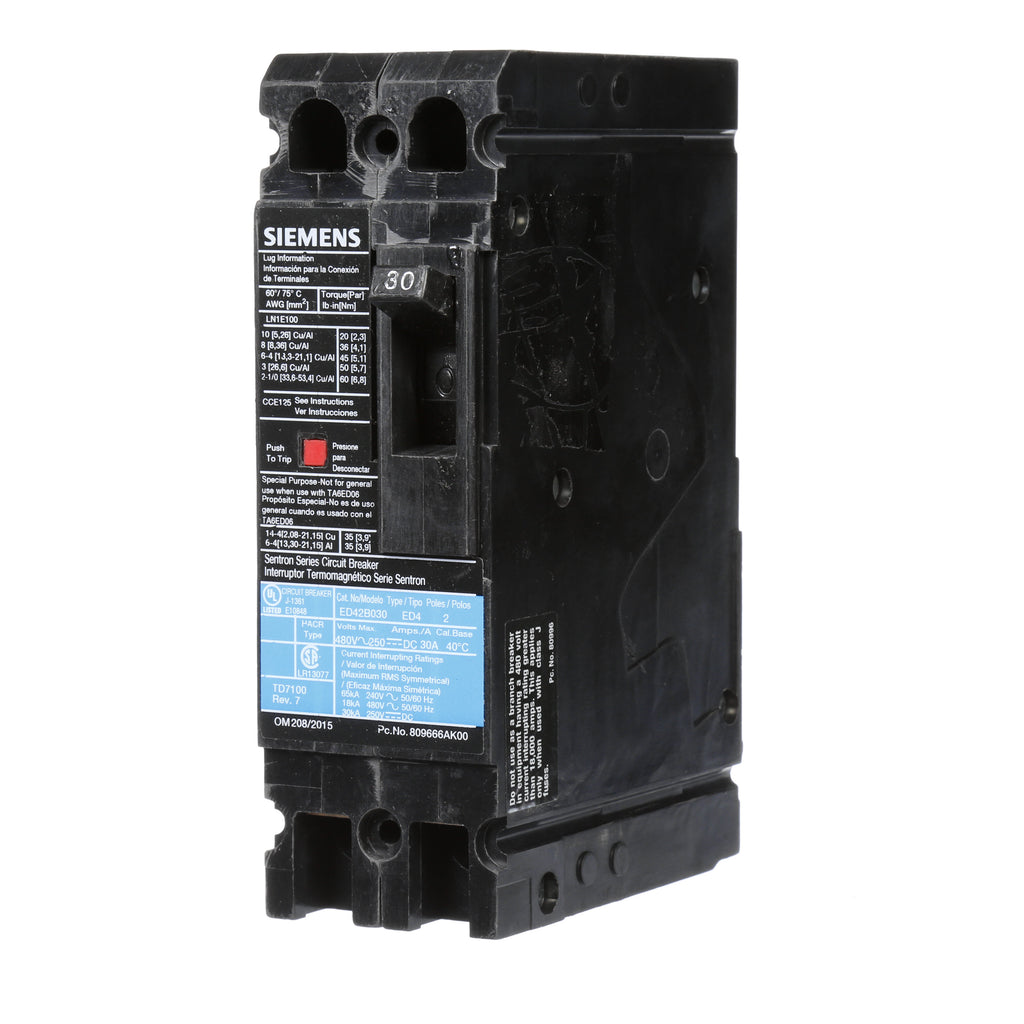

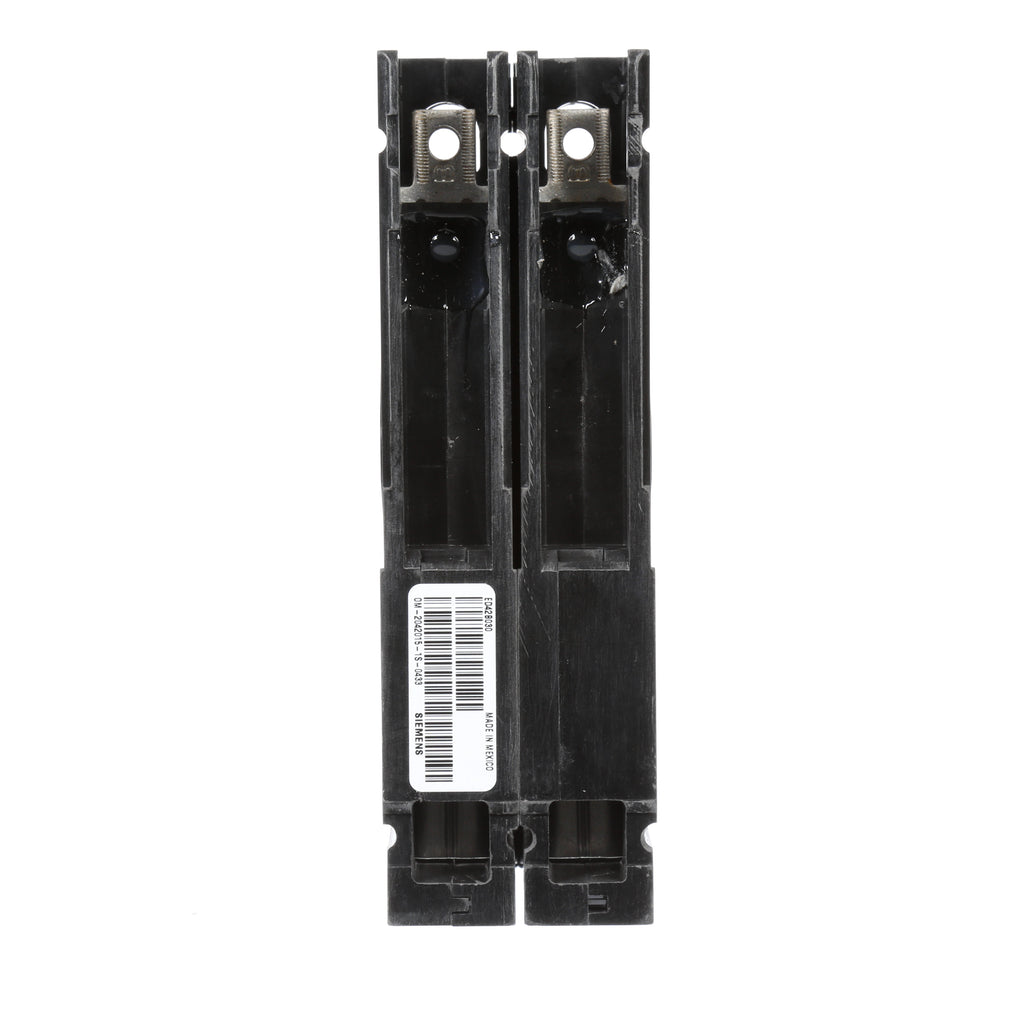

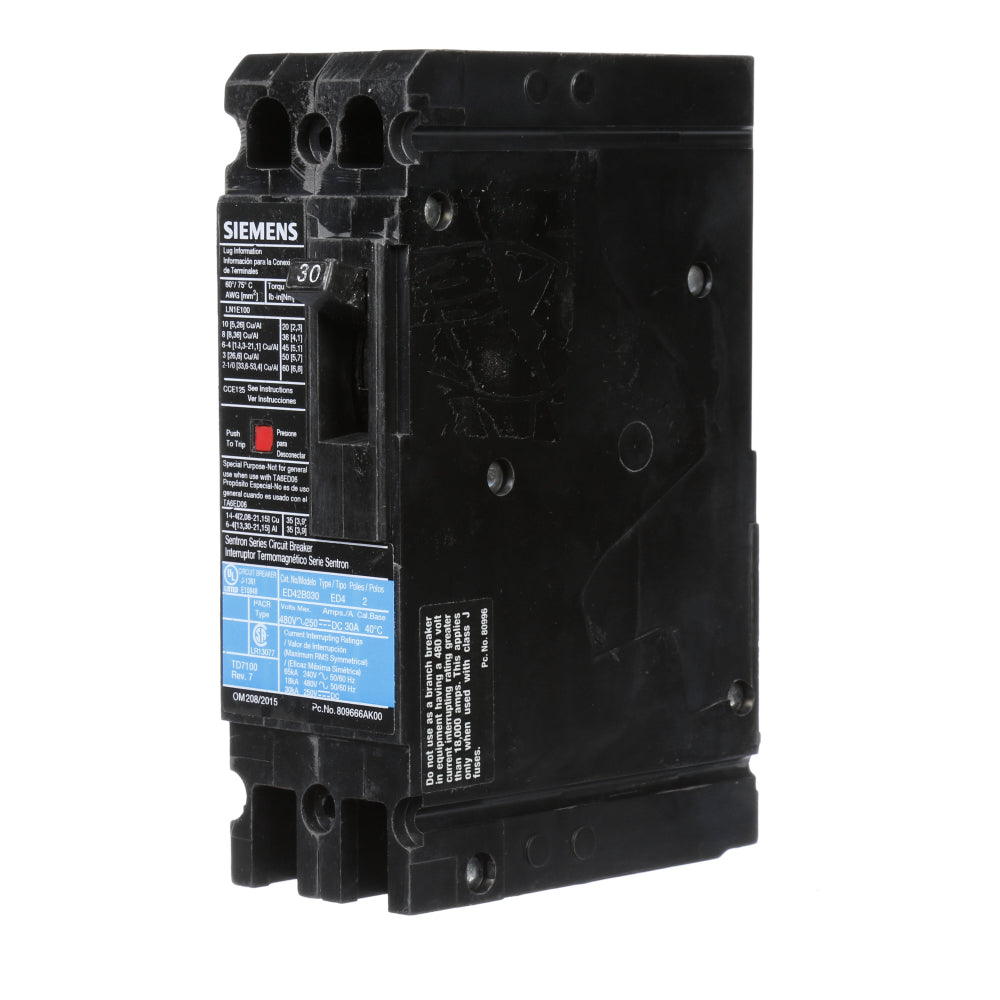

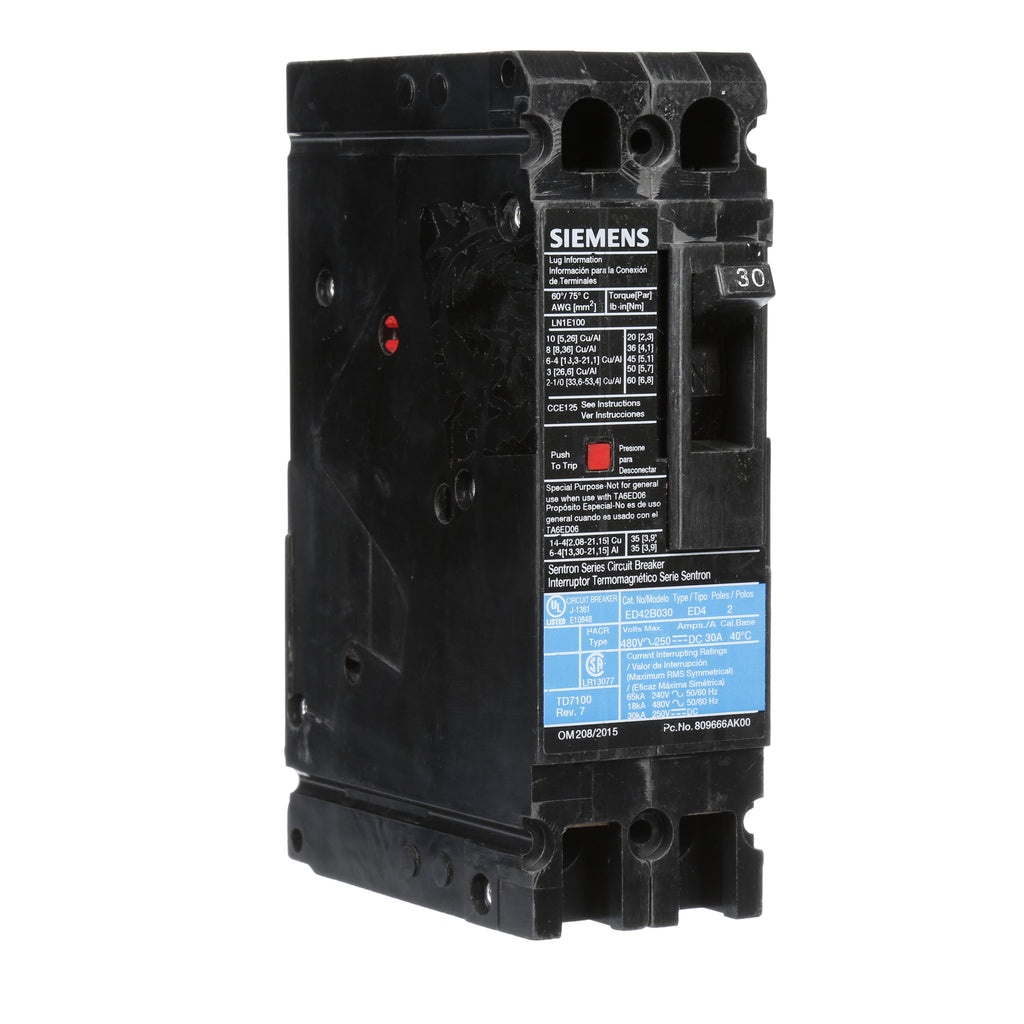

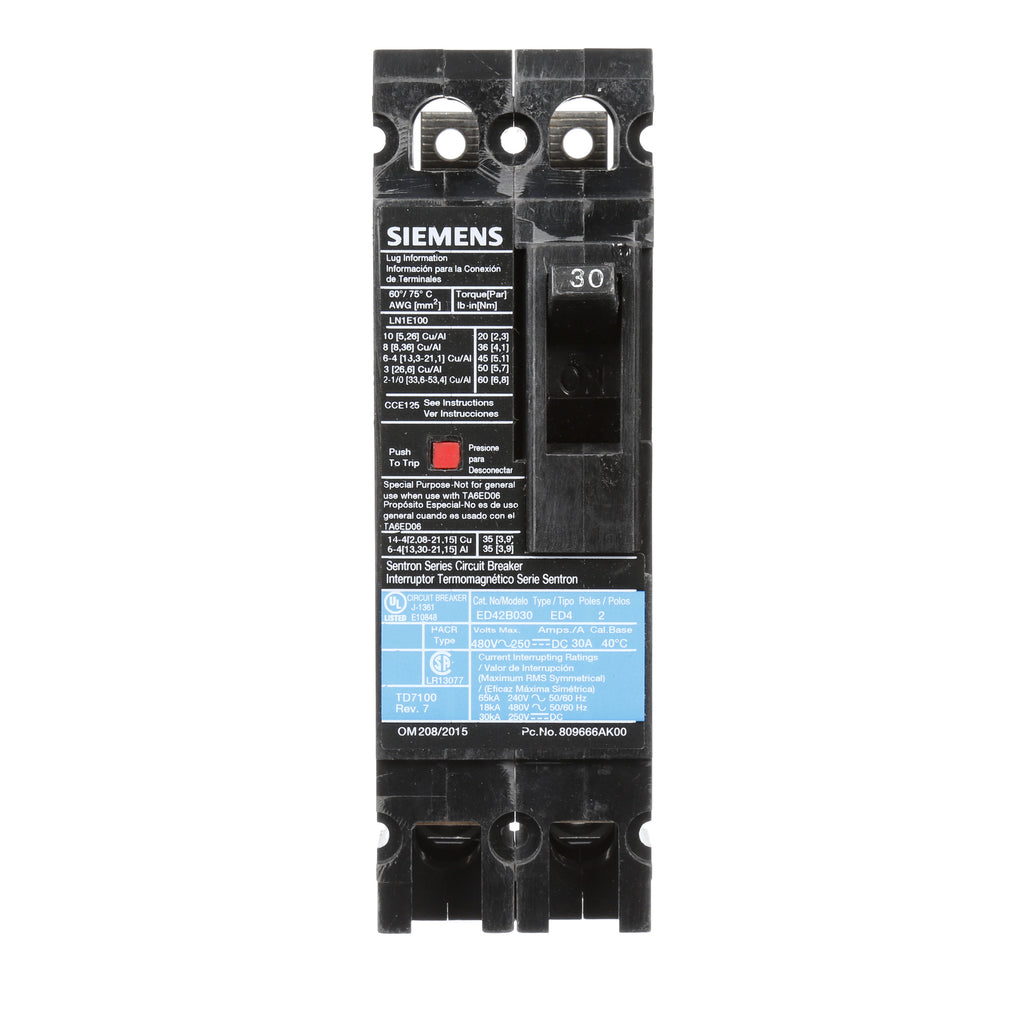

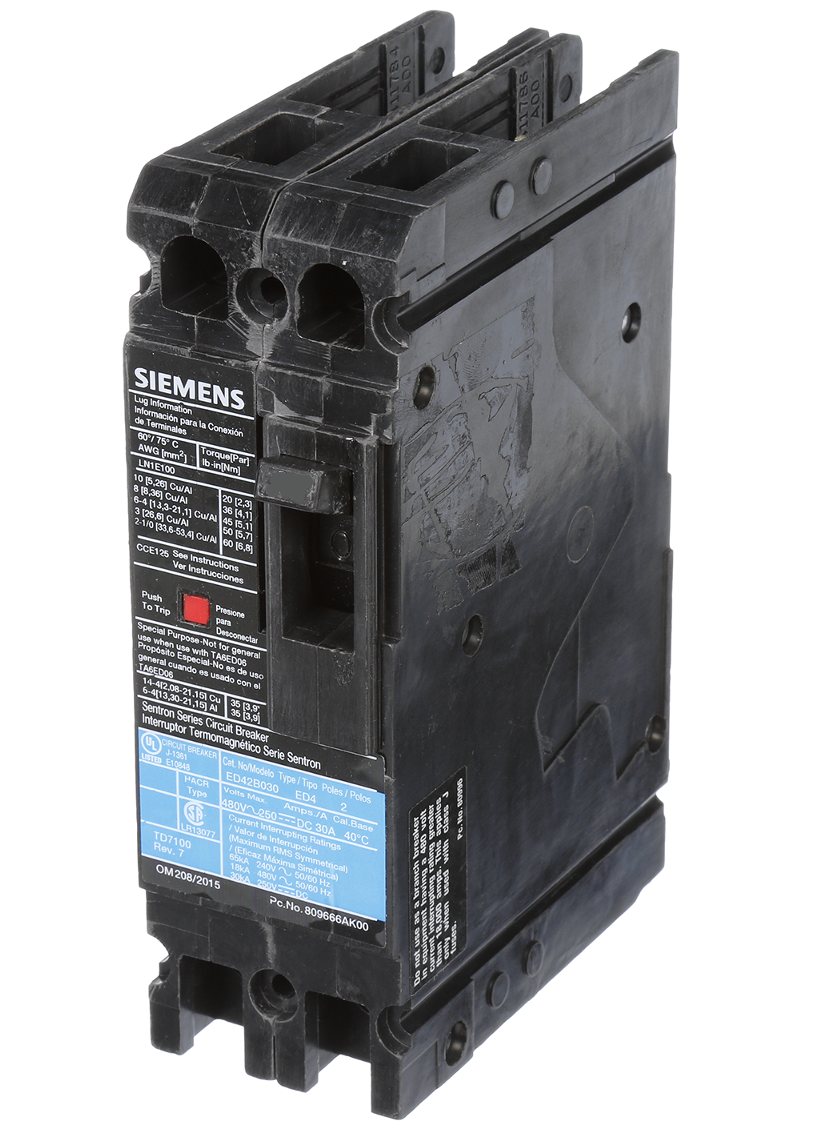

ED42B030 - Siemens 30 Amp 2 Pole 480V Molded Case Circuit Breaker ED Frame

ED42B030

ED42B030 is a Siemens 2 Pole molded case circuit breaker with a 30 Amp rating designed for reliable circuit protection.This Siemens ED42B030 breaker features a thermal magnetic trip unit, 480 VAC and 250 VDC voltage ratings, and an 18 kA interrupt rating at 480V. It belongs to the ED frame series and supports lug mounting. The breaker is UL listed and designed for low voltage applications with a standard 40 degree C temperature rating.

Key Specifications
• Amperage: 30 Amps
• Poles: 2
• Voltage Rating: 480 VAC / 250 VDC
• Interrupt Rating: 18 kA at 480 VAC
• Frame/Series: ED
• Trip Unit: Thermal Magnetic
• Mounting Type: Lug
• Temperature Rating: 40¡C
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED42B030
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 480 AC
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Lug In Panelboard
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Any

Product Data

• UPC : 783643209244
• GTIN : 00783643209244
• Country of Origin : Mexico
• Dimensions : 7.283 x 2.953 x 5.512 inch
• Weight : 2.571
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
• Wire Size : 10 to 1/0 AWG Aluminum/Copper
