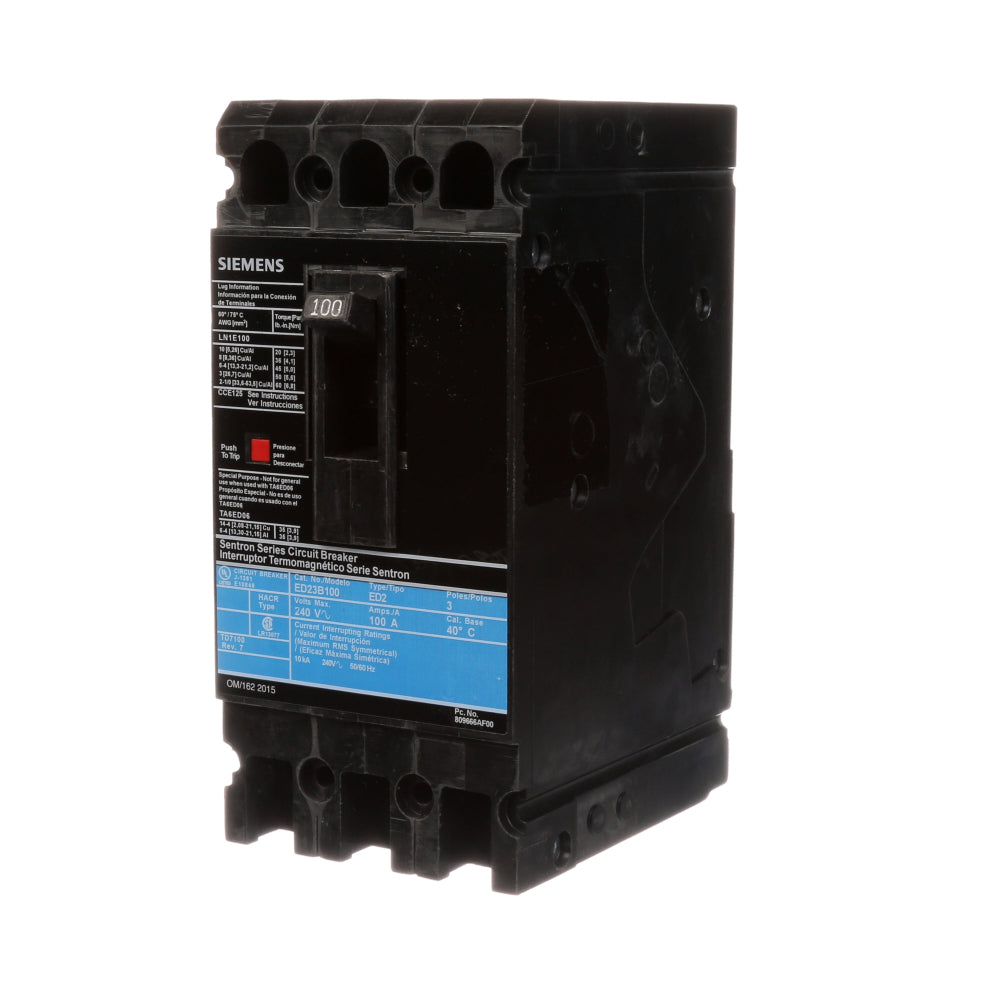

ED23S100A - Siemens 100A 240V 3 Pole Bolt-On Circuit Breaker ED Frame 10kAIC

ED23S100A

ED23S100A is a Siemens 100A, 240V, 3 pole bolt-on molded case circuit breaker designed for reliable power distribution in commercial and industrial applications. This breaker features the ED frame and is rated for 10,000A interrupting capacity at 240V AC, making it suitable for standard load protection. The ED23S100A is a thermal magnetic switch-only breaker with bolt-on mounting, non-interchangeable trip, and is intended for use in compatible Siemens panels. It does not provide overcurrent protection and is classified as a molded case switch.

• Part Number: ED23S100A
• Manufacturer: Siemens
• Amperage: 100A
• Voltage: 240V AC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 10,000A @ 240V AC
• Frame Type: ED
• Trip Unit: Thermal Magnetic, Switch Only
• Overcurrent Protection: None
• Wire Size: #10 AWG to 1/0 AWG (with lug kit LN1E100)
• Standards: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: ED23S100A
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 240
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : NA - No Overcurrent Protection
• Frame Size : ED Frame
• Protection : Non-Automatic

Product Data

• UPC : 783643211018
• GTIN : 00783643211018
• Country of Origin : Mexico
• Weight : 3.801
• Wire Size : 10 AWG to 1/0 AWG, CU/AL
