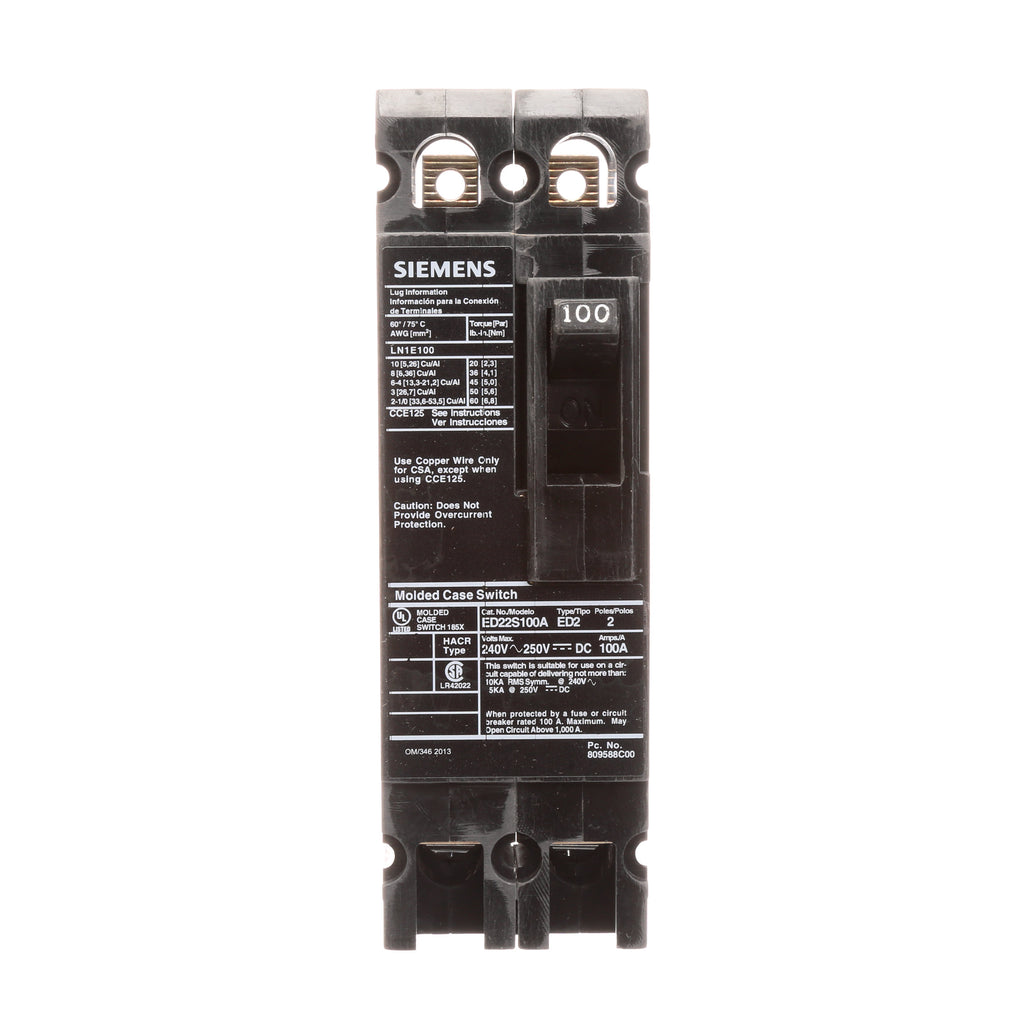

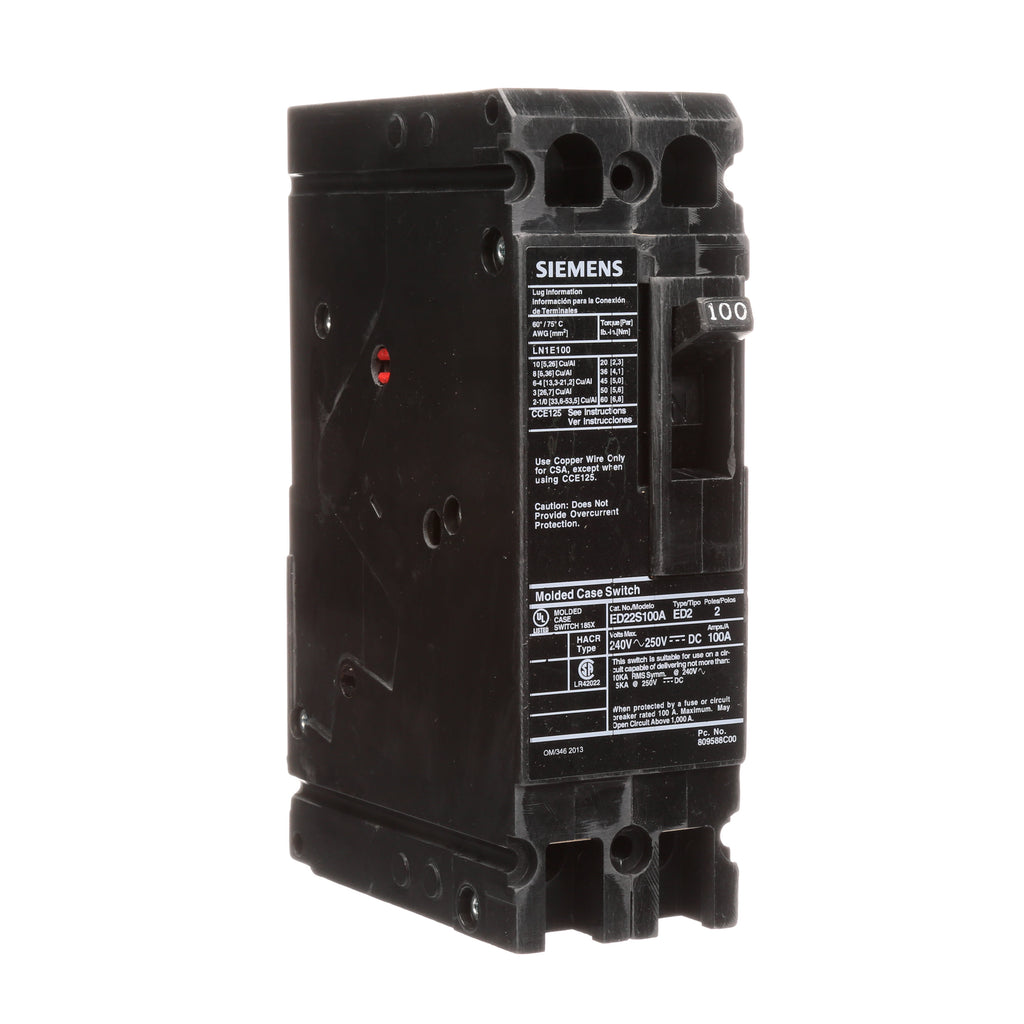

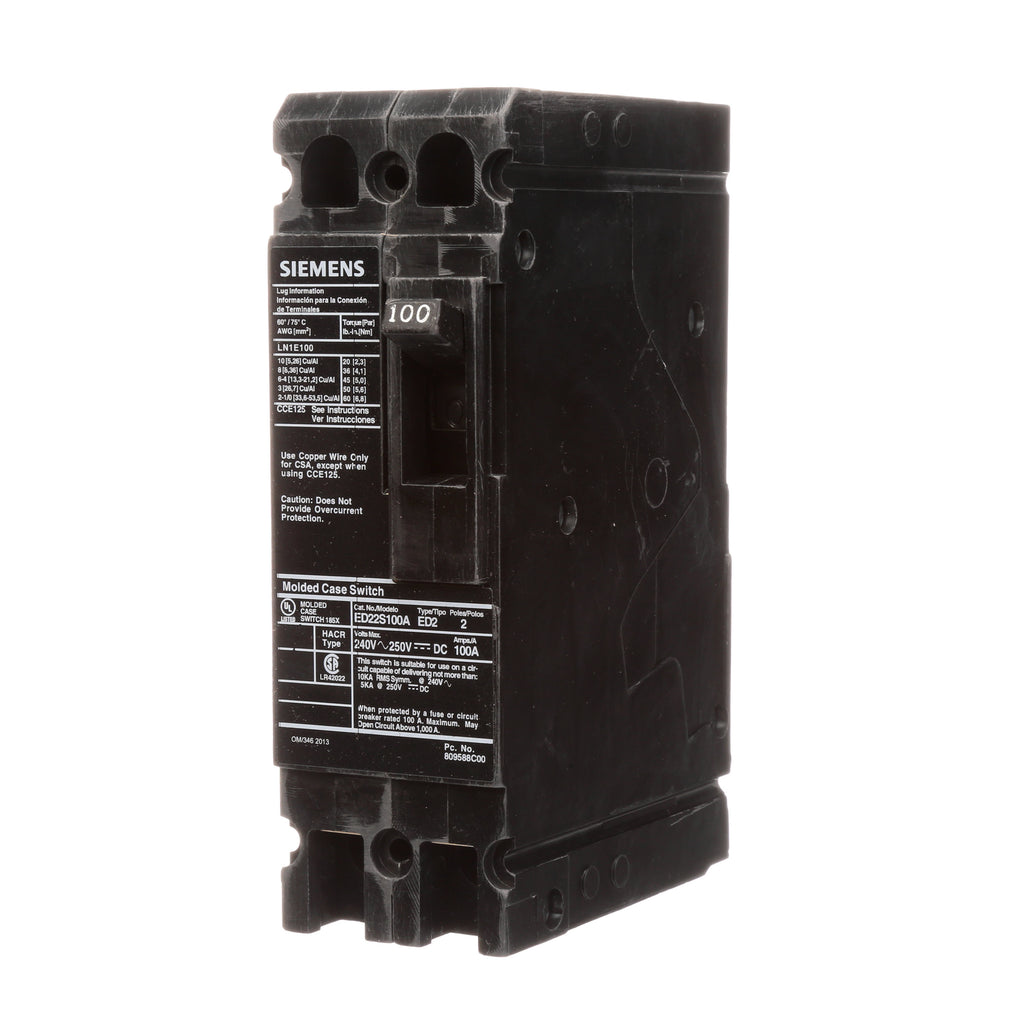

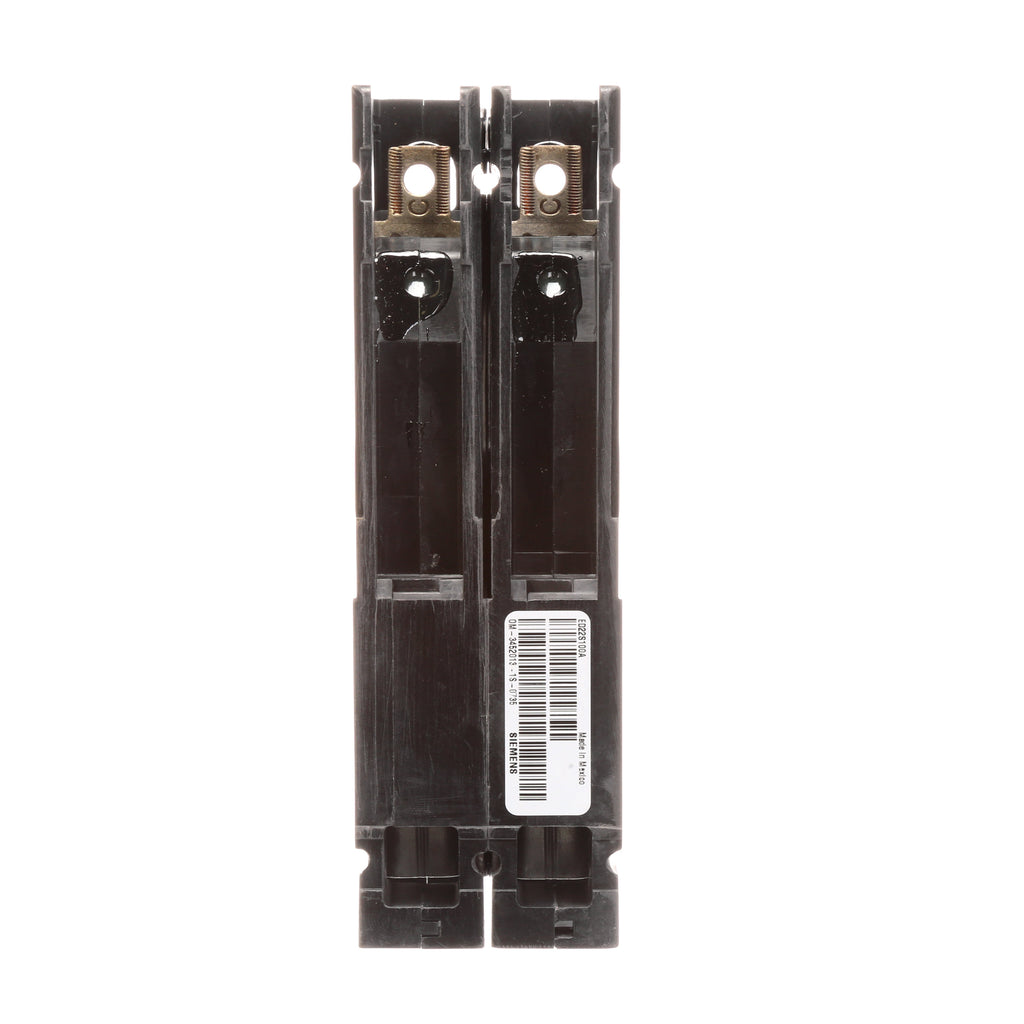

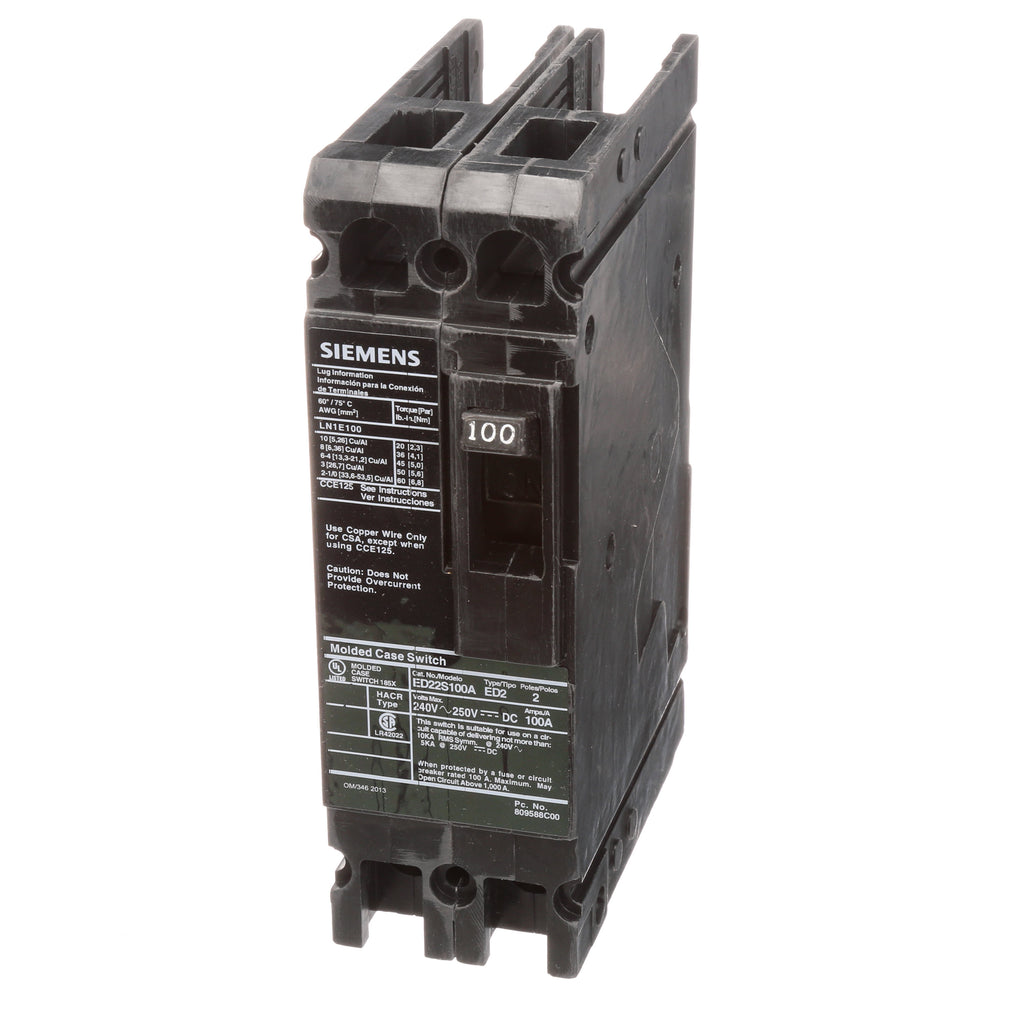

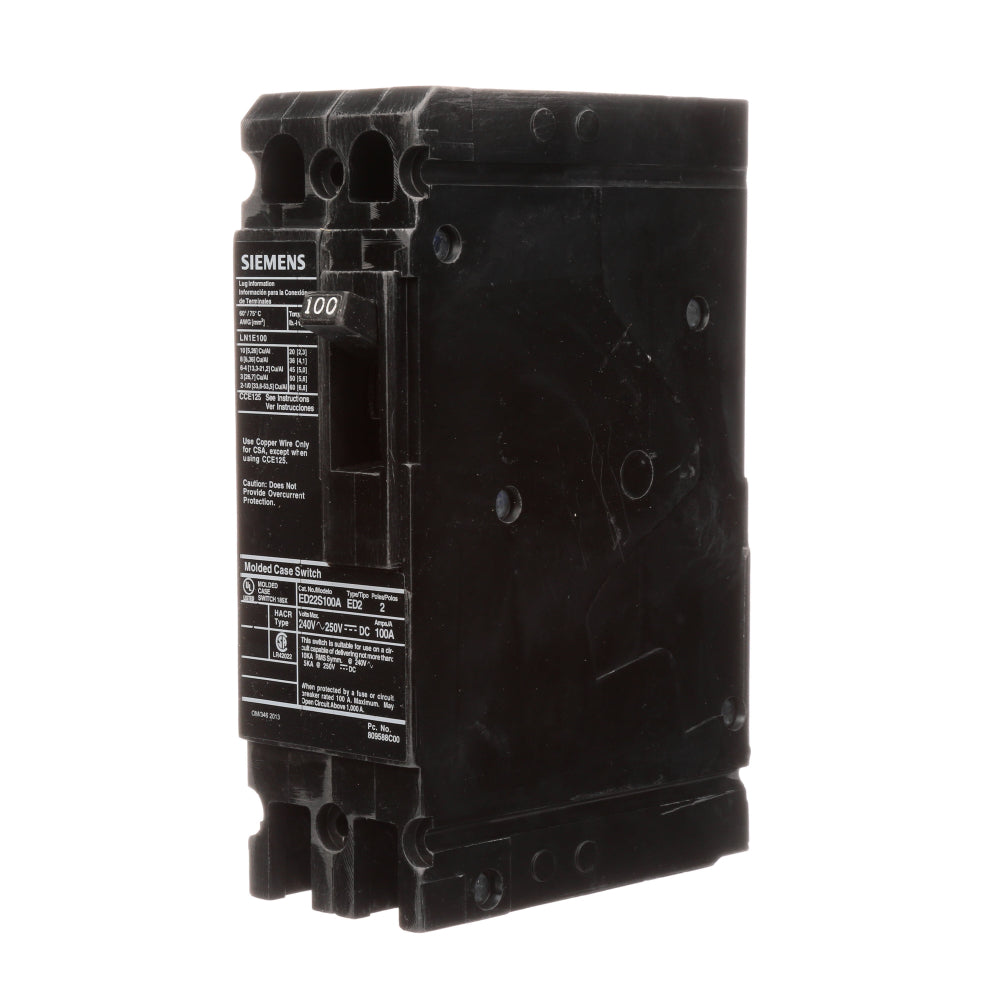

ED22S100A - Siemens 100A 240V 2 Pole Molded Case Circuit Breaker ED Frame

ED22S100A

ED22S100A is a Siemens molded case circuit breaker designed for reliable electrical protection in commercial and industrial applications. This 2-pole breaker features a 100A amperage rating, 240V AC voltage rating, and is built on the ED2 frame for robust performance. It is a bolt-on type with a 10kA interrupt rating at 240V, suitable for standard load center installations. Engineered for durability and safety, the ED22S100A includes a self-protective instantaneous override and non-interchangeable trip unit. It is UL listed and meets industry standards for molded case switches. The breaker is ideal for use in panelboards and switchgear where dependable circuit protection is required.

• Part Number: ED22S100A
• Manufacturer: Siemens
• Amperage Rating: 100A
• Voltage Rating: 240V AC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA @ 240V
• Series/Frame: ED2
• Function: Molded Case Switch (No Overcurrent Protection)
• Trip Unit: Non-Interchangeable
• Standards: UL Listed
• Self-Protective Instantaneous Override

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs are not included

Specifications

• Part Number: ED22S100A
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : No Overcurrent Protection
• Frame Size : ED Frame
• Protection : Non-Automatic

Product Data

• UPC : 783643211001
• GTIN : 00783643211001
• Country of Origin : Mexico
• Weight : 2.701
• Wire Size : AWG 10 to AWG 1/0, Cu/Al
