Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
ED22B090L

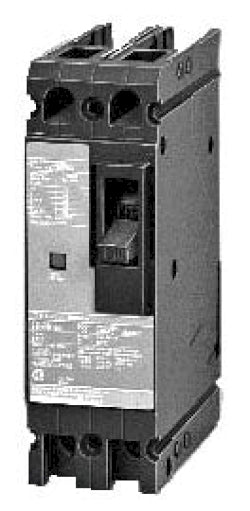

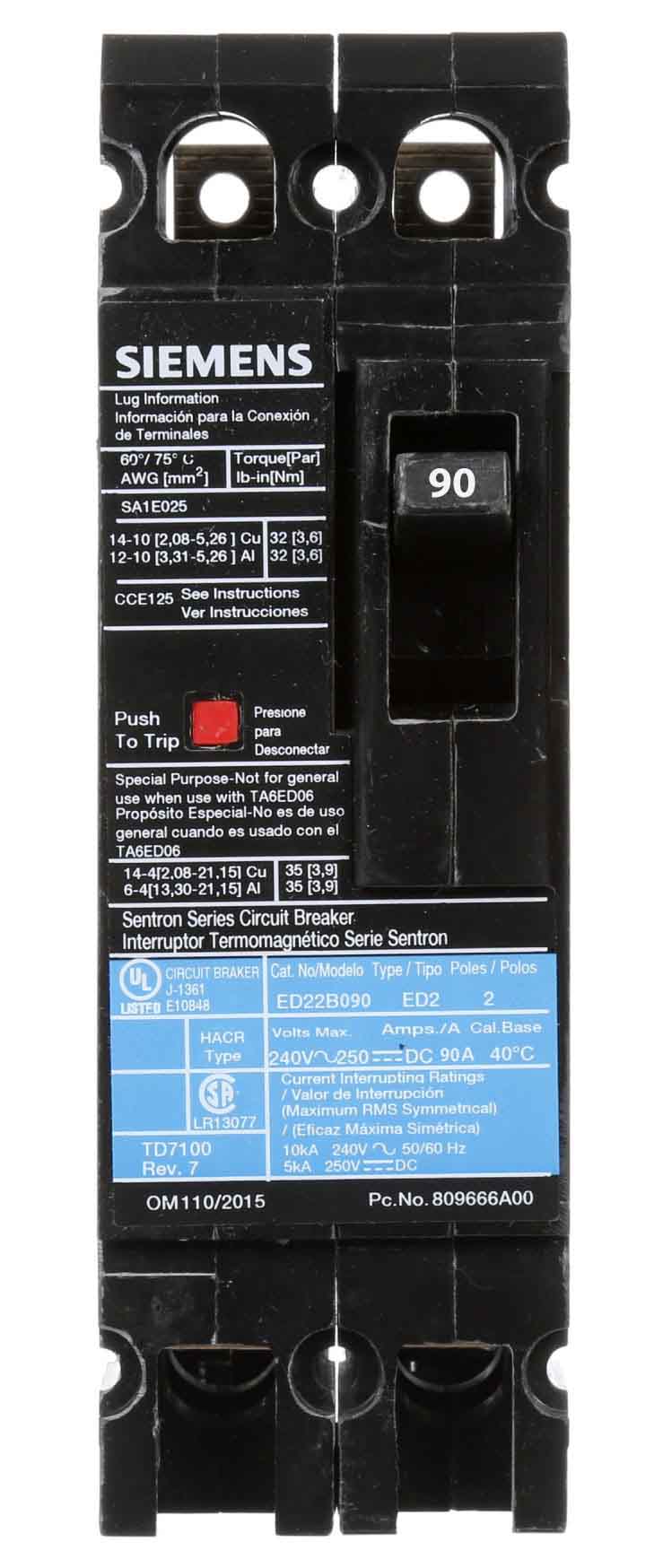

ED22B090L is a Siemens molded case circuit breaker designed for reliable protection in electrical distribution systems. This breaker features a 2-pole configuration and is rated for 90 amperes at 240 volts AC, making it suitable for a wide range of commercial and industrial applications. The ED22B090L is part of the Siemens Sentron series and utilizes a thermal magnetic trip unit for precise overcurrent and short-circuit protection. It is designed for bolt-on mounting and offers an interrupting rating of 10,000 amperes at 240 volts AC, ensuring robust performance under fault conditions.
- Part Number: ED22B090L
- Manufacturer: Siemens
- Series: Sentron
- Type: Molded Case Circuit Breaker
- Poles: 2
- Amperage: 90A
- Voltage: 240V AC
- Mounting: Bolt-On
- Interrupt Rating: 10,000A at 240V AC
- Trip Unit: Thermal Magnetic
- Phase: 1
- Connection: Lugs
Specifications
- Part Number: ED22B090L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : ED
- Voltage : 240
- Amperage : 90
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : ED Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643089815
- GTIN : 00783643089815
- Country of Origin : Mexico
- Dimensions : 5.906 x 6.693 x 2.756 inch
- Weight : 2.712
