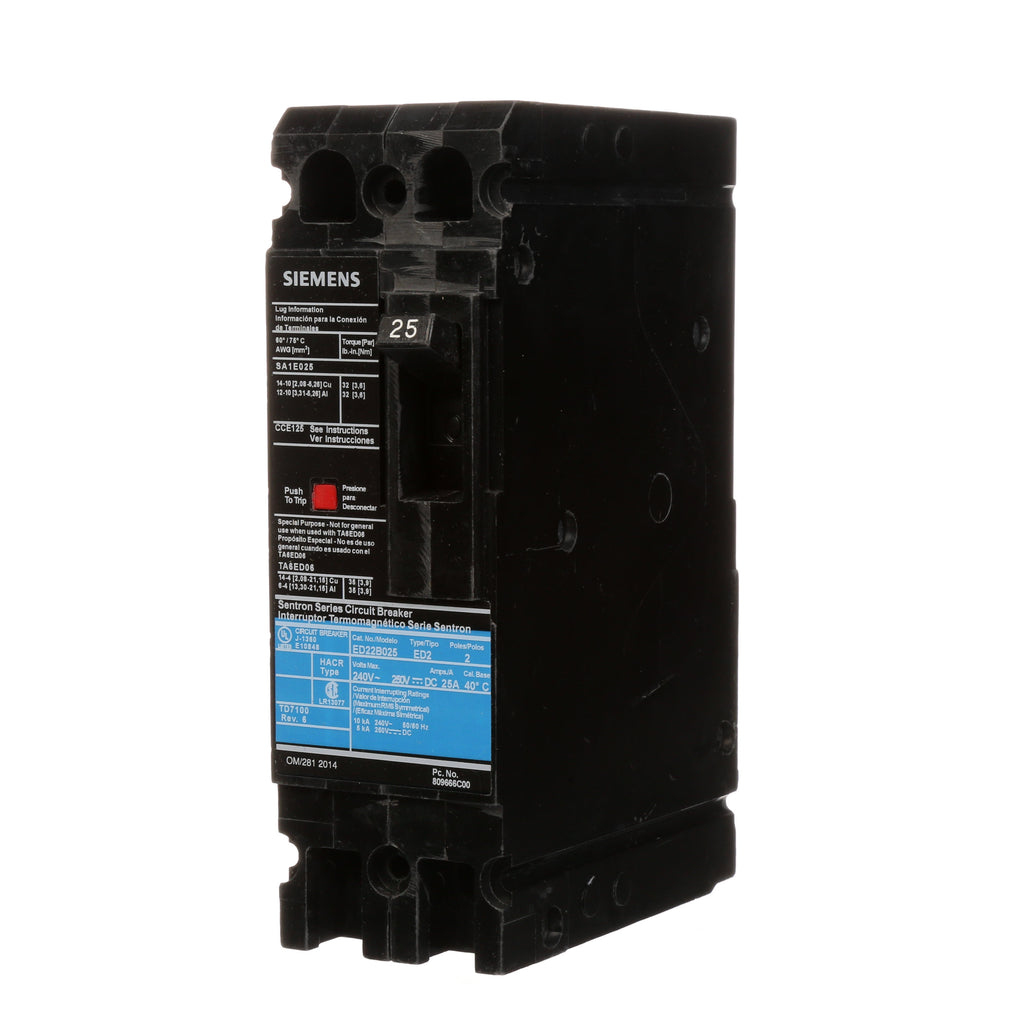

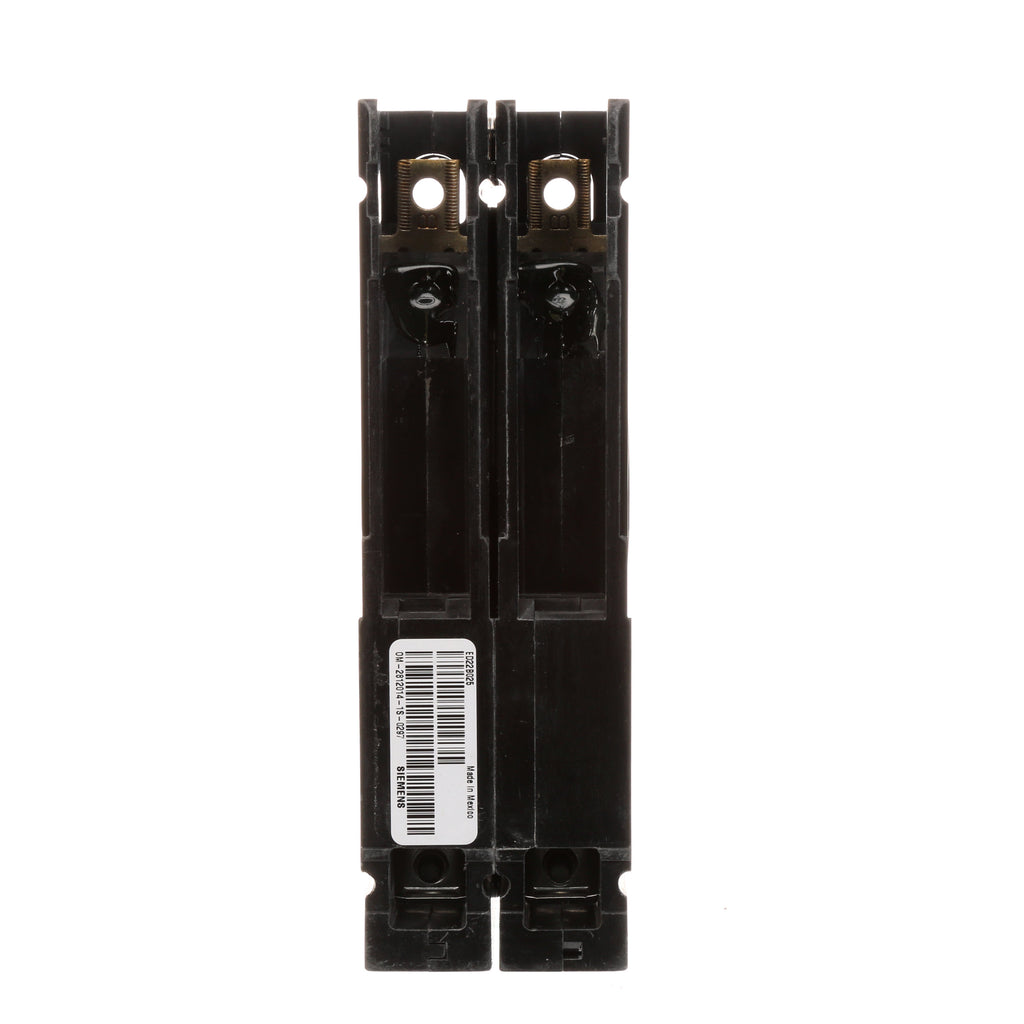

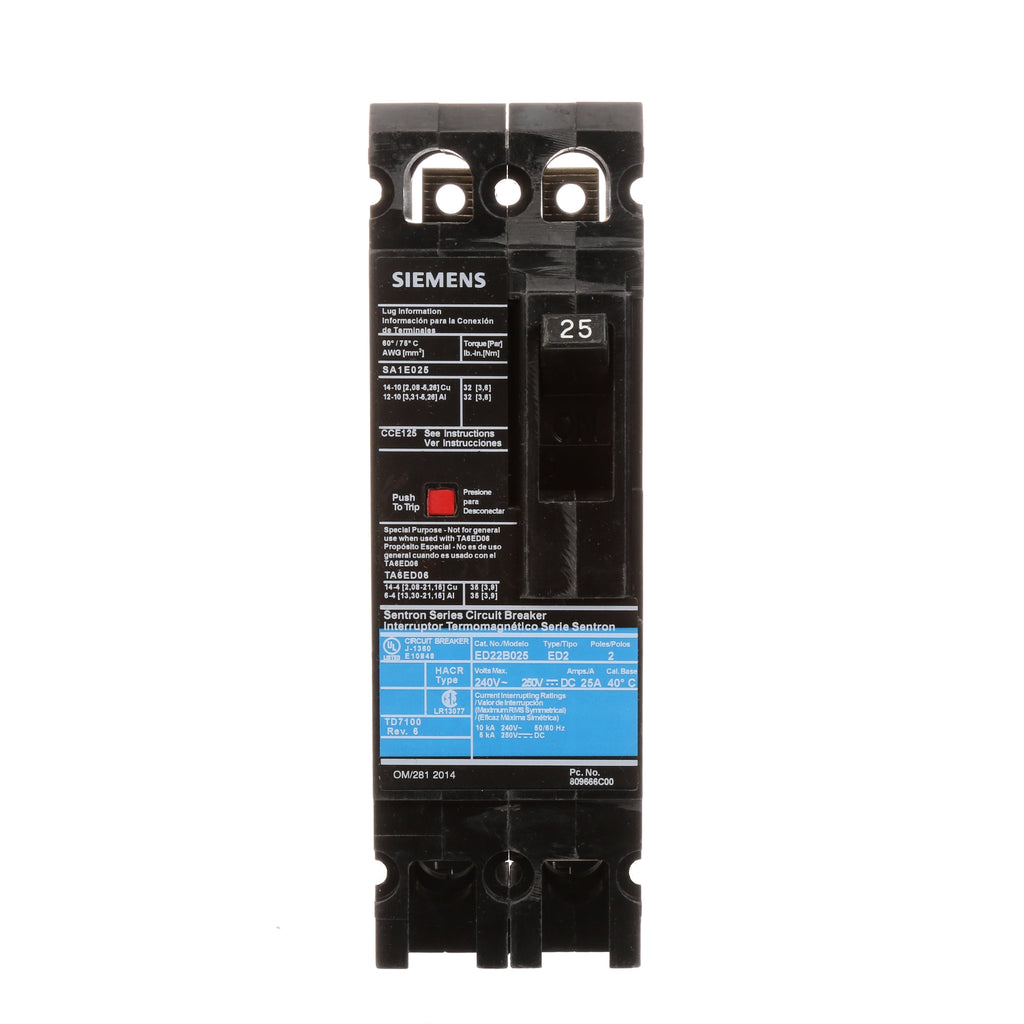

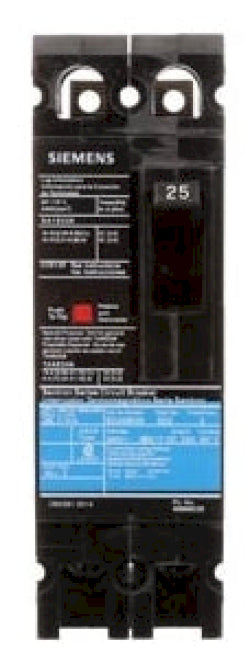

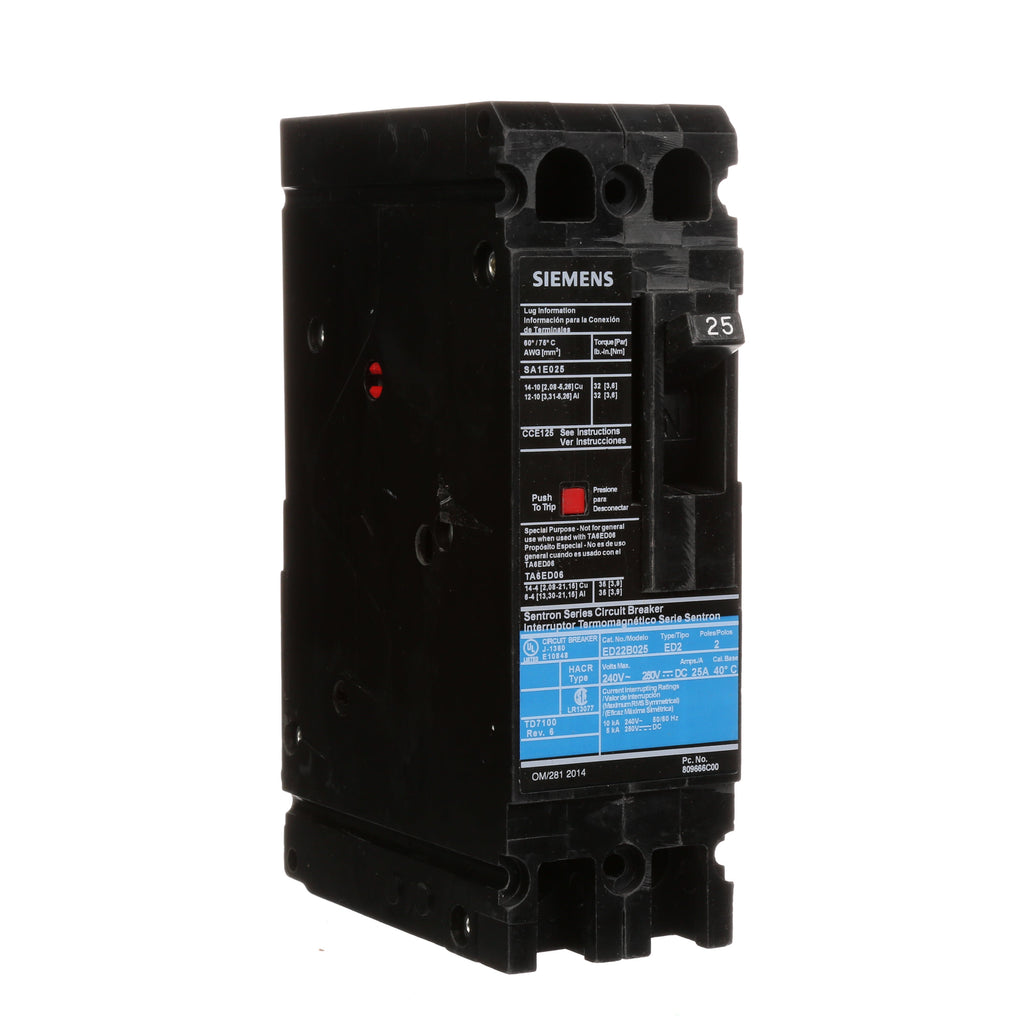

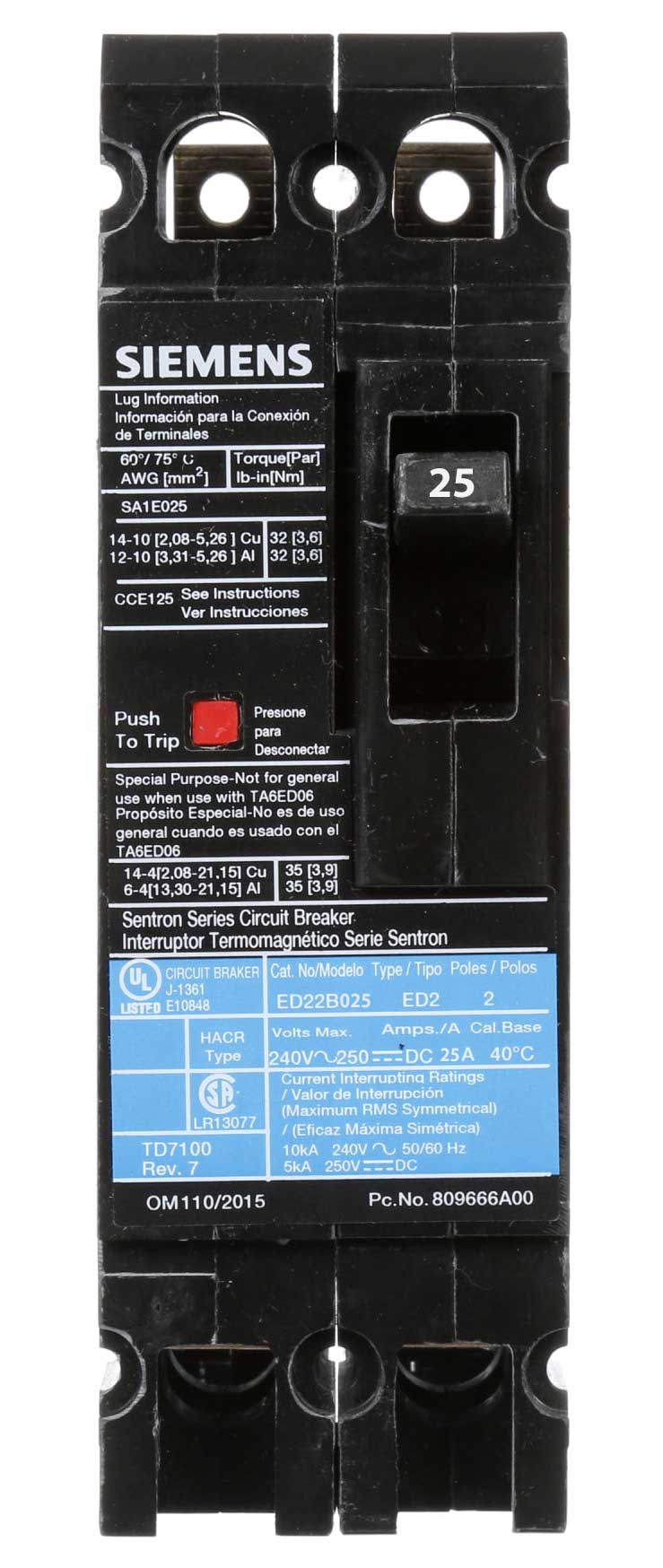

ED22B025 - Siemens 25 Amp 240V 2 Pole Molded Case Circuit Breaker ED Series 10kA Bolt-On

ED22B025

ED22B025 is a Siemens 2 pole molded case circuit breaker with a 25 ampere rating and 240 VAC voltage rating designed for reliable circuit protection.This Siemens ED Series breaker features a thermal magnetic trip unit, a 10kA interrupting rating at 240V AC, and bolt-on mounting for secure installation. It is suitable for use in SB switchboards and Sentron panelboards, providing dependable overload and short circuit protection.

• Amperage: 25 Amps
• Voltage: 240 VAC
• Poles: 2
• Interrupt Rating: 10kA at 240V AC
• Series/Frame: ED
• Trip Unit: Thermal Magnetic
• Mounting Type: Bolt-On
• Certifications: UL Listed
• Application: SB Switchboards, Sentron Panelboards
• Dimensions: Approx. 3" L x 7" W x 6" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED22B025
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 240
• Amperage : 25
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Any

Product Data

• UPC : 783643208858
• GTIN : 00783643208858
• Country of Origin : Mexico
• Dimensions : 2 in x 6.34 in
• Weight : 2.701
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
• Wire Size : 12 To 10 AWG (Aluminum)
