Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
ED22B090

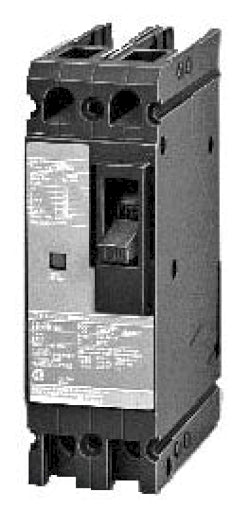

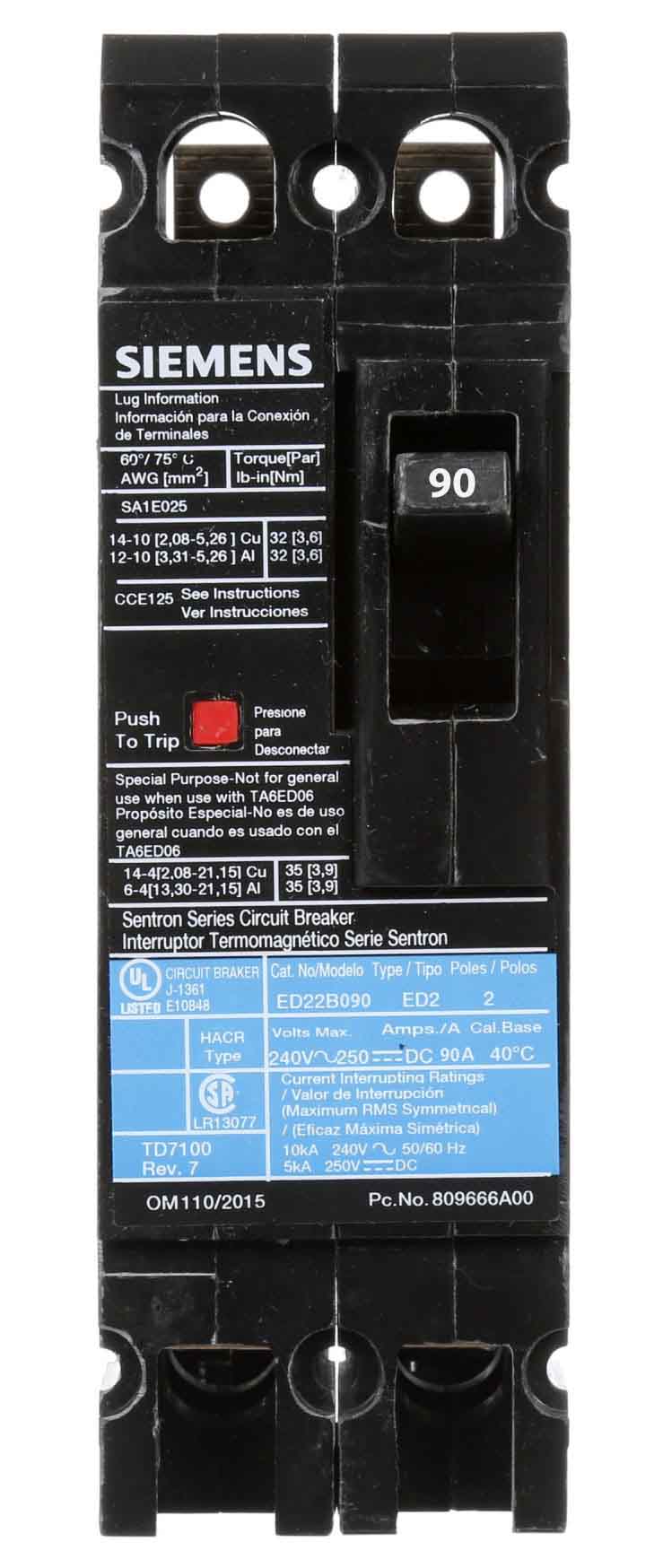

ED22B090 is a Siemens 2-pole molded case circuit breaker rated for 90 amps and 240 volts AC with bolt-on mounting.This Siemens ED frame circuit breaker features a 10kA interrupt rating at 240V, non-interchangeable trip unit, and is designed for single-phase applications. It includes load lug connections and supports wire sizes from 10 to 1/0 AWG copper or aluminum. The breaker is suitable for use in SB switchboards and Sentron panelboards, providing reliable overcurrent protection.
- Amperage: 90A
- Voltage: 240V AC
- Poles: 2
- Frame Type: ED
- Mounting Type: Bolt-On
- Interrupt Rating: 10kA at 240V
- Trip Unit: Non-interchangeable
- Connection: Load Lugs Only
- Wire Range: 10 - 1/0 AWG CU/AL
- Phase: Single-phase
- Certifications: UL Listed
Specifications
- Part Number: ED22B090
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : ED
- Voltage : 240
- Amperage : 90
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Lug In Panelboard
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Load Side Lug
- Frame Size : 125A/ED
- MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : Any
Product Data
- UPC : 783643208940
- GTIN : 00783643208940
- Country of Origin : Mexico
- Weight : 2.661
- Panel Type : SB Switchboards, Sentron Panelboards
- Standards : HACR Rated, UL Listed
- Wire Size : 10 To 1/0 AWG (Aluminum/Copper)
