ED22B080 - Siemens 80A 240V 2-Pole ED Frame Molded Case Circuit Breaker Bolt-On

ED22B080

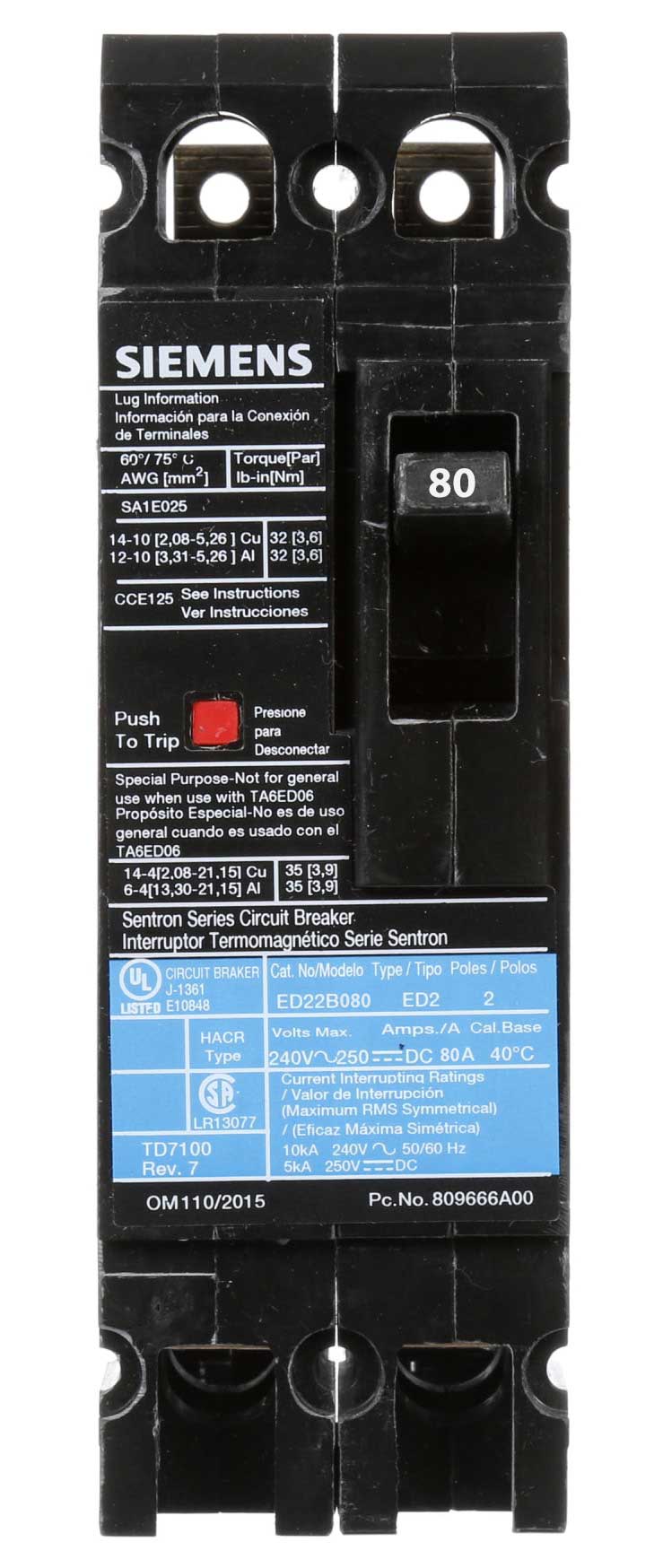

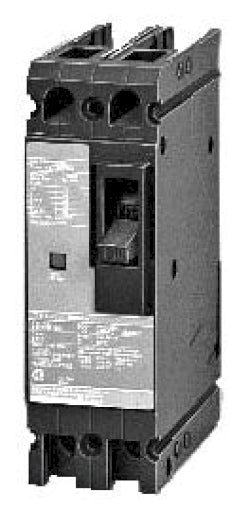

ED22B080 is a Siemens 80 Amp, 240 Volt, 2-pole molded case circuit breaker designed for bolt-on mounting in ED frame applications.This Siemens ED22B080 circuit breaker features a thermal magnetic trip unit providing reliable protection for electrical circuits. It has a 10kA interrupt rating at 240V AC, suitable for use in SB switchboards and Sentron panelboards. The breaker is compact with dimensions approximately 2 inches wide by 6.35 inches high and 3.92 inches deep, weighing about 2.5 lbs.

• Amperage: 80 Amps
• Voltage Rating: 240V AC
• Poles: 2
• Frame Type: ED
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA at 240V AC
• Trip Unit: Thermal Magnetic
• Dimensions: 2" W x 6.35" H x 3.92" D
• Weight: Approx. 2.5 lbs
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED22B080
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 240
• Amperage : 80
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Lug In Panelboard
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Any

Product Data

• UPC : 783643208933
• GTIN : 00783643208933
• Country of Origin : Mexico
• Dimensions : 2 in x 6.34 in
• Weight : 2.599
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
• Wire Size : 10 To 1/0 AWG (Aluminum/Copper)
