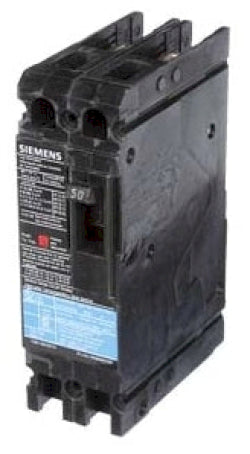

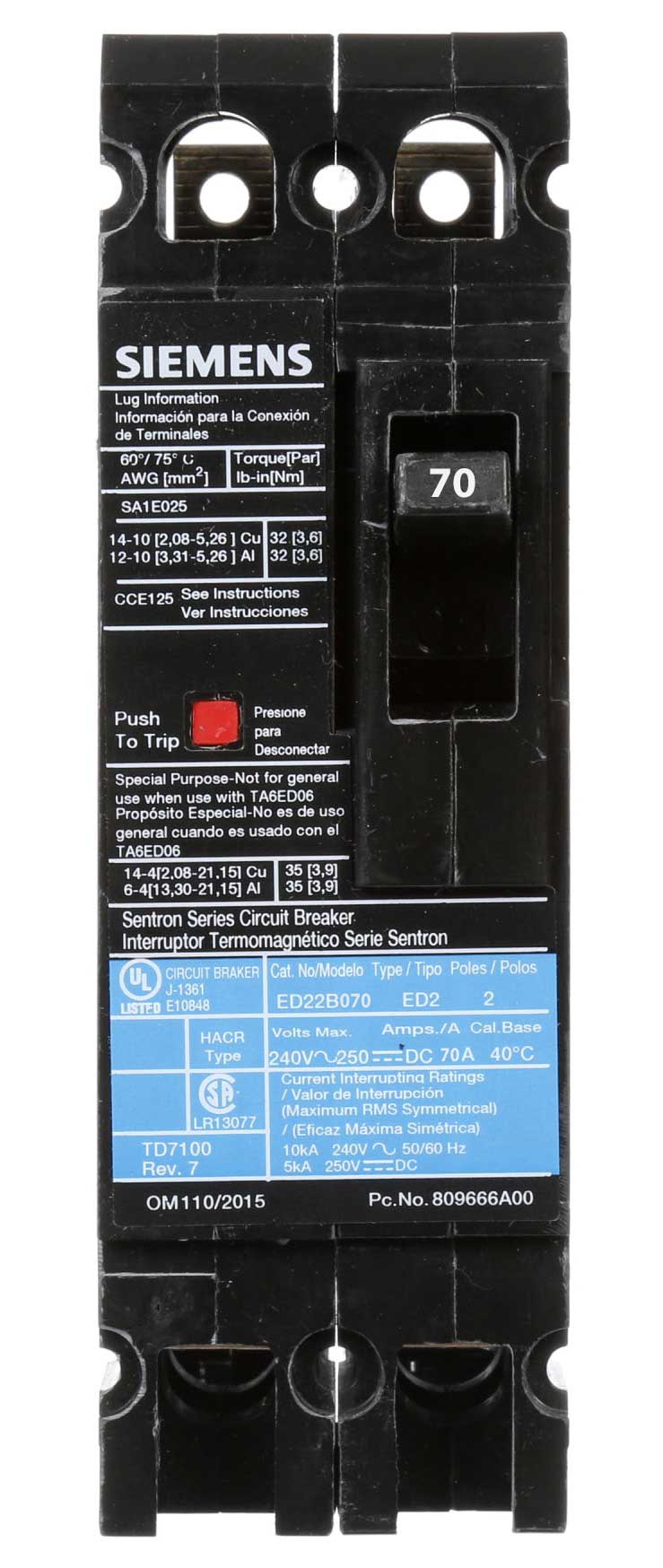

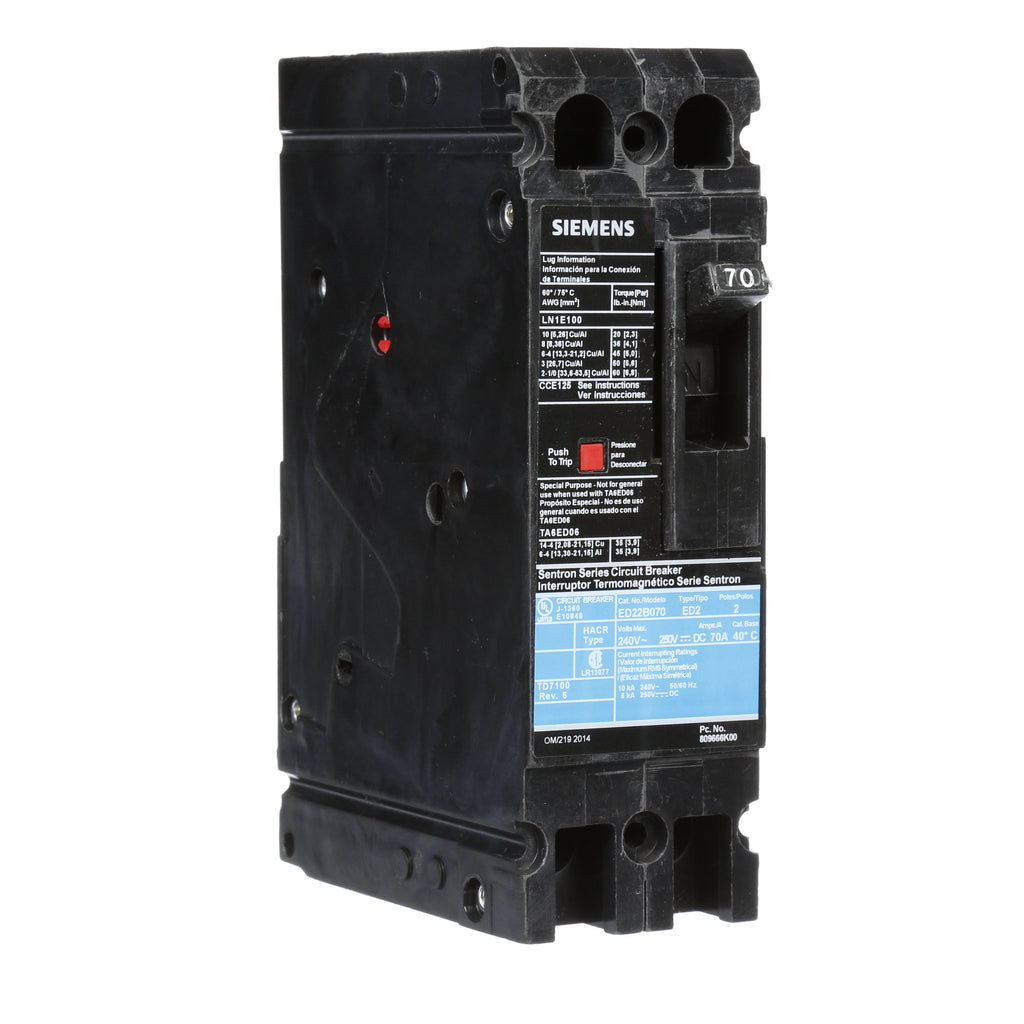

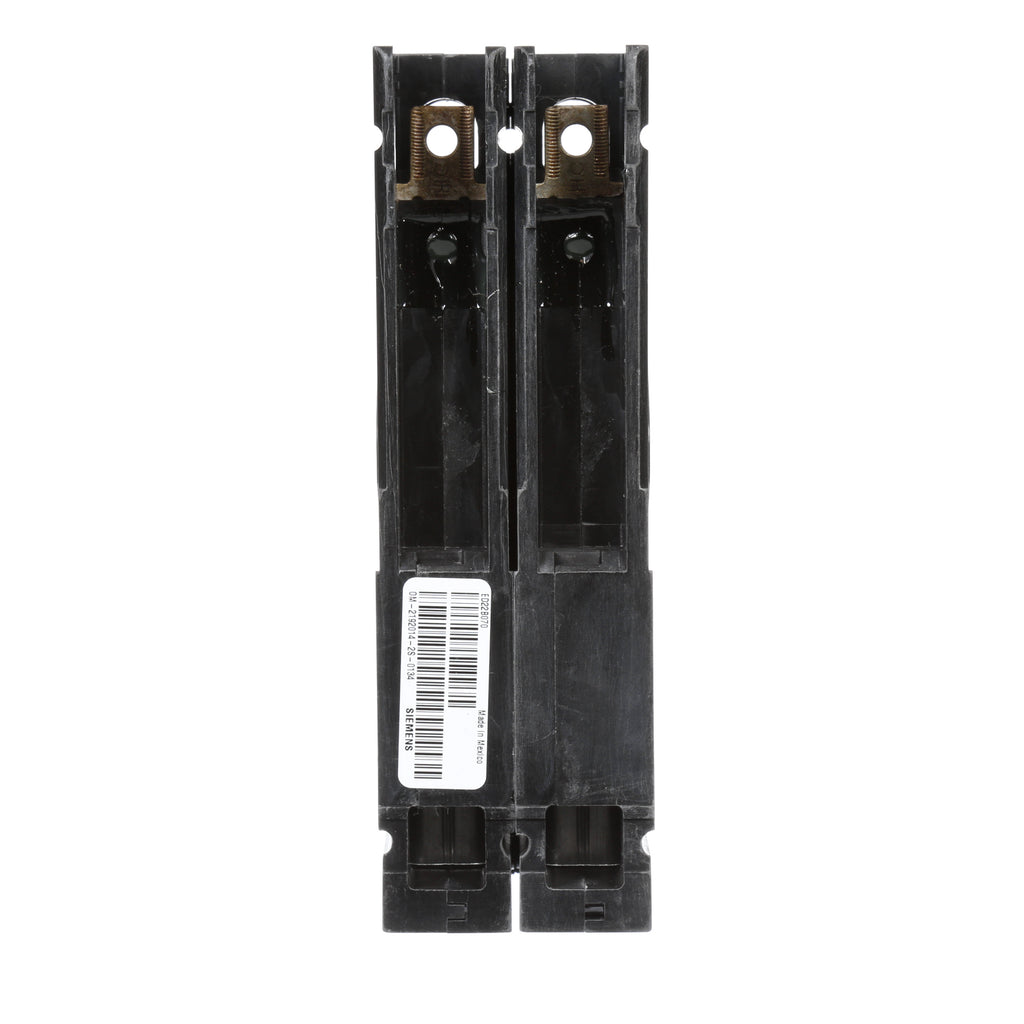

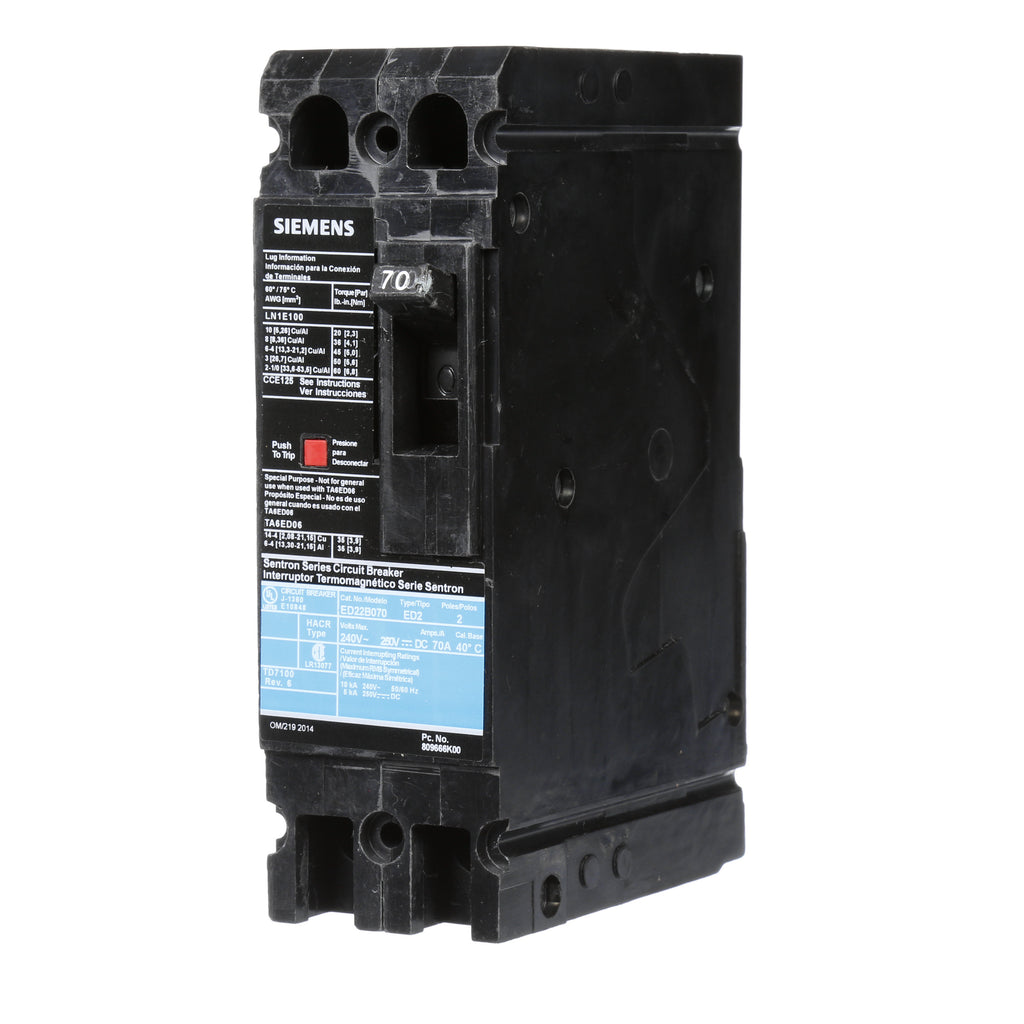

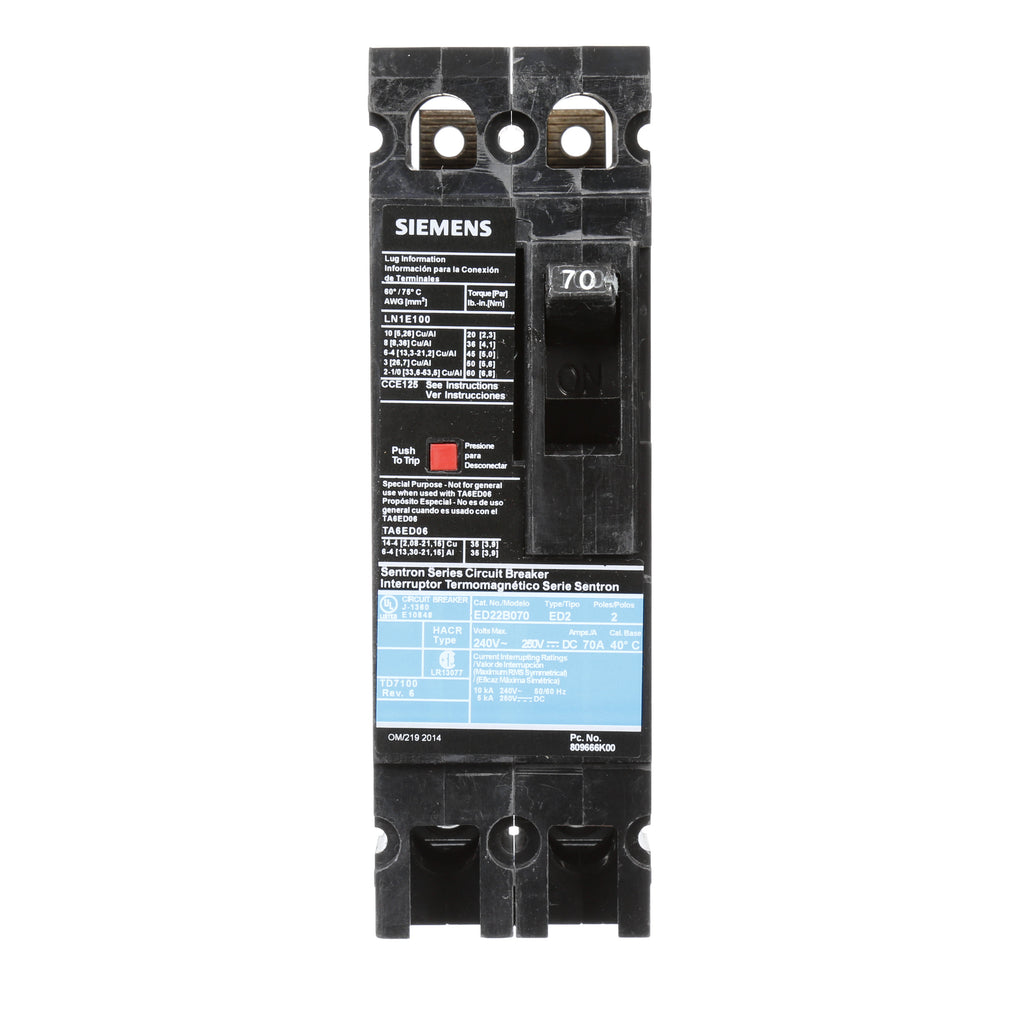

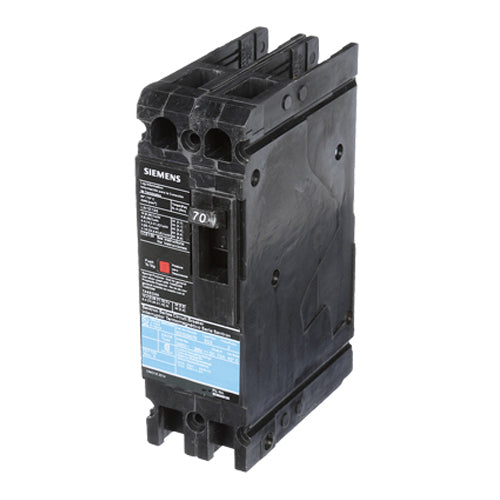

ED22B070 - Siemens 70 Amp 240V 2 Pole Molded Case Circuit Breaker ED Frame Bolt-On

ED22B070

ED22B070 is a Siemens 2 pole molded case circuit breaker rated for 70 amps and 240 volts with bolt-on mounting.This Siemens ED frame circuit breaker features a thermal magnetic trip unit and a 10kA interrupt rating at 240VAC. It meets UL 489 and IEC 60947-2 standards, providing reliable protection for electrical circuits. The breaker is designed for bolt-on mounting and supports lug connections (lugs included on load side, not included on line side).

Key Specifications
• Amperage: 70 Amps
• Voltage: 240 Volts AC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA at 240VAC
• Frame/Series: ED
• Trip Unit: Thermal Magnetic
• Certifications: UL 489, IEC 60947-2
• Connection: Lug (load side included)
• Dimensions: 2" W x 6.35" H x 3.92" D
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: ED22B070
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 240
• Amperage : 70
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Lug In Panelboard
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Any



Product Data

• UPC : 783643208926
• GTIN : 00783643208926
• Country of Origin : Mexico
• Dimensions : 2 in x 6.34 in
• Weight : 2.599
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
• Wire Size : 10 To 1/0 AWG (Aluminum/Copper)
