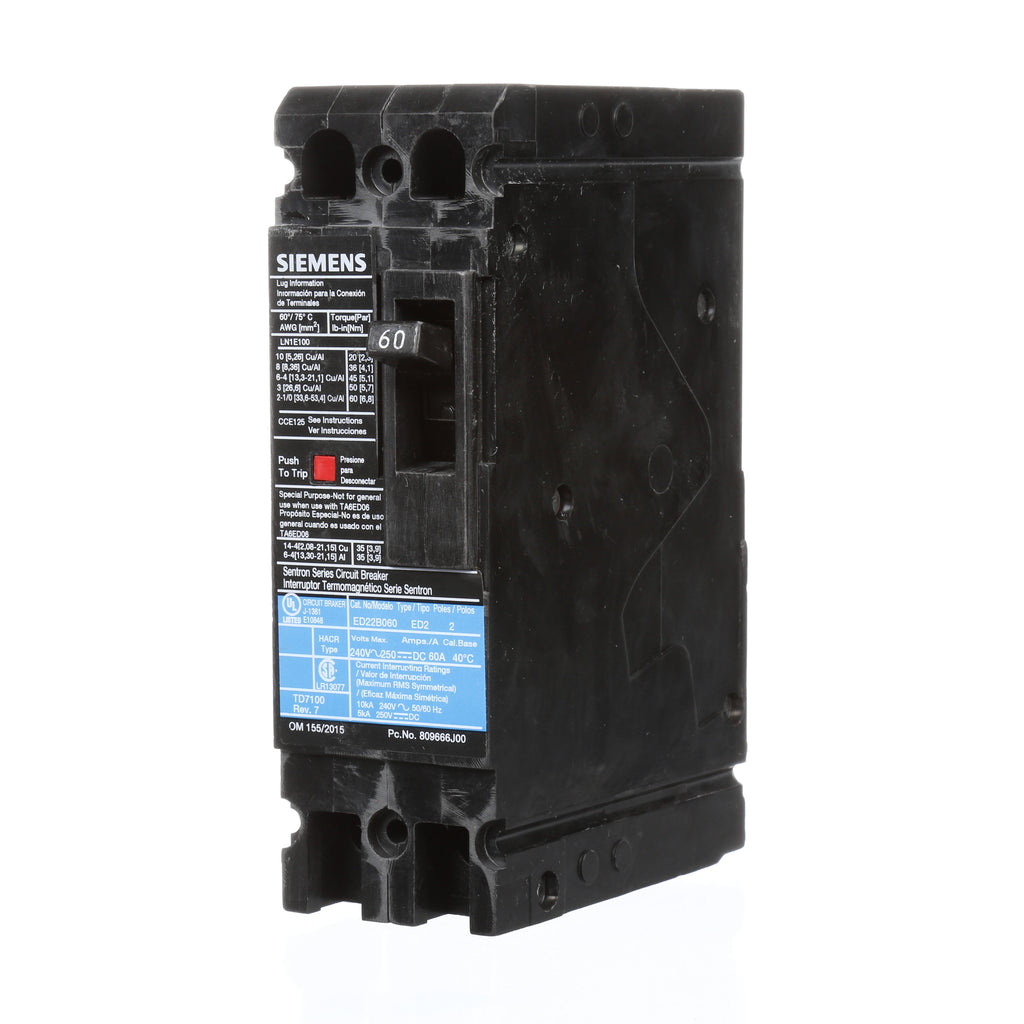

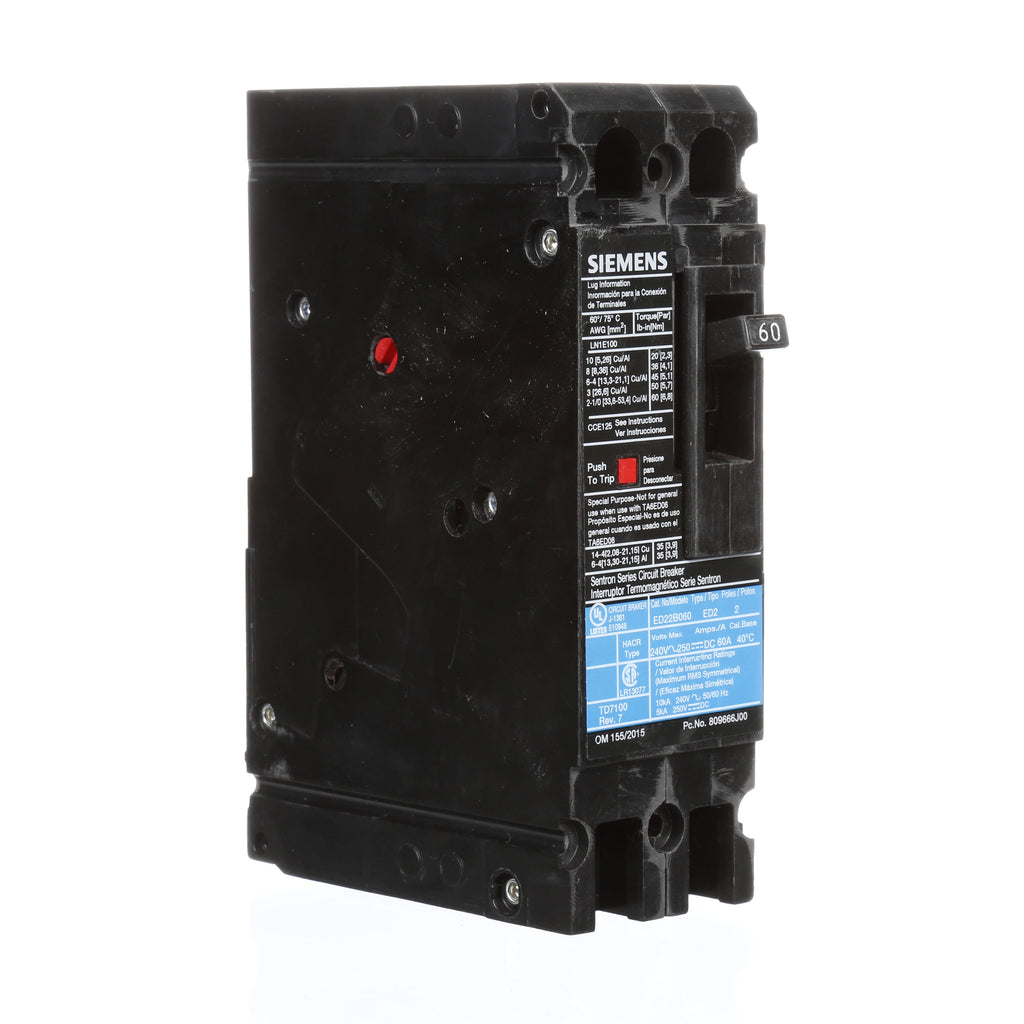

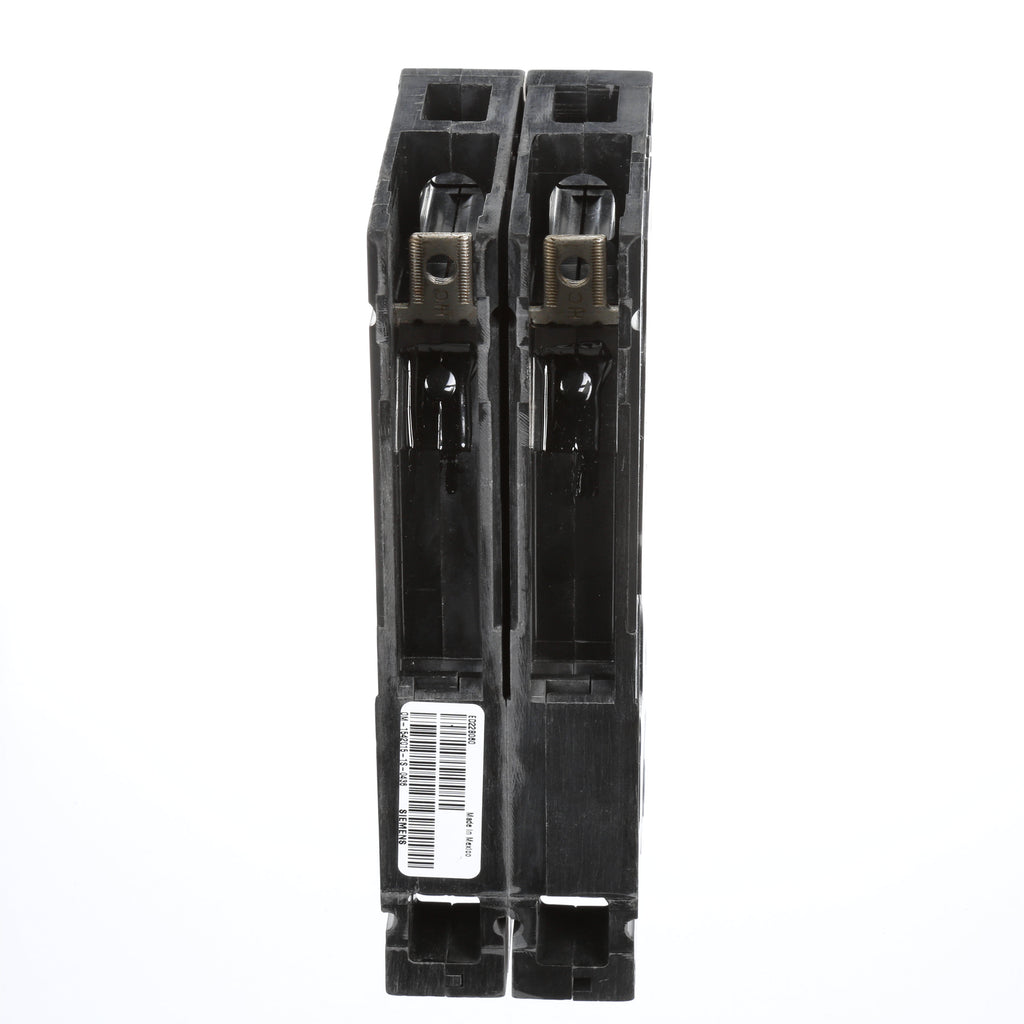

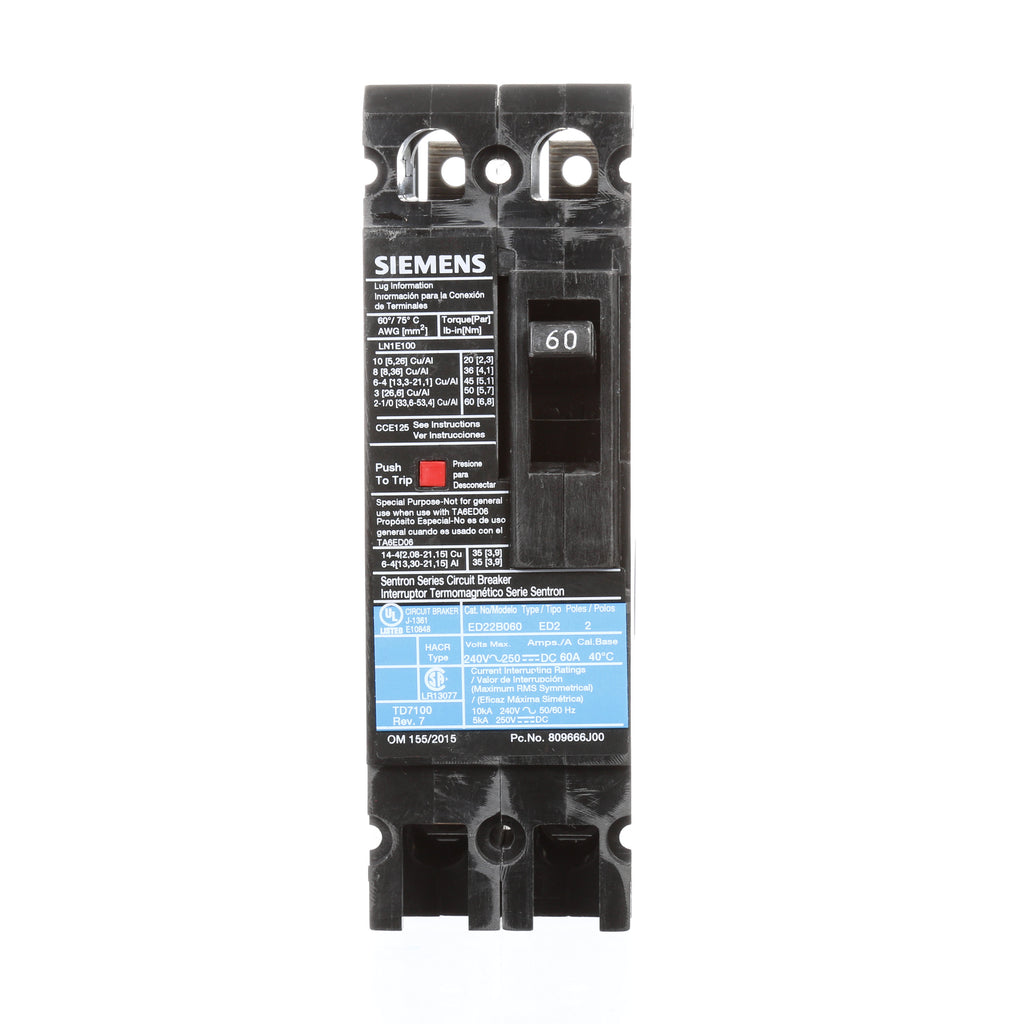

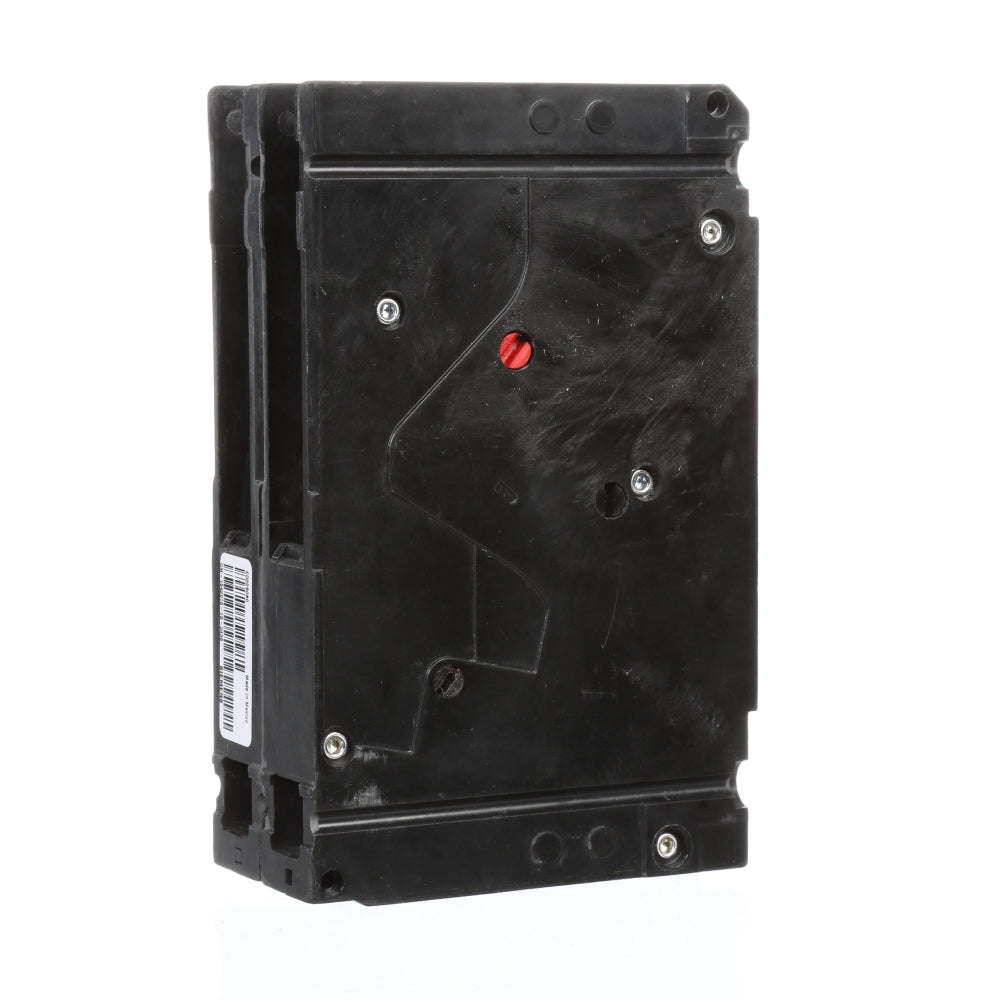

ED22B060 - Siemens 60 Amp 240V 2 Pole Molded Case Circuit Breaker, Sentron ED Series, Bolt-On, 10kA Interrupt, Thermal Magnetic Trip, UL/CSA/CE

ED22B060

ED22B060 is a Siemens 2-pole molded case circuit breaker designed for reliable protection in 240V electrical systems.

This thermal magnetic circuit breaker features long-time and instantaneous (LI) trip functions, bolt-on mounting, and is part of the Sentron ED series. It is certified for safety and performance to UL, CSA, and CE standards, making it suitable for a wide range of commercial and industrial applications.

Key Specifications
• Amperage: 60A
• Voltage: 240V
• Poles: 2
• Mounting Type: Bolt-on
• Interrupt Rating: 10kA at 240V
• Series/Frame: Sentron ED
• Trip Unit: Thermal magnetic, LI (long-time and instantaneous)
• Certifications: UL, CSA, CE
• Connection: Load side lug terminals included
• Temperature Rating: 40°C
• Dimensions: 6.35" x 2" x 3.92"
• Weight: 2.5 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ED22B060
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 240
• Amperage : 60
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Lug In Panelboard
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Any

Product Data

• UPC : 783643208919
• GTIN : 00783643208919
• Country of Origin : Mexico
• Dimensions : 2 in x 6.34 in
• Weight : 2.551
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
• Wire Size : 10 To 1/0 AWG (Aluminum/Copper)
