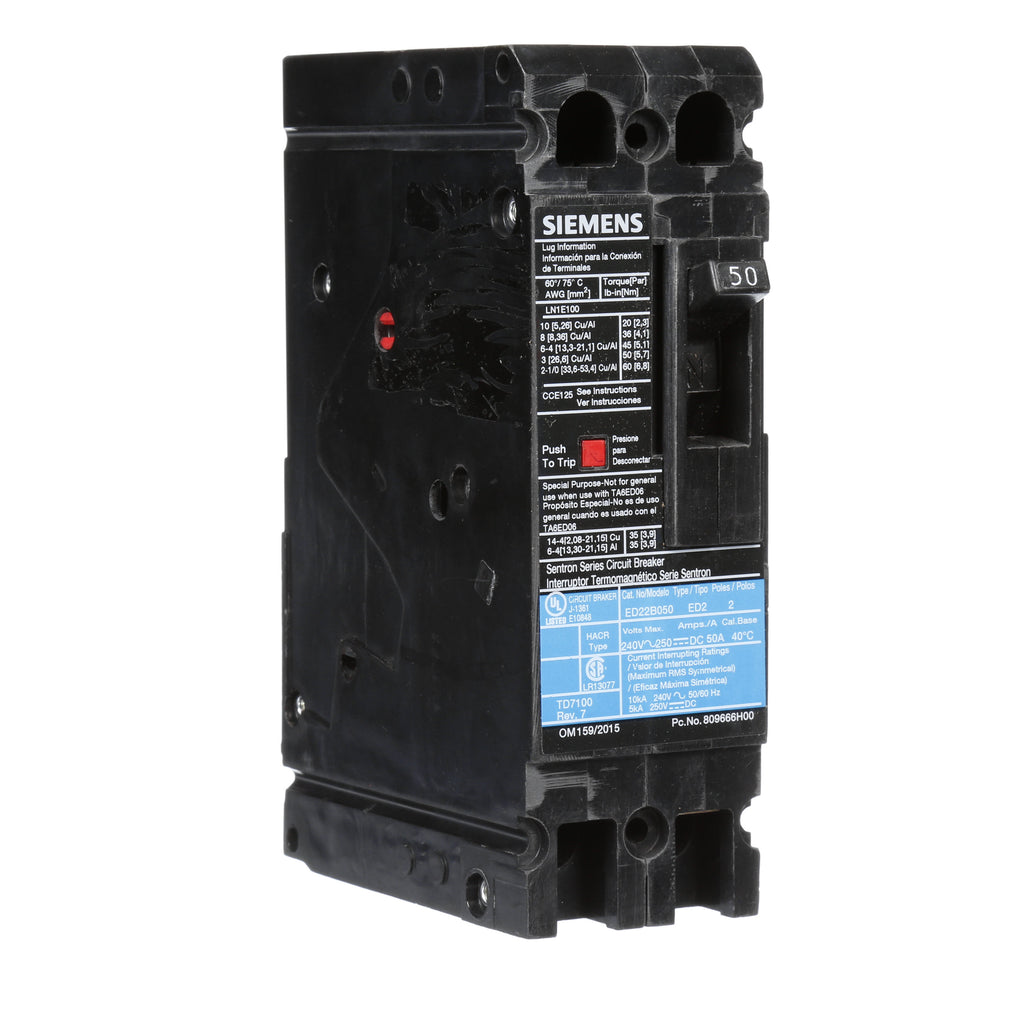

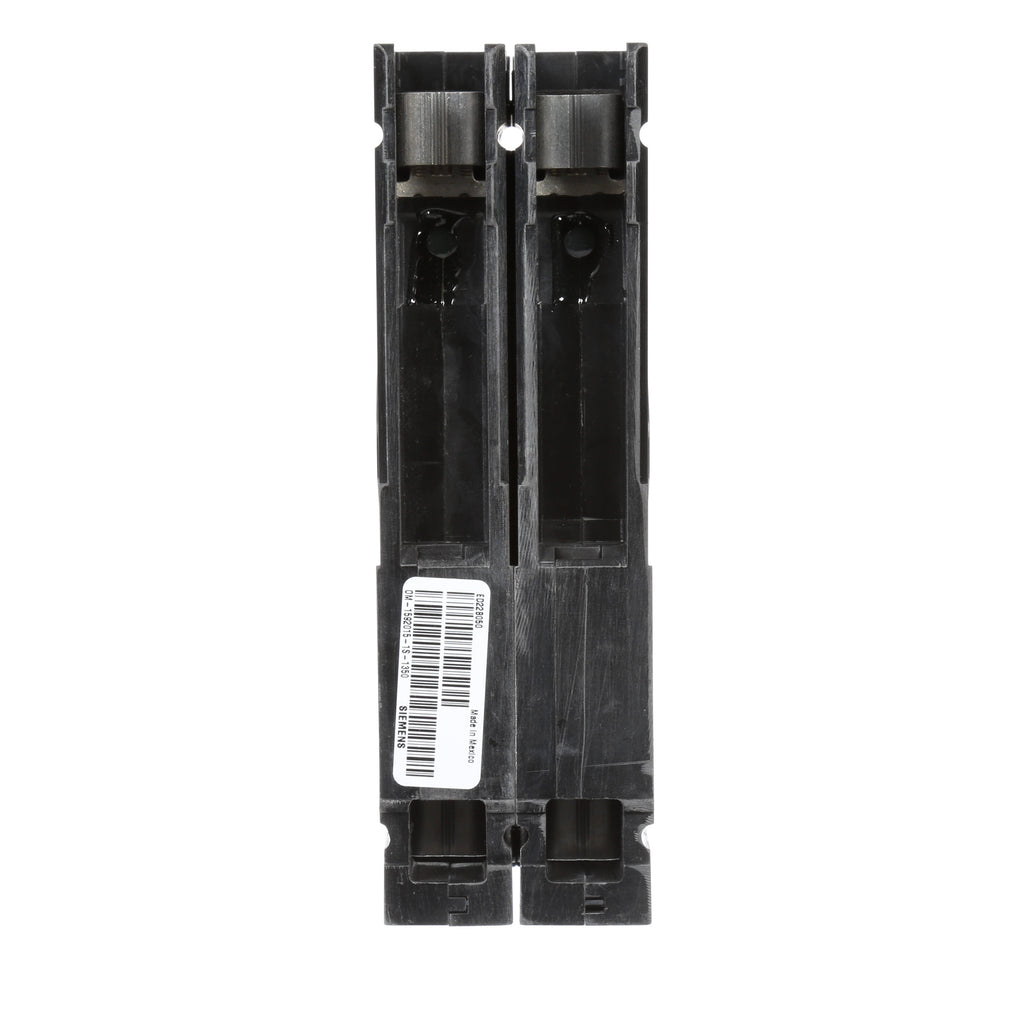

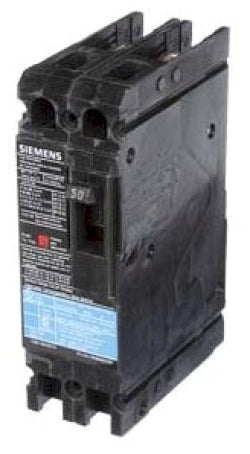

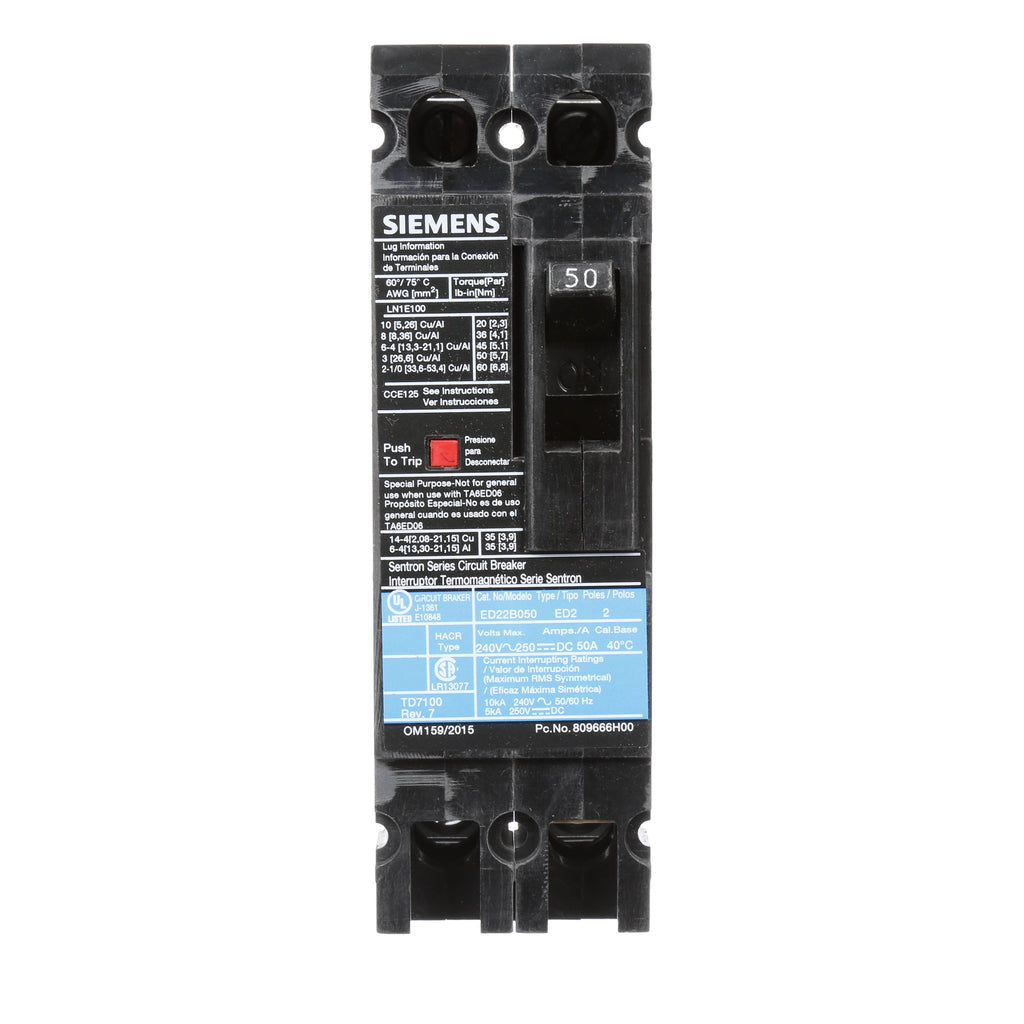

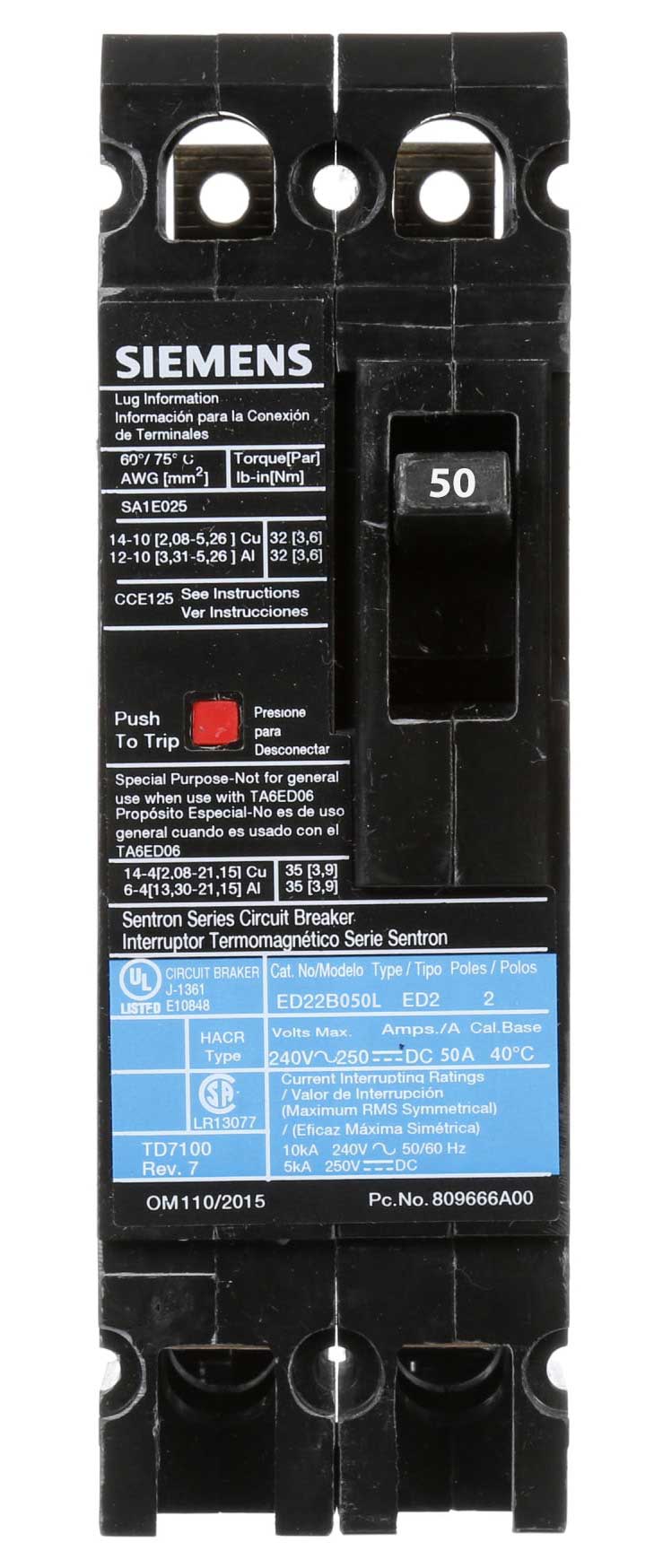

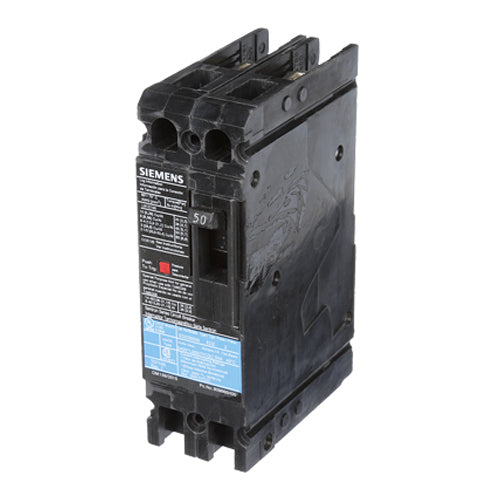

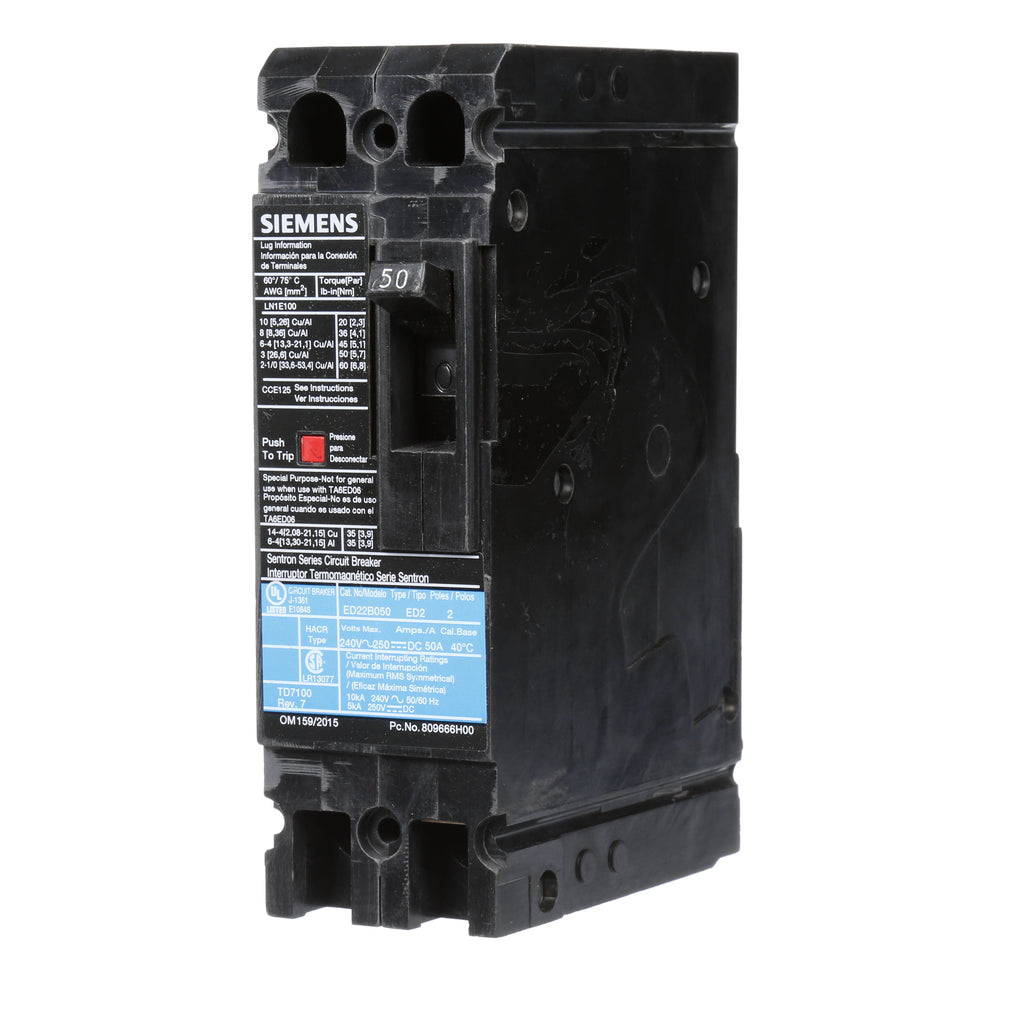

ED22B050 - Siemens 50A 240V 2-Pole Molded Case Circuit Breaker ED Series Thermal Magnetic

ED22B050

ED22B050 is a Siemens 2-pole molded case circuit breaker with a 50 amp rating designed for low voltage applications.ED22B050 features a 240 VAC voltage rating, thermal magnetic trip unit, and a 10 kA interrupt rating. It is part of the Siemens ED series frame and mounts with a bolt-on connection. This breaker meets UL 489 and IEC 60947-2 standards and supports wire sizes from 10 to 1/0 AWG with optional load lugs.

Key Specifications
• Amperage: 50 A
• Voltage: 240 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kA at 240 VAC
• Series/Frame: ED
• Trip Unit: Thermal Magnetic
• Wire Range: 10 - 1/0 AWG (CU)
• Certifications: UL 489, IEC 60947-2
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: ED22B050
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : ED
• Voltage : 240
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Lug In Panelboard
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Any



Product Data

• UPC : 783643208902
• GTIN : 00783643208902
• Country of Origin : Mexico
• Dimensions : 2 in x 6.34 in
• Weight : 2.61
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
