Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

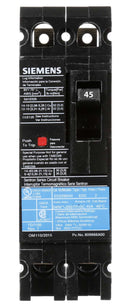

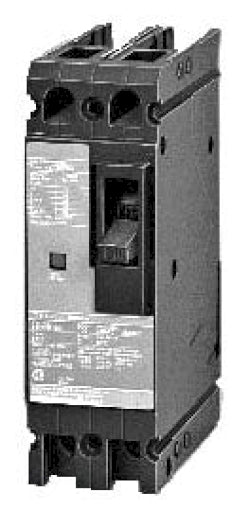

ED22B045
ED22B045 is a Siemens 2-pole, 45 amp, 240 Volt thermal magnetic circuit breaker designed for reliable circuit protection.ED22B045 features a bolt-on mounting type with a 10kA interrupting rating at 240V, part of the ED frame series. It includes a non-interchangeable trip unit and is rated for 40 degree C operation, suitable for panelboard applications requiring robust circuit interruption.
- Key Specifications
- Amperage: 45 Amps
- Voltage: 240 Volts AC
- Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 10kA at 240V
- Series/Frame: ED
- Trip Unit: Thermal Magnetic, Non-Interchangeable
- Operating Temperature: 40°C
- Certifications: UL Listed, CSA Certified (typical for Siemens breakers)
Specifications
- Part Number: ED22B045
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : ED
- Voltage : 240
- Amperage : 45
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Lug In Panelboard
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Load Side Lug
- Frame Size : 125A/ED
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : Any
Product Data
- UPC : 783643208896
- GTIN : 00783643208896
- Country of Origin : Mexico
- Weight : 2.701
- Panel Type : SB Switchboards, Sentron Panelboards
- Standards : HACR Rated, UL Listed
